SCHNEIDER ELECTRIC

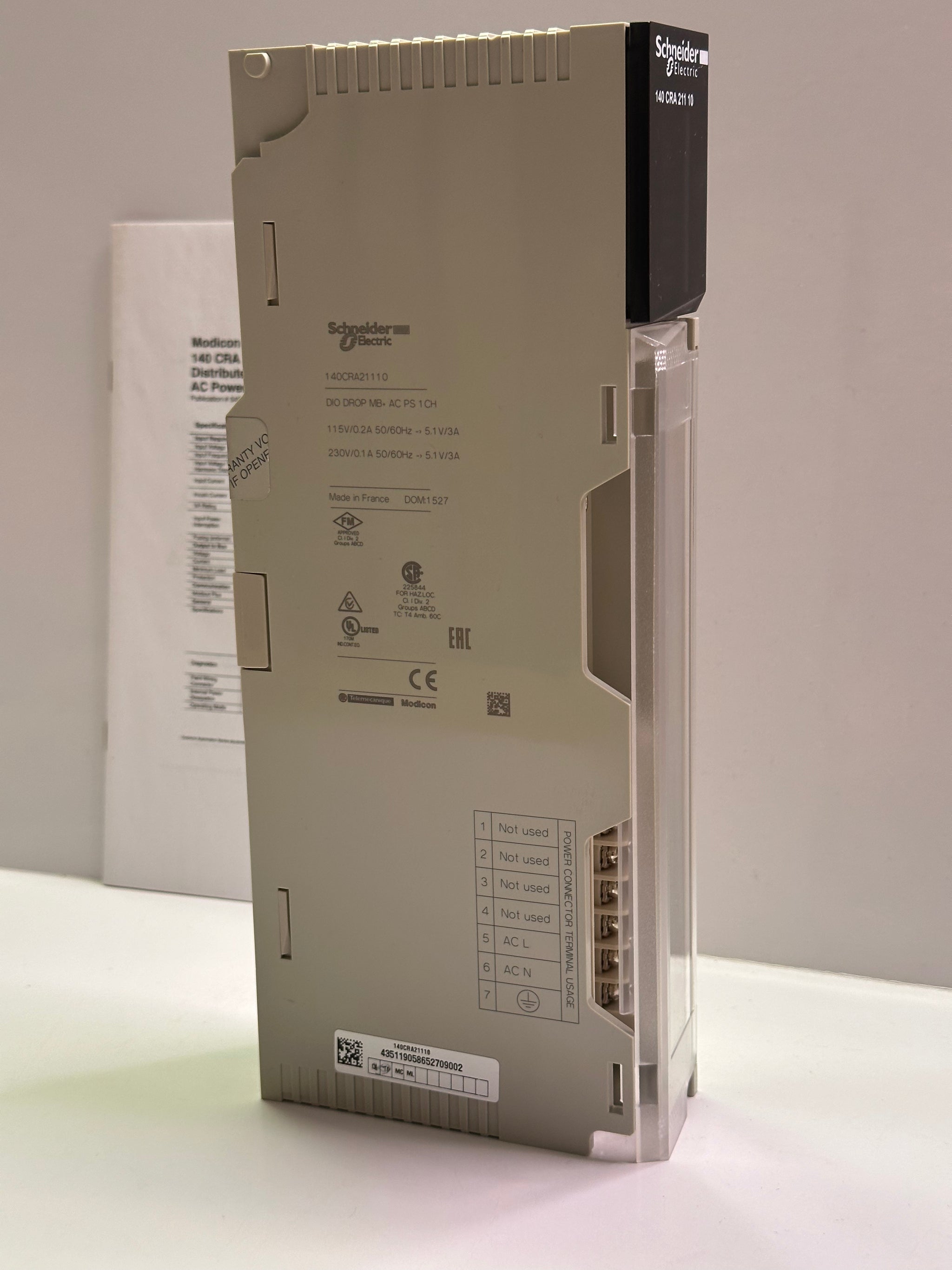

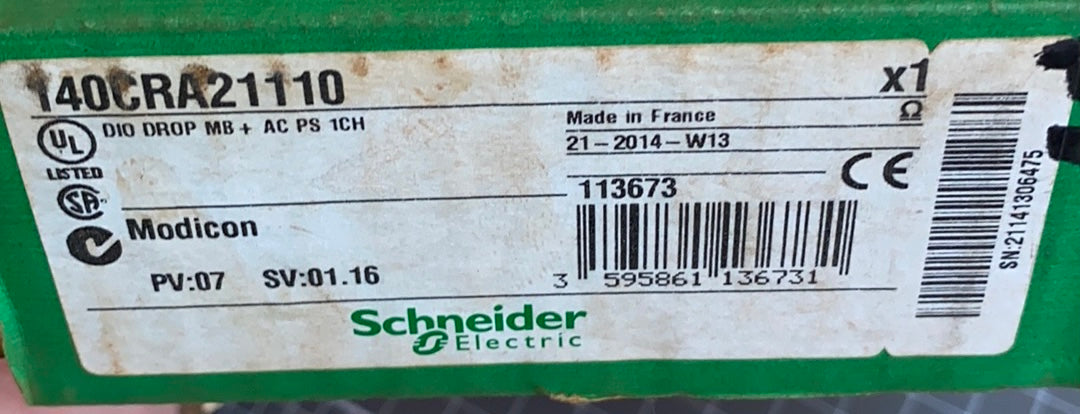

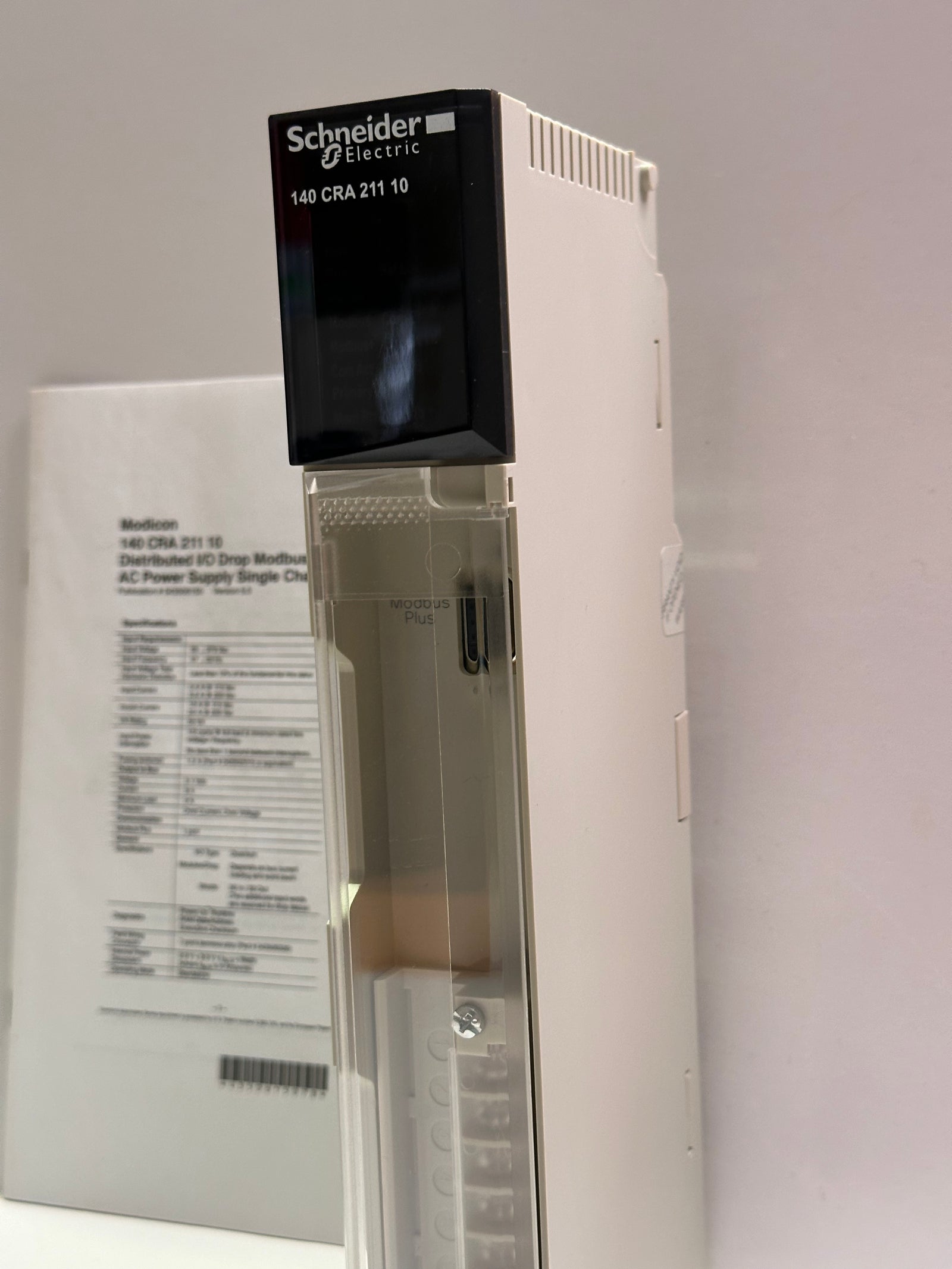

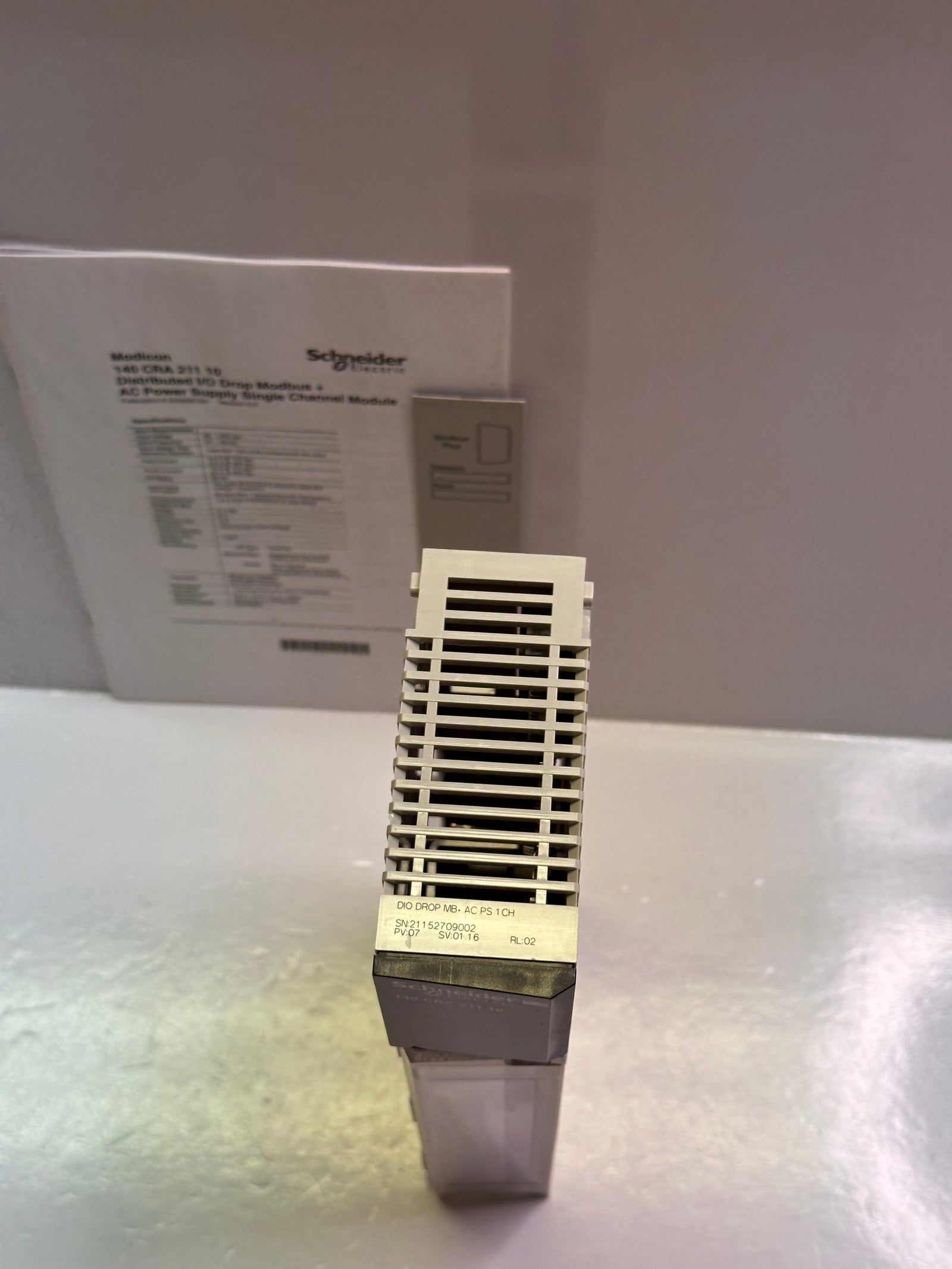

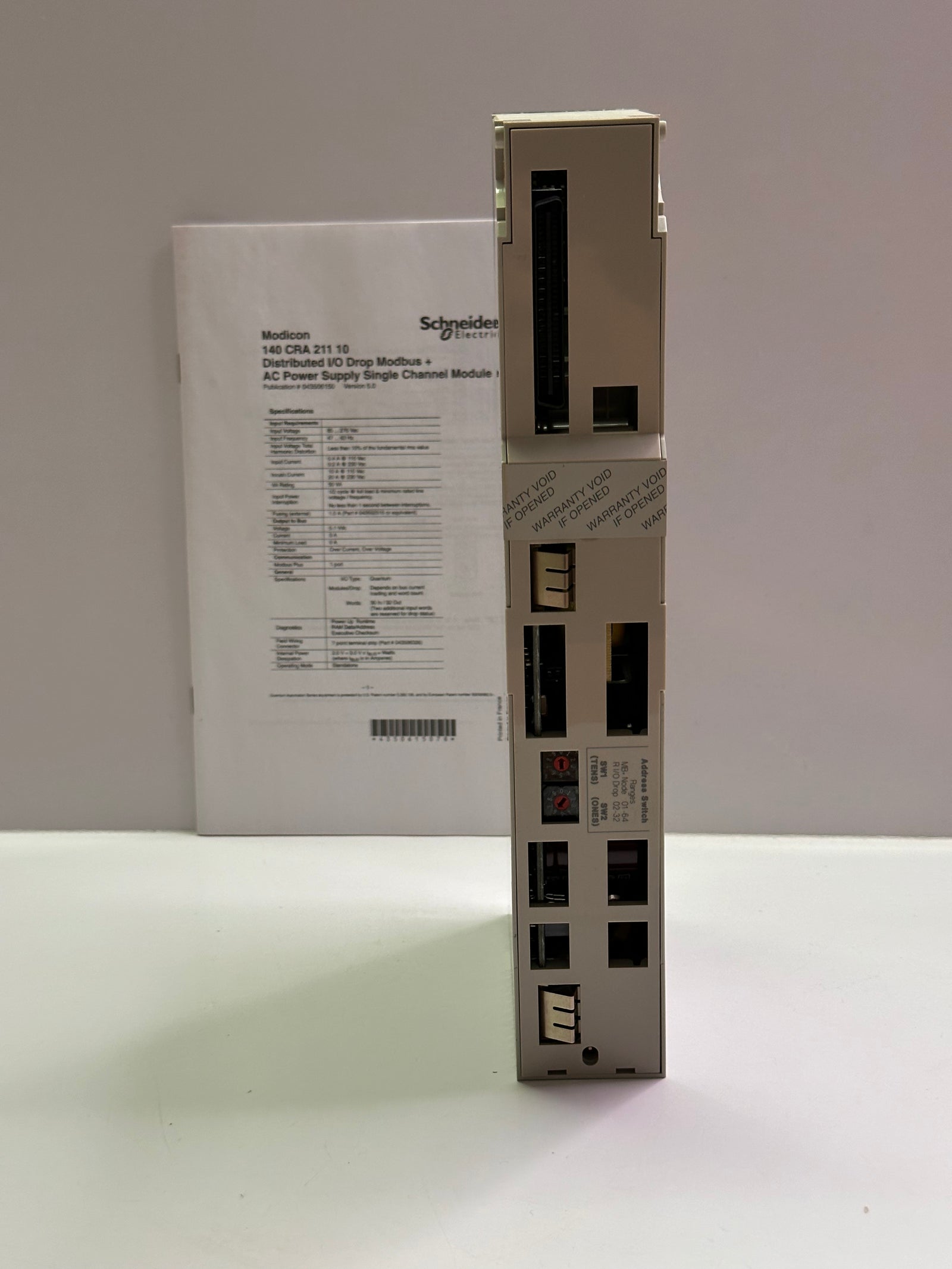

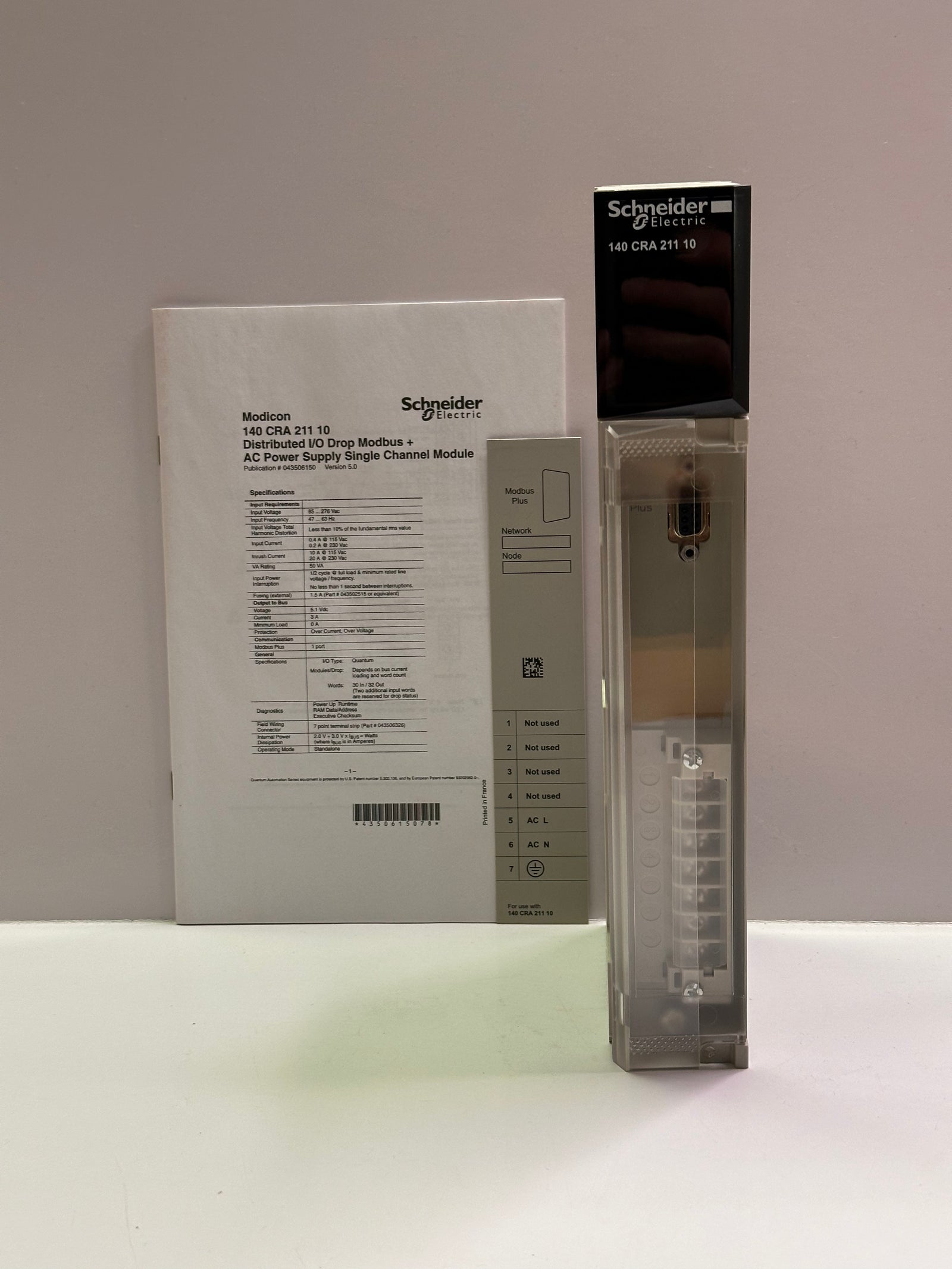

140CRA21110 DIO drop interface Modicon Quantum - 115/230 V AC - 1 single port
- SKU
- P-SC-S-0322
$435.00
Price includes GST.
Low stock: 2 left
Warehouse pickup available
- Weight
- 3.0 kg

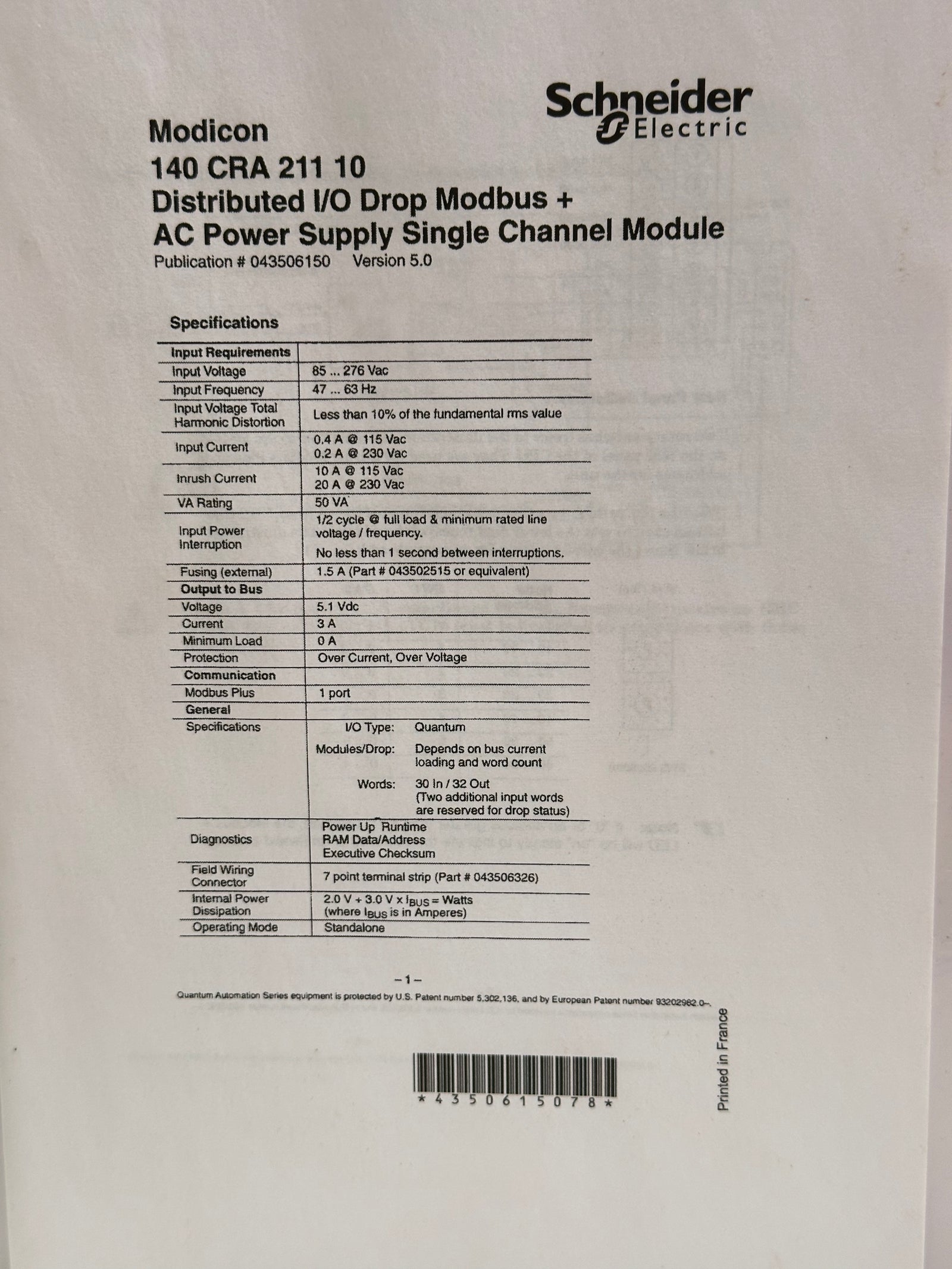

Specifications
| Manufacturer | SCHNEIDER ELECTRIC |
|---|---|
| Product type | Electrical |
| SKU | P-SC-S-0322 |
| Weight | 3.0 kg |
Description
DISTRIBUTED 1/O DROP MODBUS + AC POWER SUPPLY CHANNEL MODULE
- Model number 140CRA21110
- Product type DIO drop interface
- Rated supply voltage 115/230 V AC
- Supply voltage limits 85 to 276 V AC
- Supply frequency 47 to 63 Hz
- Rated power 50 VA
- Supply current 0.2 A at 115 V, 0.4 A at 230 V
- Inrush current 10 A at 115 V, 20 A at 230 V
- Output voltage 5.1 V
- Nominal output current 3 A
- Short-circuit protection Included
- Output overvoltage protection Included
- I/O words 30 input, 32 output
- Number of ports 1 single port
- Backplane Typical 2 positions
- Power dissipation 11 W
- Connections Terminal block 7 poles; RJ45 Modbus; SUB‑D 9 Modbus Plus; LC single‑mode fiber
- Operating temperature 0 to 60 °C
- Storage temperature -40 to 85 °C
- Standards UL 508; IEC 801-2 ESD; IEC 801-3 EMI
- Diagnostics Checksum at startup and runtime
