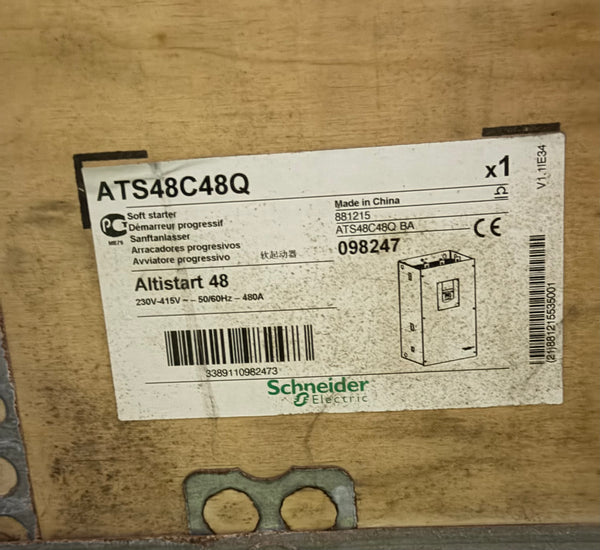

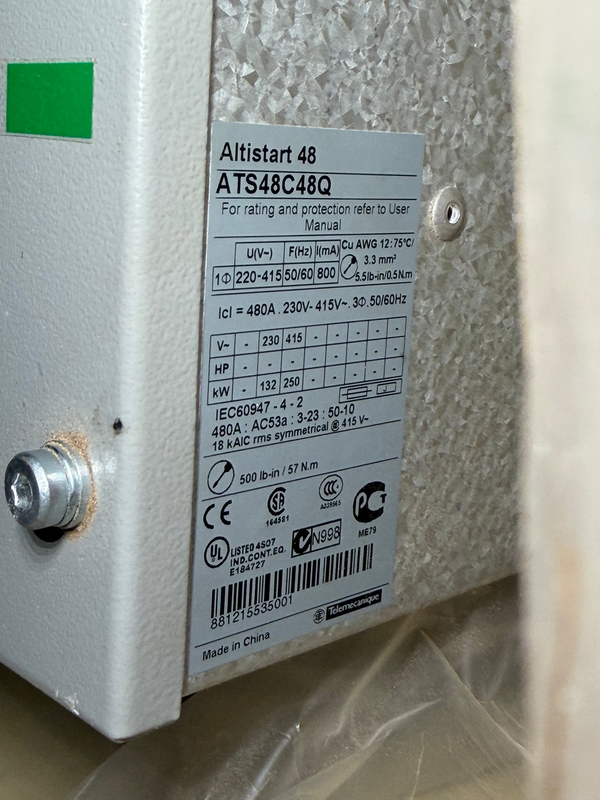

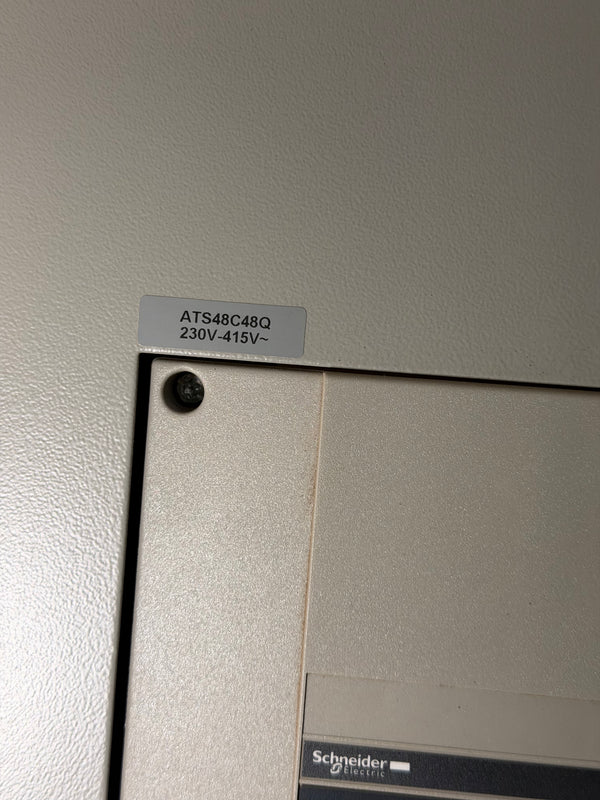

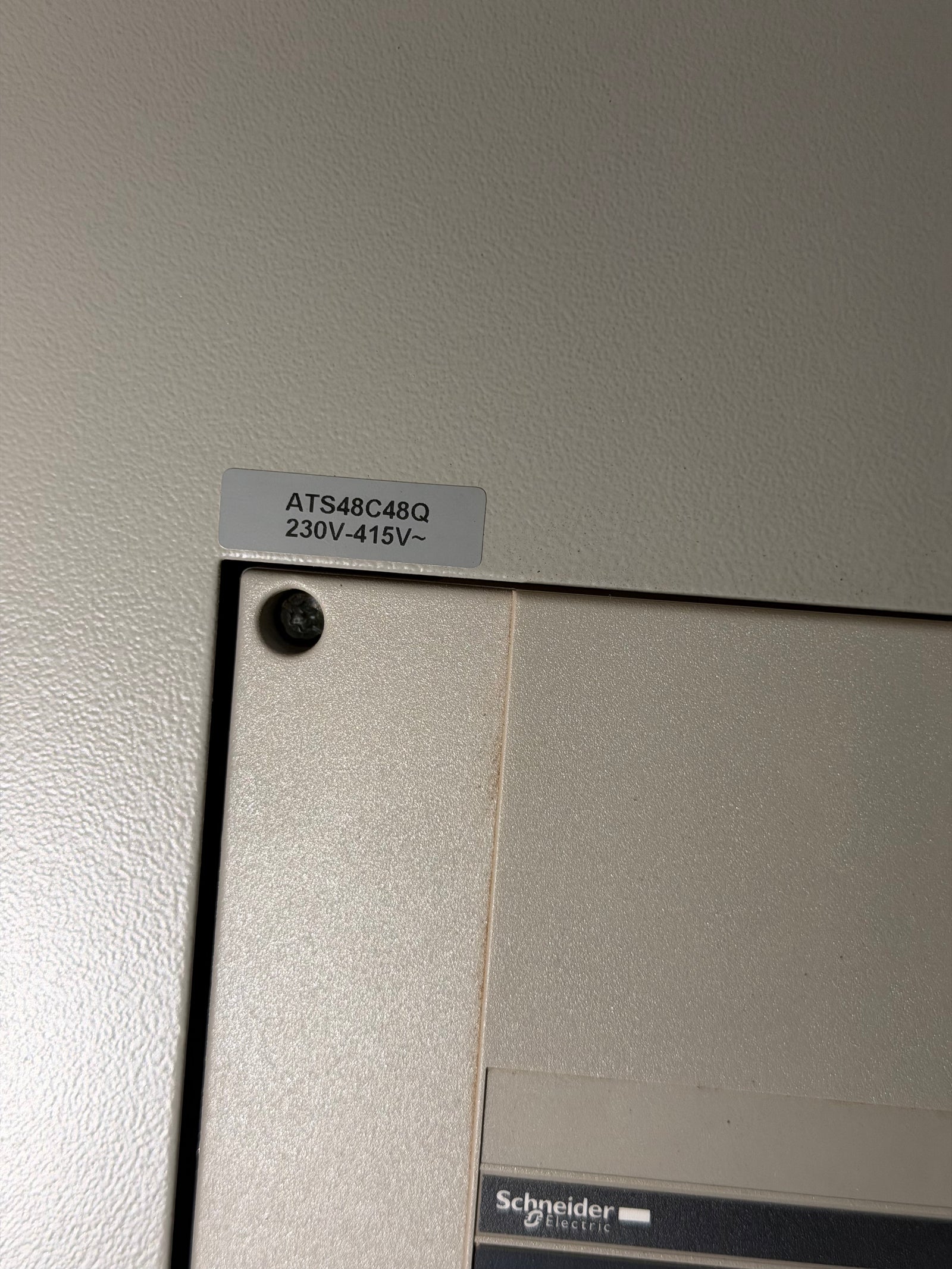

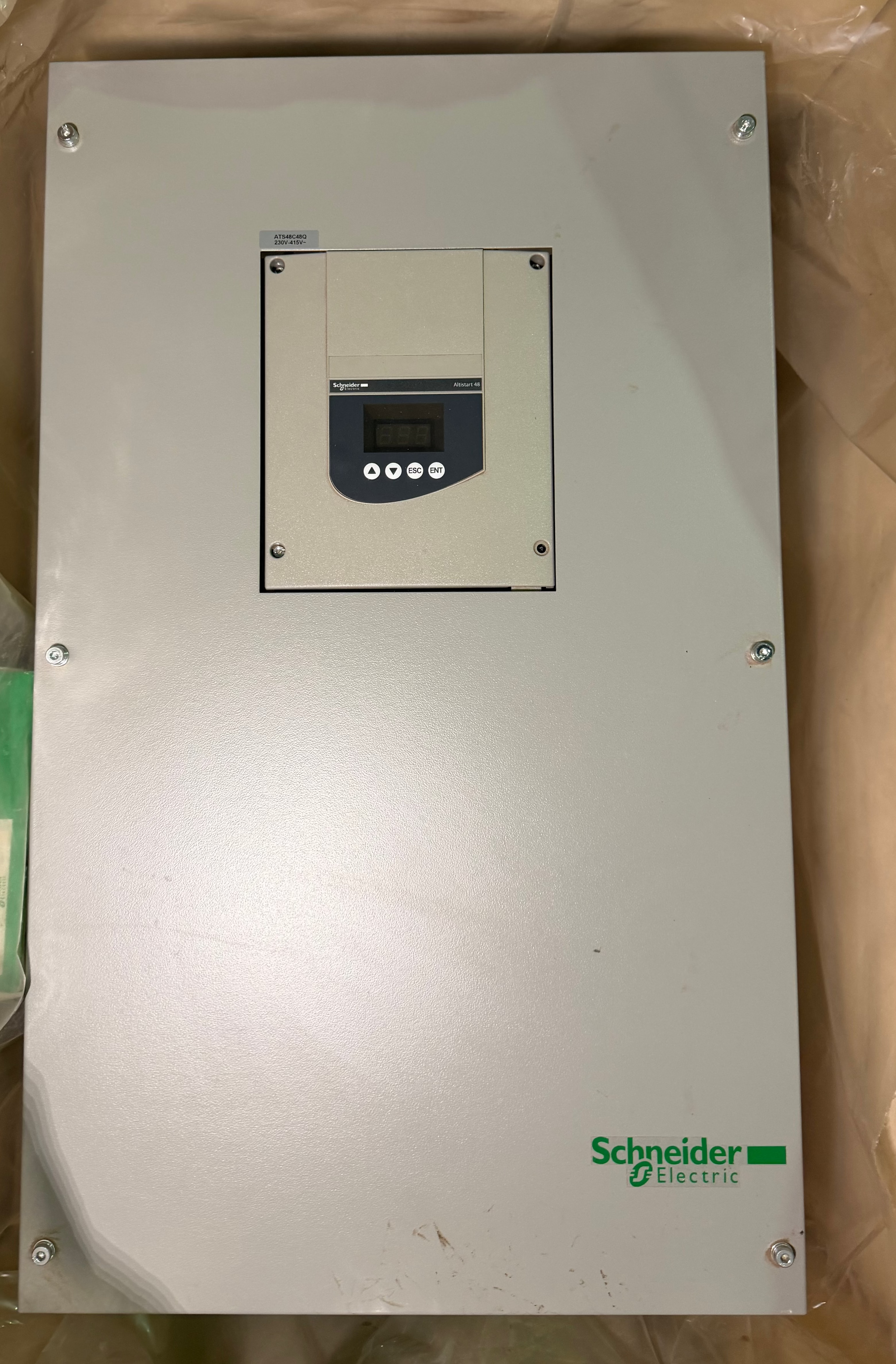

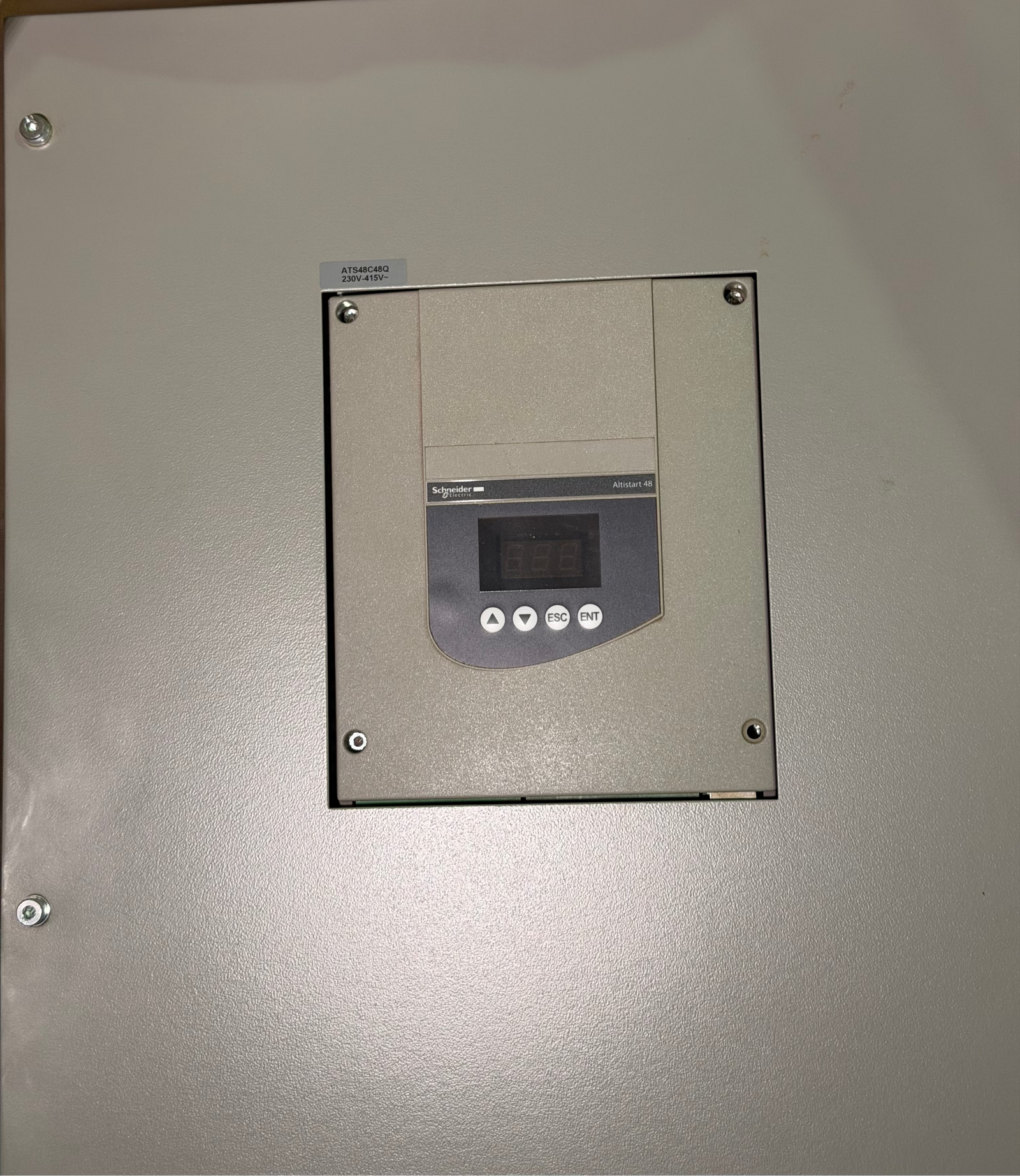

Soft Starter for Asynchronous Motor - Altistart 48 230-415V ~ 50/60Hz - 480A
| Product destination | Asynchronous motors |
| Product specific application | Pumping and ventilation machine Severe and standard applications |
| Component name | ATS48 |
| Power supply voltage | 230...415 V (- 15...10 %) |
| Motor power kW | 355 kW at 400 V (connection to the motor delta terminals) for standard applications 315 kW at 400 V (connection to the motor delta terminals) for severe applications 250 kW at 400 V (connection in the motor supply line) for standard applications 250 kW at 230 V (connection to the motor delta terminals) for standard applications 220 kW at 400 V (connection in the motor supply line) for severe applications 220 kW at 230 V (connection to the motor delta terminals) for severe applications 132 kW at 230 V (connection in the motor supply line) for standard applications 110 kW at 230 V (connection in the motor supply line) for severe applications |
| Power dissipation in W | 1386 W for standard applications 1172 W for severe applications |
| Utilisation category | AC-53A |
| Type of start | Start with torque control (current limited to 5 In) |
| Icl nominal current | 831 A (connection to the motor delta terminals) for standard applications 710 A (connection to the motor delta terminals) for severe applications 480 A (connection in the motor supply line) for standard applications 410 A (connection in the motor supply line) for severe applications |
| IP degree of protection | IP00 |
| Assembly style | with heat sink |
| Function available | External bypass (optional) |
| Power supply voltage limits | 195...456 V |

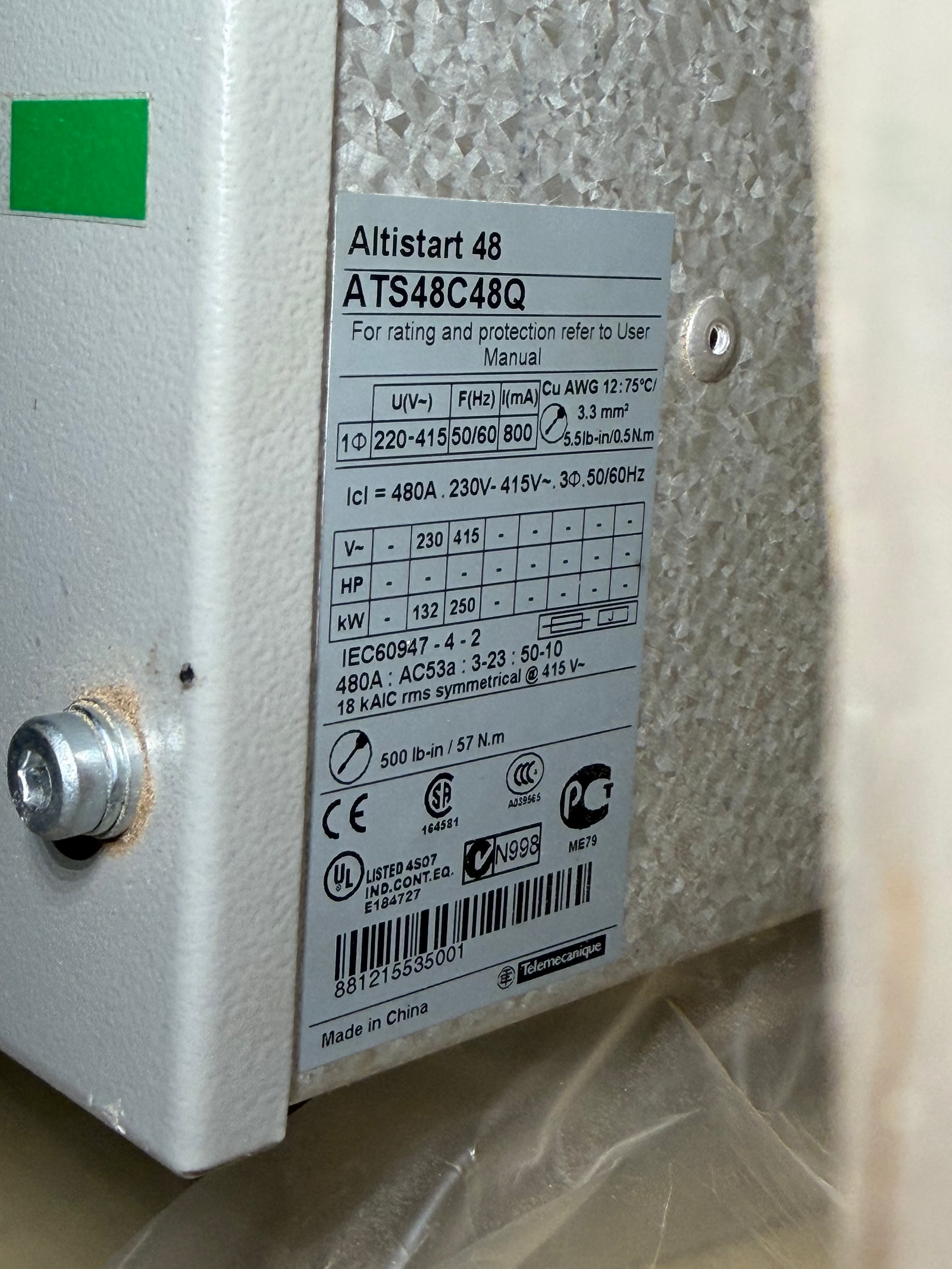

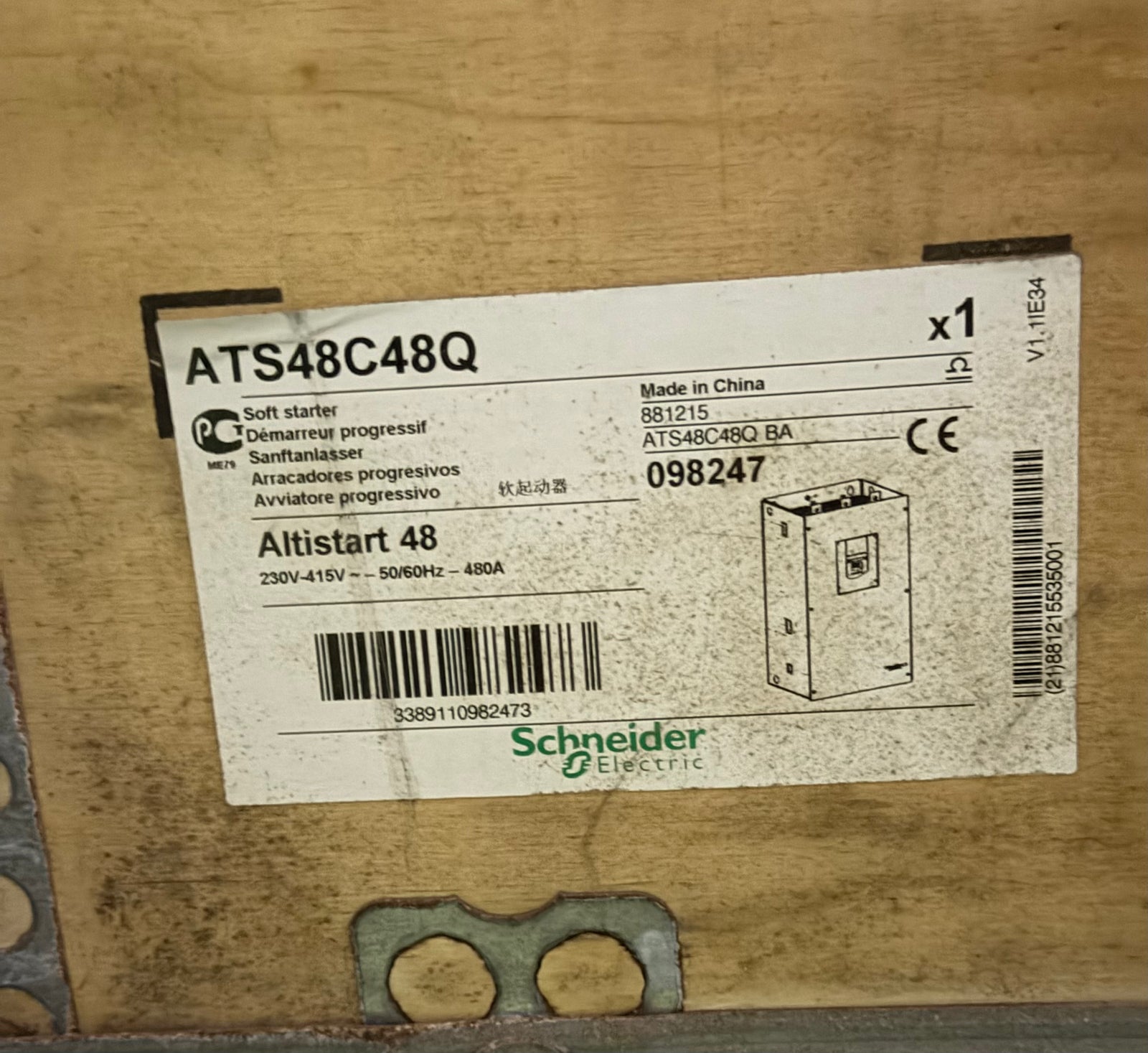

| Device Full Name | Schneider Electric ATS48C48Q |
