A.P.C.S SC120-2162100 Signal Converter, 4–20mA to 0–10V, 120VDC
- SKU
- P-SC-A-7335
- Weight
- 2.0 kg
Specifications
| Manufacturer | A.P.C.S |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-SC-A-7335 |
| Weight | 2.0 kg |
Description

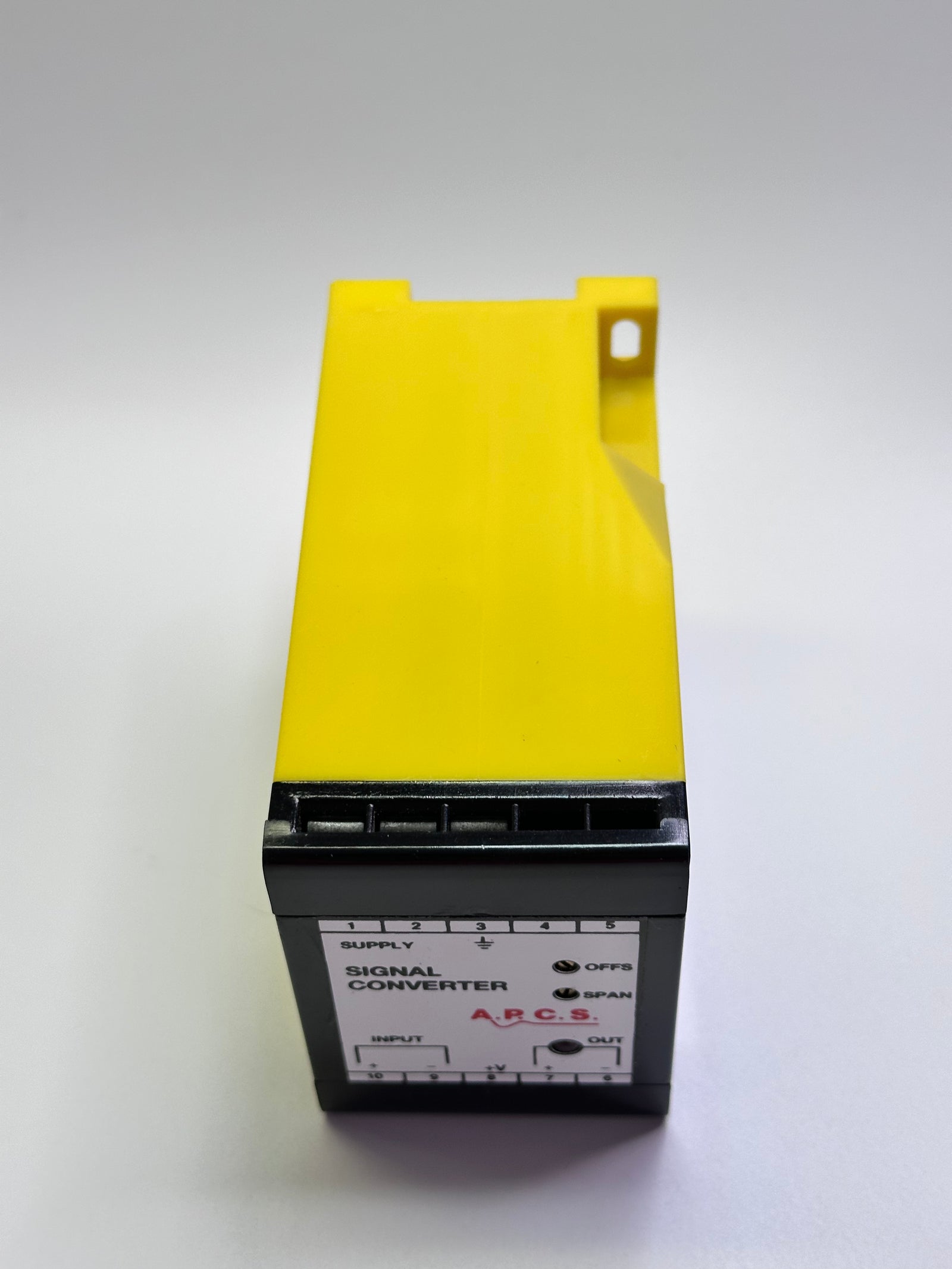

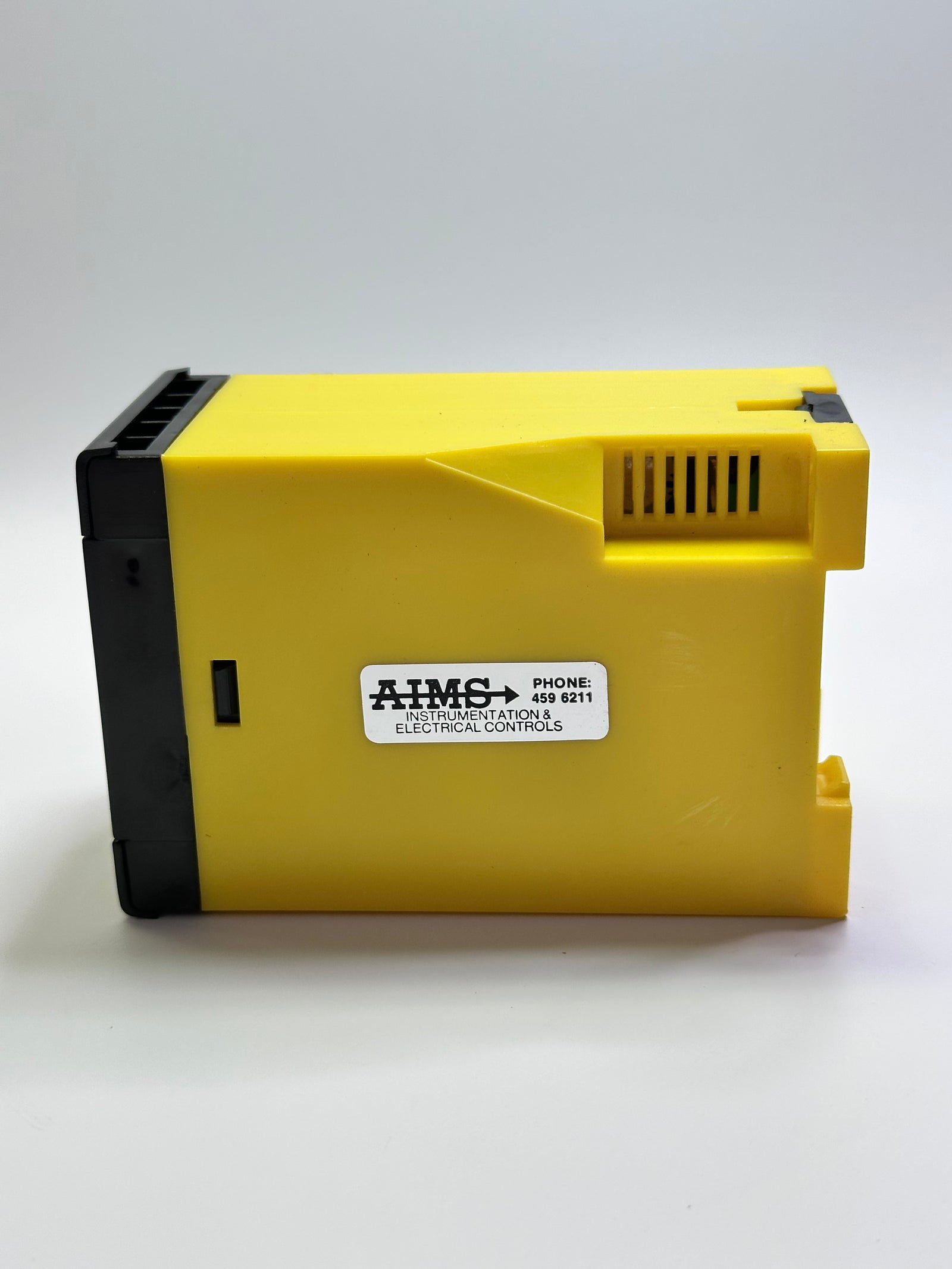

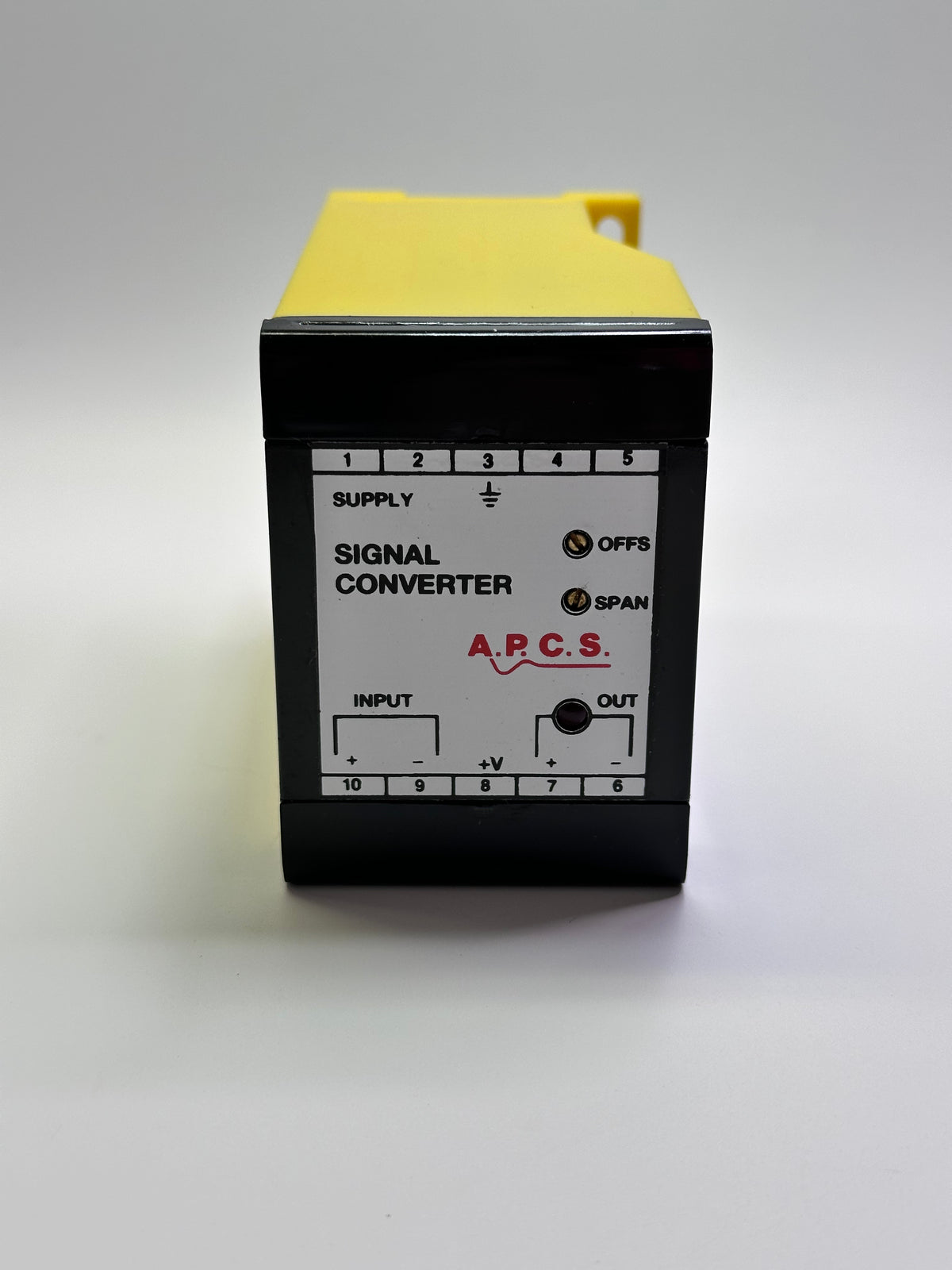

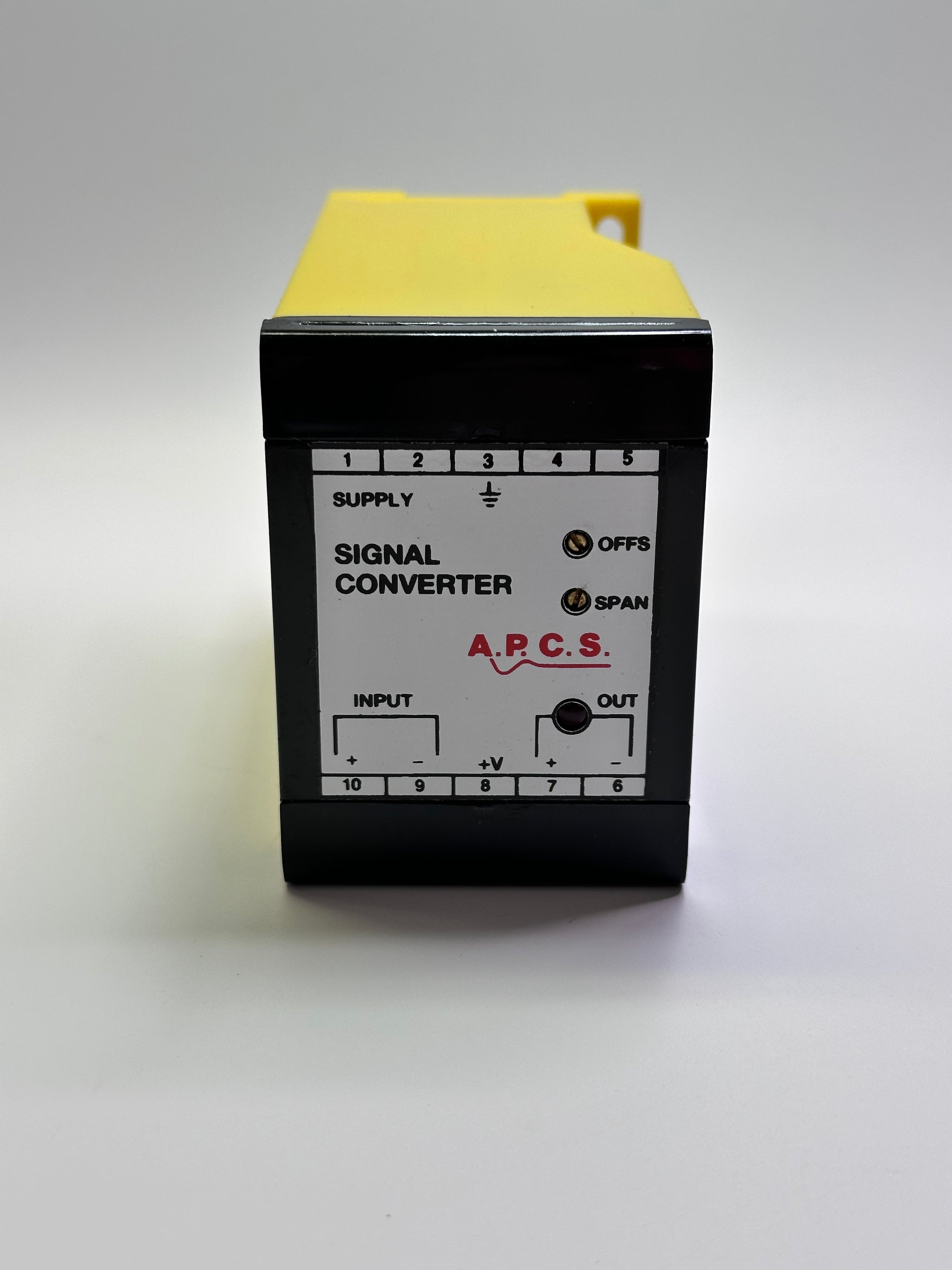

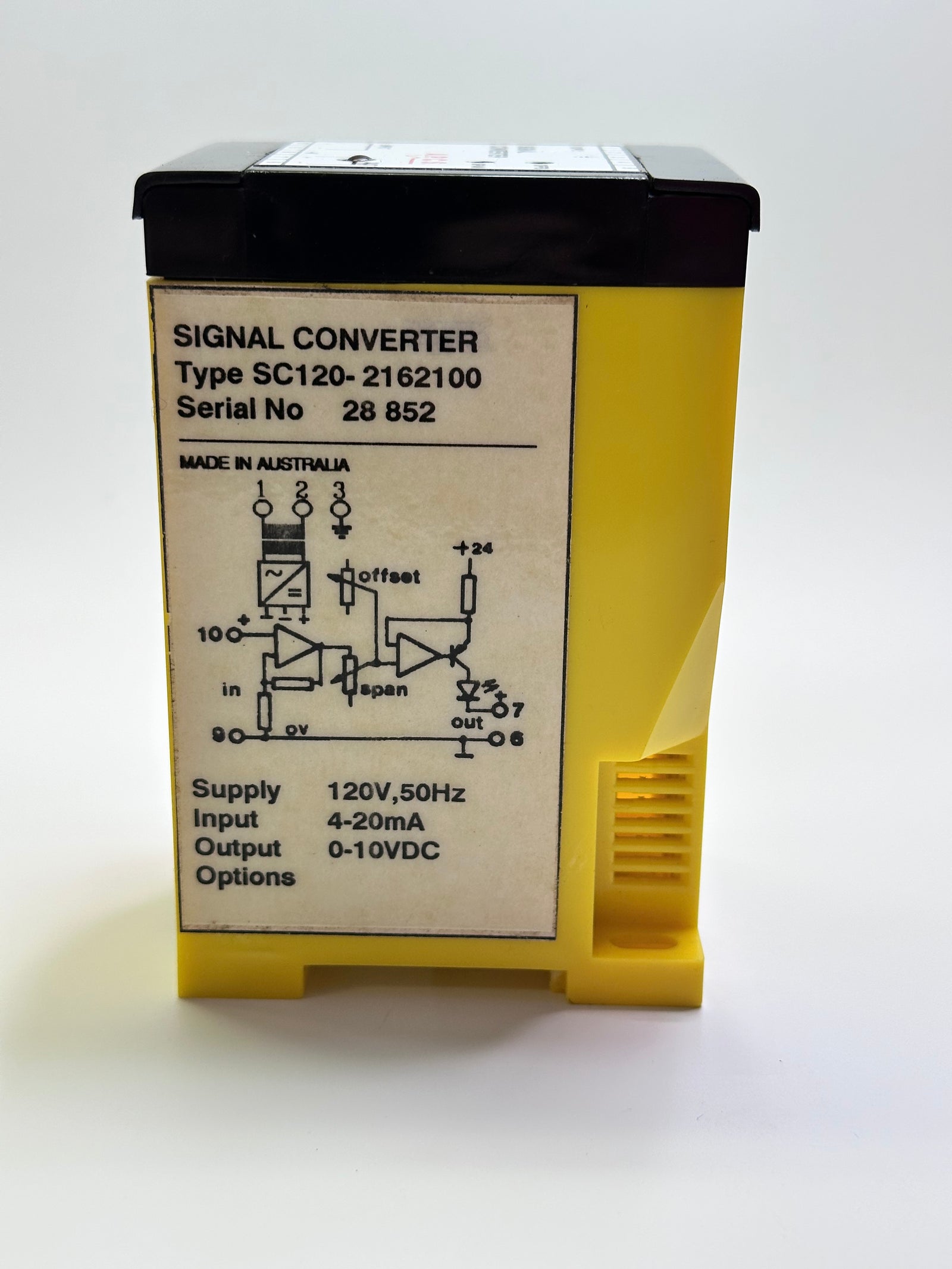

A.P.C.S SC120-2162100 signal converter. The supplied-item record specifies 120VDC power, 4–20mA input (51Ω), 0–10V output (100kΩ minimum load), direct action and options 00 — none.
Configuration matters: The family-level options and alternative ranges below do not mean that peak hold, arithmetic, alarm functions, 18V/50mA output or an AC supply are fitted to this unit. Input and output are not isolated from one another; the recorded 2kV rms isolation applies to the power supply.
Recorded unit details and series specifications
S/N: 28 852
Type no.: SC120
Power Supply: 120VDC
Input: 16 = 4 – 20mA (51Ω)
Output: = 0 – 10V (100kΩ min).
Action: 1 - Direct
Options: 00 - None
SC120 converts DC input signals and functions to standard DC signals, and features:
- Input options for peak hold, maximum/minimum selection, adder or subtractor.
- Special function options include external ratio adjustment, rate of decline, track & hold and averaging.
- Output up to 18Vdc or 50mAdc.
- Power supply isolation 2kV rms, input/output isolation not provided.
- Designed for single (factory set) input/output combinations.
- Front adjustments for span and zero.
- Sensor excitation.
- All common AC or DC supplies.
General Specifications

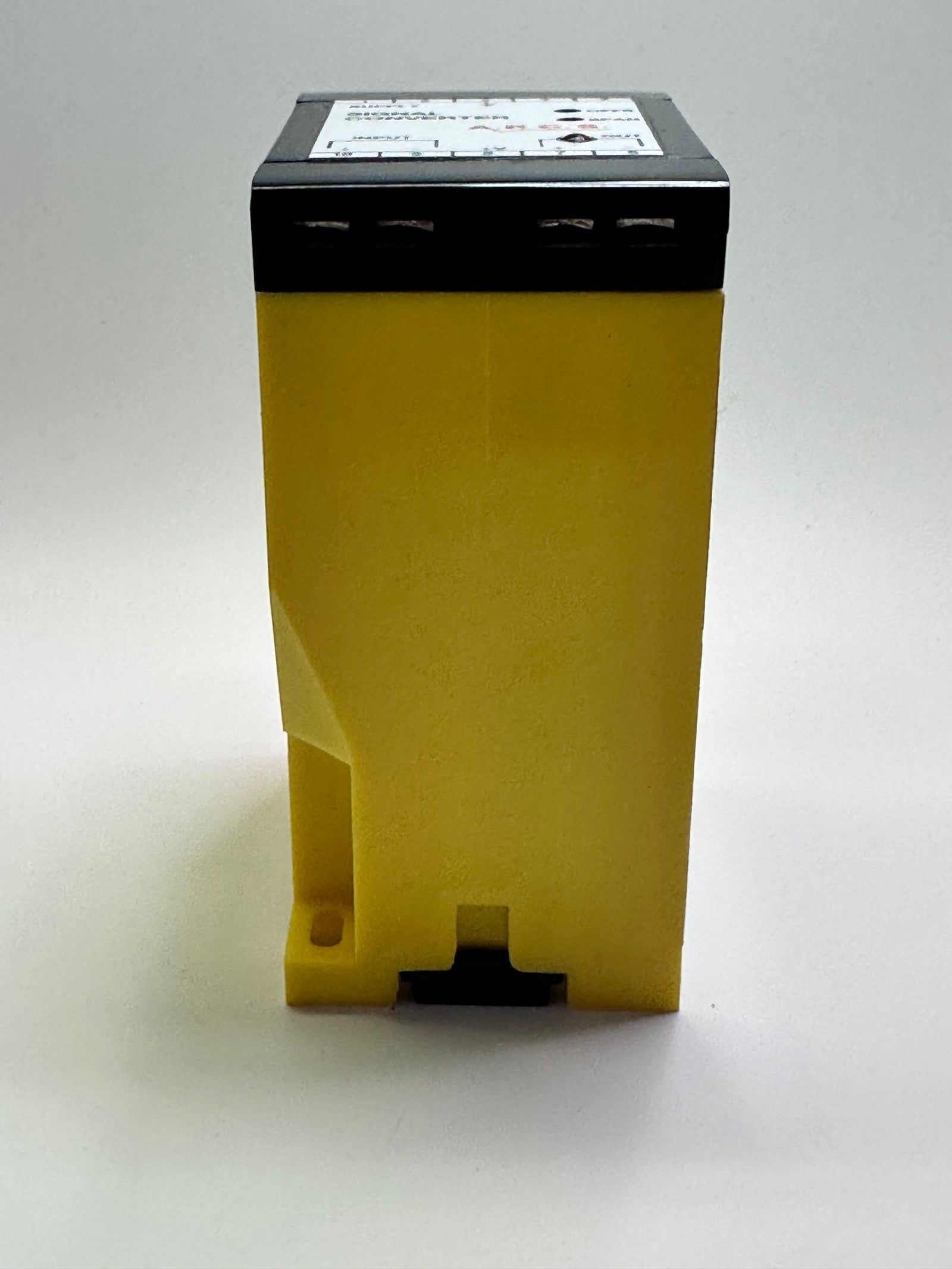

Size: 52 W x 70 H x 110 D (mm).

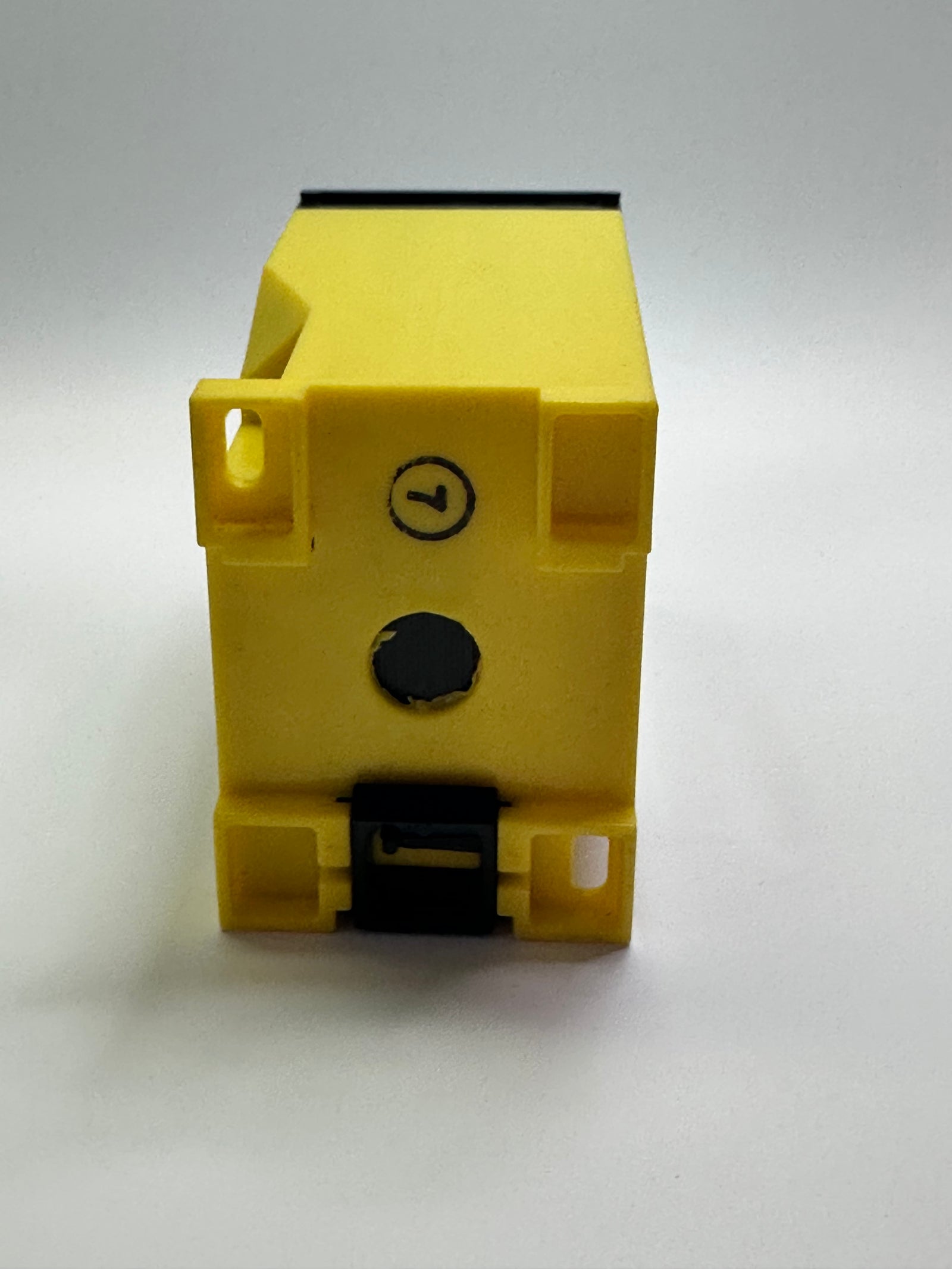

Mounting: DIN-Rail, gear plate.

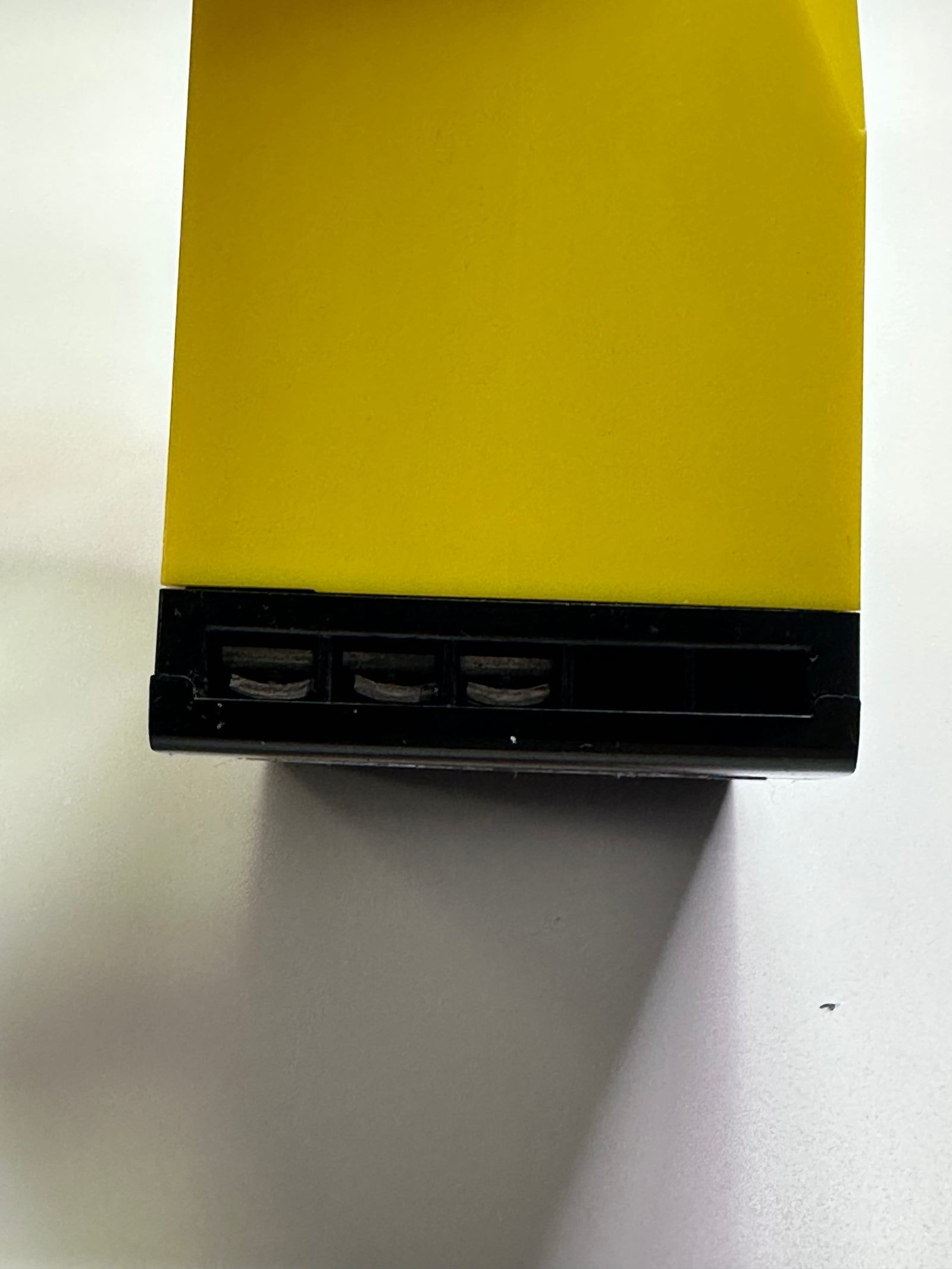

Termination: Screw terminals on front.
Protection class: IP40.
Weight: 0.300 kg.
Housing material: ABS.
Accuracy: 0.2% of span.
Front “OFFS” adjust: ±20% typical
Front “SPAN” adjust: ±20% typical
Temperature effect: 0.01% per °C.
Operating temp. range: -10...+60°C.
Output load effect: less than 0.2% up to max. load.
Output loop drive: 10mA into 0 - 1.8kΩ.
20mA into 0 - 900Ω.
50mA into 0 - 360Ω.
Input / output isolation: None.
Power requirement: 3W.
Power supply isolation: 2kV rms.
Electromagnetic compatibility: Complies with AS/NZS 4251.1 (EN 50081.1)
Confirm label and terminal requirements before installation. Accuracy, EMC and IP40 statements are recorded catalogue specifications, not a current calibration report, compliance certificate or environmental assessment of the supplied item.
