MEISTER

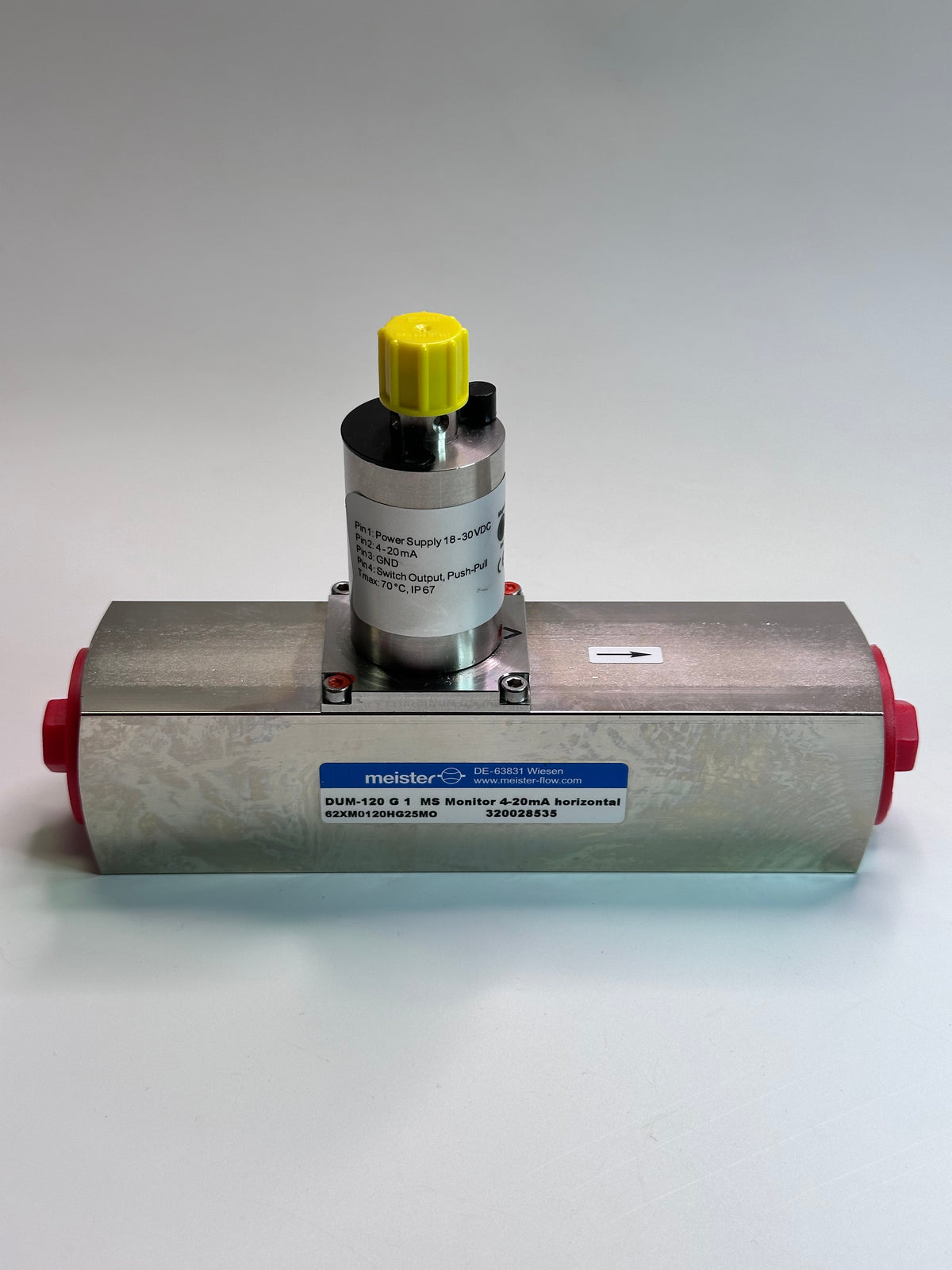

Sandvik 55046954 Flowmeter - Meister DUM-120 G1 MS
- SKU
- P-SA-M-7654
$375.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 5.0 kg
Specifications
| Manufacturer | MEISTER |
|---|---|
| Product type | EARTHMOVING PARTS |
| SKU | P-SA-M-7654 |
| Weight | 5.0 kg |
Description

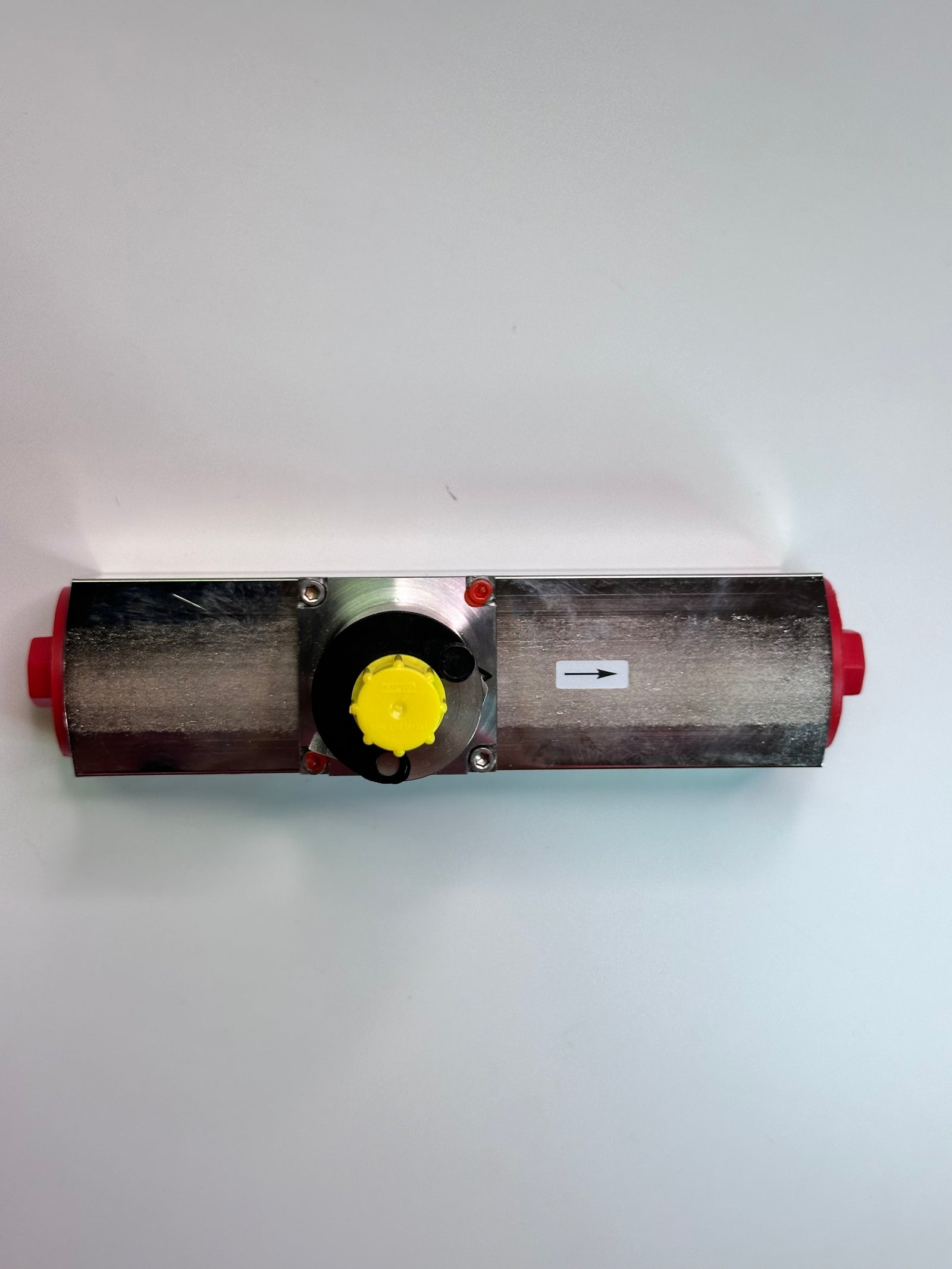

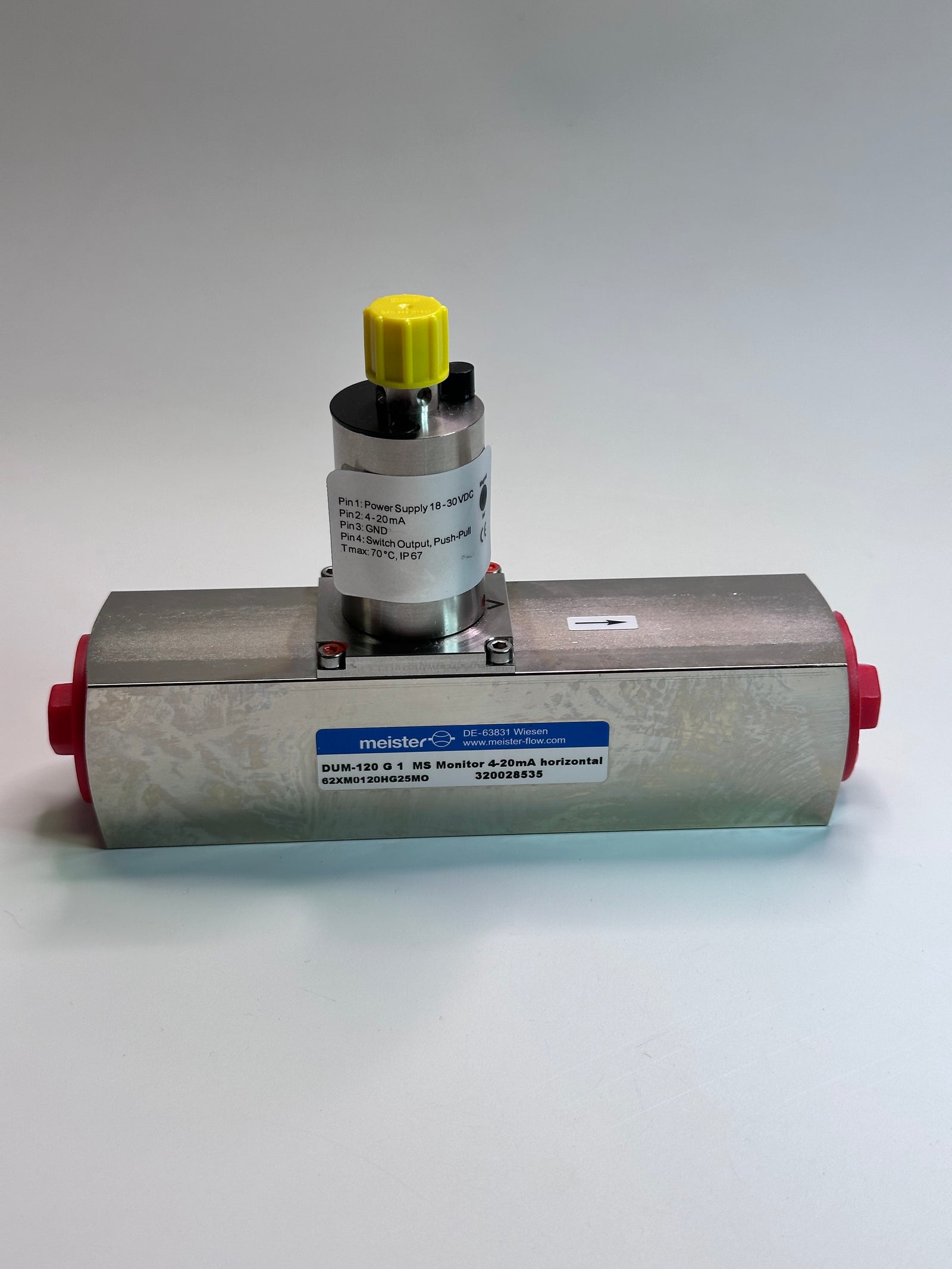

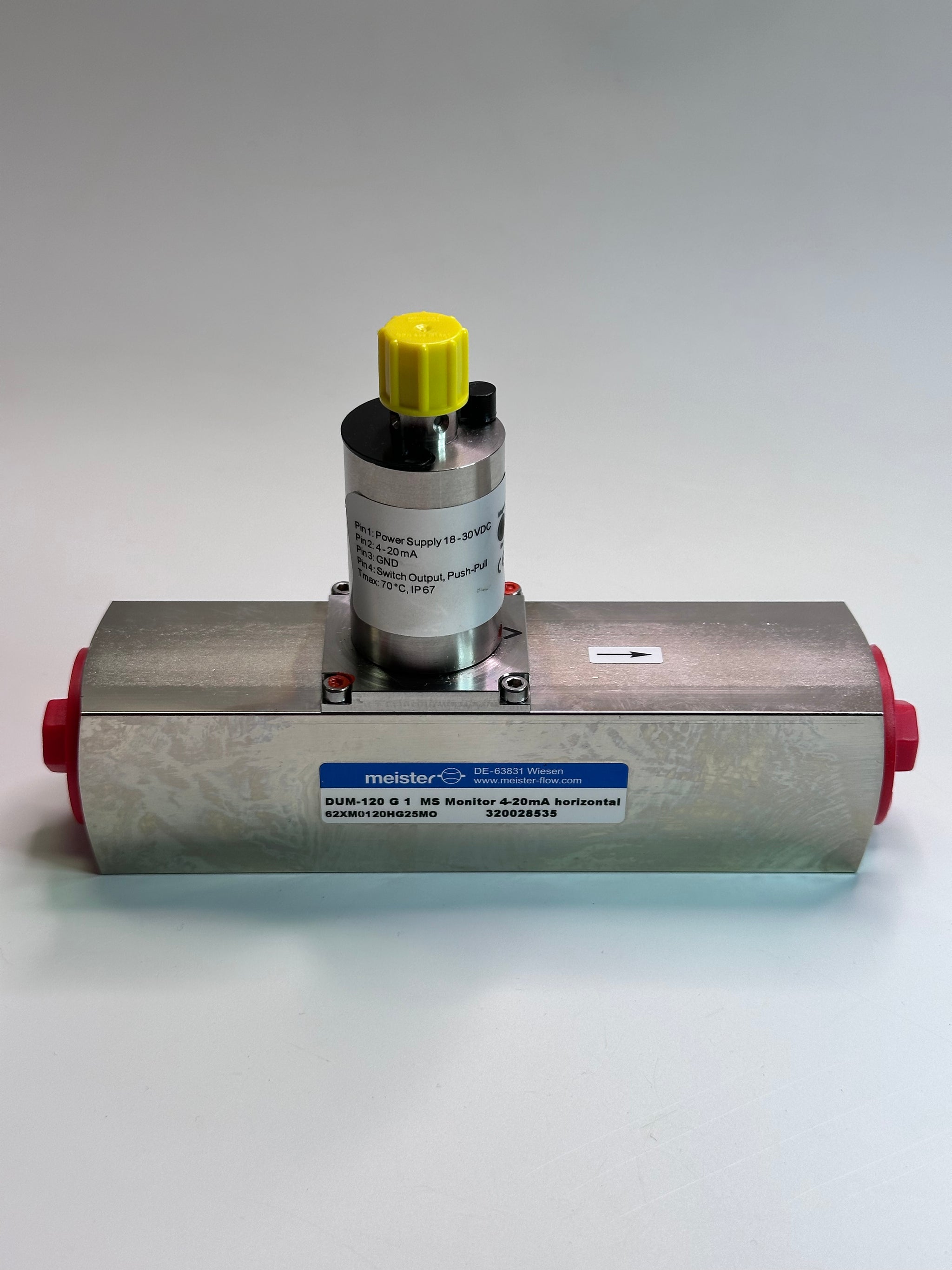

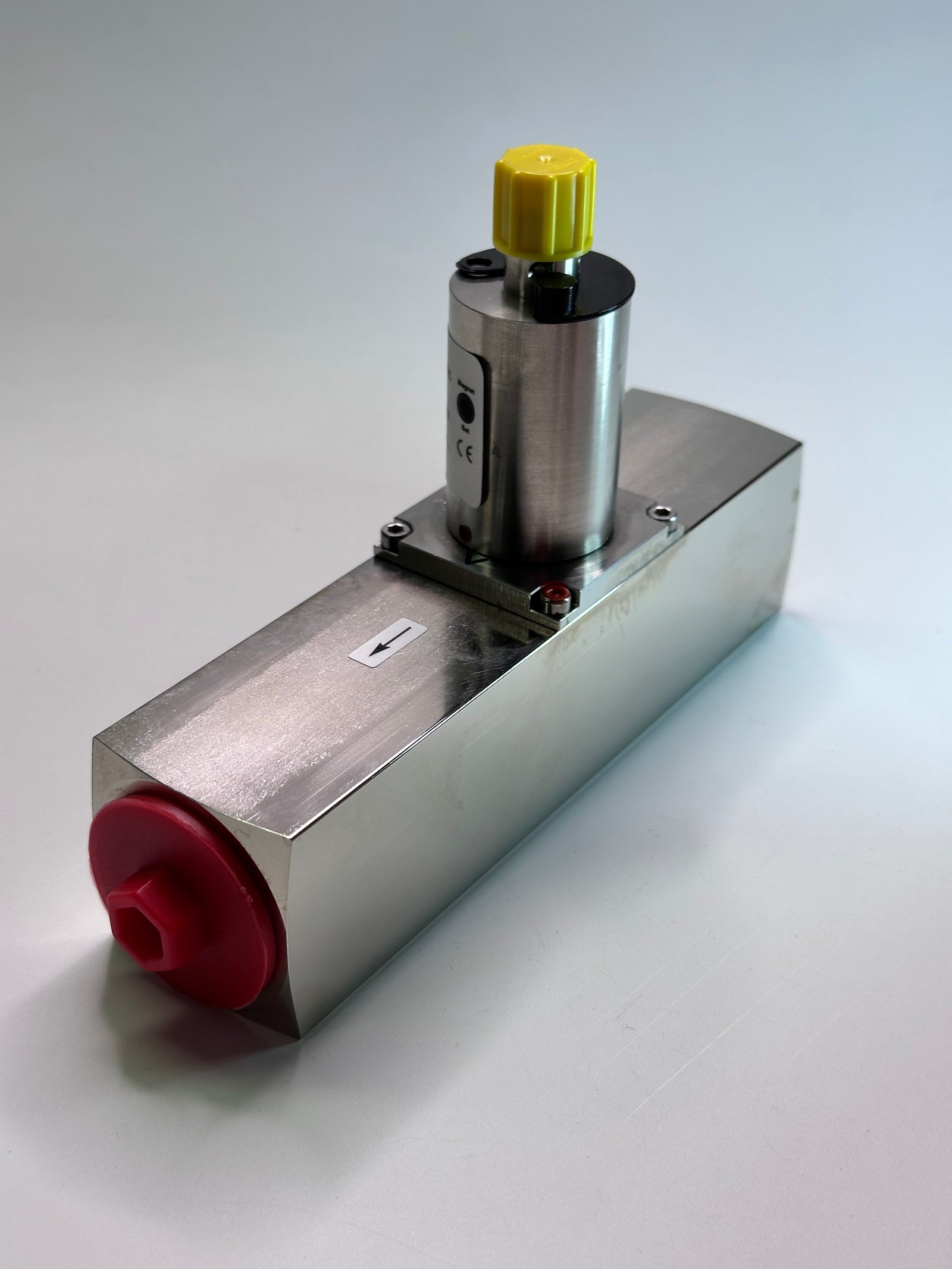

DUM is a floatmeter (flow switch) for liquids in an all-metal housing. The unit is factory calibrated for upward flow in vertical installation. However, it is equipped with a spring loaded float, which allows installation in any spatial position, including horizontal or vertical with flow in the opposite direction. In this case, on-site calibration may be necessary to compensate for the weight of the float.

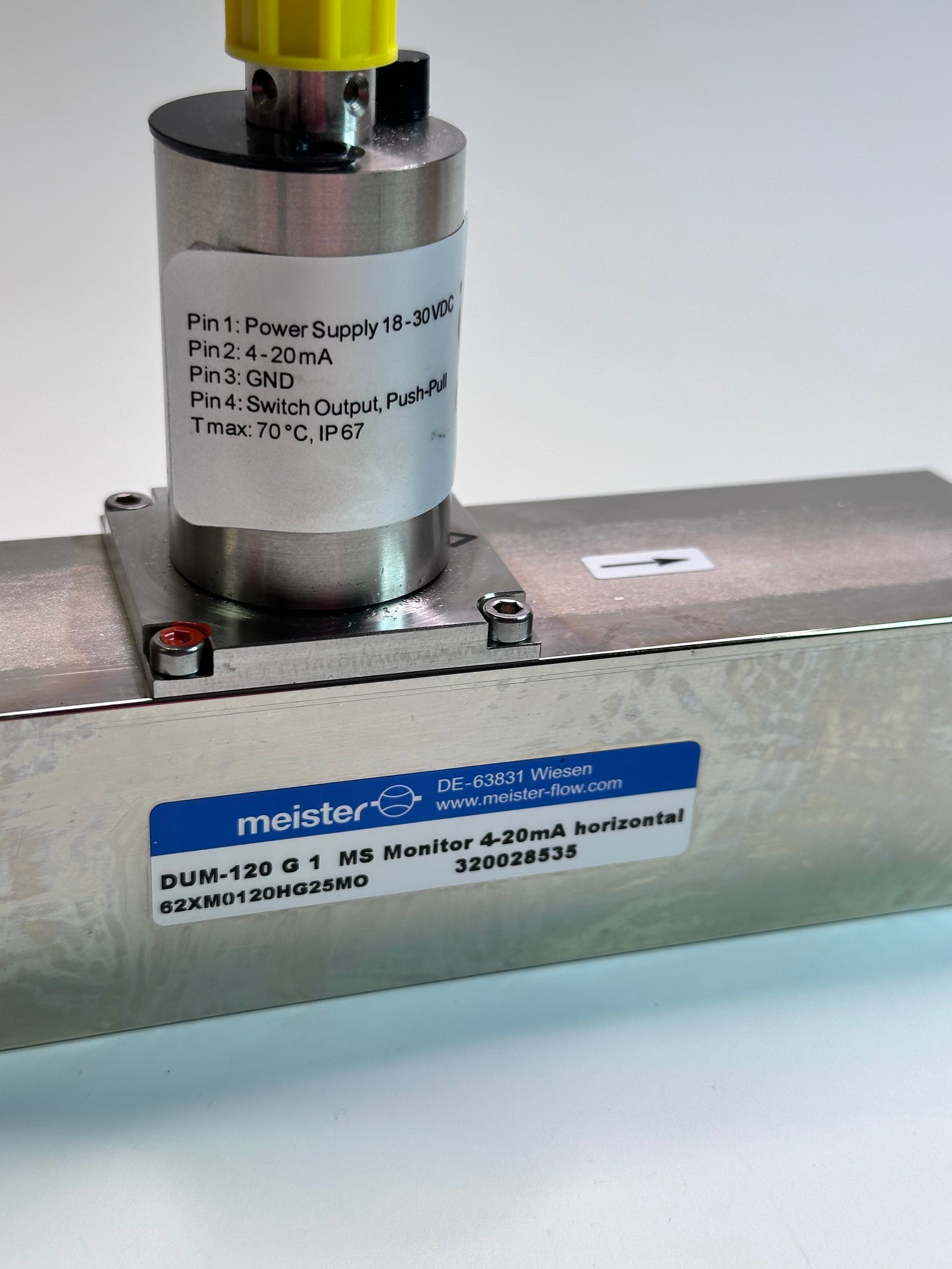

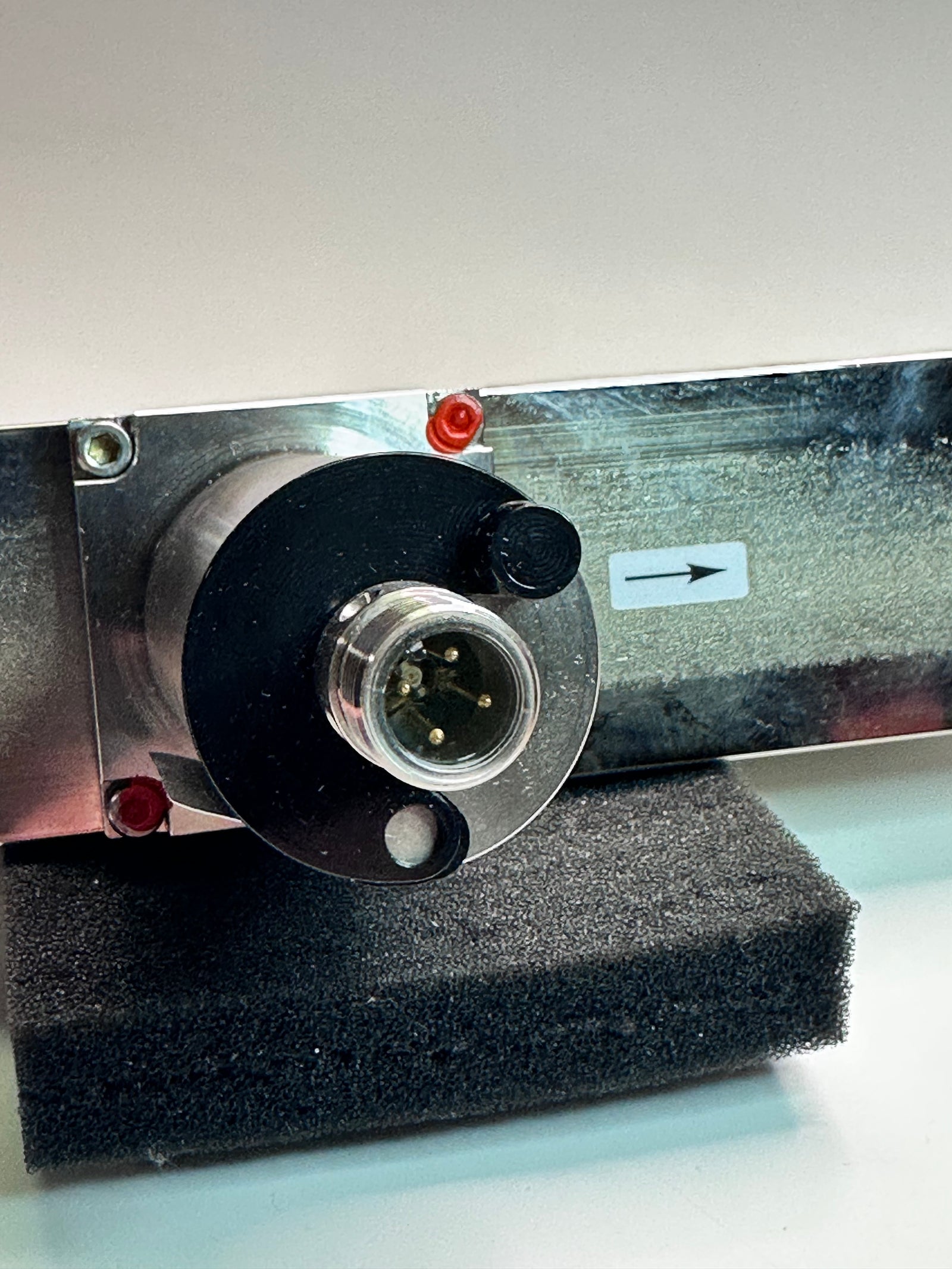

Pin 1: Power Supply 18-32VDC
Pin 2: 4-20mA
Pin 3: GND
Pin: 4: Switch Output, Push-Pull T max: 70°C, IP67
