SAFE-T-PRODUCTS

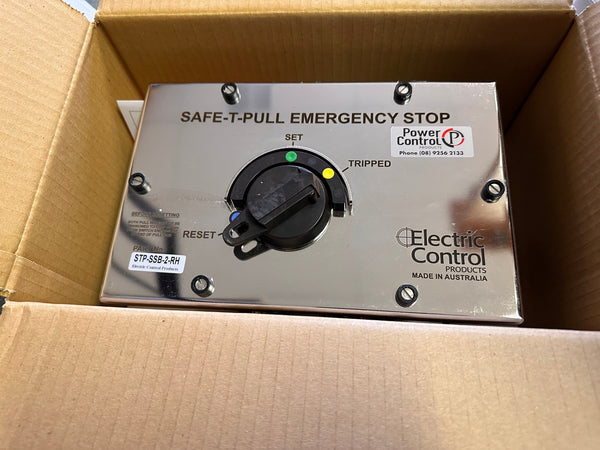

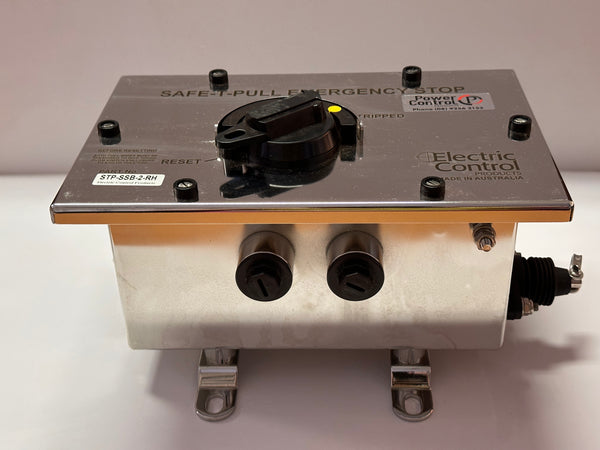

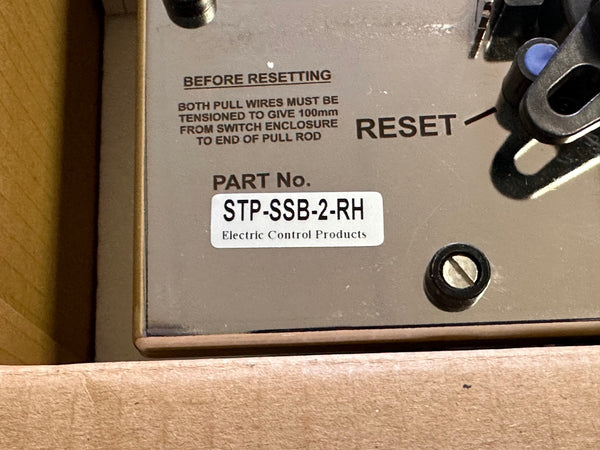

SAFE-T-PULL STP-SSB-2-RH Lanyard Switch
- SKU
- P-SA-S-3329
$450.00
Price includes GST.
Low stock: 3 left
Warehouse pickup available
- Weight
- 6.0 kg
Specifications
| Manufacturer | SAFE-T-PRODUCTS |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-SA-S-3329 |
| Weight | 6.0 kg |
Description

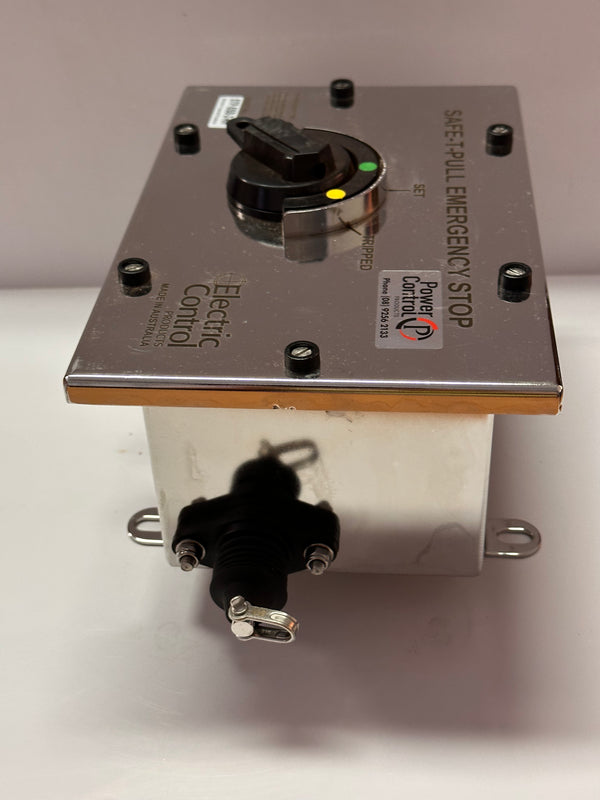

SAFE-T-PULL STP-SSB-2-RH lanyard switch for conveyor applications.
Source-described features and compliance claims
The following original features describe the product. Unit-specific test documentation and suitability for the intended safety circuit still require confirmation.
- Switch features 3 Independent positive drive mechanisms and IP 67 Rated S.P.D.T Change-over Safety Micro Switches with Direct Opening Action for high safety performance, enclosed in an IP 66/67 high impact 316 2mm electro polished stainless steel enclosure
- Tamper Proof Switch Plate Mechanism
- Every switch is individually, electrically and mechanically tested with Test Certificates available
- Absolute simplicity in initial setup and adjustment. All Set Point adjustments are done from the outside of the enclosure

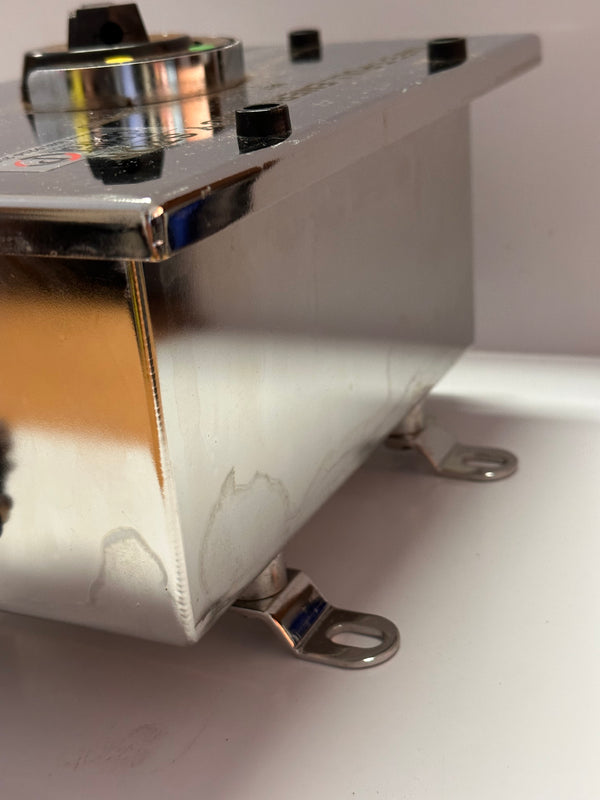

- 2mm 316 Electro Polished Stainless Steel enclosure
- Simple design ensures low maintenance
- Stainless steel internal compression type springs

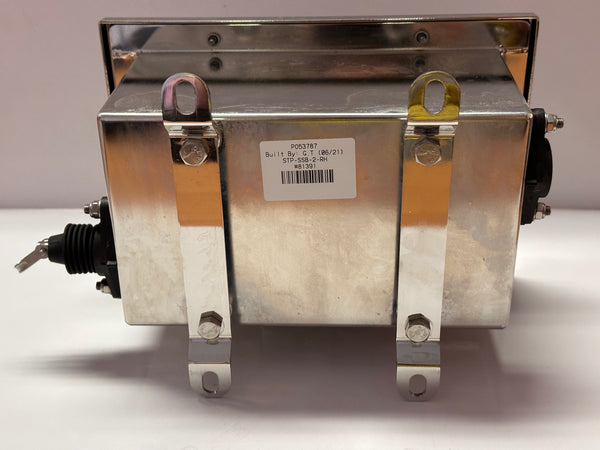

- Electro polished 316 stainless steel pull rods and stainless steel feet
- Pull rods have spring loaded external dust protecting boots so the pull rod is always covered for extra seal protection and pull rods are not exposed to contaminates
- Double lip oil seals on pull rods and reset operator for secure dust and weather protection to IP 66 / 67
- Non-metallic pull rod bushings so no electrolysis issues between the safety mechanism (pull rod) and bushing. Increasing functional safety
- Independent positive drive pull rod cams, switch plate mechanism and lid drive cam for 3 fail safe trip mechanisms to ensure the switch will trip and fail to safe
- Complies to IEC 60947-5-1 Ed 3.1 AS/NZS 60947-5-1:2015 IEC 60947-5-5 Ed 1.1 AS/NZS 60947.5.5:2015 AS/NZS 4024.1-2014 AS/NZS 4024.3610:2015 AS/NZS 4024.3611:2015
The source says test certificates are available; no certificate for this unit has been verified here. The listed standards, direct-opening and fail-safe statements are source claims, not a guarantee of an installed system's safety performance. Confirm the exact configuration, documentation and application requirements before selection.
