PHOENIX CONTACT

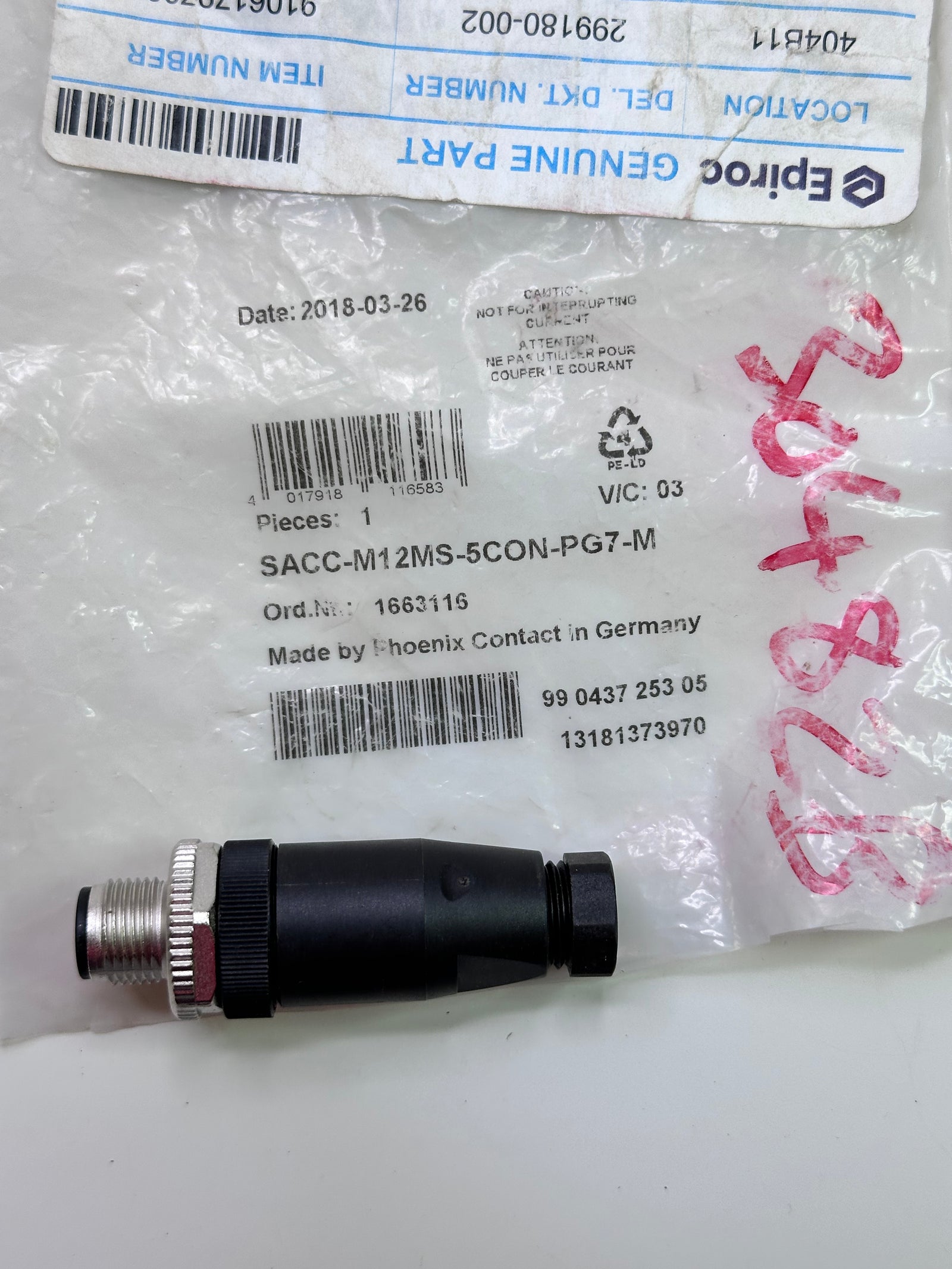

Phoenix Contact 1663116 SACC-M12MS-5CON-PG-7-M 5-Position Connector
- SKU
- P-SA-P-7801
- Weight
- 1.0 kg
Specifications
| Manufacturer | PHOENIX CONTACT |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-SA-P-7801 |
| Weight | 1.0 kg |
Description

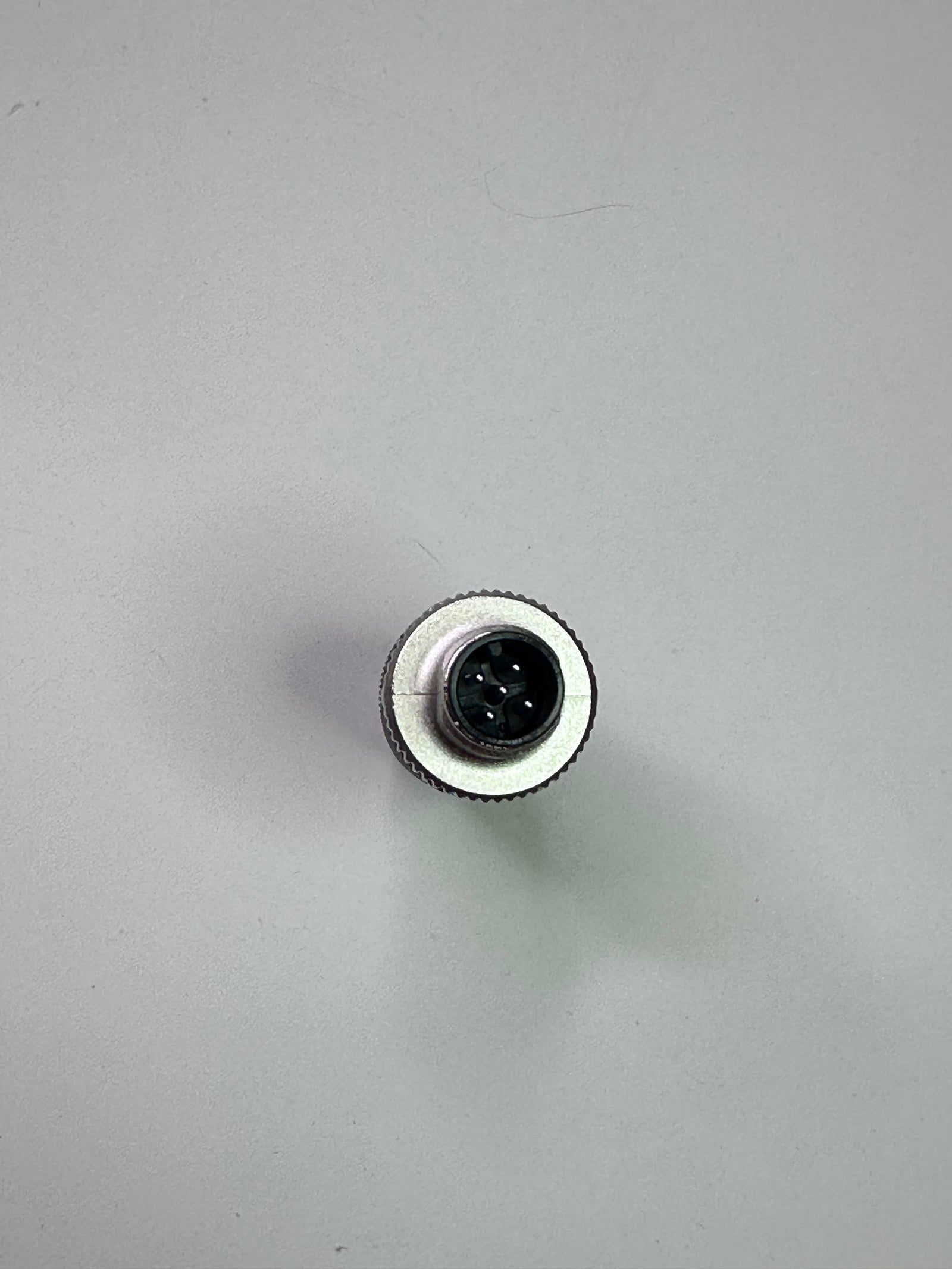

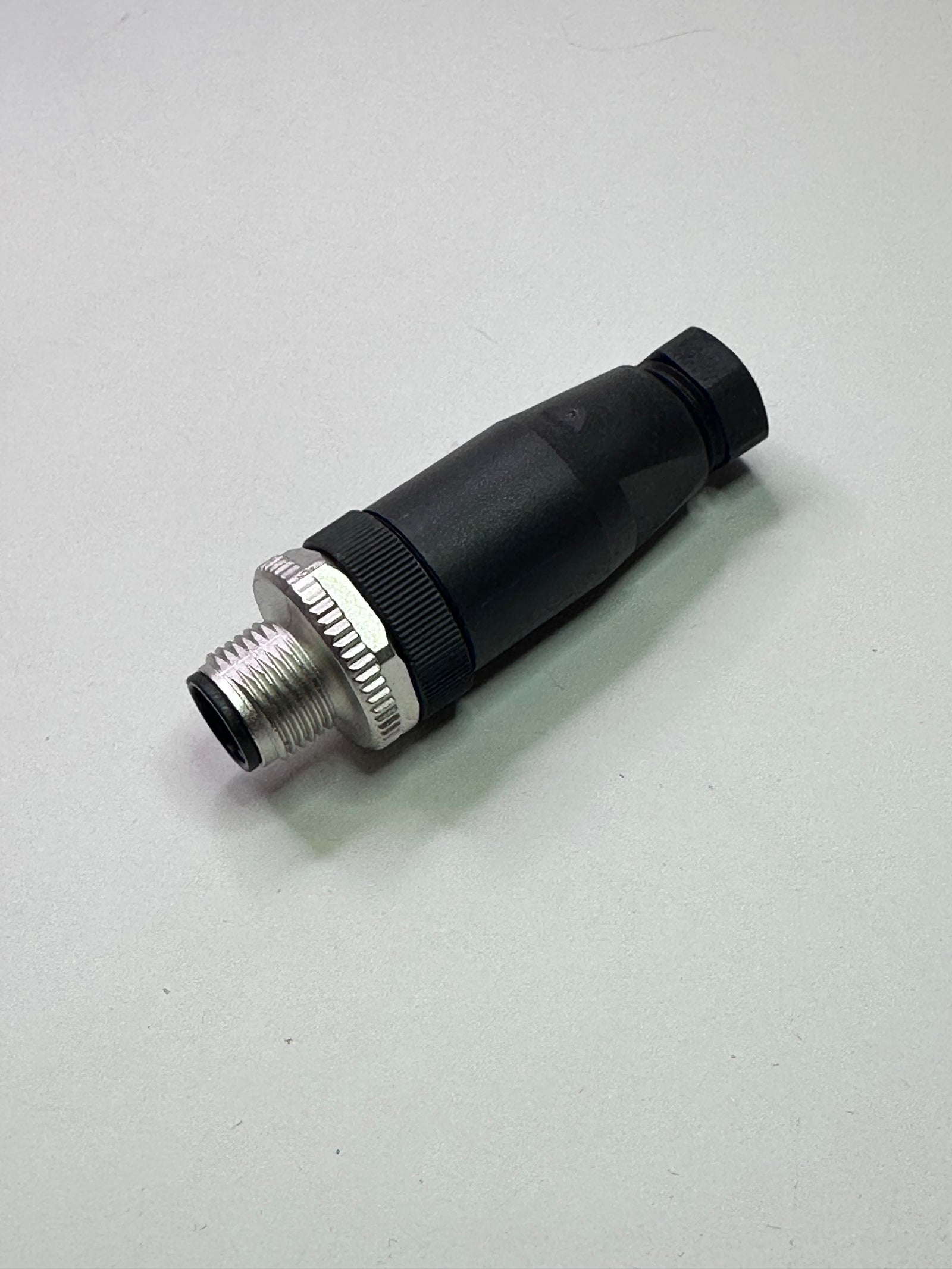

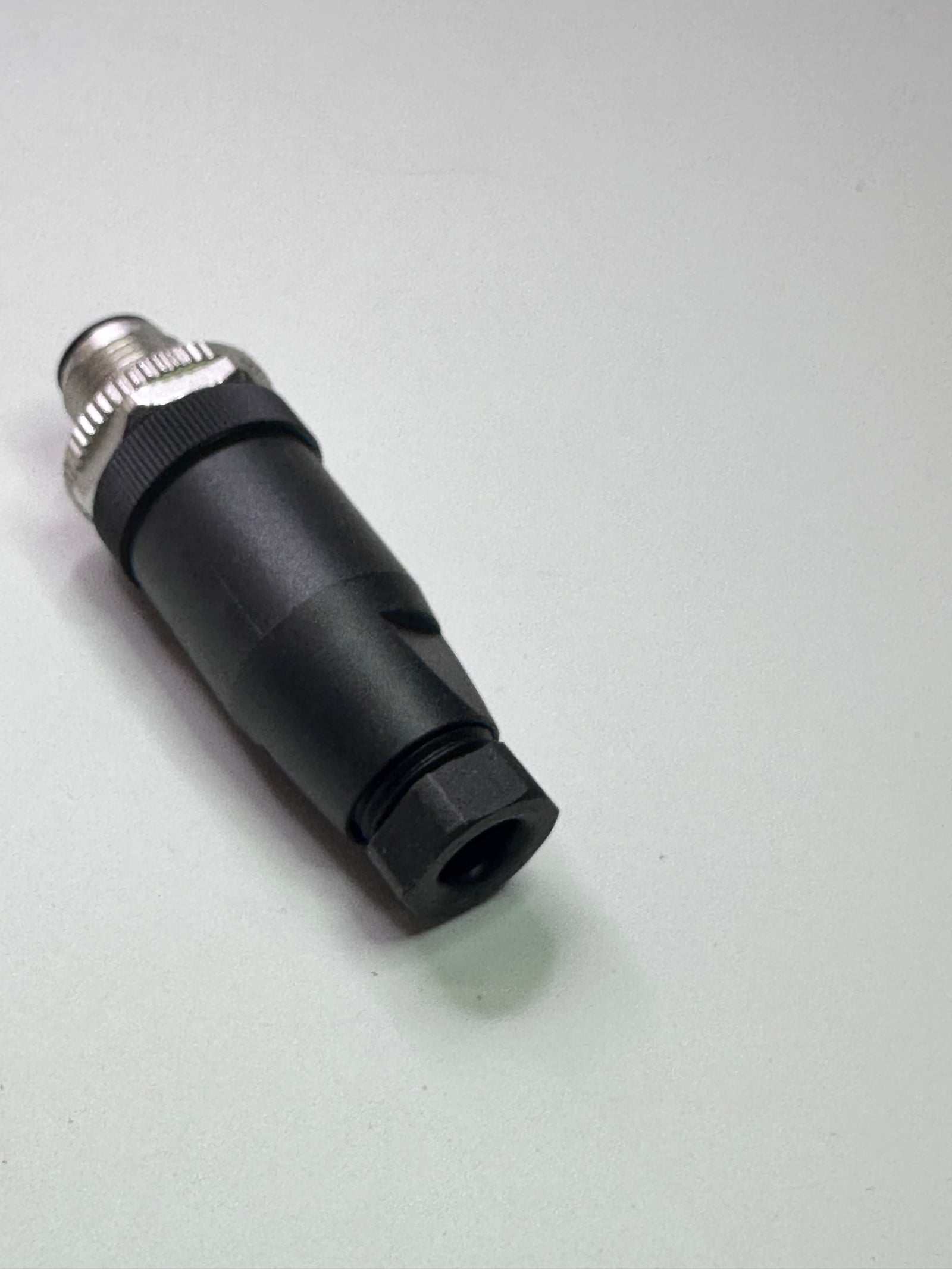

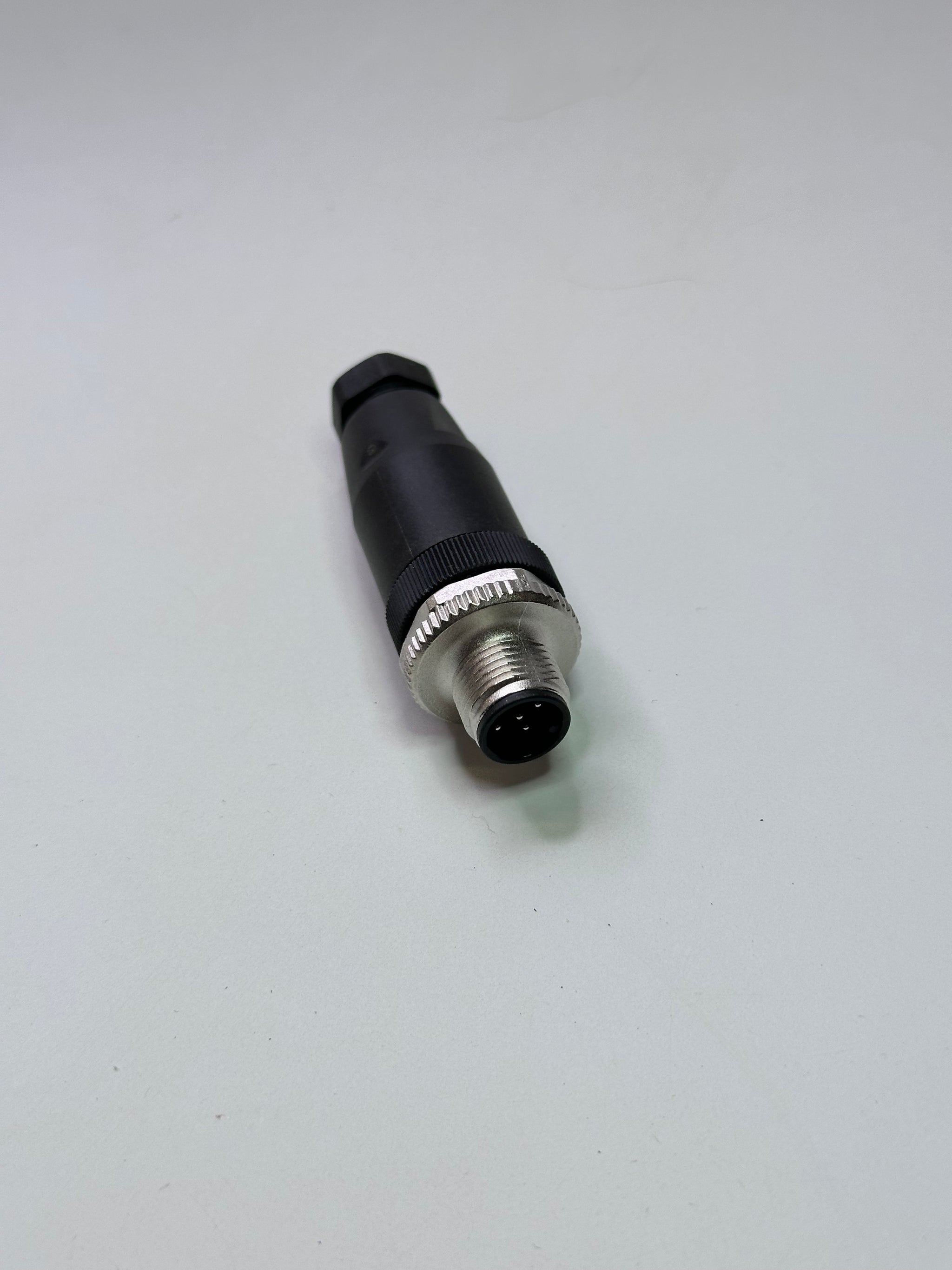

Phoenix Contact 1663116 connector, source title SACC-M12MS-5CON-PG-7-M. The source tag records the alternate spacing SACC-M12MS-5CON-PG 7-M. It is described as male, five-position, A-coded, unshielded and straight, with a Pg7 cable entry.
Source specifications
| Sensor type | Universal |
| Number of positions | 5 |
| No. of cable outlets | 1 |
| Shielded | no |
| Coding | A |
| Cable outlet | straight |

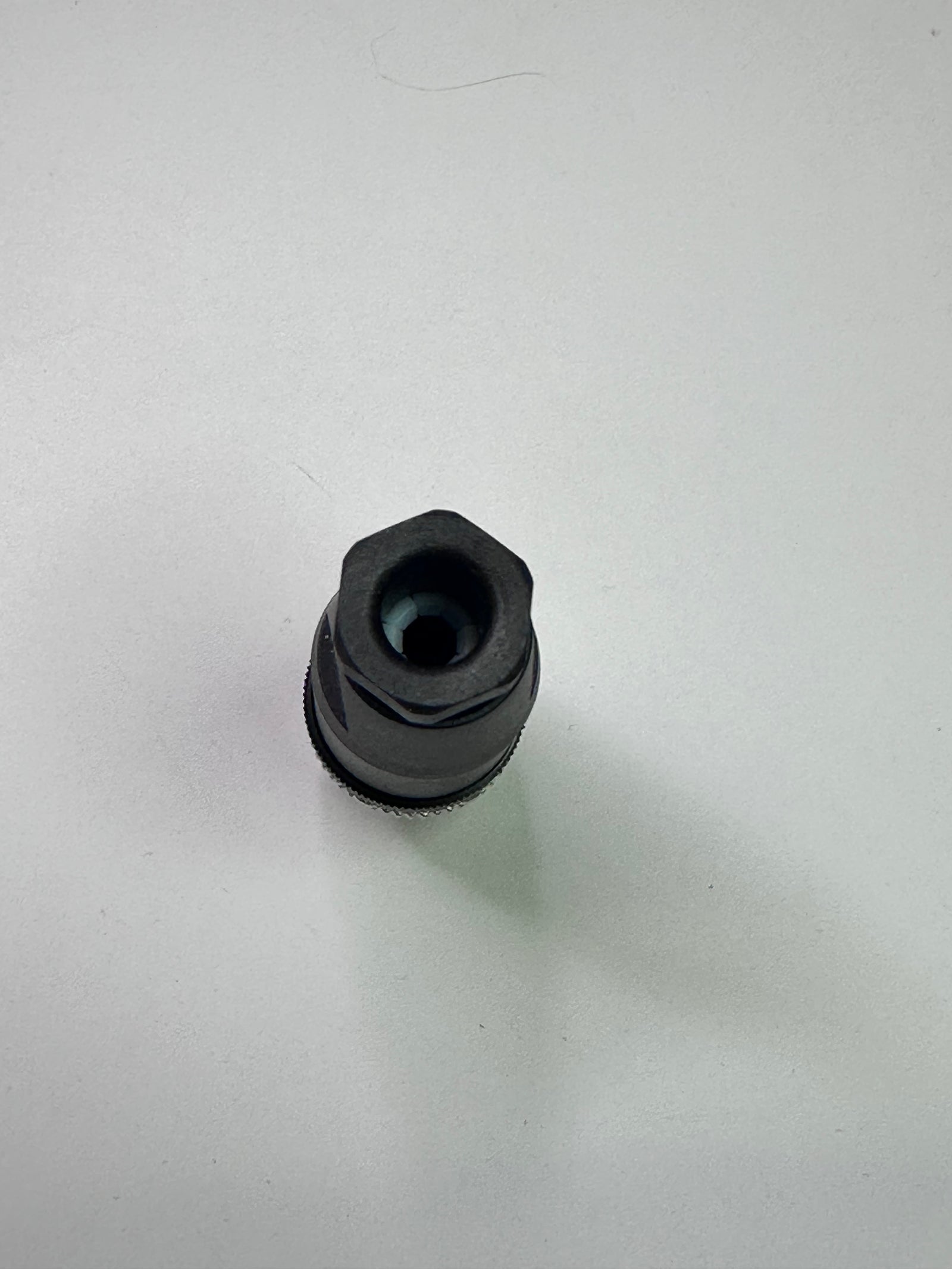

| Pg screw connection | Pg7 |
| Rated surge voltage | 1.5 kV |
| Contact resistance | ≤ 8 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 48 V AC |
| 60 V DC | |
| Nominal current IN | 4 A |
The 1.5 kV rated surge voltage is not the continuous operating voltage. The nominal values are separately listed as 48 V AC, 60 V DC and 4 A. “Sensor type: Universal” is a source field, not evidence that this connector is a sensor or fits every system.
Catalogue references and ordering checks

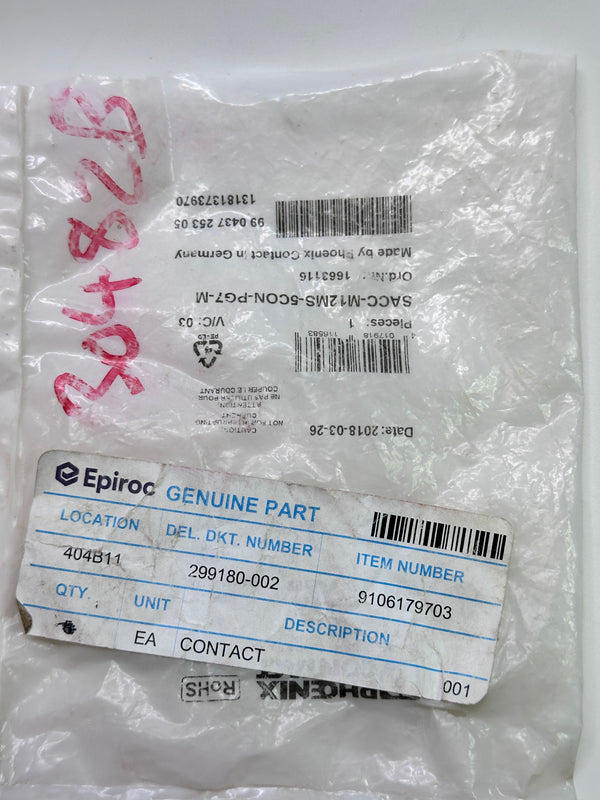

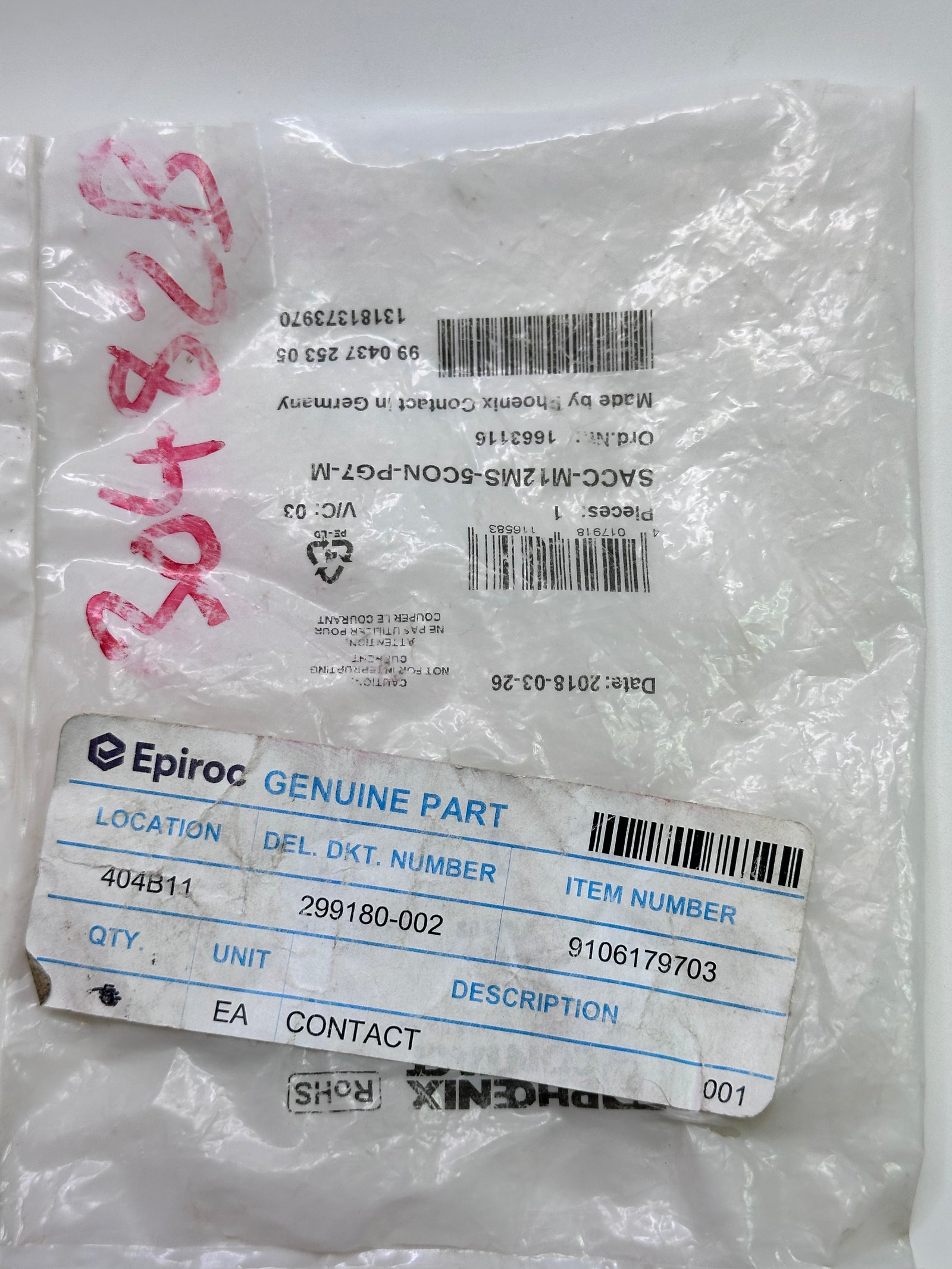

Legacy reference: atlas copco 9106179703. EPIROC, Sandvik and genuine atlas copco are source keywords, not confirmed equipment compatibility or independent authenticity verification. The vendor remains PHOENIX CONTACT.
Confirm the exact part, mating connector, coding, pin assignment and cable requirements. No cable, sensor, mating connector or tool is specified as included.
