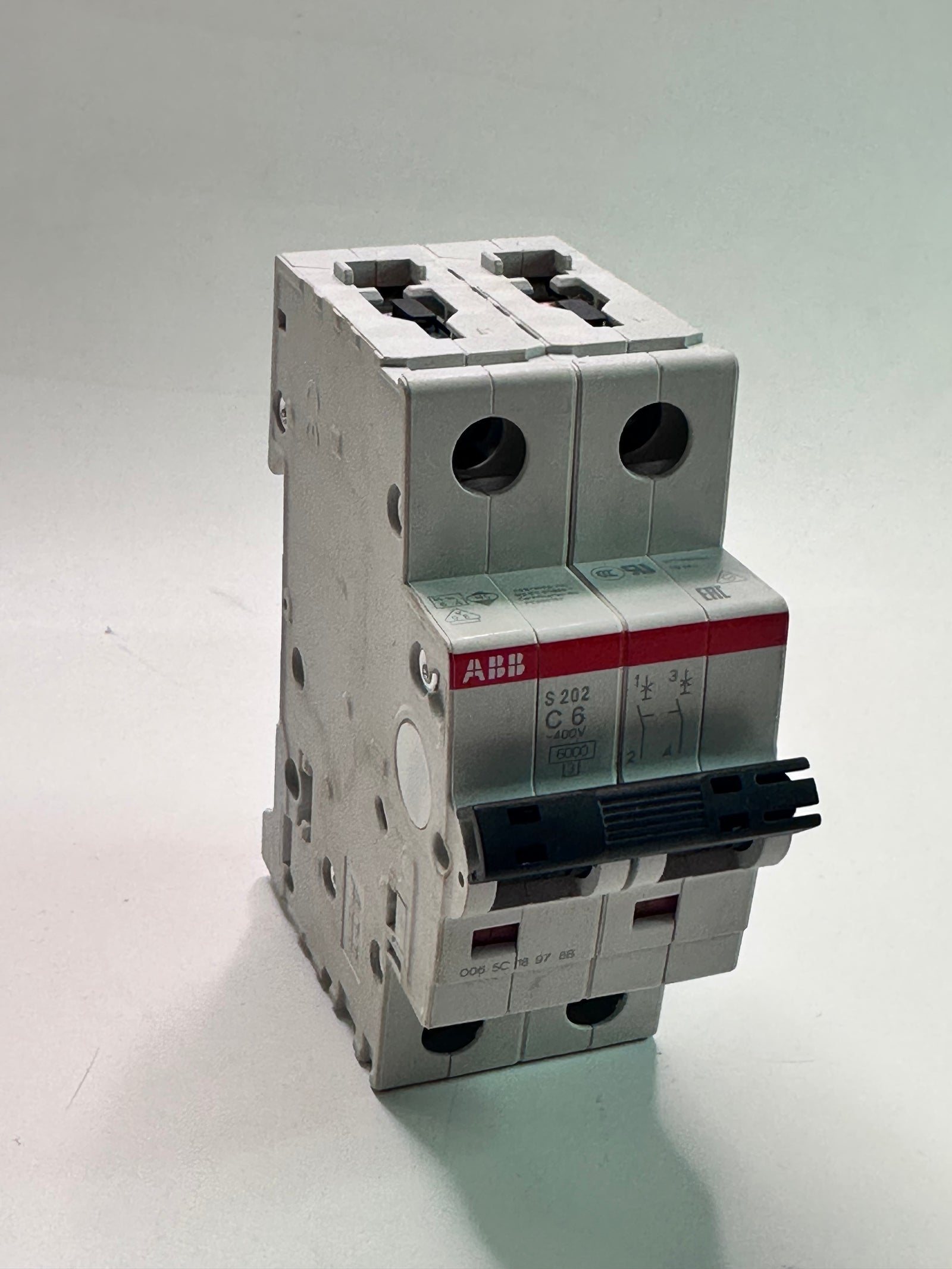

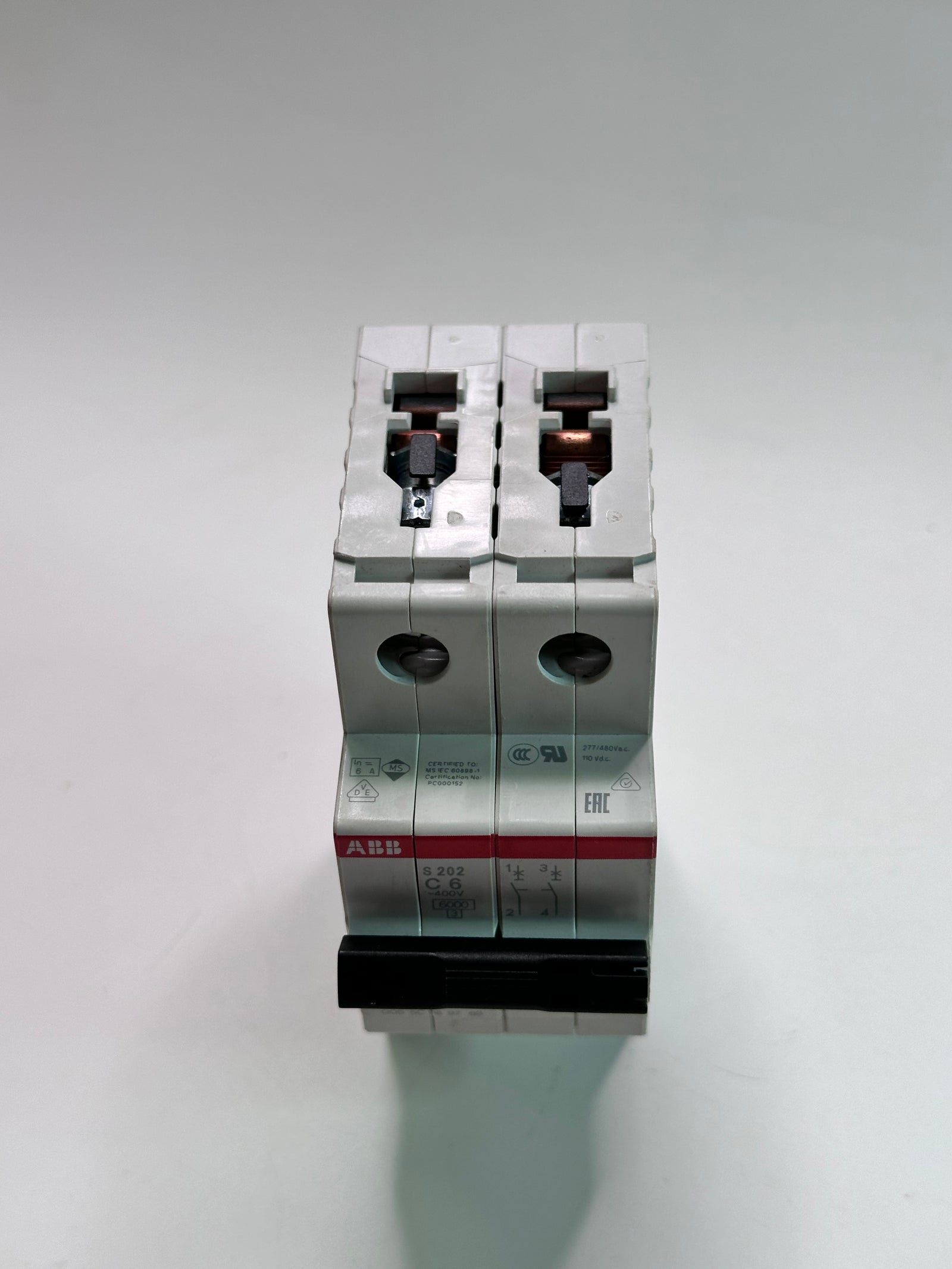

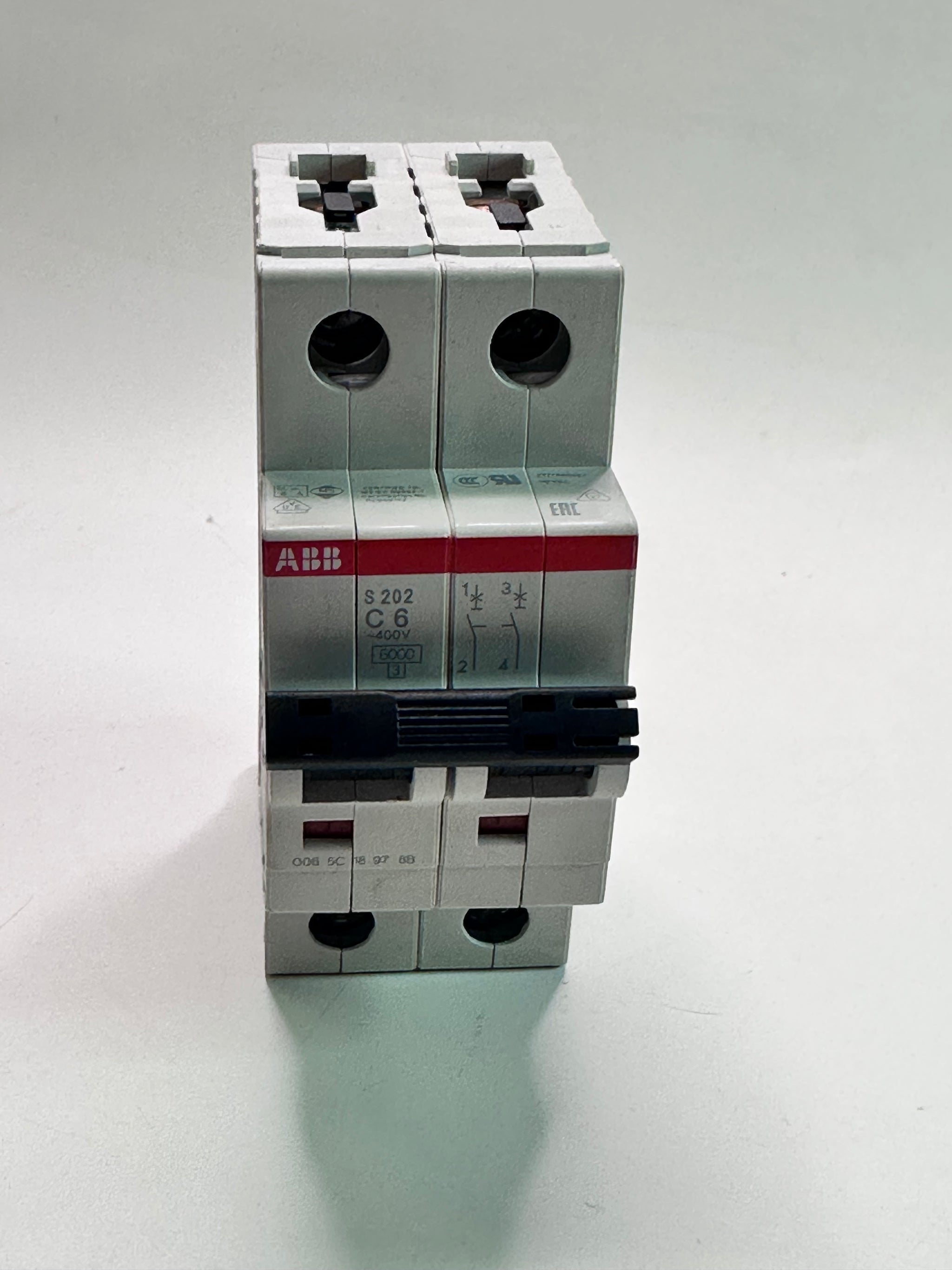

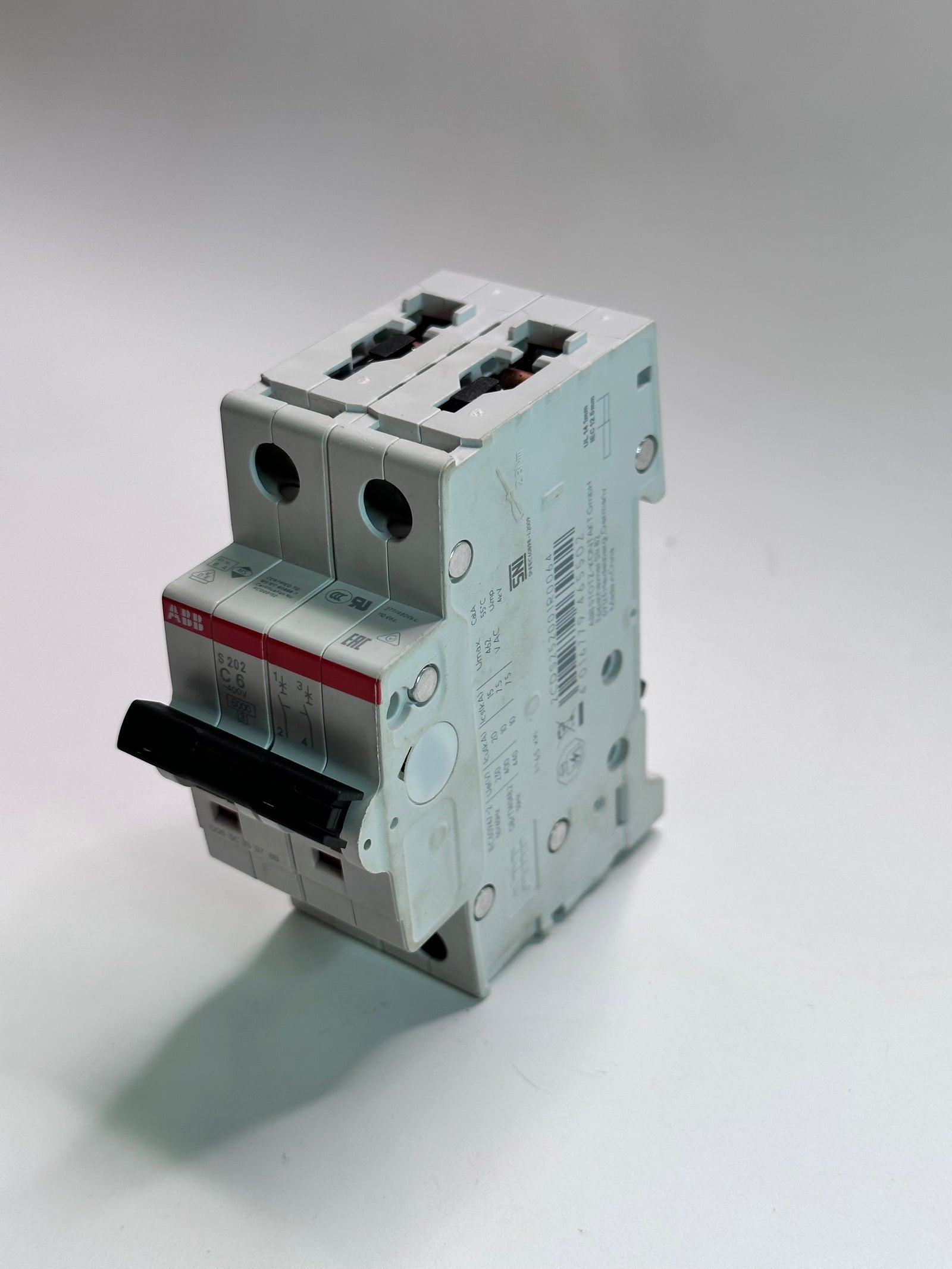

ABB S202-C6 Miniature Circuit Breaker — 2-Pole, 6 A
- SKU
- P-S--A-7859
- Weight
- 1.0 kg
Specifications
| Manufacturer | ABB |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-S--A-7859 |
| Weight | 1.0 kg |
Description

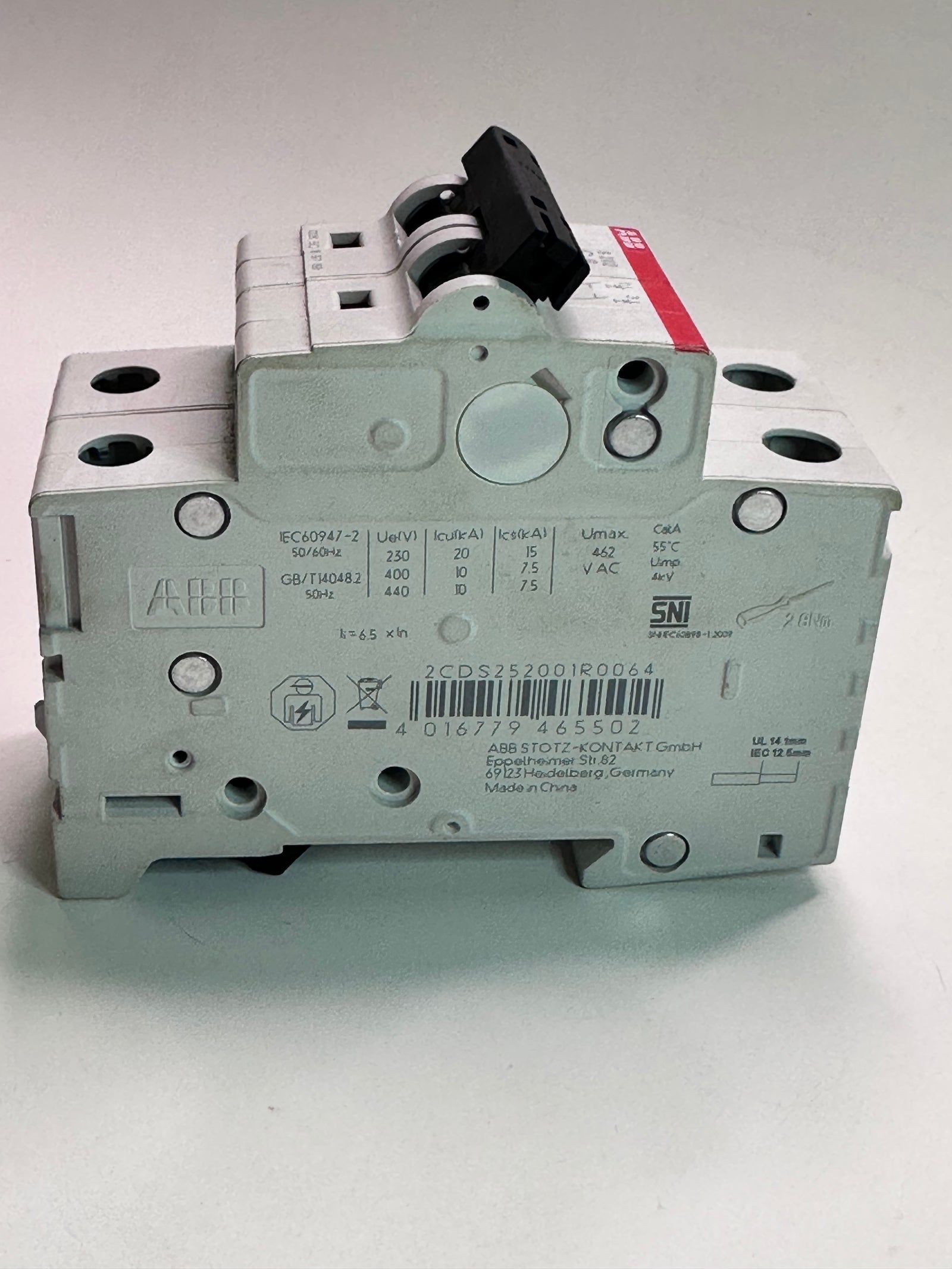

ABB S202-C6 S200 miniature circuit breaker, product reference 2CDS252001R0064.
- Recorded configuration: 2 poles (2P)
- Rated current in the title: 6 A
- Trip characteristic in the original tags: C-curve
- Additional references: S202C6 and 746-7706
S200 range information recorded in the source
The source describes current-limiting breakers with delayed thermal overload tripping and electromechanical short-circuit tripping. It lists family options B, C, D, K and Z; 1P, 1P+N, 2P, 3P, 3P+N and 4P configurations; breaking capacities up to 6 kA at 230/400 V AC; and currents up to 63 A. These are range options, not confirmation of every rating for this S202-C6 unit.
The source lists IEC/EN 60898-1, IEC/EN 60947-2 and UL1077 for the range and describes residential, commercial and industrial use. It also describes a bottom-fitting auxiliary contact with a claimed 50% space saving. Current compliance, the comparison basis and accessory inclusion have not been verified.
Confirm this unit's nameplate voltage, breaking capacity and required installation specification before ordering. An auxiliary contact is not specified as included.
