EMERSON
Emerson IC695PNC001-BCBC RX3i PROFINET Controller Module
- SKU
- P-RX-E-3037
$1,300.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 2.0 kg
Specifications
| Manufacturer | EMERSON |
|---|---|
| Product type | DATA & COMMUNICATION |
| SKU | P-RX-E-3037 |
| Weight | 2.0 kg |
Description

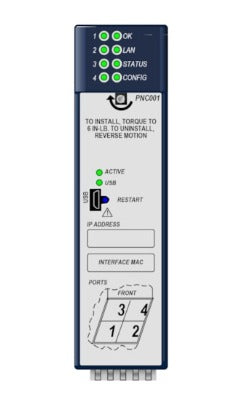

Emerson / GE Fanuc IC695PNC001-BCBC RX3i PROFINET controller module for the PACSystems RX3i platform. The source record also identifies the base part number IC695PNC001.

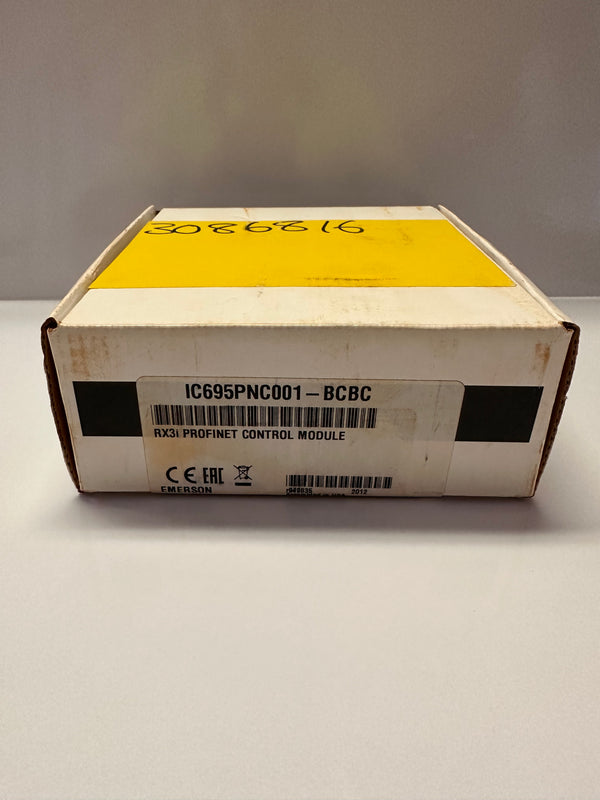

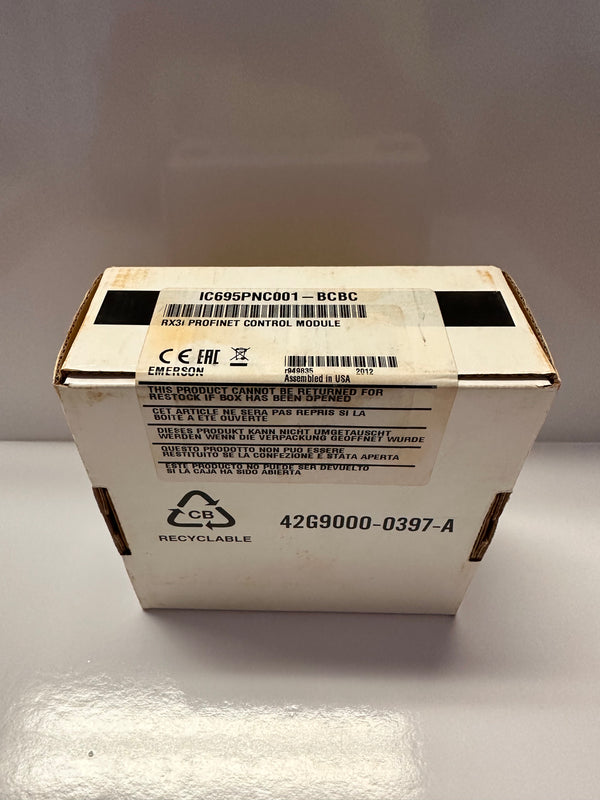

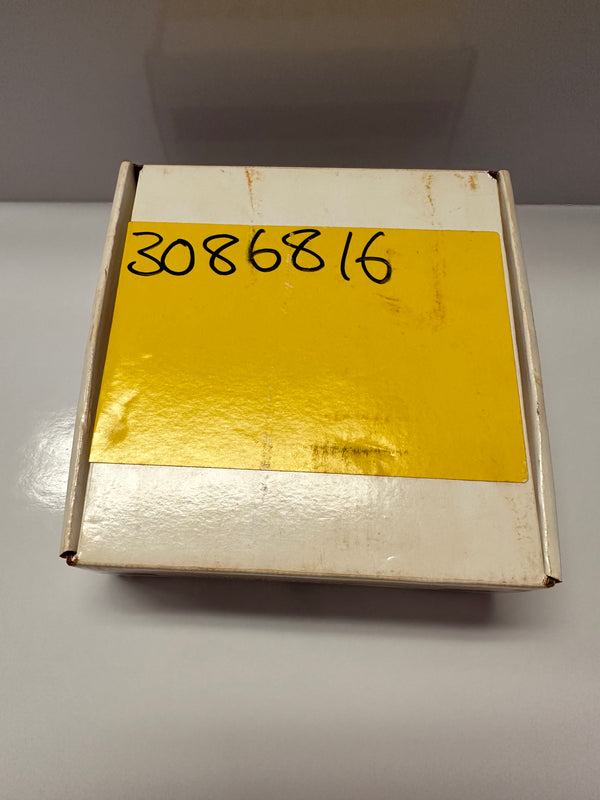

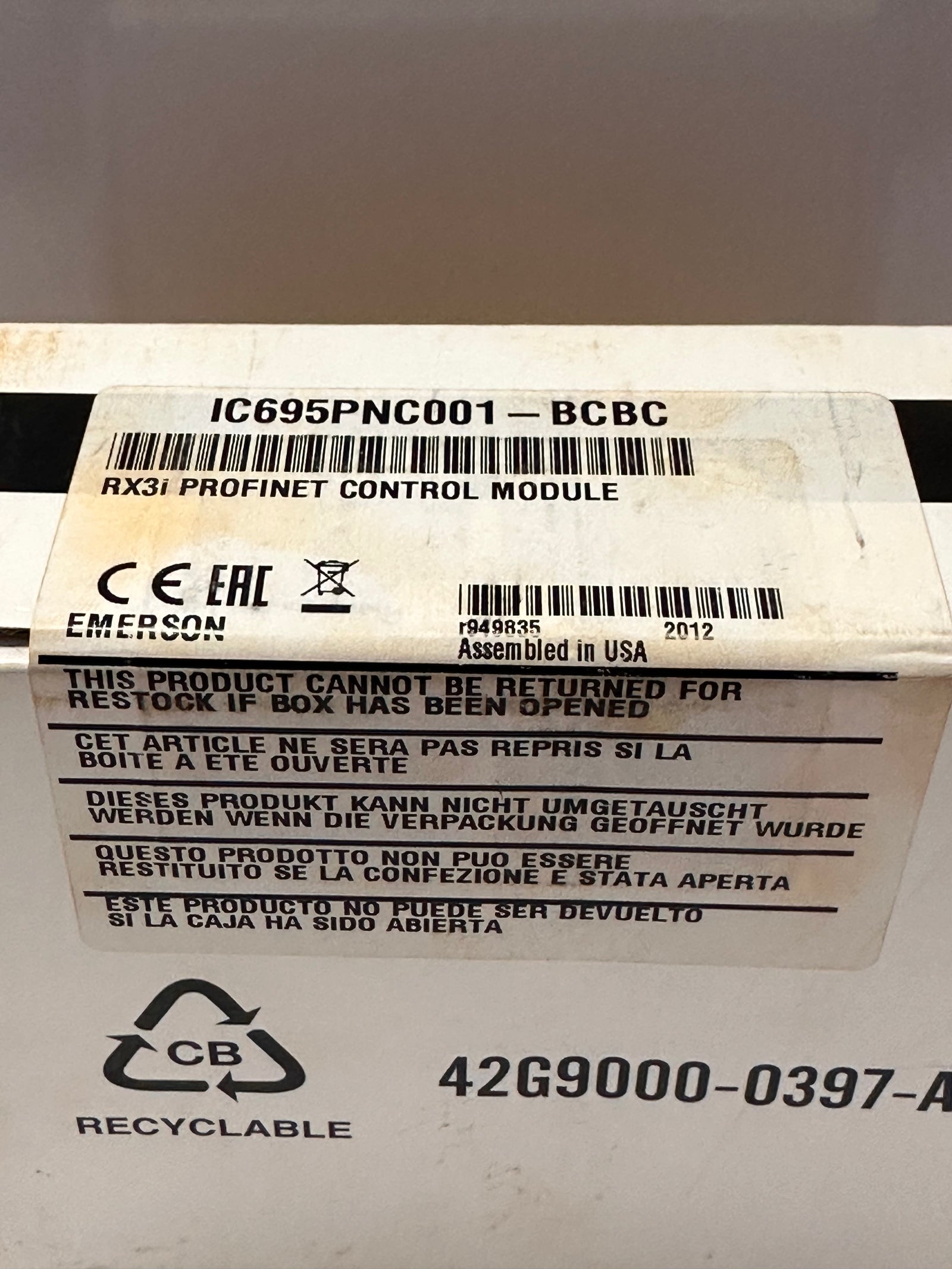

Condition: new in box (NIB), unopened, as recorded in the listing.
Recorded details
- Product line: RX3i PacSystem / PACSystem RX3i.
- Weight: 1.00 lb (0.45 kg).
- Module width: 1 slot; backplane support: Universal Only.
- Internal power: 1.5 A at 5 V DC; 0.5 A at 3.3 V DC.
The original specification table contains misaligned entries and a conflicting “Profibus Master Module” description. Protocol, CPU compatibility, port configuration and network limits must be confirmed against the exact module revision before ordering.
Original specification record — alignment and conflicting entries unverified
| 8 | Number of PROFINET Slots per device |
|---|---|
| 32 | Communication interfaces |
| 256 | |
| Manufacturer | GE Fanuc Emerson |
| Product Type | PROFINET Controller |
| Product Line | RX3i PacSystem |
| Part Number | IC695PNC001 |
| Weight | 1.00 lbs (0.45 kg) |
| Series | PACSystem RX3i |
| Product Description | Profibus Master Module |
| Profinet Controller Module | CPU Compatibility Requires |
| Catalog | IC695 |
| One (1) | Mounting location |
| Main rack only | Protocol Support |
| Number of Slots | 1 (single slot) |
| PROFINET Version 2.2 General Class A | Communication Ports |
| Backplane Support | Universal Only |
| Two (2) PROFINET ports; | Maximum I/O Memory |
| Protocol Support | PROFINET Version 2.2 General Class A |
| 128 Kbytes of combined input/output memory per PROFINET Controller | CPU Status Bit |
| Communication Ports | Micro USB (for diagnostics and system setup only) |
| Internal Power at 5 V DC | 1.5 A |
| One (1) Micro USB (for diagnostics and system setup only); Two (2) PROFINET ports | No. of module per CPU |
| Internal Power at 3.3 V DC | 0.5 A |
| Four (4) | IO-Devices per IO-Controller |
| CPU Status Bits | 32 |
| 64 per PROFINET Controller | IO-Devices per Network |
| Port Connectors | Two RJ-45 and two SFP Cage |
| 128 per network, spread across up to 8 IO-Controllers | IO-Devices per RX3i CPU |
| 128 per RX3i CPU, spread across up to 4 PROFINET Controllers | IO-Controllers per network |
