Siemens RUGGEDCOM RSG2200 / 6GK6022-0AS2 Modular Ethernet Switch

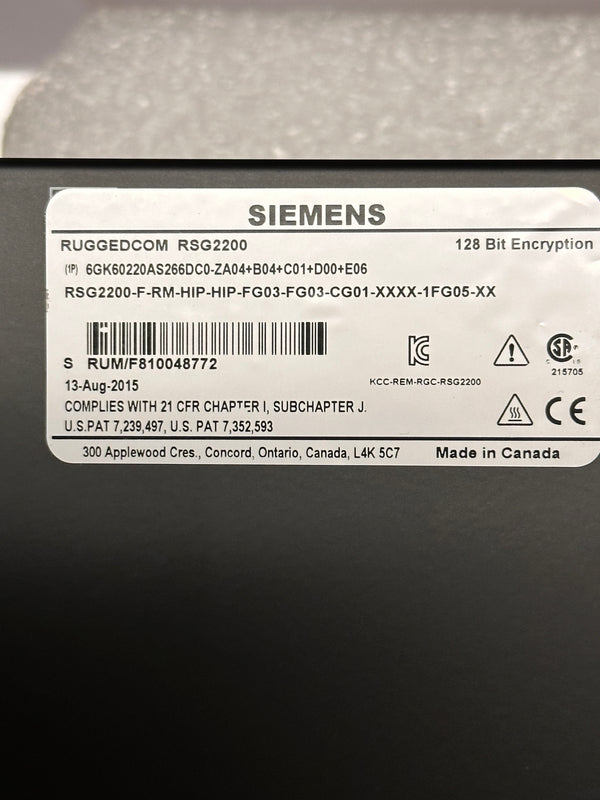

Siemens RUGGEDCOM RSG2200 modular Gigabit Ethernet switch. The source lists configuration RSG2200-F-RM-HIP-HIP-FG03-FG03-CG01 and title reference 6GK6022-0AS2.

Configuration requires confirmation: Existing tags record 6GK6022, 6GK6022-0AS266DC0-ZA04+B04+C04-D00-E06, 6GK60220AS2660C0 and 6GK60220AS266DC0. These strings are retained as recorded, not confirmed equivalent order codes. Ask MIS to check the nameplate and installed modules.

The original description covers the RSG2200 and M2200 product families and lists these family-level capabilities, not a verified specification of the offered configuration:

• Fully managed, non-blocking, store-and-forward switching
• Up to 9 Gigabit Ethernet ports, copper and/or fibre, with 2-port modules
• Multimode, single-mode and bidirectional single-strand fibre options; ST, MTRJ, LC, SC and SFP connector options

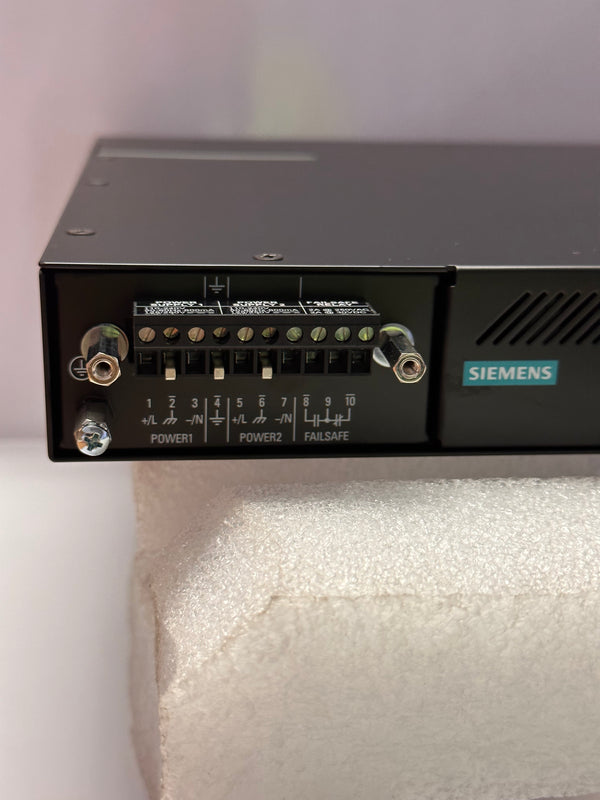

• Integrated high- and low-voltage power-supply options, with optional dual redundancy
• Fanless operation stated for ambient temperatures from −40 °C to +85 °C
• Intended for utility substations and industrial environments

The source attributes MIL-STD ratings to M2200, not this RSG2200 listing. The original title records 128-bit encryption and a tag records 128G; neither establishes the installed firmware, enabled security features or throughput. Confirm exact ports, power inputs, encryption capability, condition and included items before ordering.
