ROTORK

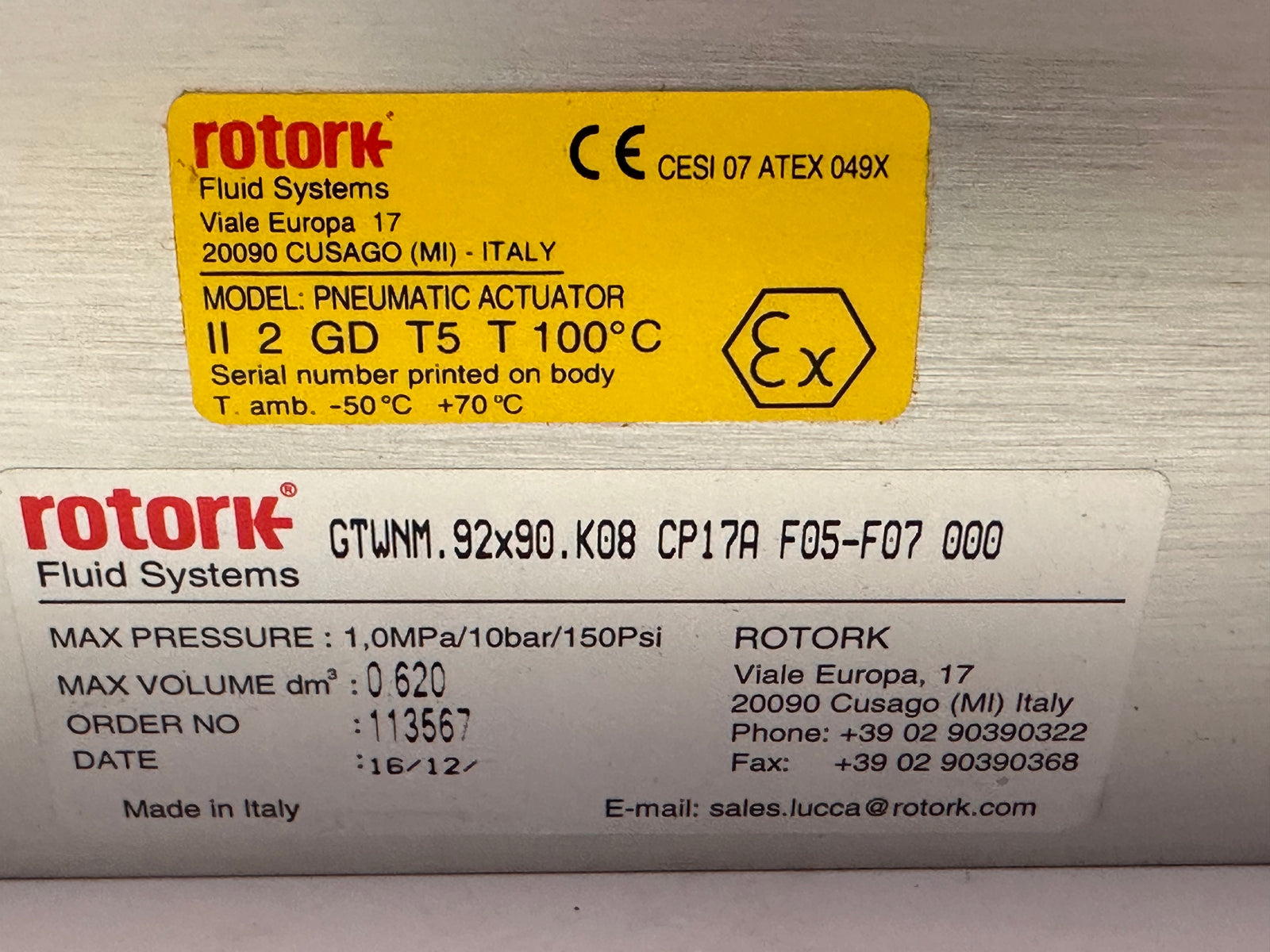

Rotork GTWNM.92X90.K08 CO17A F05-F07 000 Pneumatic Actuator
- SKU
- P-RO-R-3953
$395.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 4.5 kg
Specifications
| Manufacturer | ROTORK |
|---|---|
| Product type | PNEUMATICS |
| SKU | P-RO-R-3953 |
| Weight | 4.5 kg |
Description

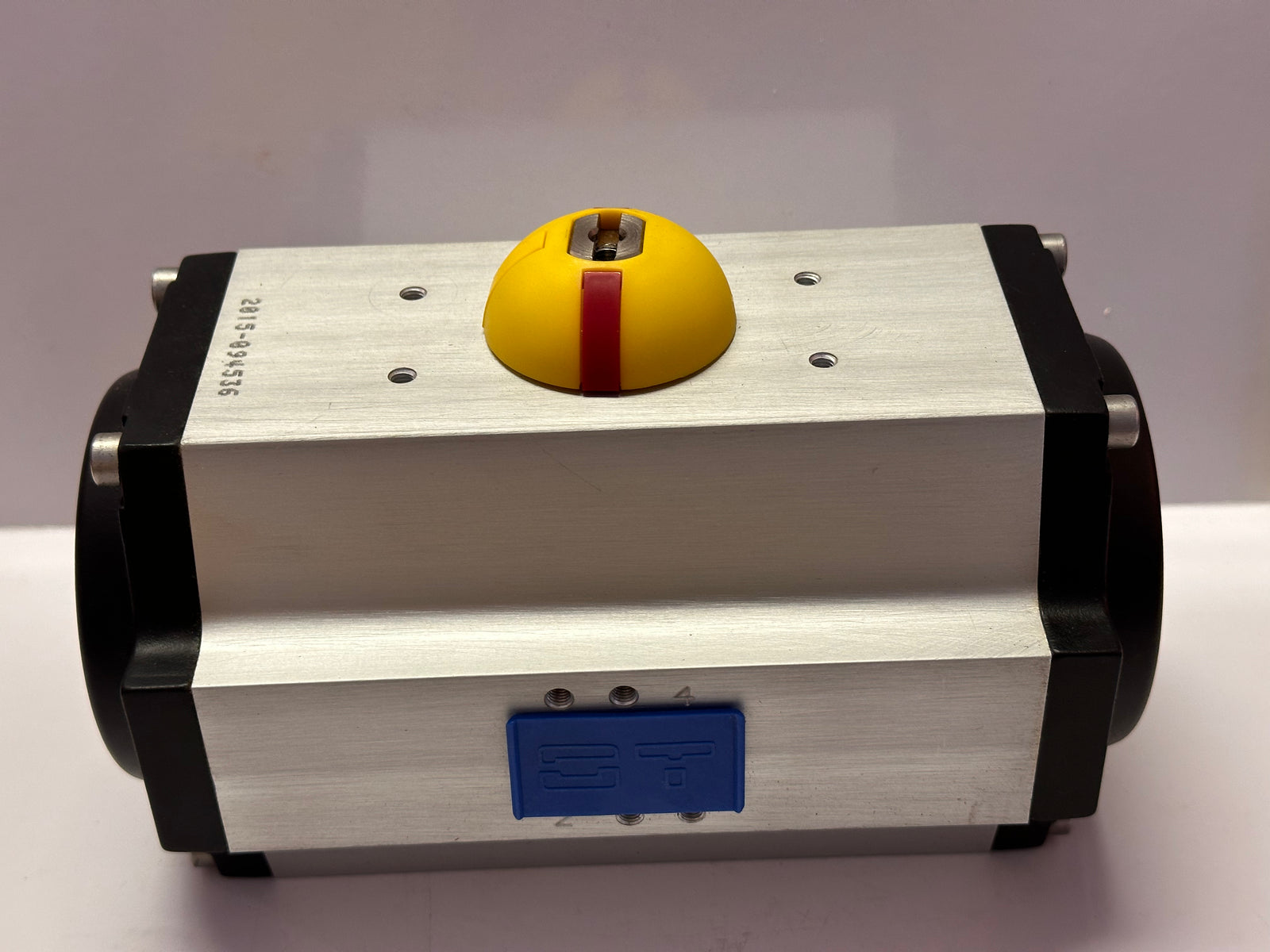

GT Range single- and double-acting pneumatic piston actuators.
Design
- Single- and double-acting pneumatic piston actuators (rack and pinion)
Action
- Standard 90°, optional 120°, 180° , 240° or custom angles
Stroke adjustment
- -5° to +5° from 90° position
- Single and double end stop options
Torques
- 2.4 to 15,300 Nm (135,400 lbf.in)
Air pressure
- 2 to 10 bar
Supply
- Filtered air PNEUROP/ISO class 4, other fluids on request
Materials
- Extruded aluminum body with cast aluminum end caps – optional surface treatment available
- Corrosion resistant cylinders and nickel-plated pinion
Approvals and Industry Standards

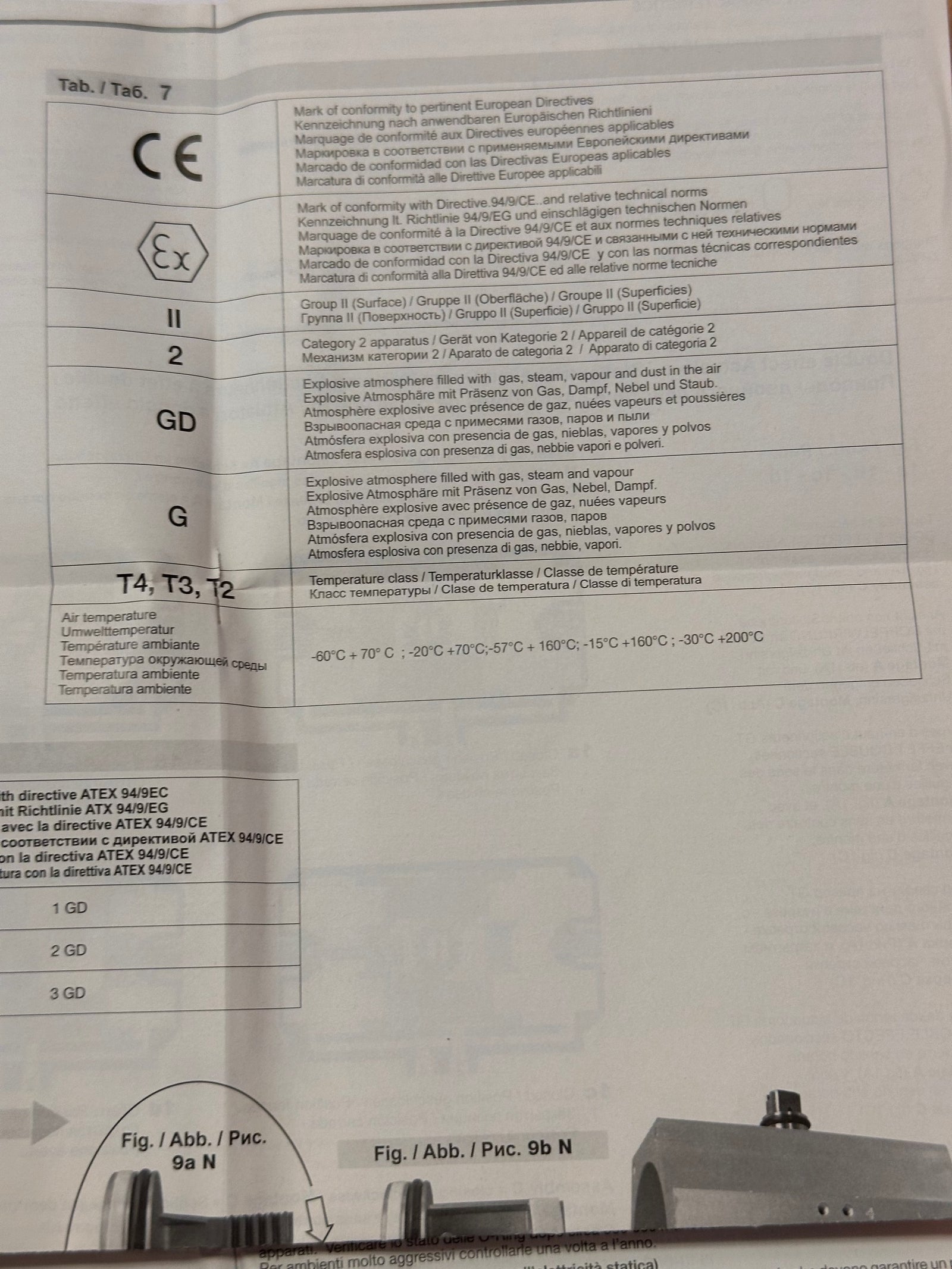

- Certified to ATEX 2014/34/EU
- Certified suitable for use at SIL3 as a single device in accordance with IEC 61508
- Mechanical interfaces to ISO 5211, EN 15714-3-4, NAMUR VDI / VDE 3845
