Emerson
Rosemount 644HAE7J6C4Q4P8 644 HART Temperature Transmitter
- SKU
- P-RO-E-6867
- Weight
- 5.0 kg
Specifications
| Manufacturer | Emerson |
|---|---|
| Product type | SENSOR |
| SKU | P-RO-E-6867 |
| Weight | 5.0 kg |
Description

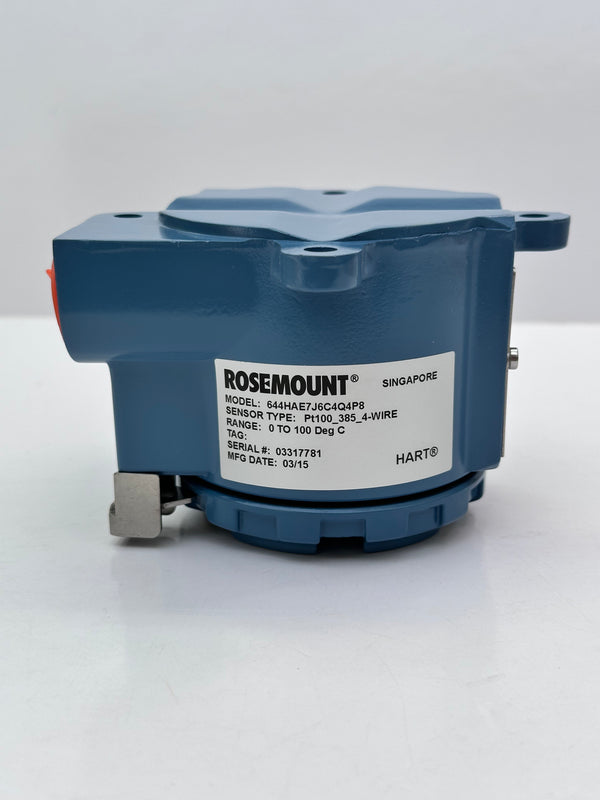

Emerson Rosemount 644 temperature transmitter, full recorded model 644HAE7J6C4Q4P8. The source provides the option-code descriptions below; verify them against the actual nameplate and supplied documentation.
- H: DIN A head mount, single sensor input
- A: 4–20mA with a digital signal based on HART protocol

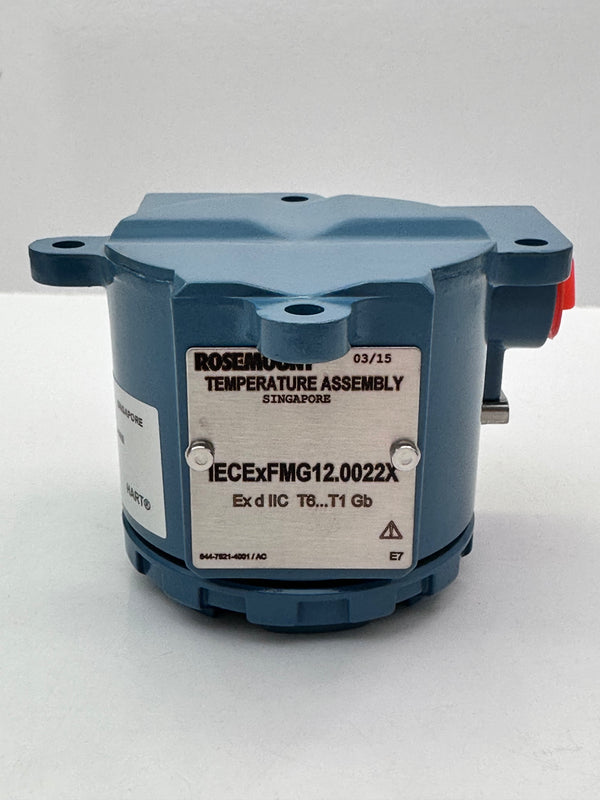

- E7: described as IECEx flameproof

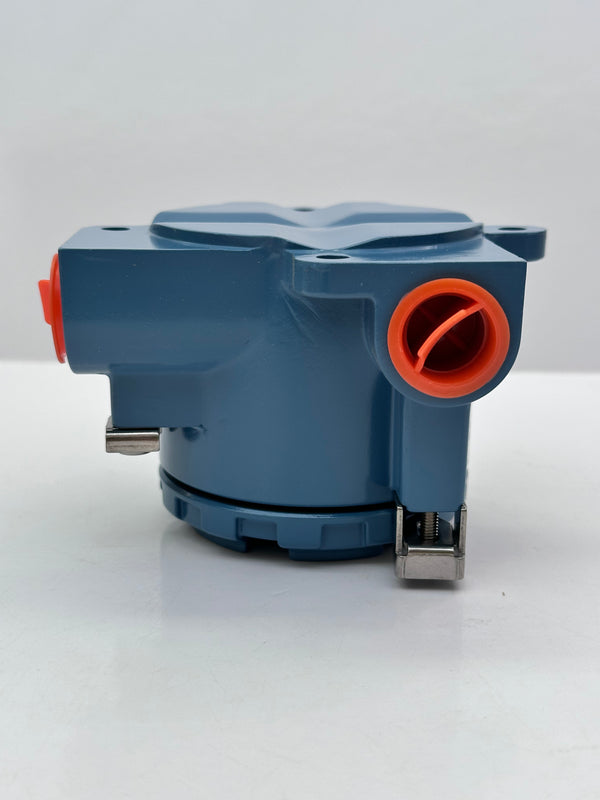

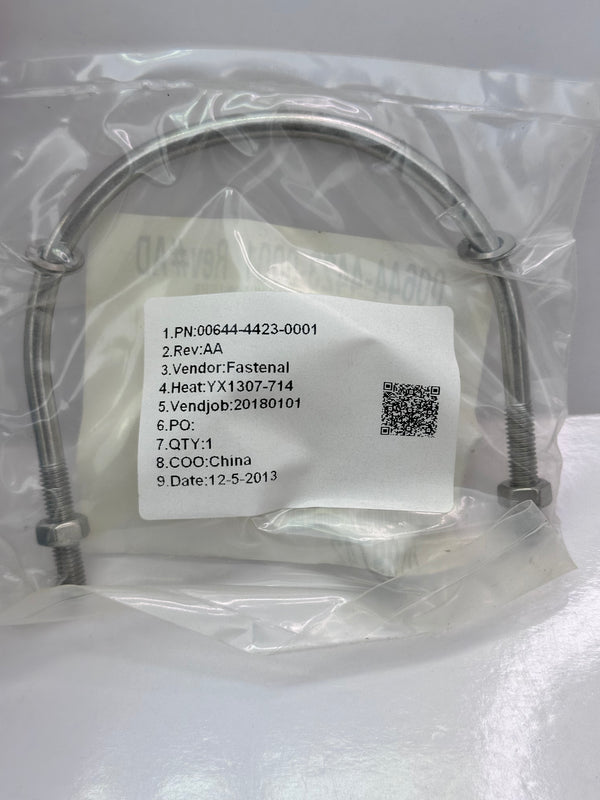

- J6: universal head / junction box, with 50.8mm (2in) SST pipe bracket; material entry “Ali”; connection ½-14 NPT
- C4: described as 5-point calibration

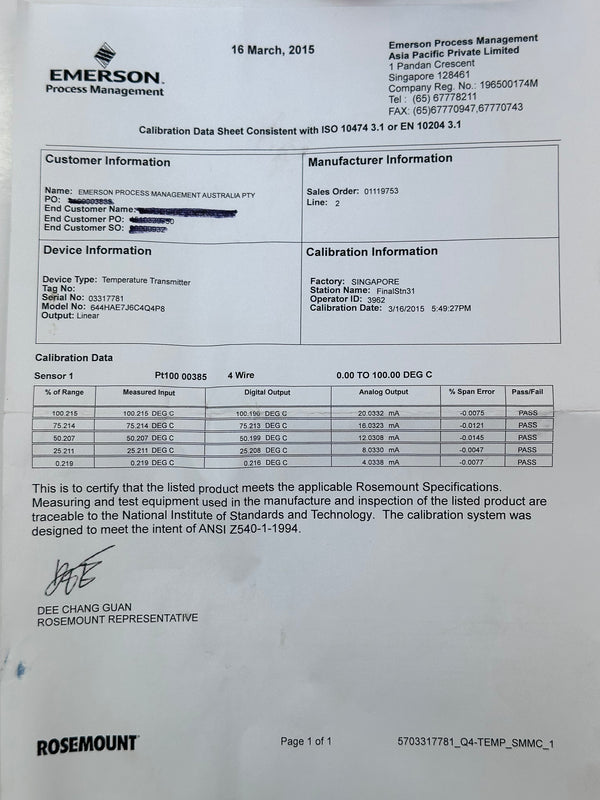

- Q4: described as calibration certificate (3-point calibration)
- P8: described as enhanced transmitter accuracy and stability; no numerical performance figure is supplied
Original tags also reference ATEX, Ex d IIC, flameproof and “0-100”. The temperature unit/range basis, actual hazardous-area markings and applicable certification have not been established here.
Confirm the installed head/bracket configuration, sensor-input compatibility and current calibration records before ordering. C4 and Q4 are recorded option descriptions, not proof that either calibration certificate is supplied or current. No separate sensor element, temperature switch or complete controller is specified as included. Hazardous-area suitability must be checked against the actual unit and installation requirements.
