EMERSON

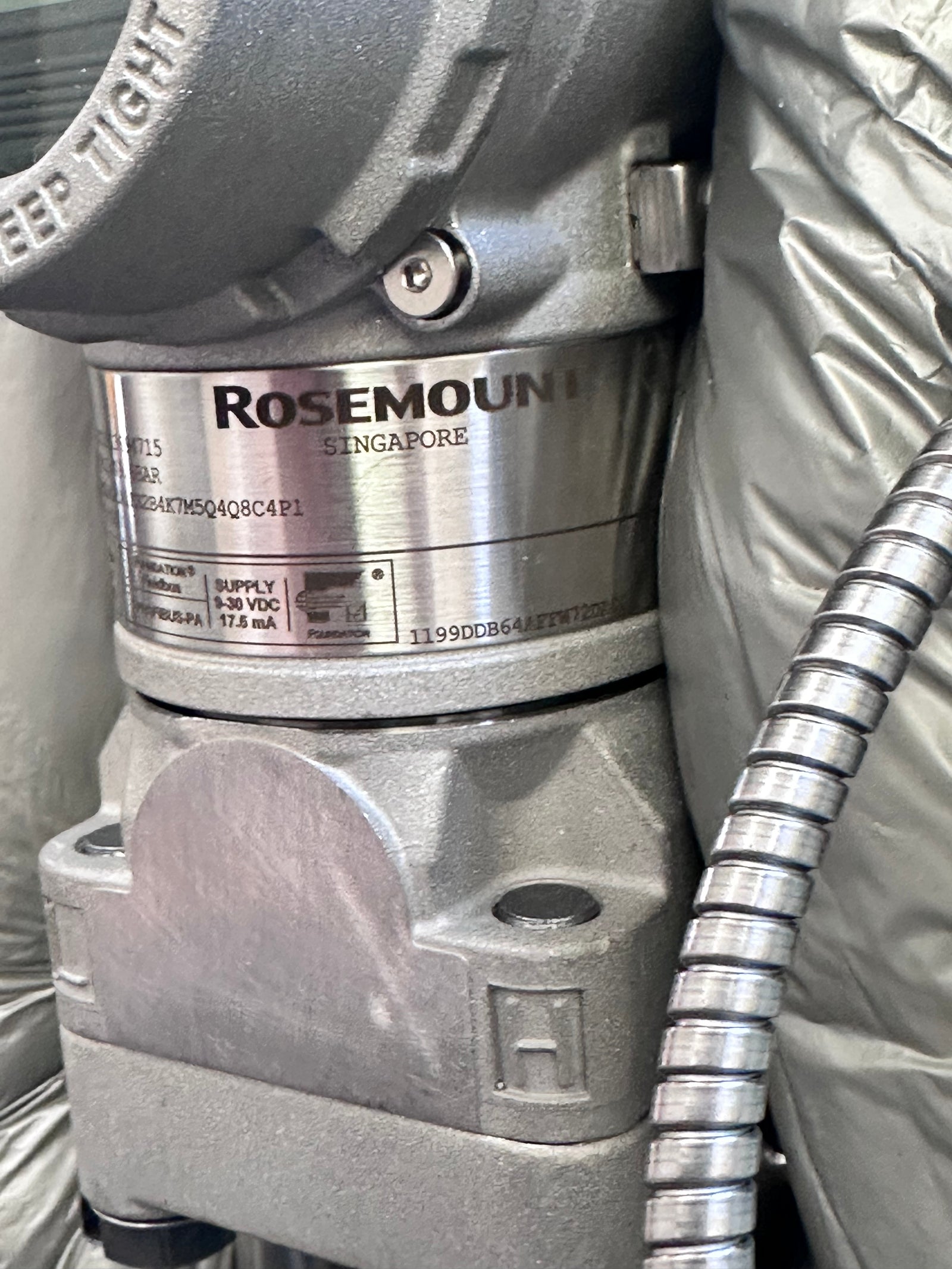

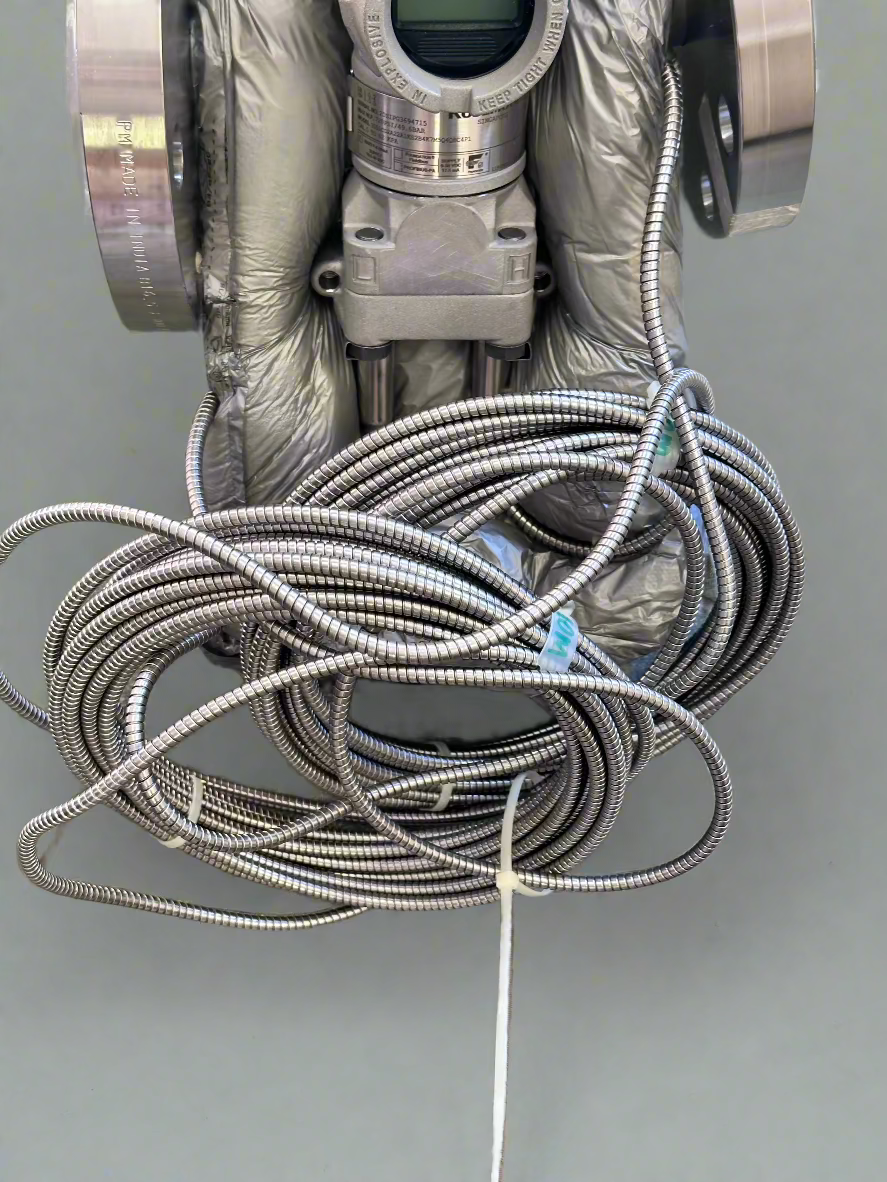

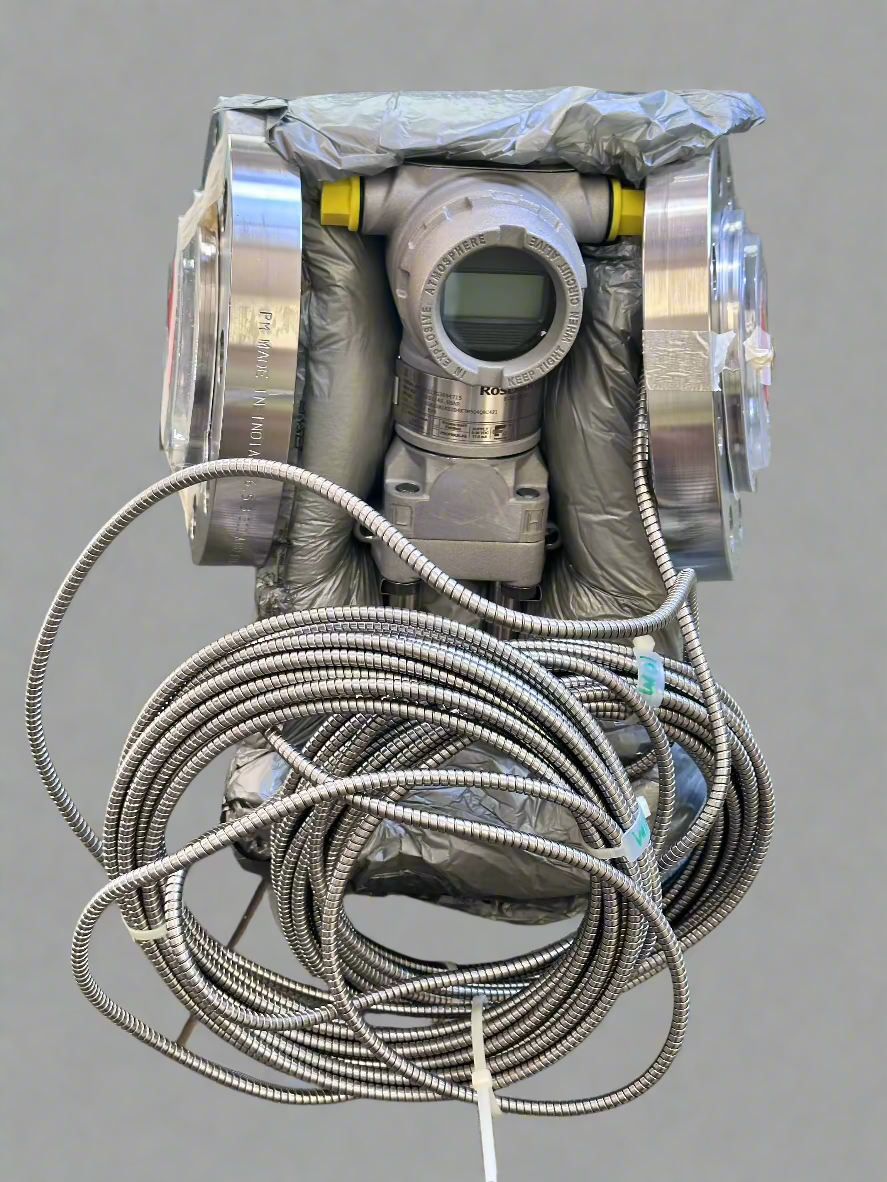

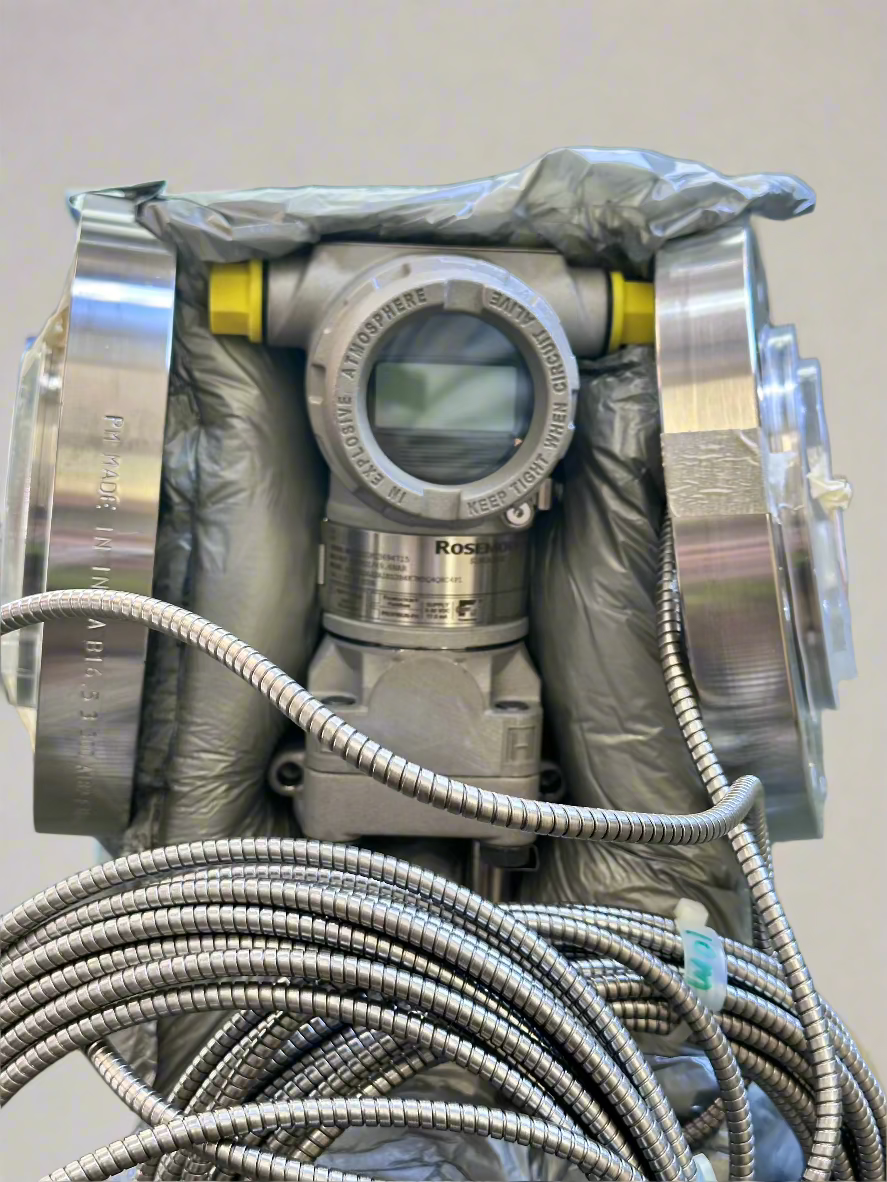

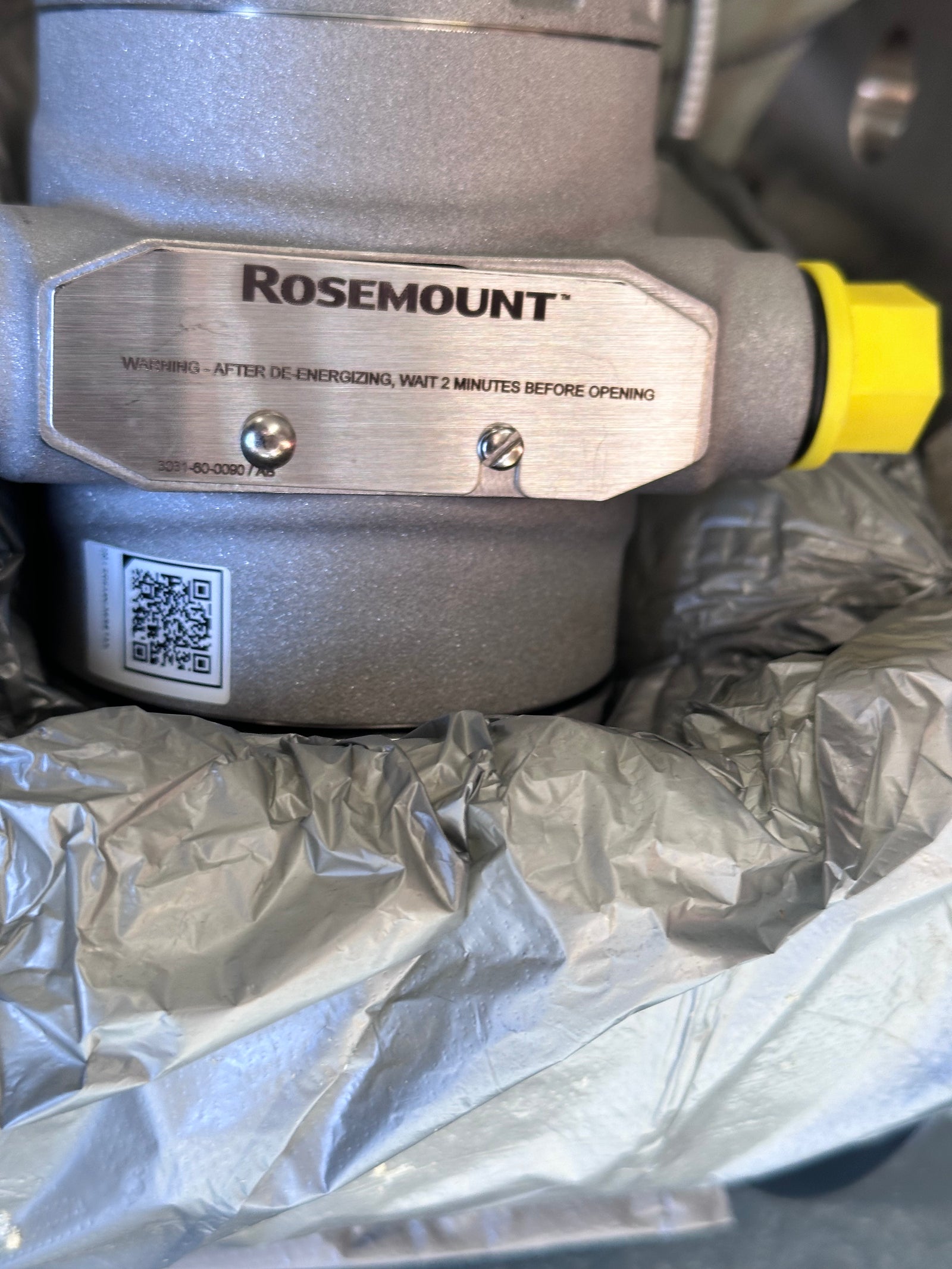

Rosemount 3051 Coplanar Pressure Transmitter - 3051CD2A22A1KS2B4K7M5Q4Q8C4P1
- SKU
- P-RO-E-7011
This one has sold, but we regularly land similar stock and can often source an equivalent.
Request this part or an equivalent- Weight
- 26.0 kg
Specifications
| Manufacturer | EMERSON |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-RO-E-7011 |
| Weight | 26.0 kg |
Description

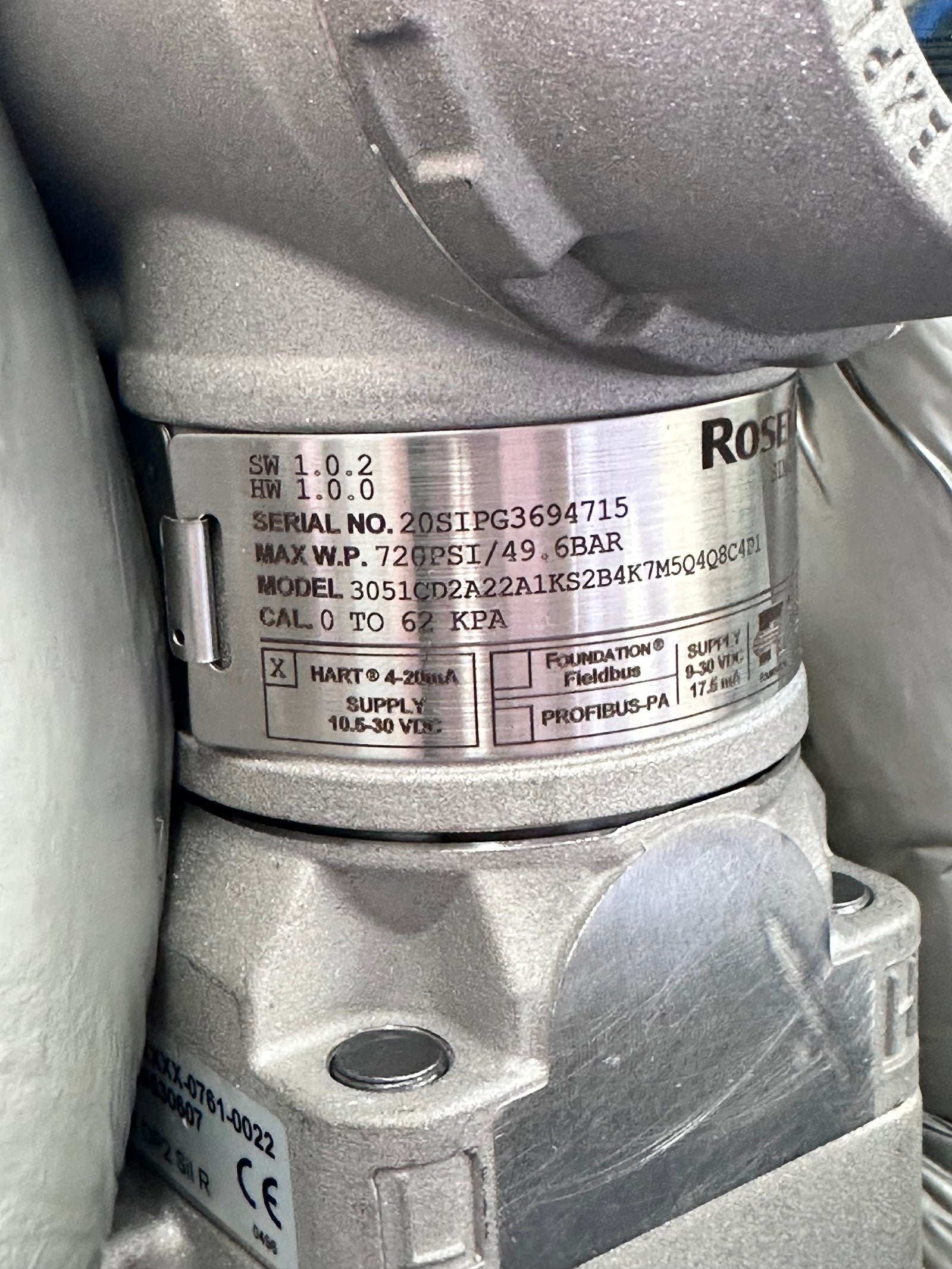

Model: 3051C
Measurement Type: Differential
Pressure Range: (2): -250 to 250 inH2O (622.7 mbar)
Transmitter Range (A): 4-20 mA with Digital Signal Based on HART Protocol
Process Flange Type (2): Coplanar / SST/ SST
Isolating Diaphragm (2): 316L SST
O-Ring (A): Glass-filled PTFE
Sensor Fill Fluid (1): Silicone
Housing Material (K): SST / M20 x 1.5

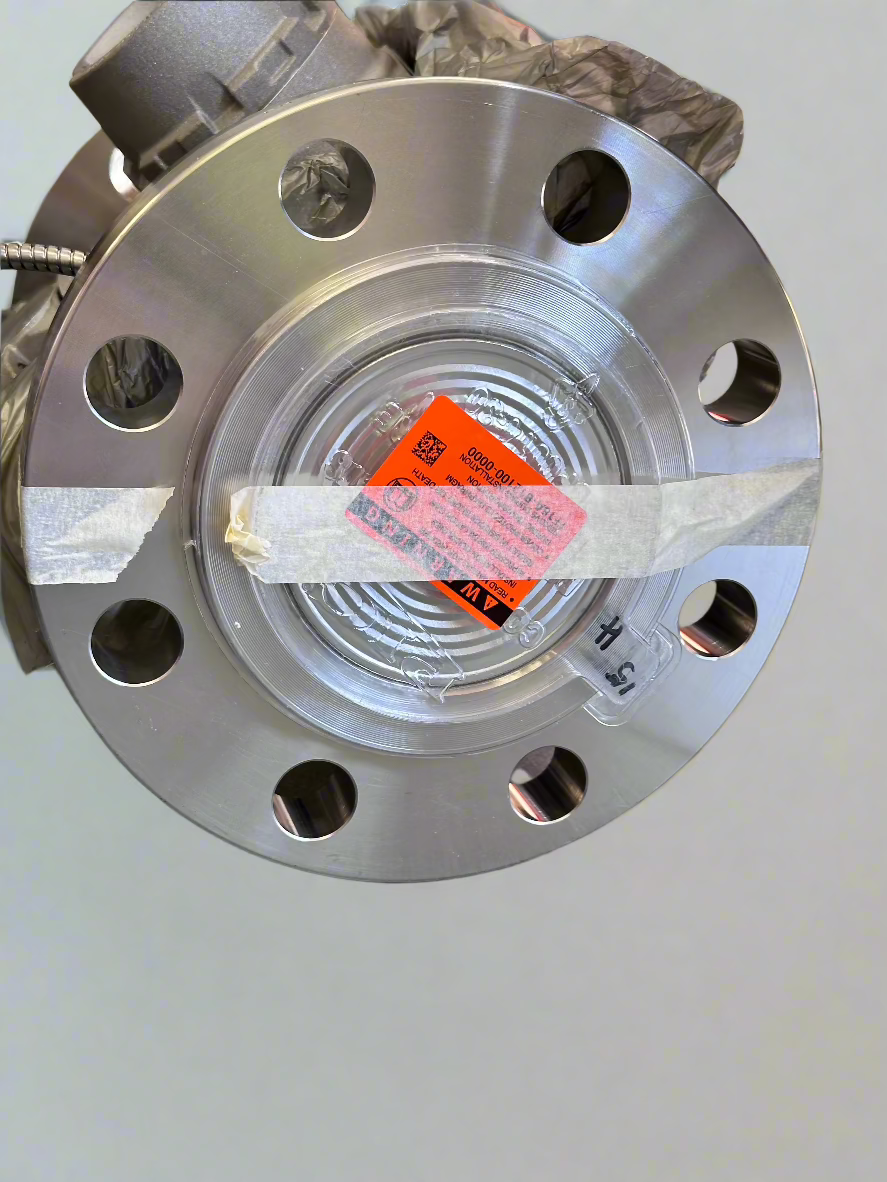

Seal Assemblies (S2): Assemble to two Rosemount 1199 Seals

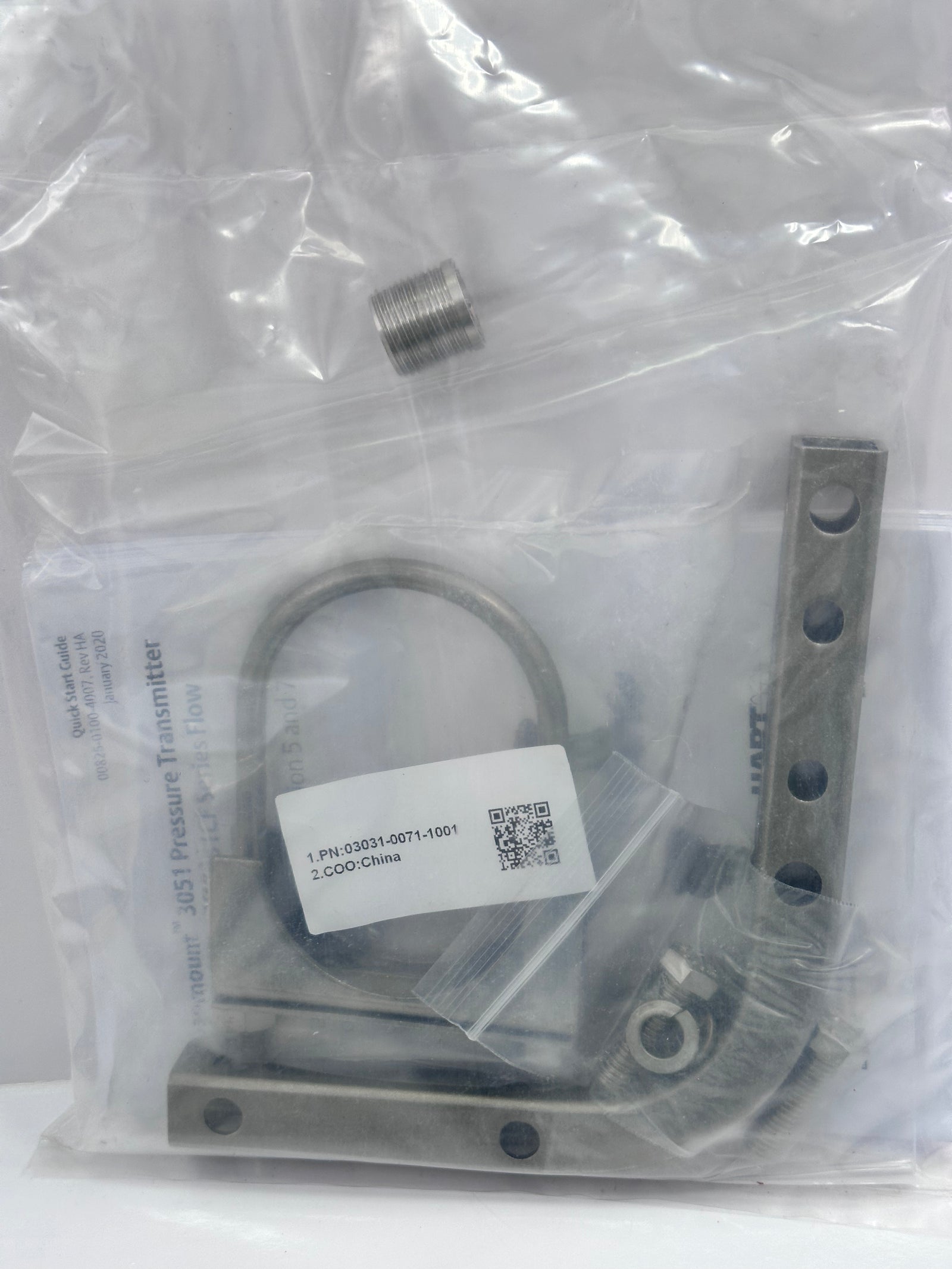

Mounting Bracket (B4): Coplanar Flange Bracket for 2-in. Pipe or Panel Mounting, all SST

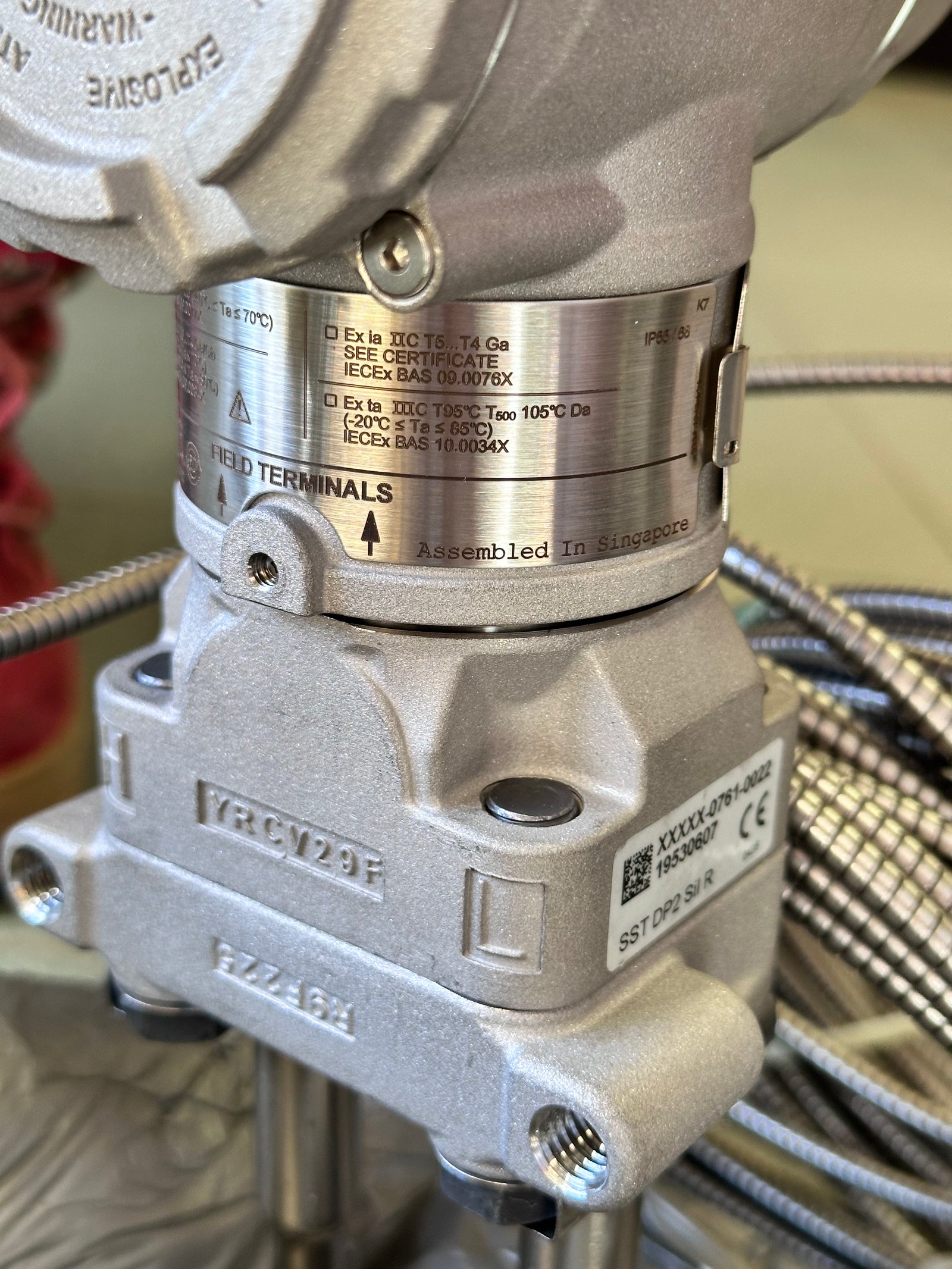

Product Certification (K7): IECEx Flameproof, Dust Ignition-proof, Intrinsic Safety, and Type n (combination of I7, N7 and E7)

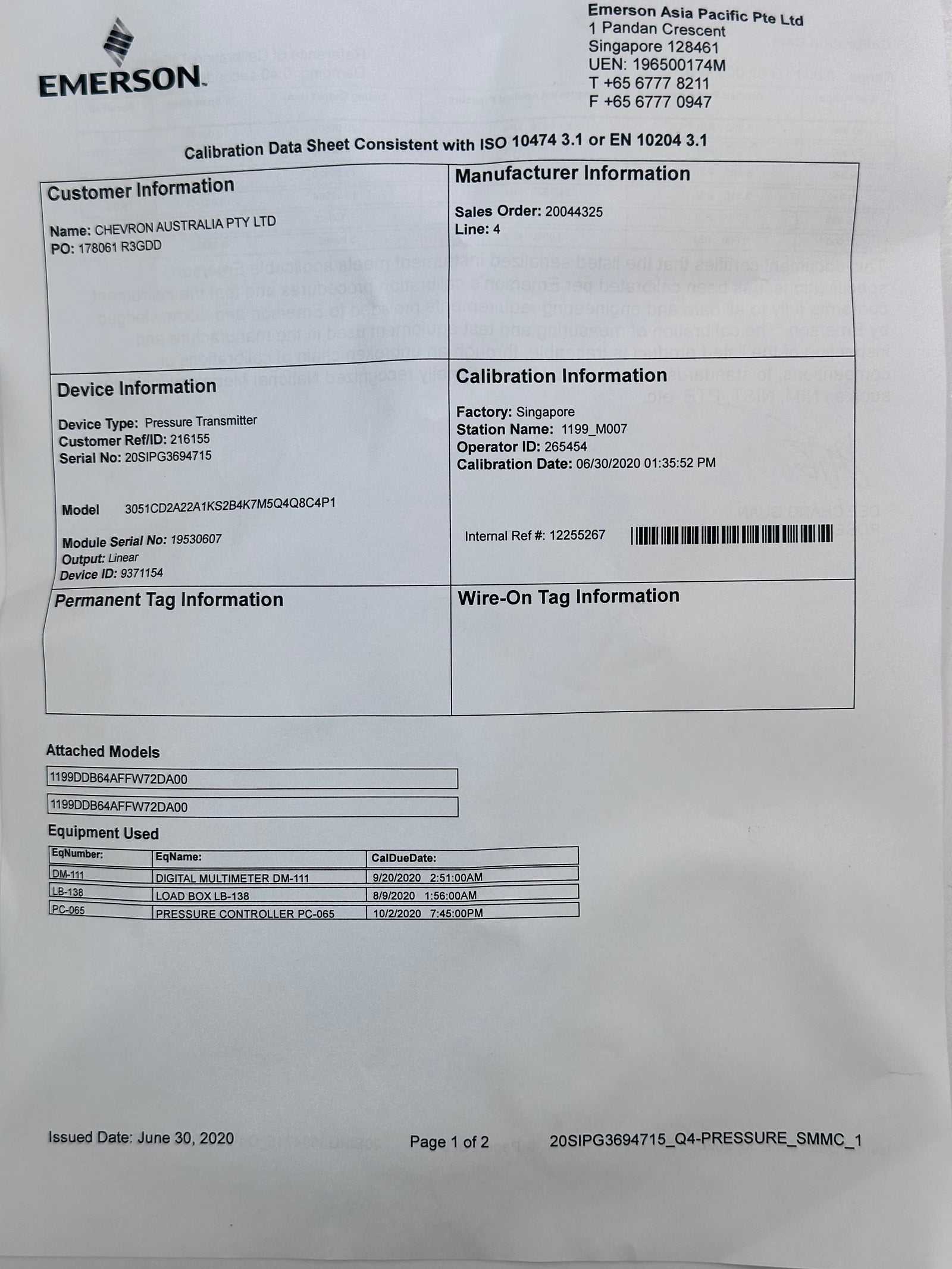

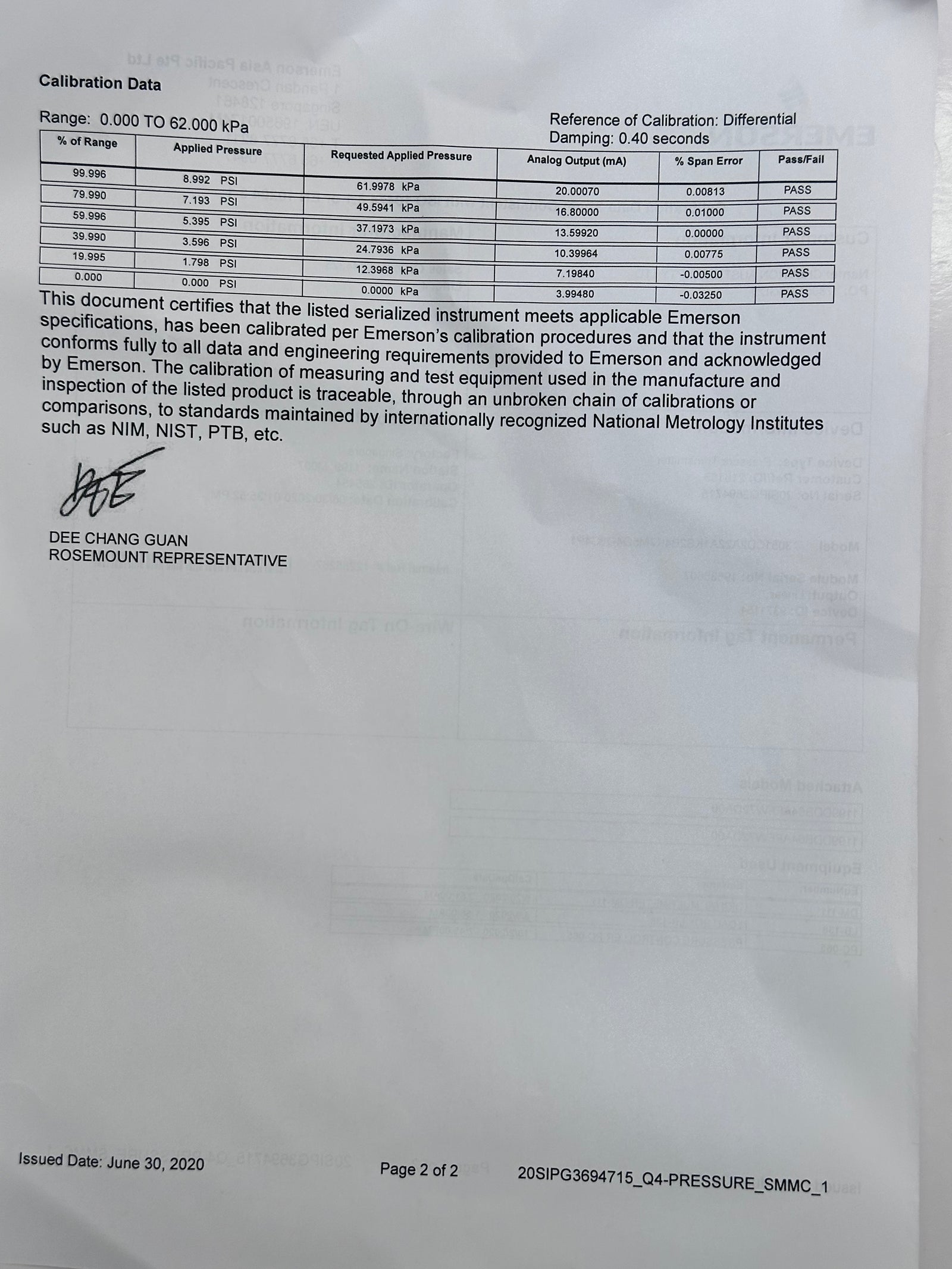

Calibration Certification (Q4):

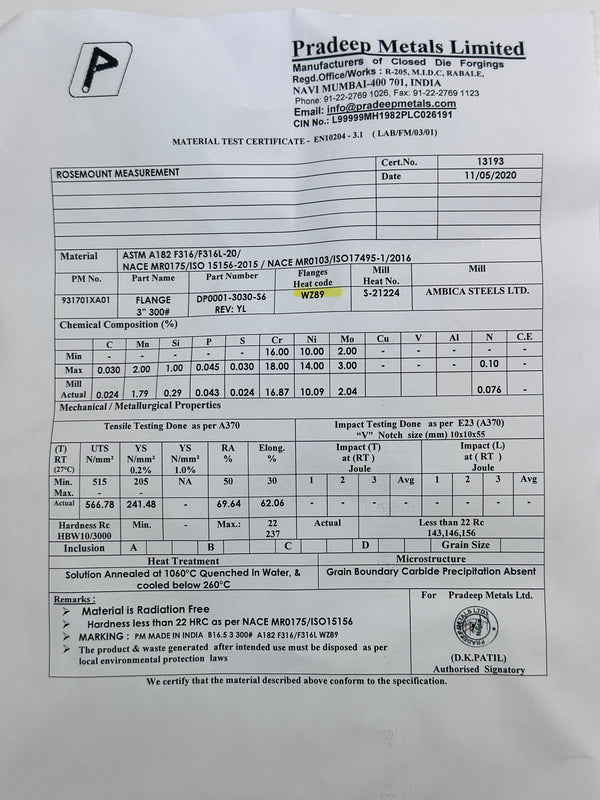

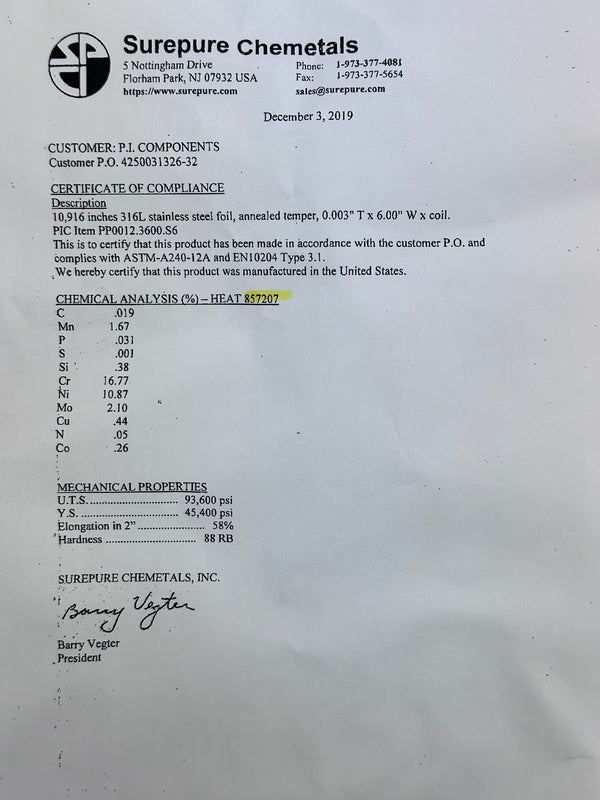

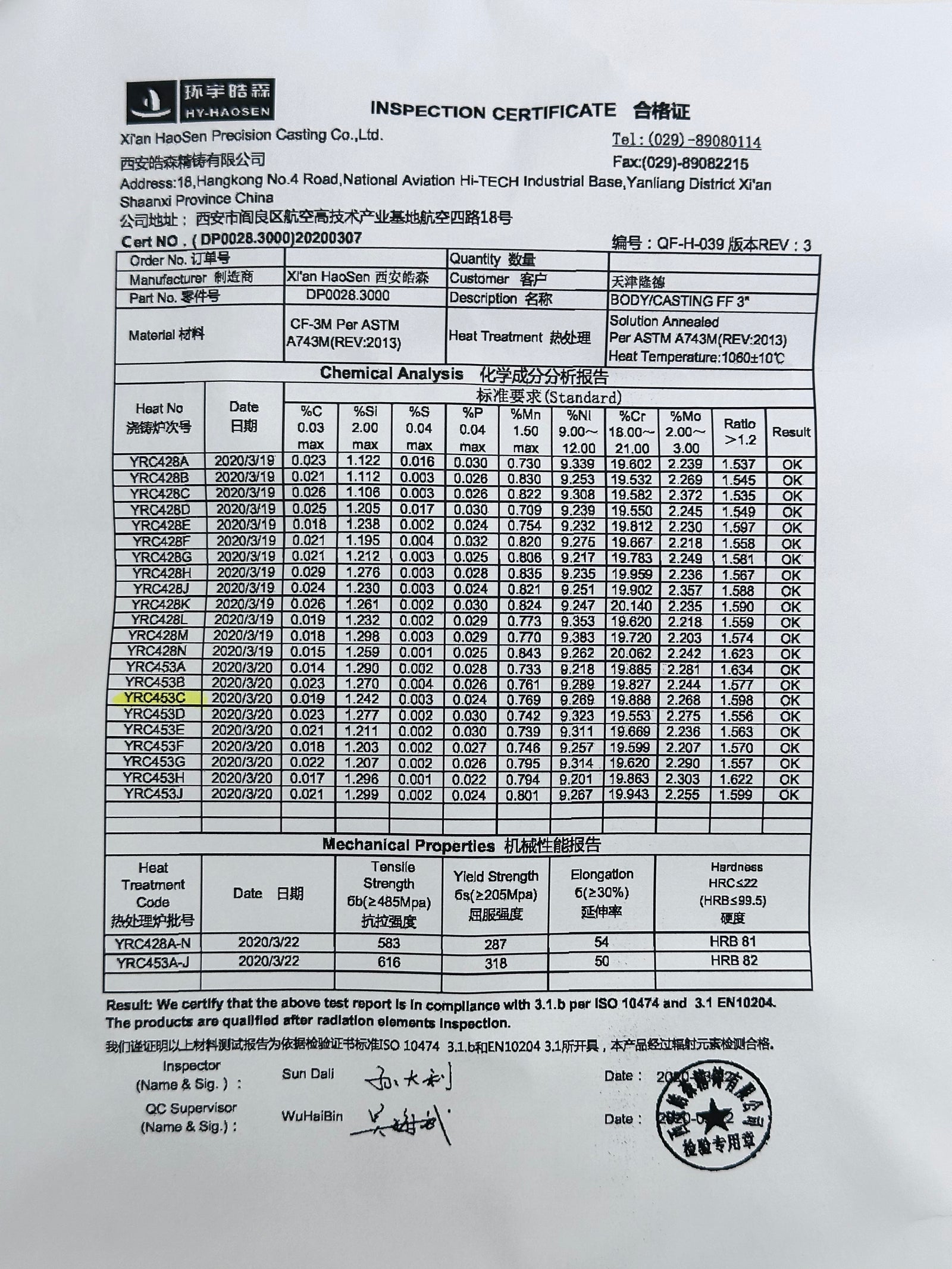

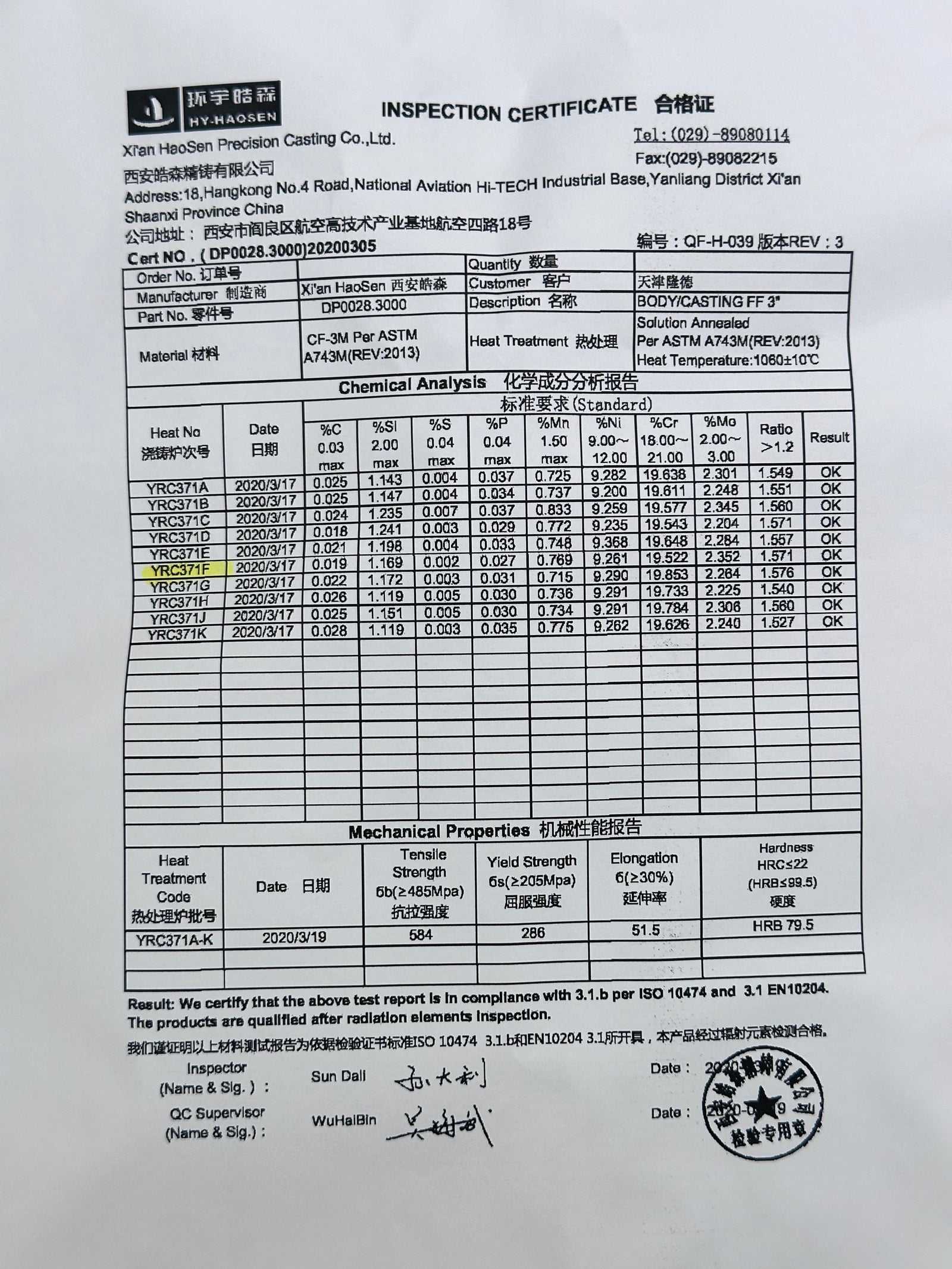

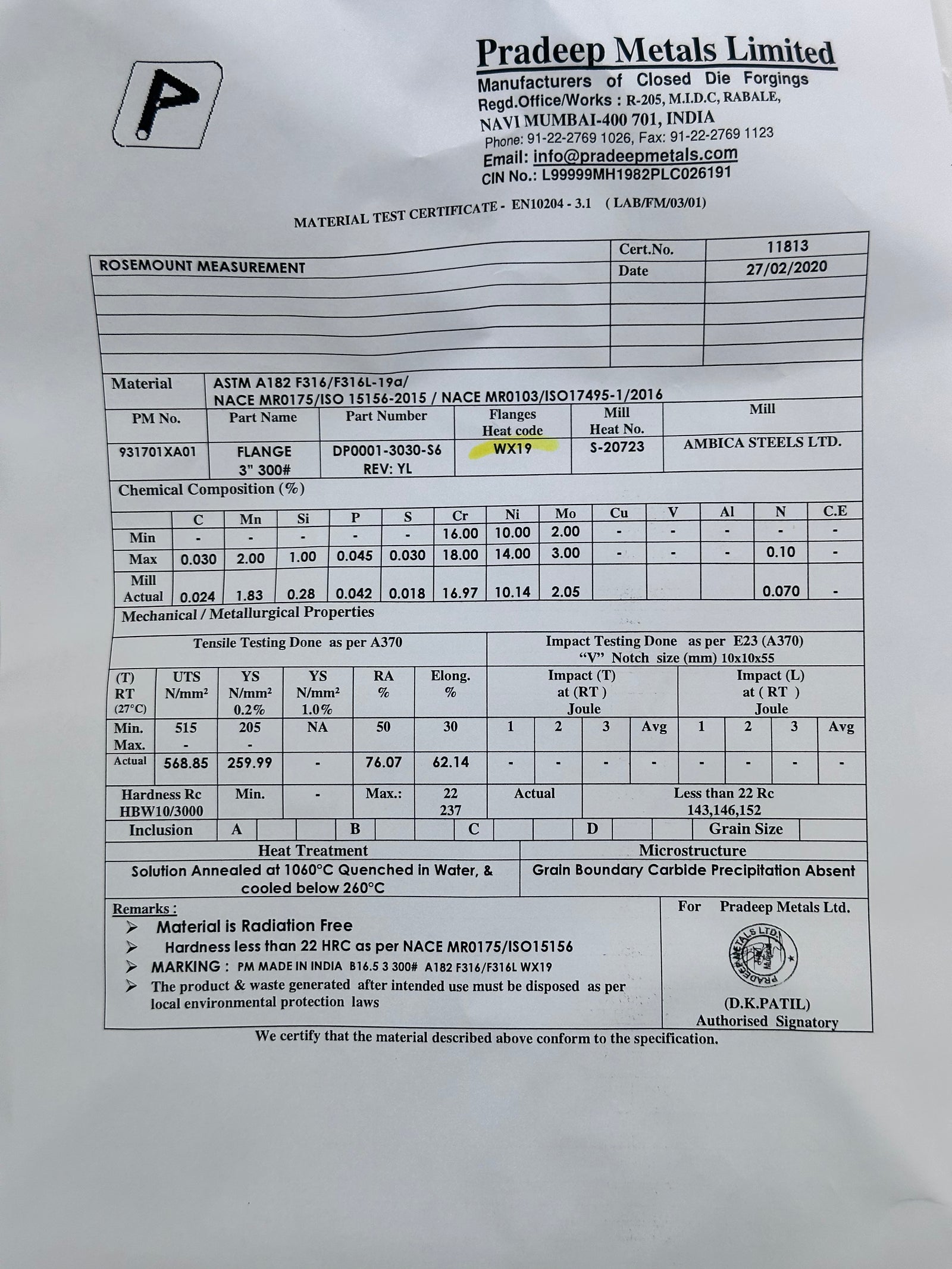

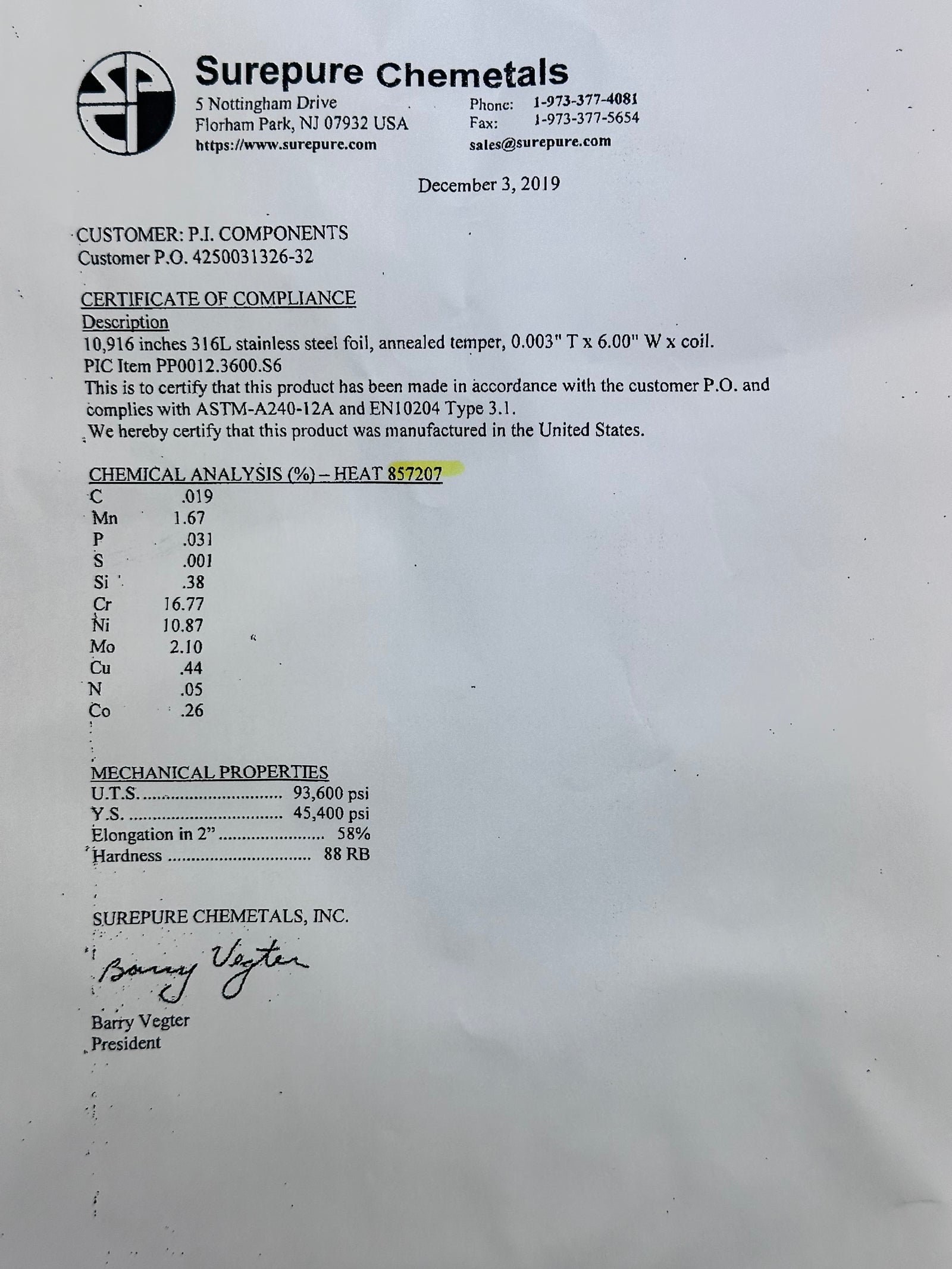

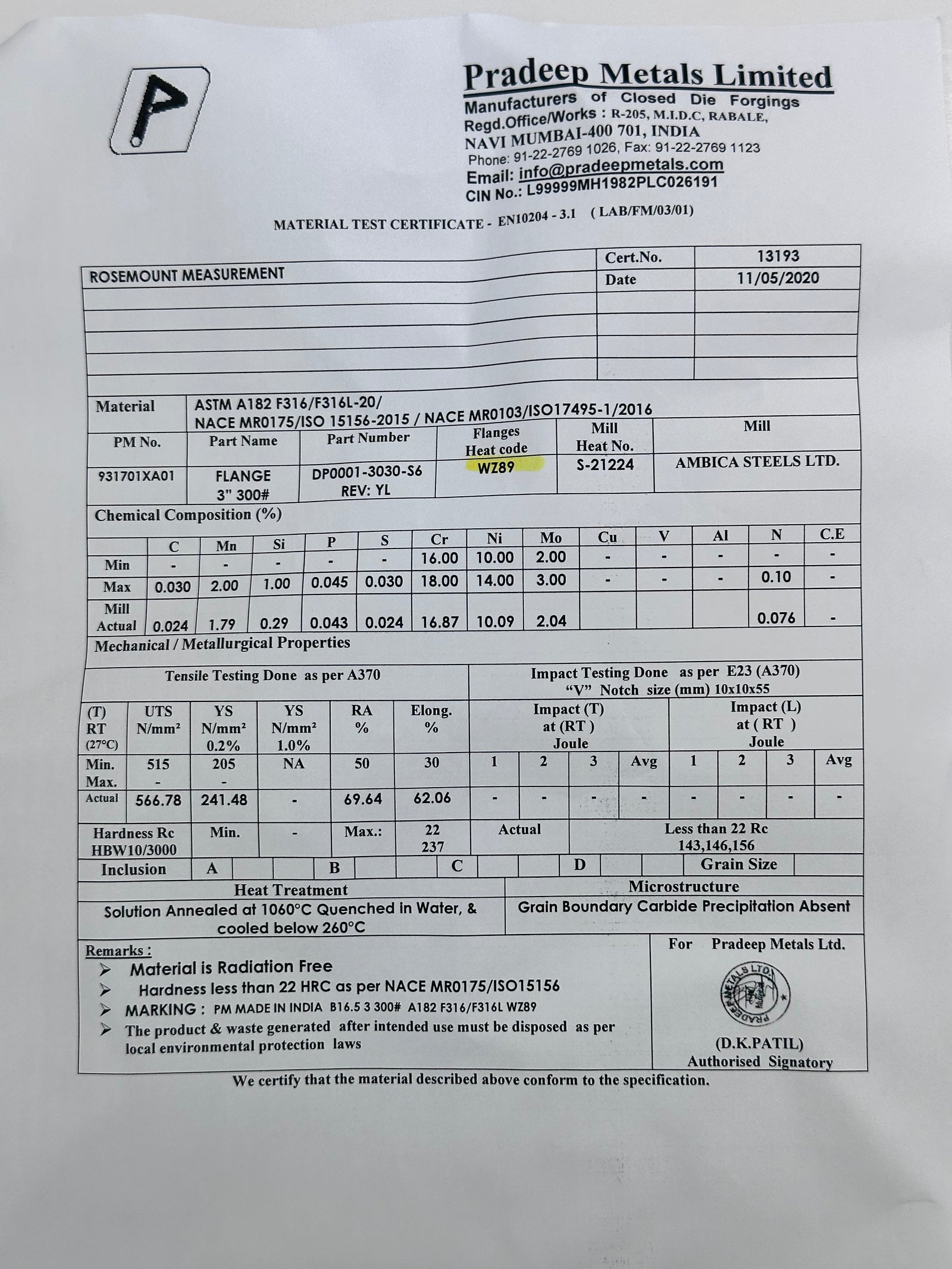

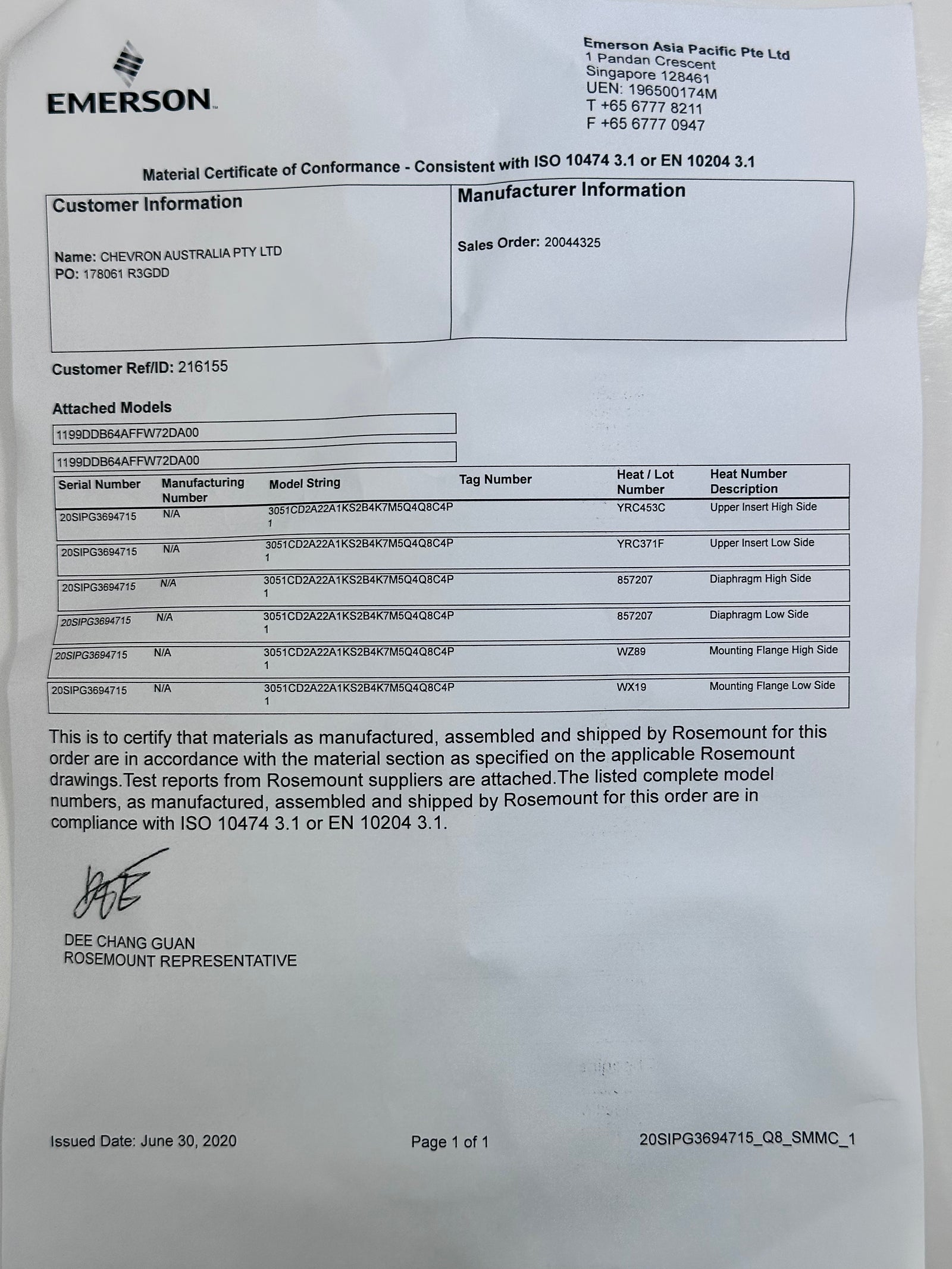

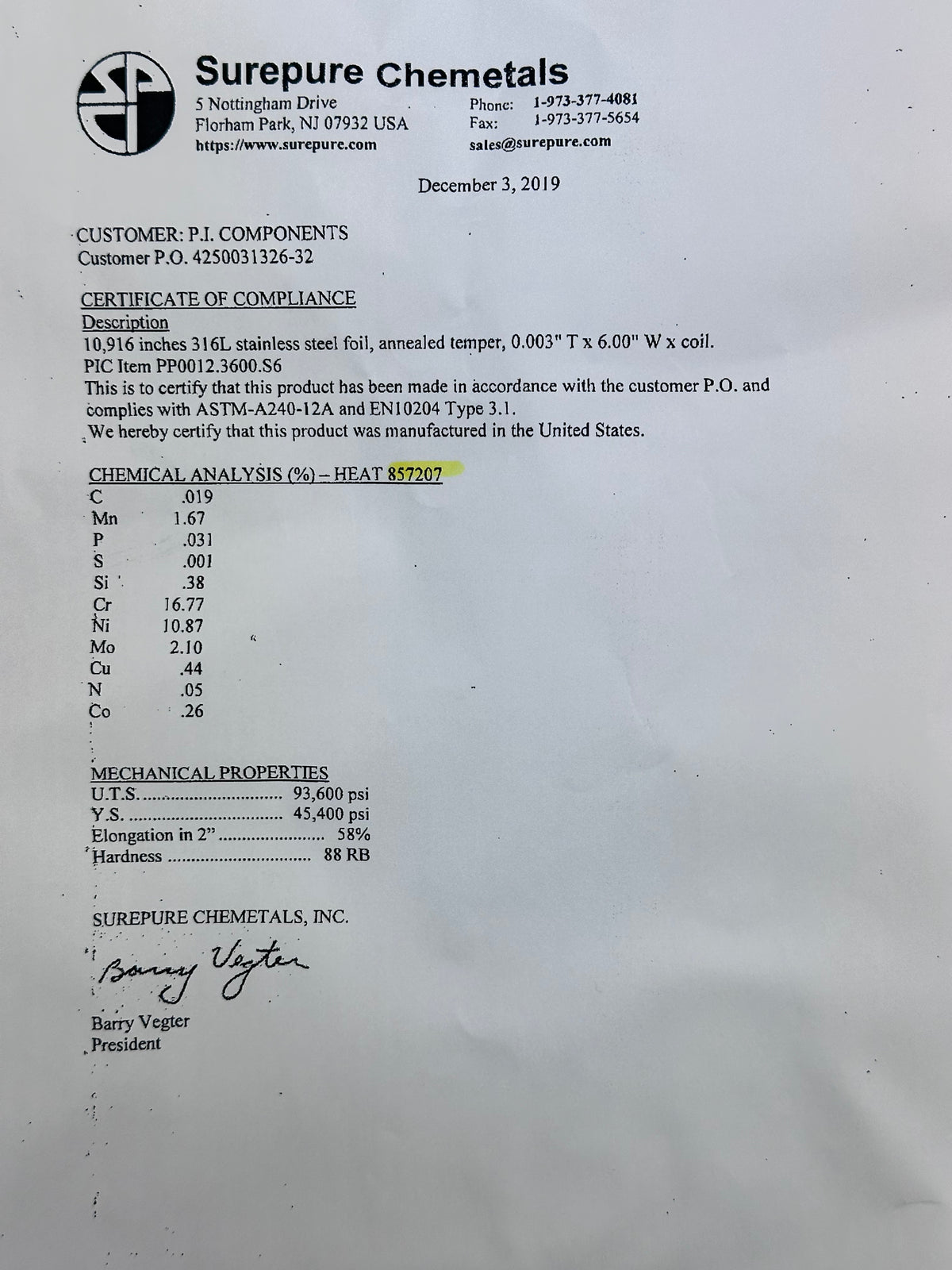

Material Traceability Certification (Q8): Material Traceability Certification per EN 10204 3.1.B
Alarm Levels (C4): NAMUR alarm and saturation levels, High alarm.

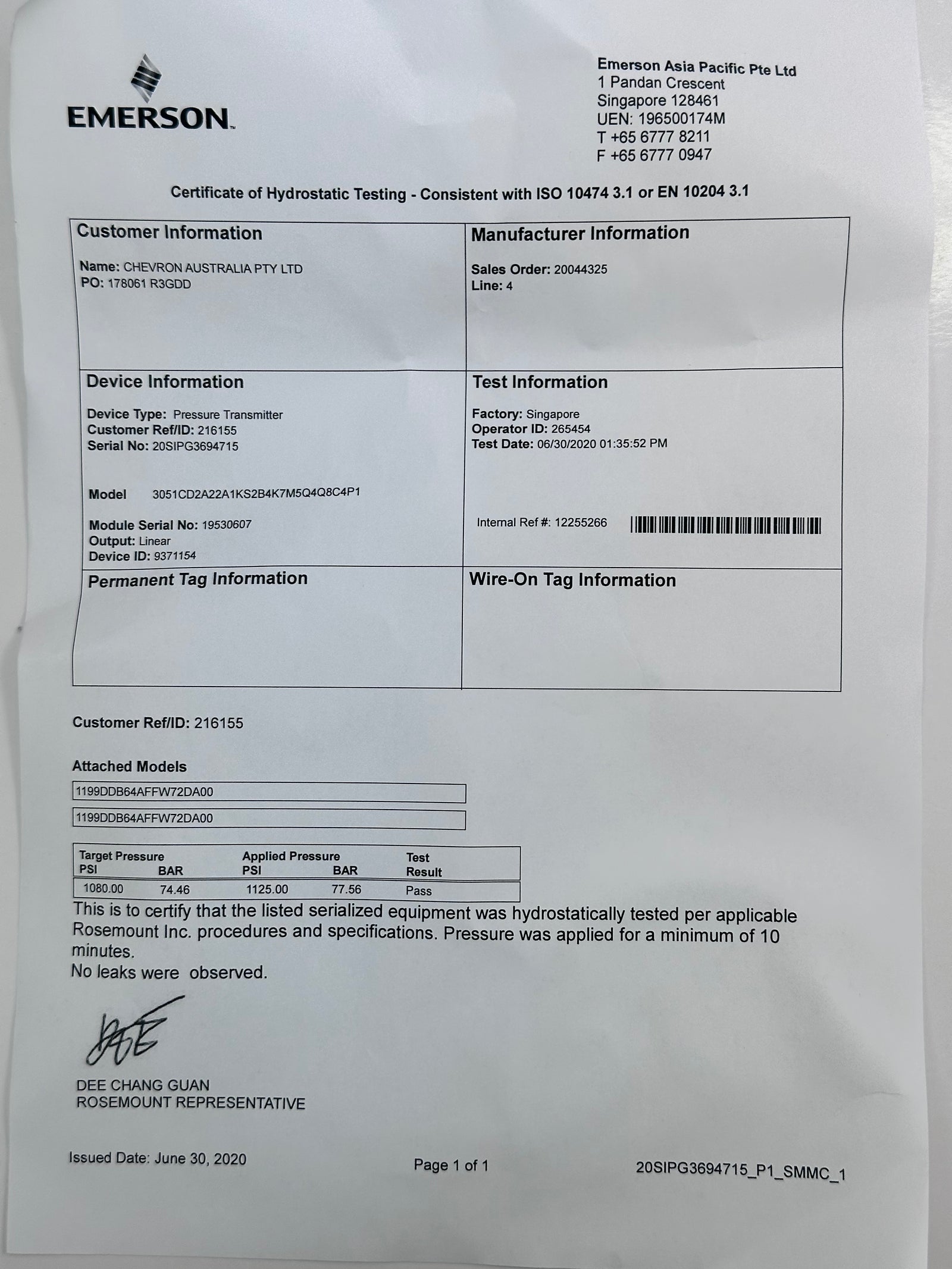

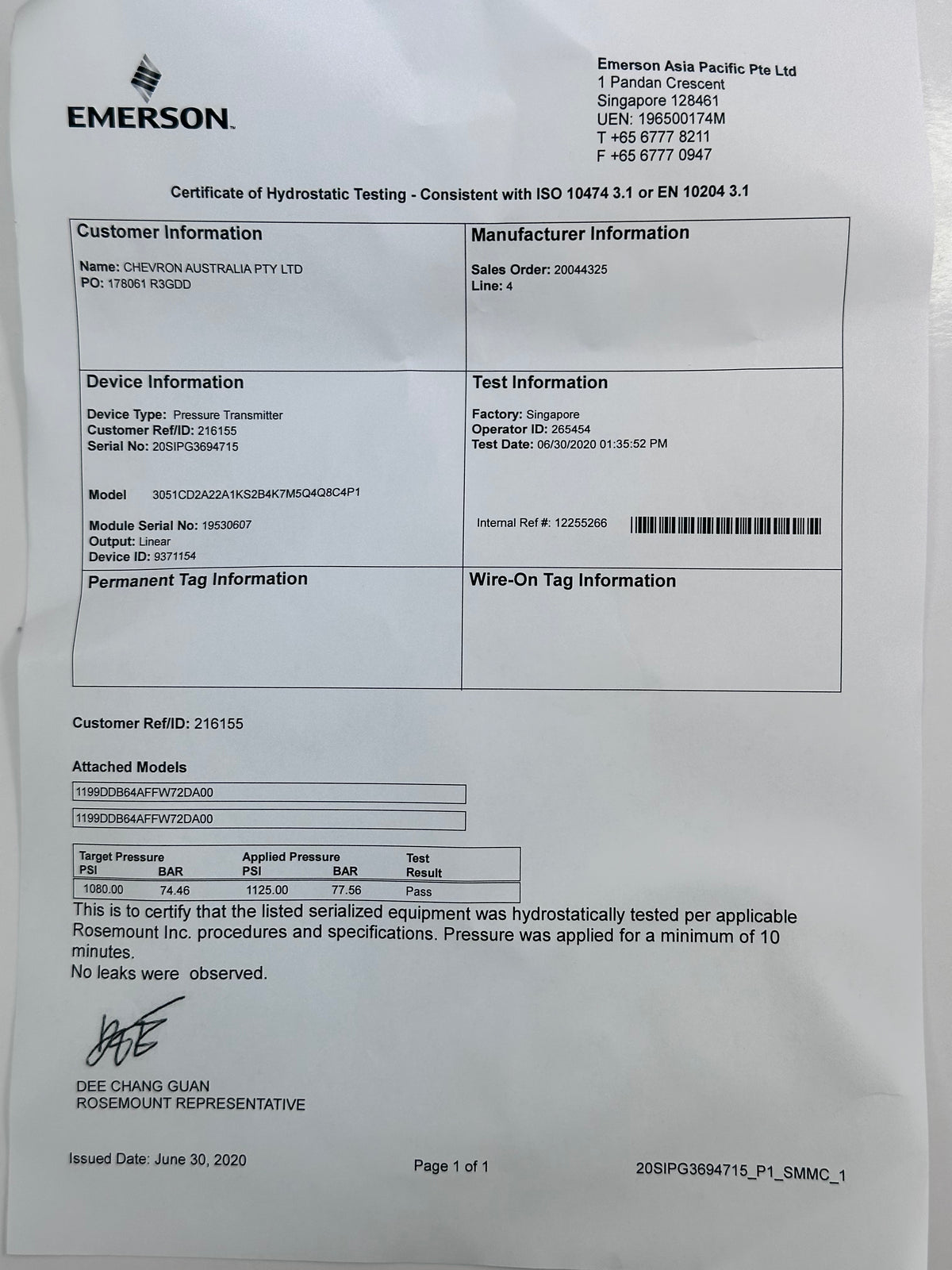

Pressure Testing (P1): Hydrostatic Testing with Certificate.
