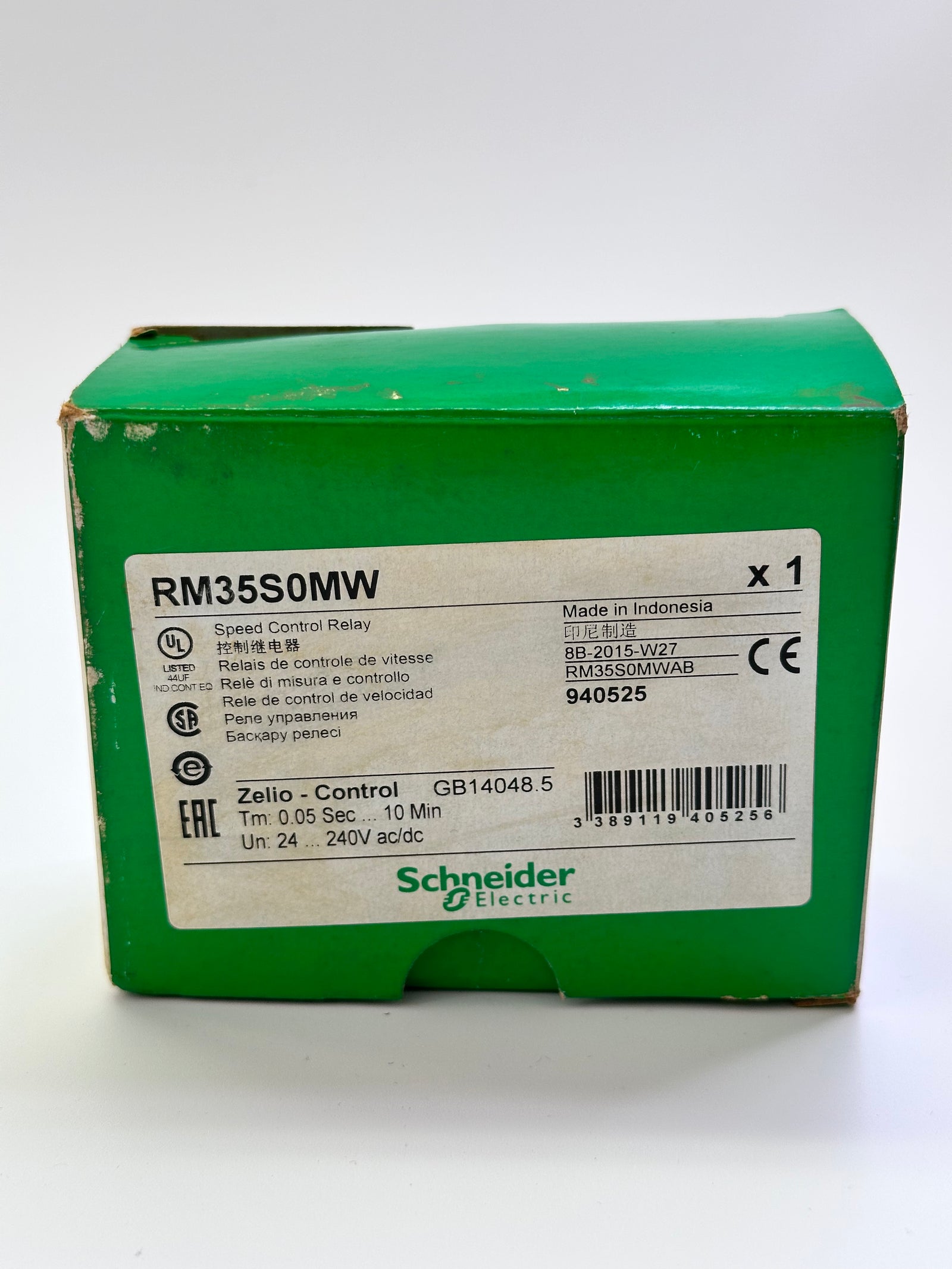

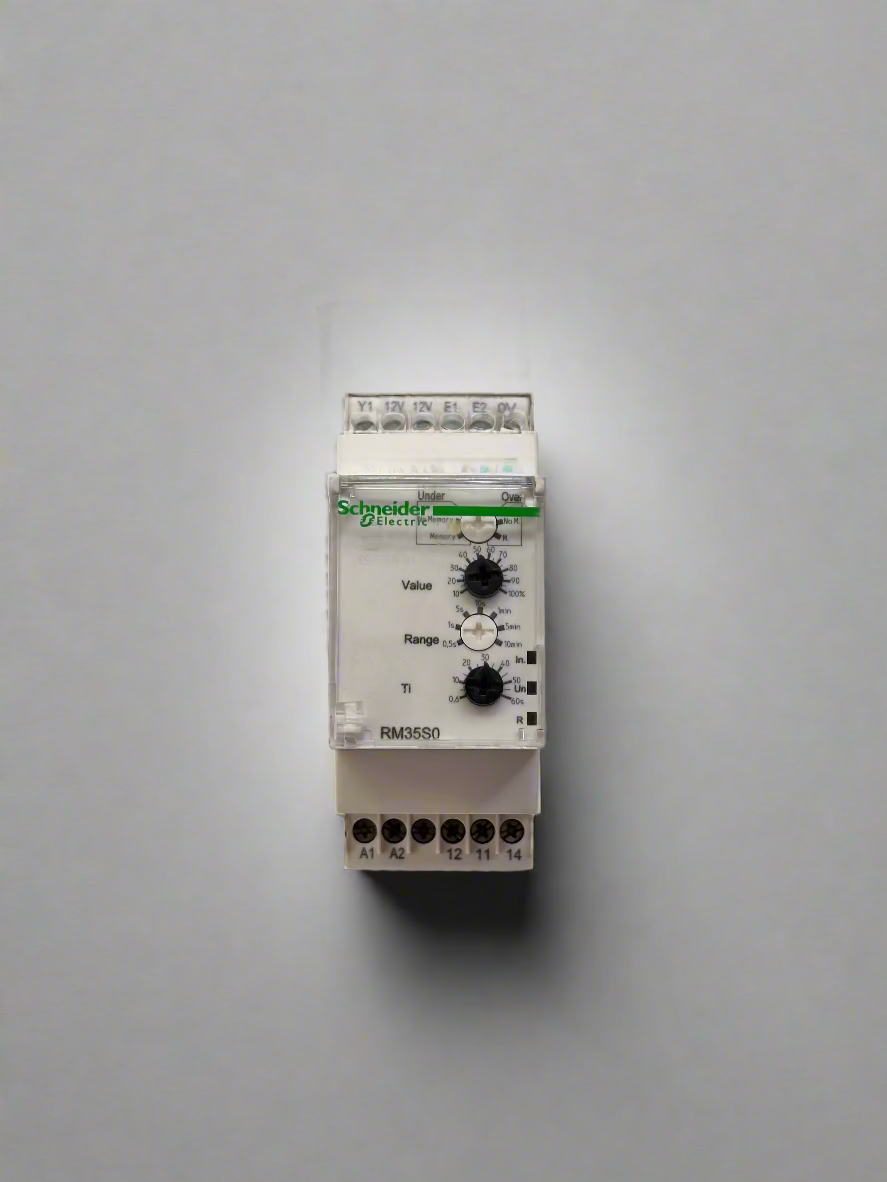

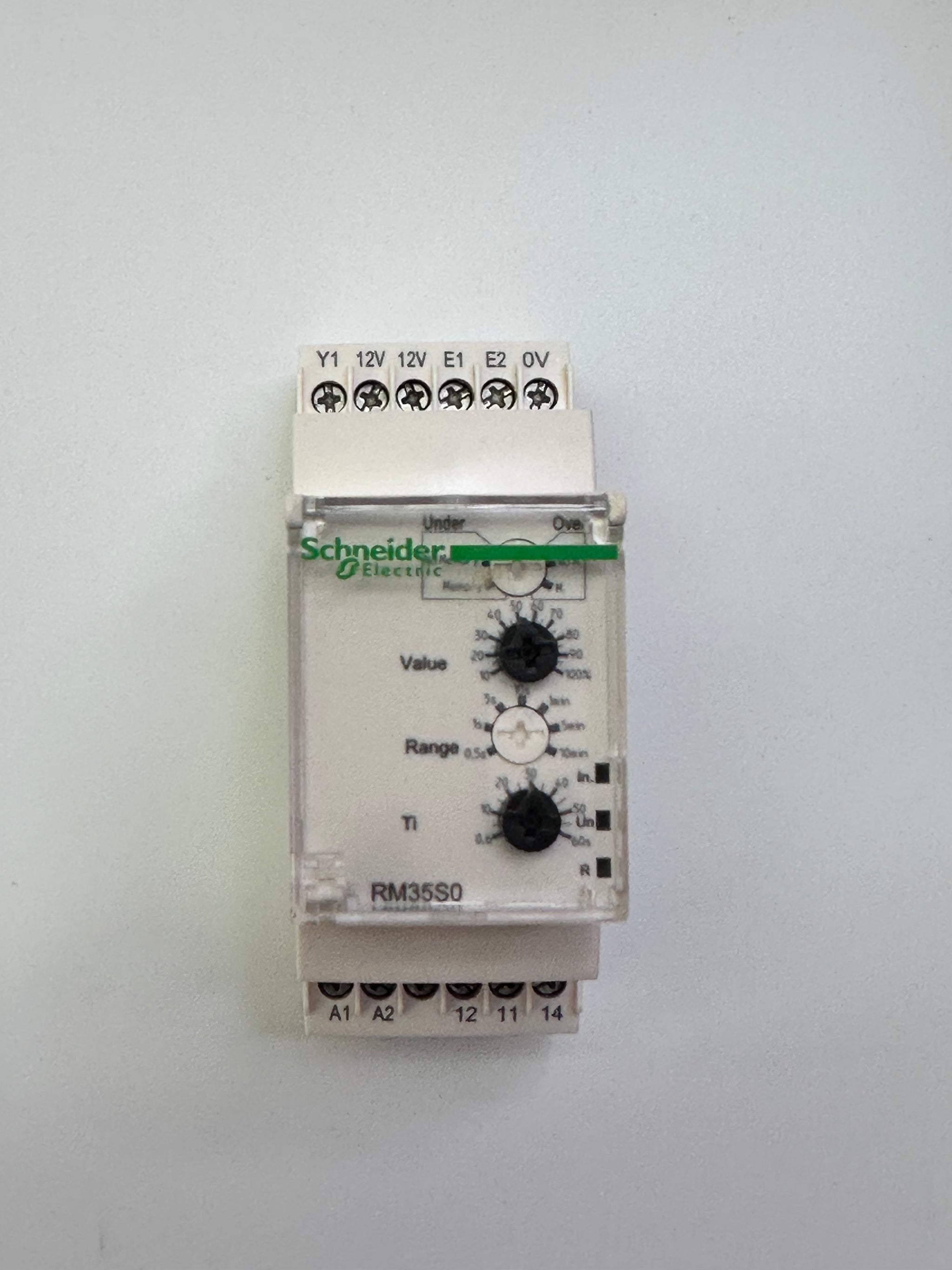

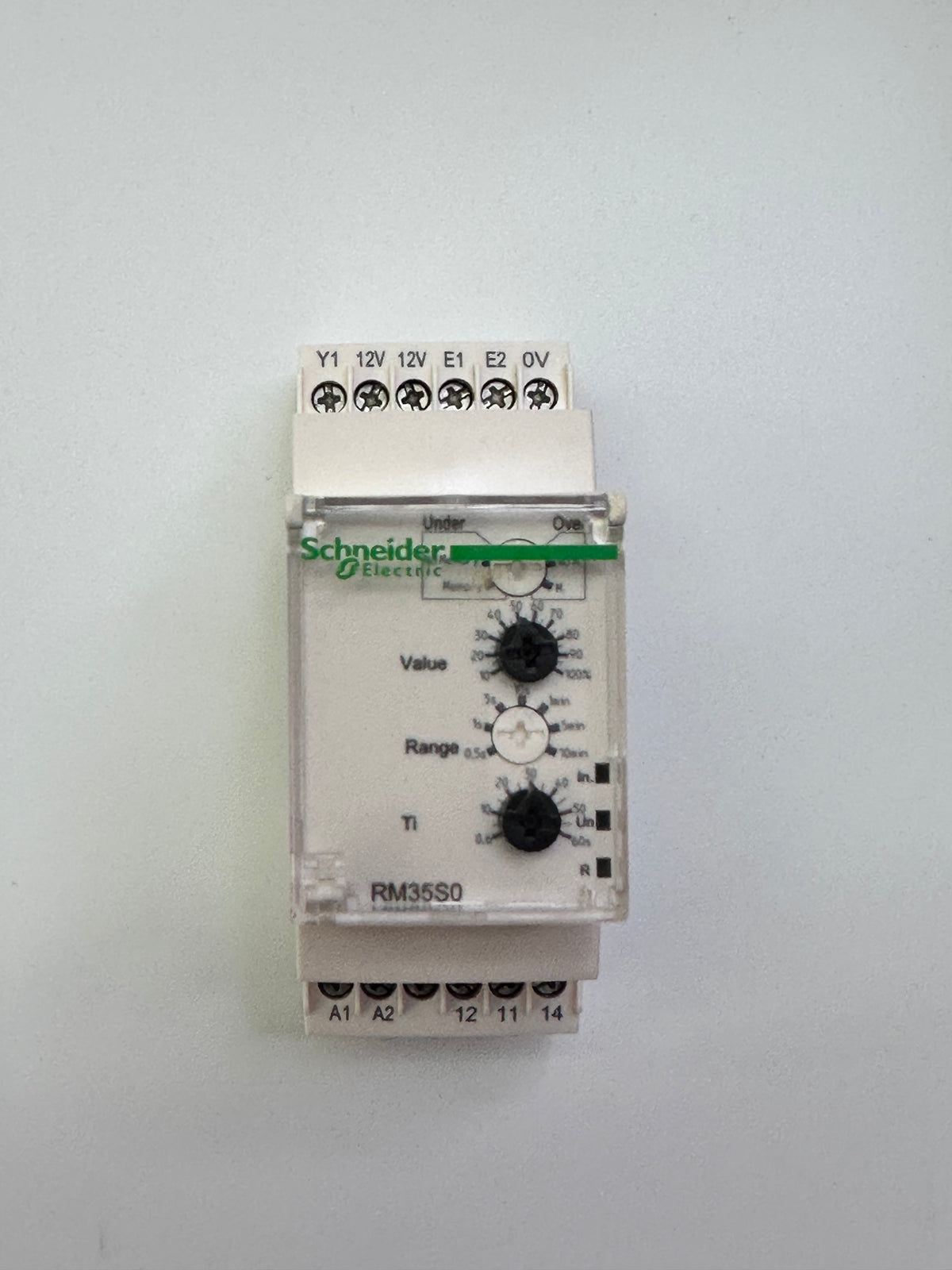

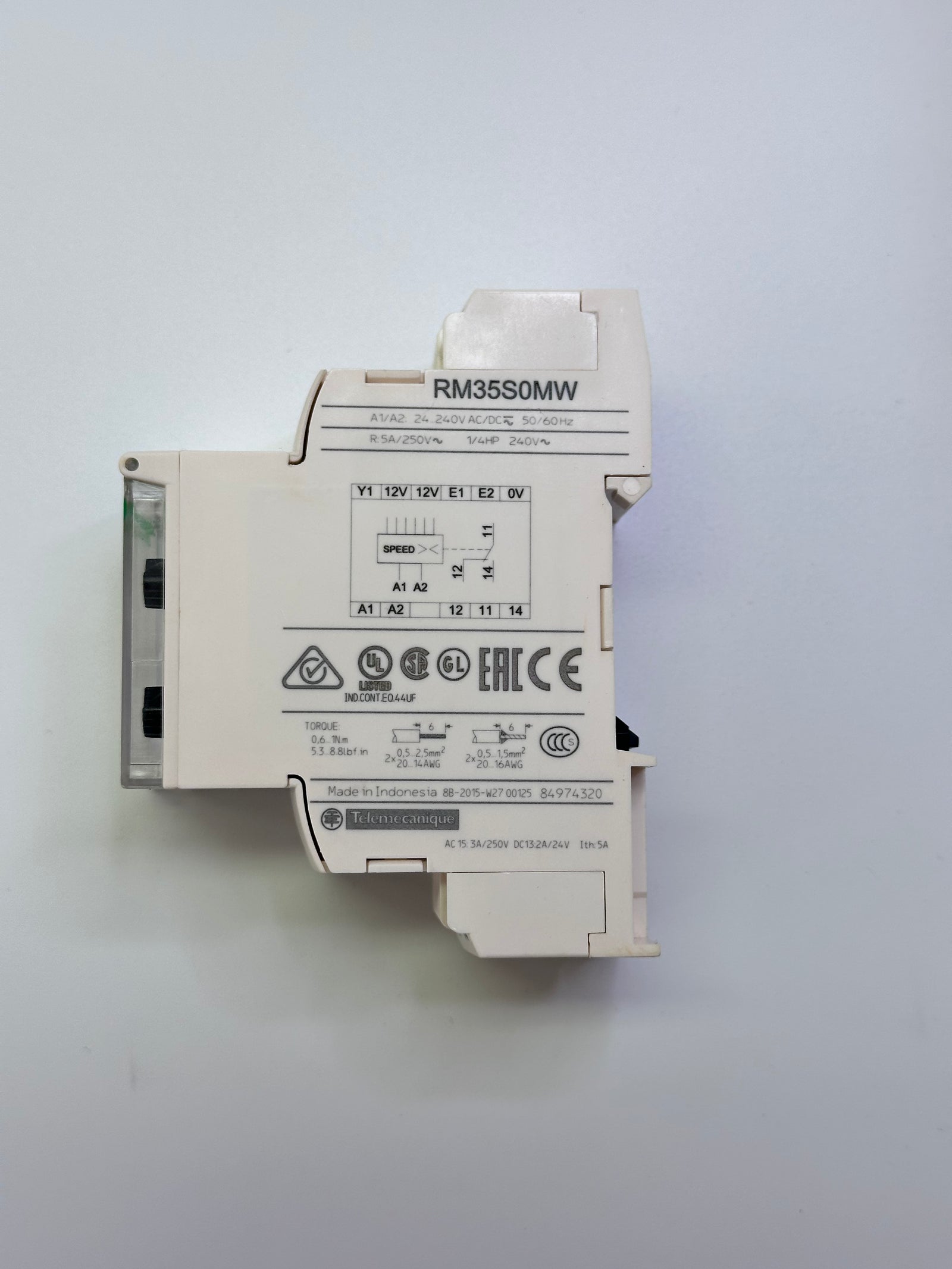

Schneider Electric RM35S0MW Speed Control Relay — 940525

Schneider Electric Harmony RM35S0MW speed control relay for overspeed and underspeed monitoring. Recorded references: 940525 and 146-070; relay family RM35S.

Listed specifications

• Startup inhibition / energisation delay: adjustable 0.6–60 seconds; listed tolerance 0–10% of full scale.
• Switching capacity: 1250 VA.
• Minimum switching current: 10 mA at 5 V DC.
• Maximum AC power consumption: 5 VA.
• Overall measurement interval range: 0.05–600 seconds.

Listed measurement ranges

• 0.05–0.5 seconds
• 0.1–1 second
• 0.5–5 seconds
• 1–10 seconds
• 0.1–1 minute
• 0.5–5 minutes
• 1–10 minutes

The source lists utilisation categories AC-12, AC-13, AC-14, AC-15, DC-12, DC-13 and DC-14 under IEC 60947-5-1. Catalogue tags additionally record 1CO, 240V and 5A; confirm the supply and contact ratings on the unit rather than assuming these tags describe the same circuit.

Check the full model, sensor interface and wiring requirements for your application. No rotational-speed range or included speed sensor is specified.
