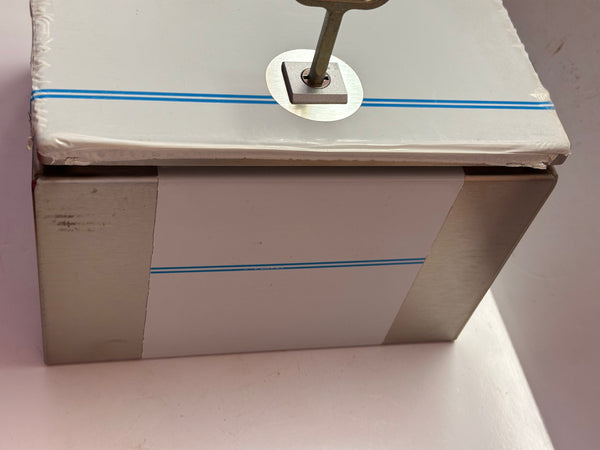

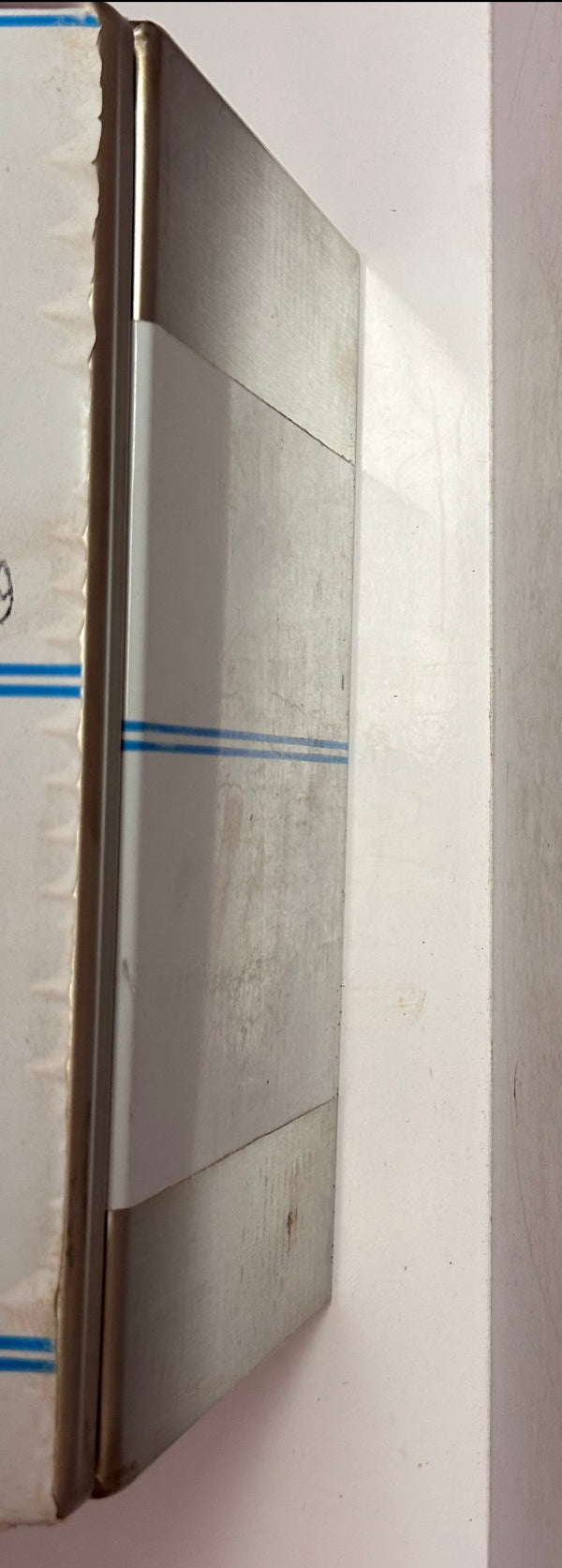

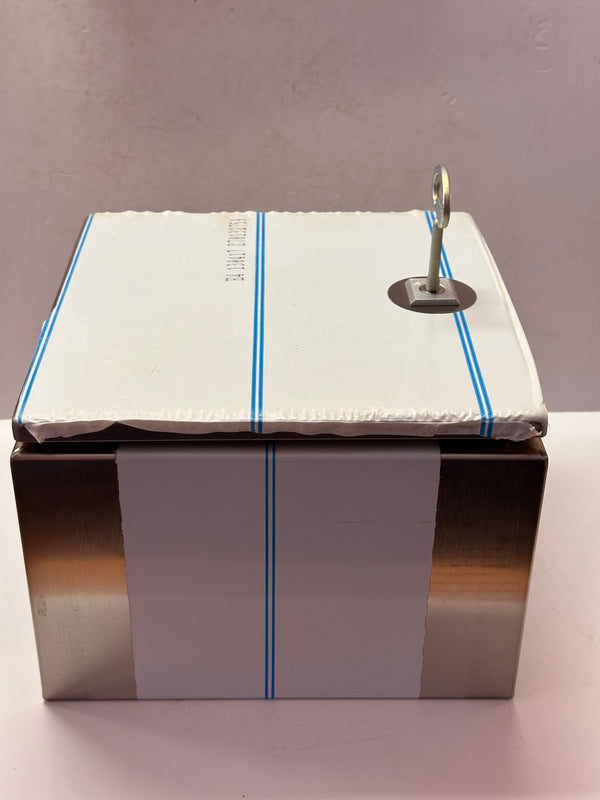

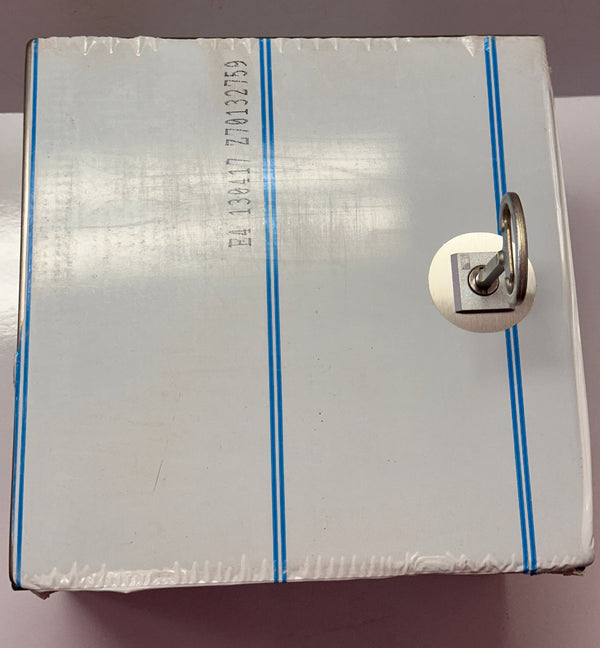

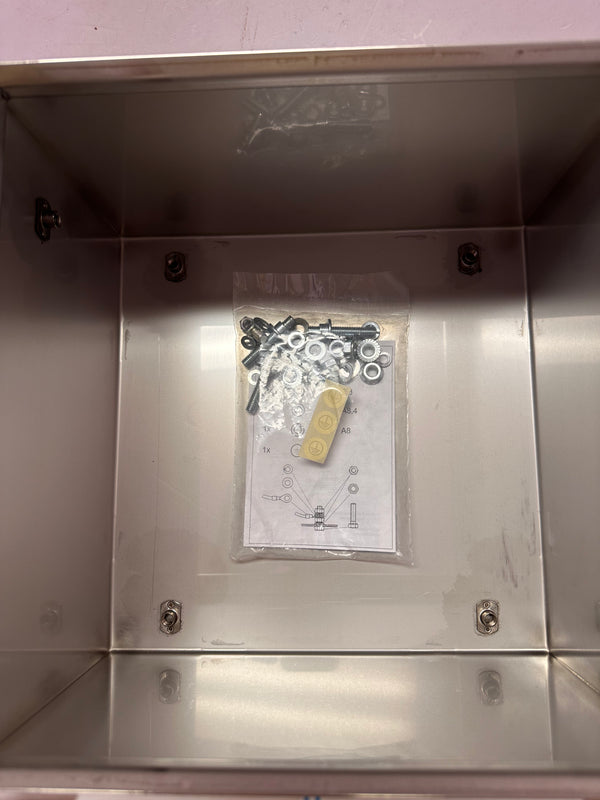

RITTAL 304 Stainless Steel electrical enclosure. 300Hx300Wx210D. Unused.

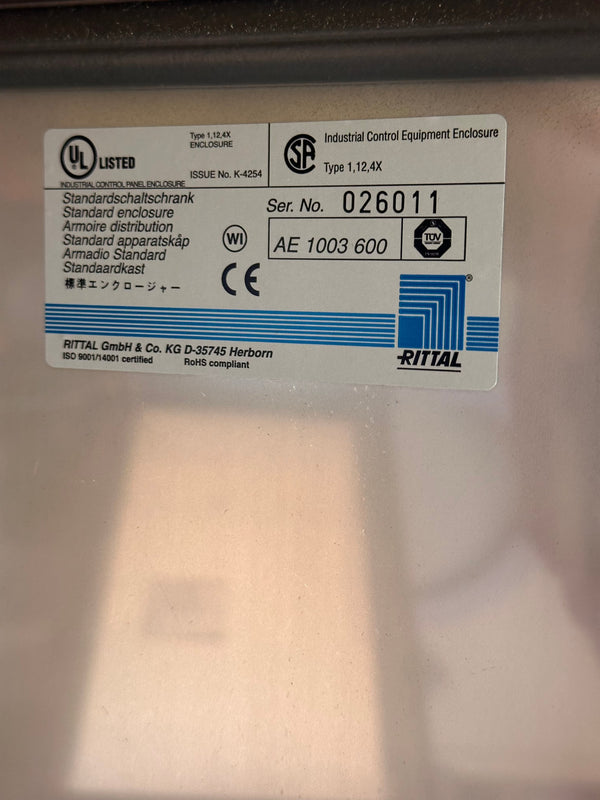

Article number: AE 1003.600
Material: Enclosure: Stainless steel, Door: Stainless steel, all-round foamed-in PU seal
Mounting plate: Sheet steel, Stainless steel 1.4301 (AISI 304)
Mounting plate: Sheet steel, Stainless steel 1.4301 (AISI 304)
Surface finish: Enclosure and door: Brushed, grain 400, peak-to-valley height < 0.8 µm
Mounting plate: Zinc-plated
Mounting plate: Zinc-plated

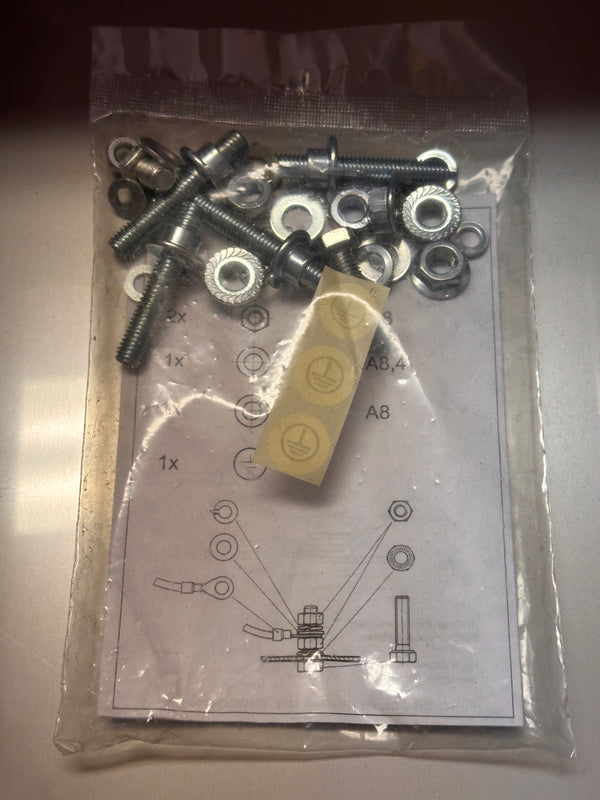

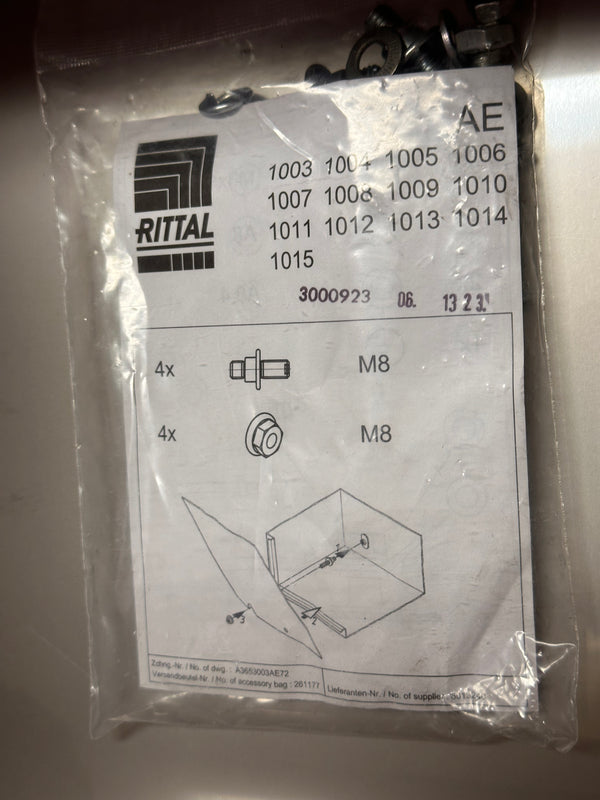

Supply includes: Enclosure with door(s), Mounting plate, Lock: 3 mm double-bit
Protection category NEMA: NEMA 4X
Protection category to IEC 60 529: IP 66
IK CodeIK08
Dimensions: Width: 300 mm, Height: 300 mm, Depth: 210 mm

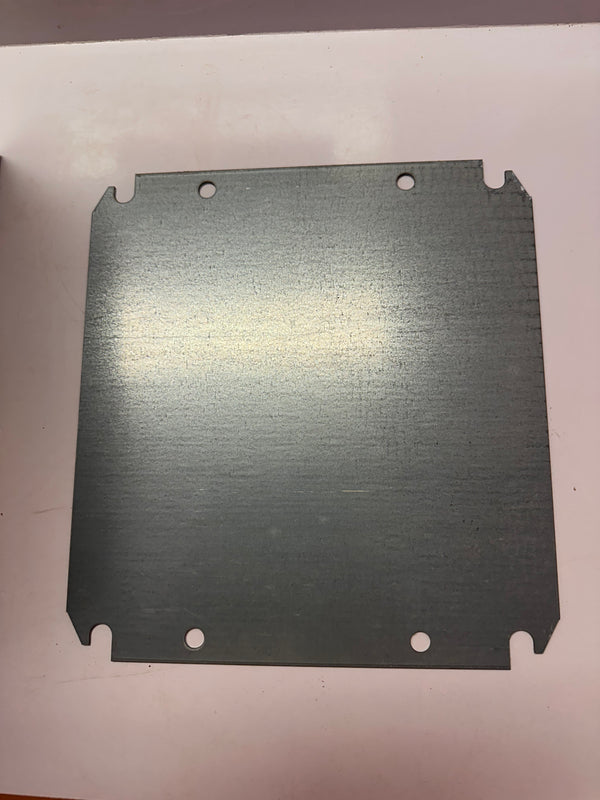

Dimensions mounting plate (W x H): 254 mm x 275 mm
Number of doors: 1
Number of locks: 1
Lock: Lock version: Cam, Number of locks: 1, Lock insert: 3 mm double-bit
Material lock: Die-cast zinc, nickel-plated
Material lock: Die-cast zinc, nickel-plated
Basic material: Stainless steel 1.4301 (AISI 304)
Standards Met | cUL, IEC 60529, IEC 62208, IEC 62262, UL |
Packs of: 1 pc(s).
Net weight: 6.45 kg
Gross weight: 6.76 kg
