RITTAL
Rittal SK 3240.200 Outlet Filter with Chopped-Fibre Mat — 3240200
- SKU
- P-RI-R-5804
$70.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 1.5 kg
Specifications
| Manufacturer | RITTAL |
|---|---|
| Product type | FILTERS |
| SKU | P-RI-R-5804 |
| Weight | 1.5 kg |
Description
SK 3240.200
Product description For ventilation by convection, an outlet filter can be installed in the upper and lower sections of the enclosure.
Material ABS
Colour RAL 7035
Supply includes Outlet filter
Chopped-fibre filter mat
Chopped-fibre filter mat

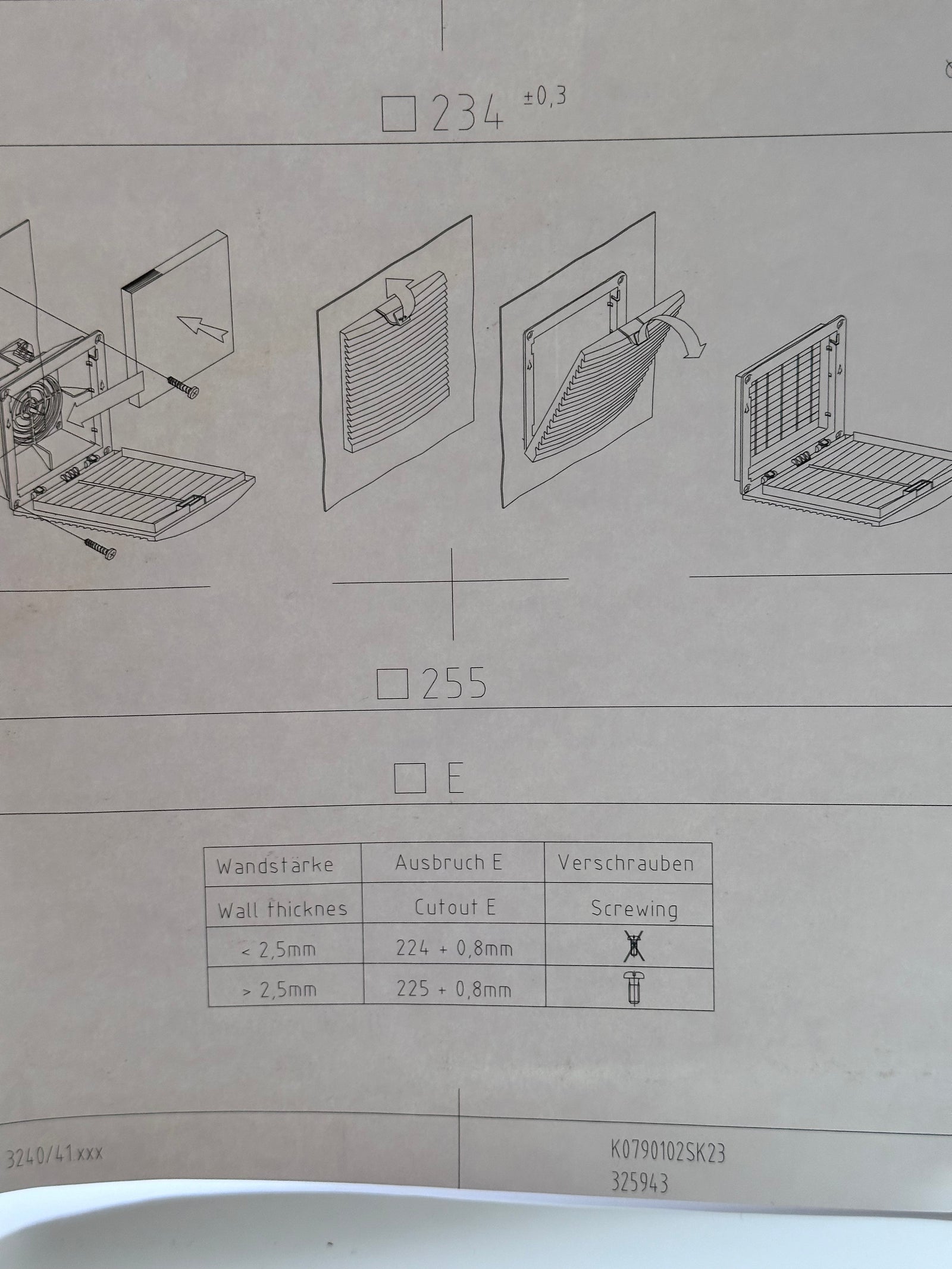

Mounting cut-out Cut-out width: 224 mm
Cut-out height: 224 mm
Cut-out height: 224 mm
To fit Model No.3240.1xx/3240.5xx/3241.1xx/3241.5xx
Dimensions Width: 255 mm
Height: 255 mm
Depth: 25 mm
Height: 255 mm
Depth: 25 mm
Protection category NEMA Type 12 with chopped-fibre filter/pleated filter Type 3Type 3RType 4Type 4X with chopped-fibre filter/pleated filter and hose-proof hood
IP protection category to IEC 60 529IP54 with chopped-fibre filter/pleated filterIP55 with pleated filter and absorber matIP56 with chopped-fibre filter/pleated filter and hose-proof hood
Weight/pack0.56 kg
