BOSCH REXROTH

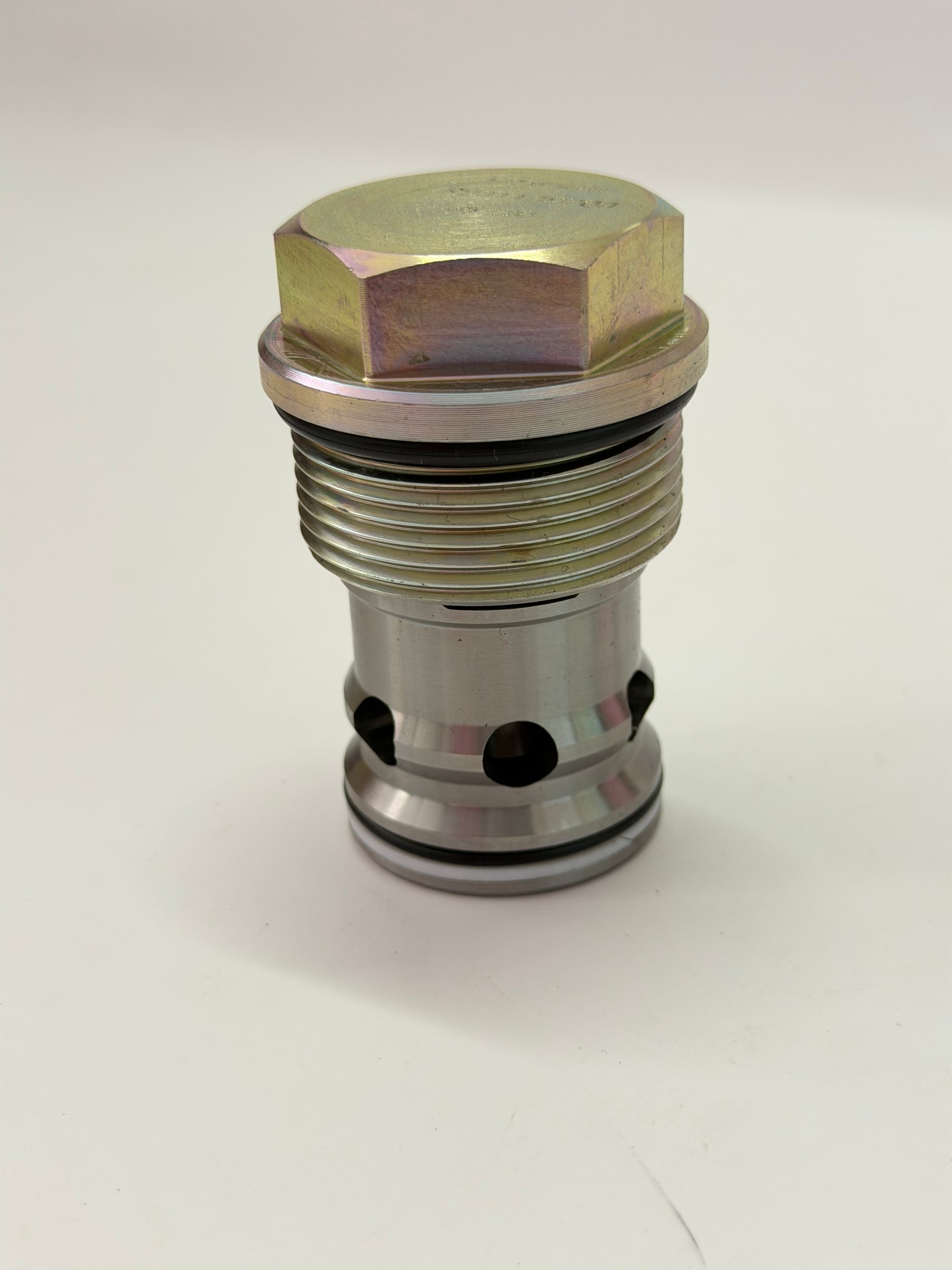

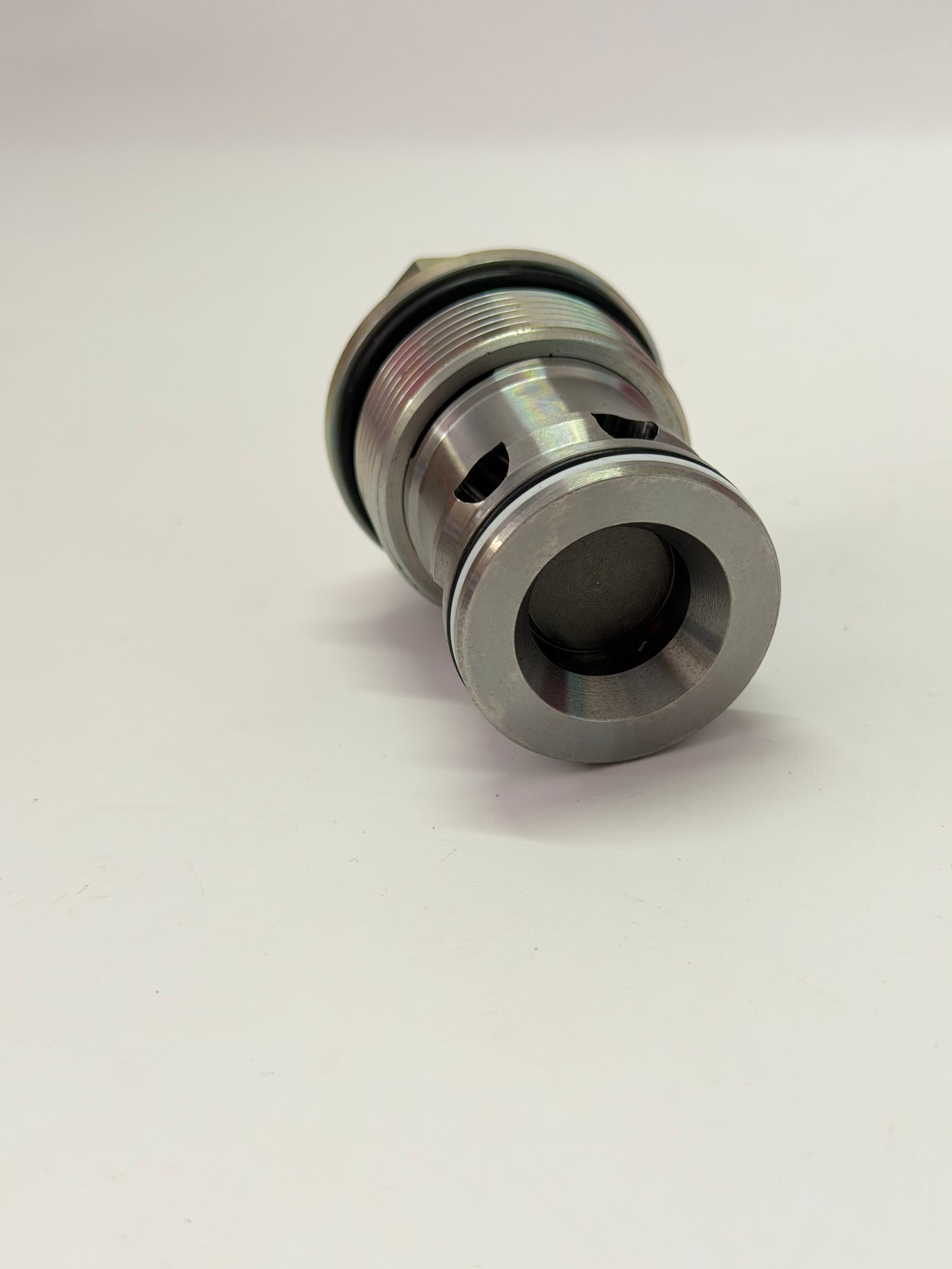

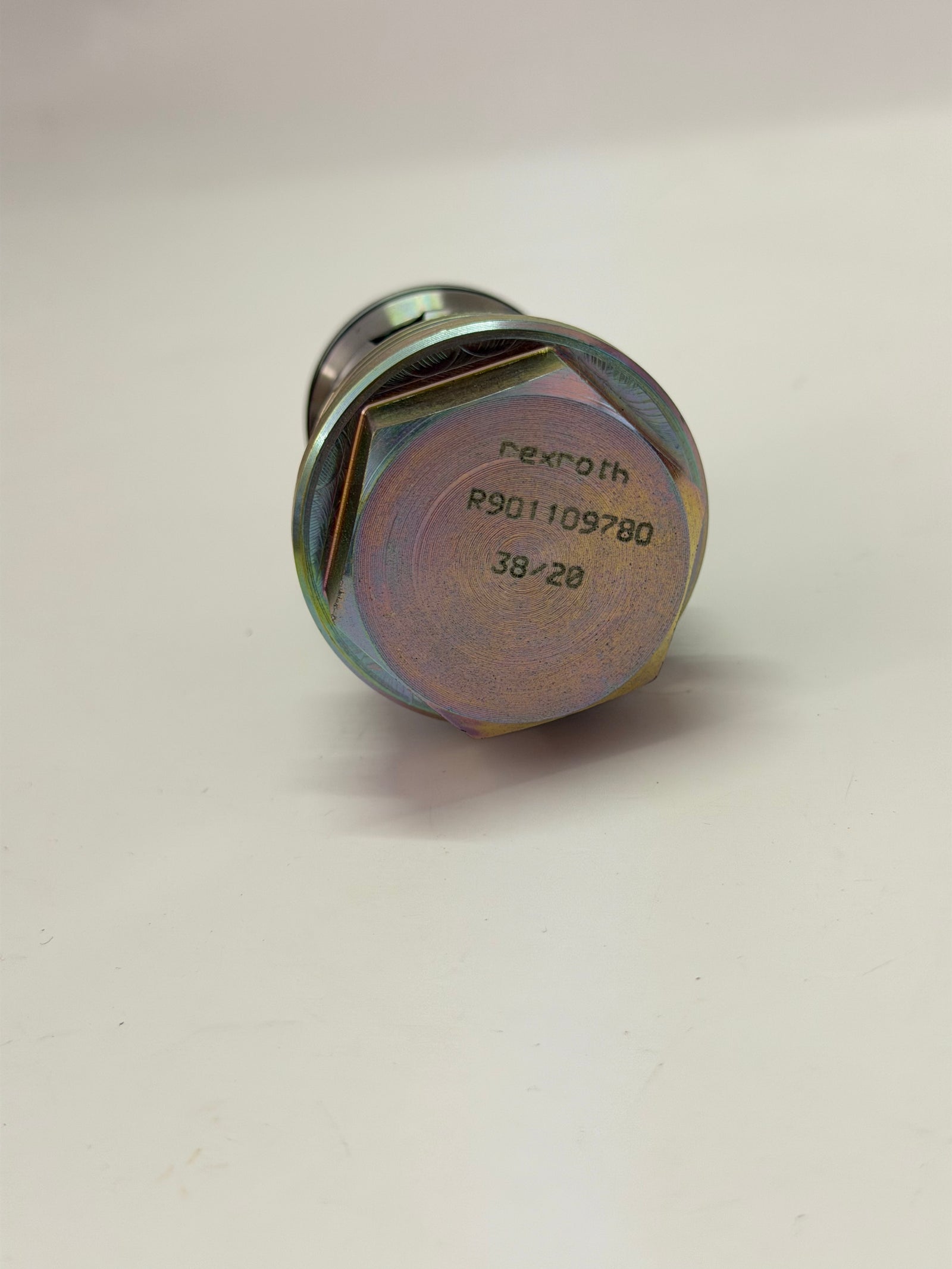

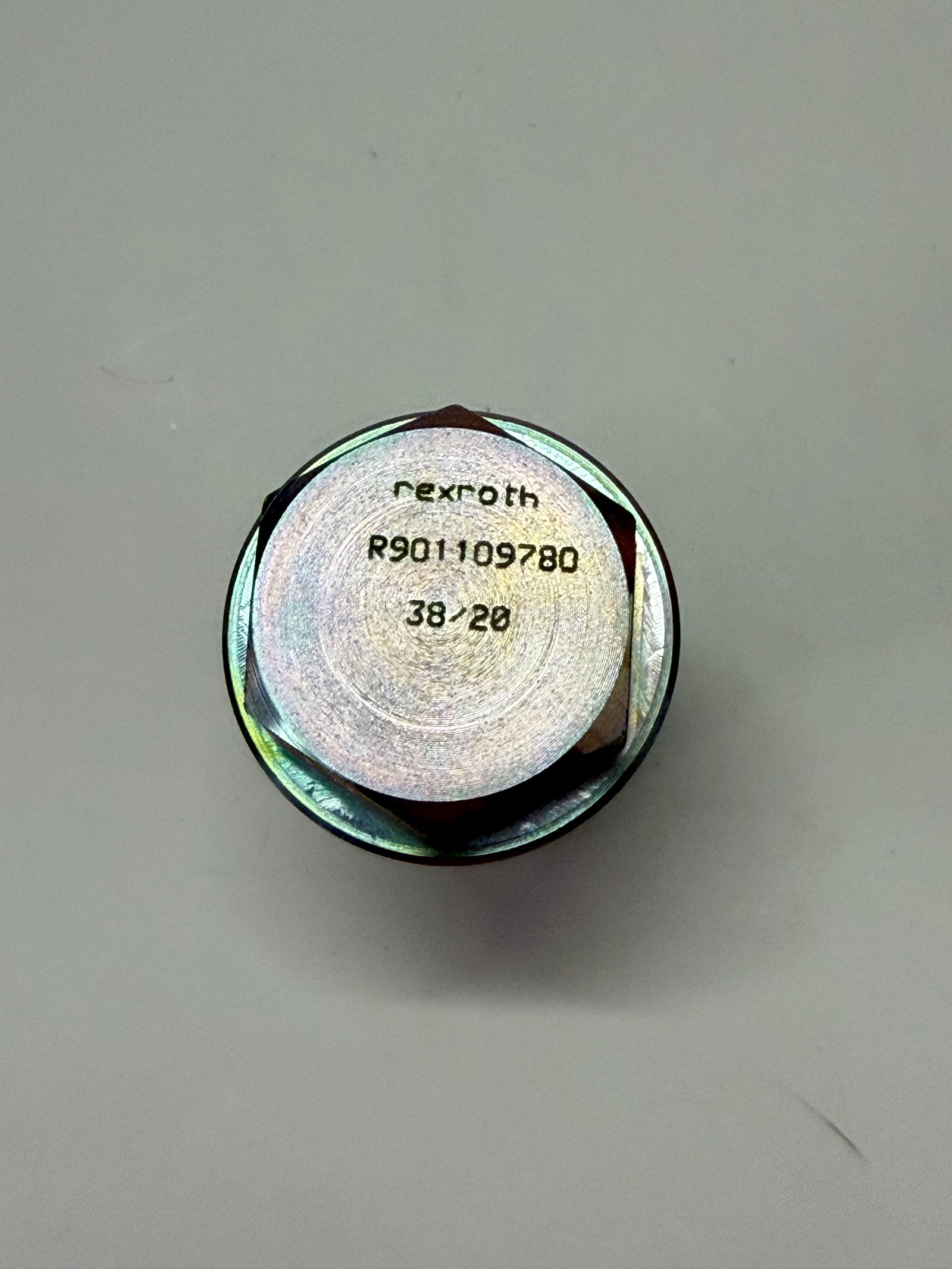

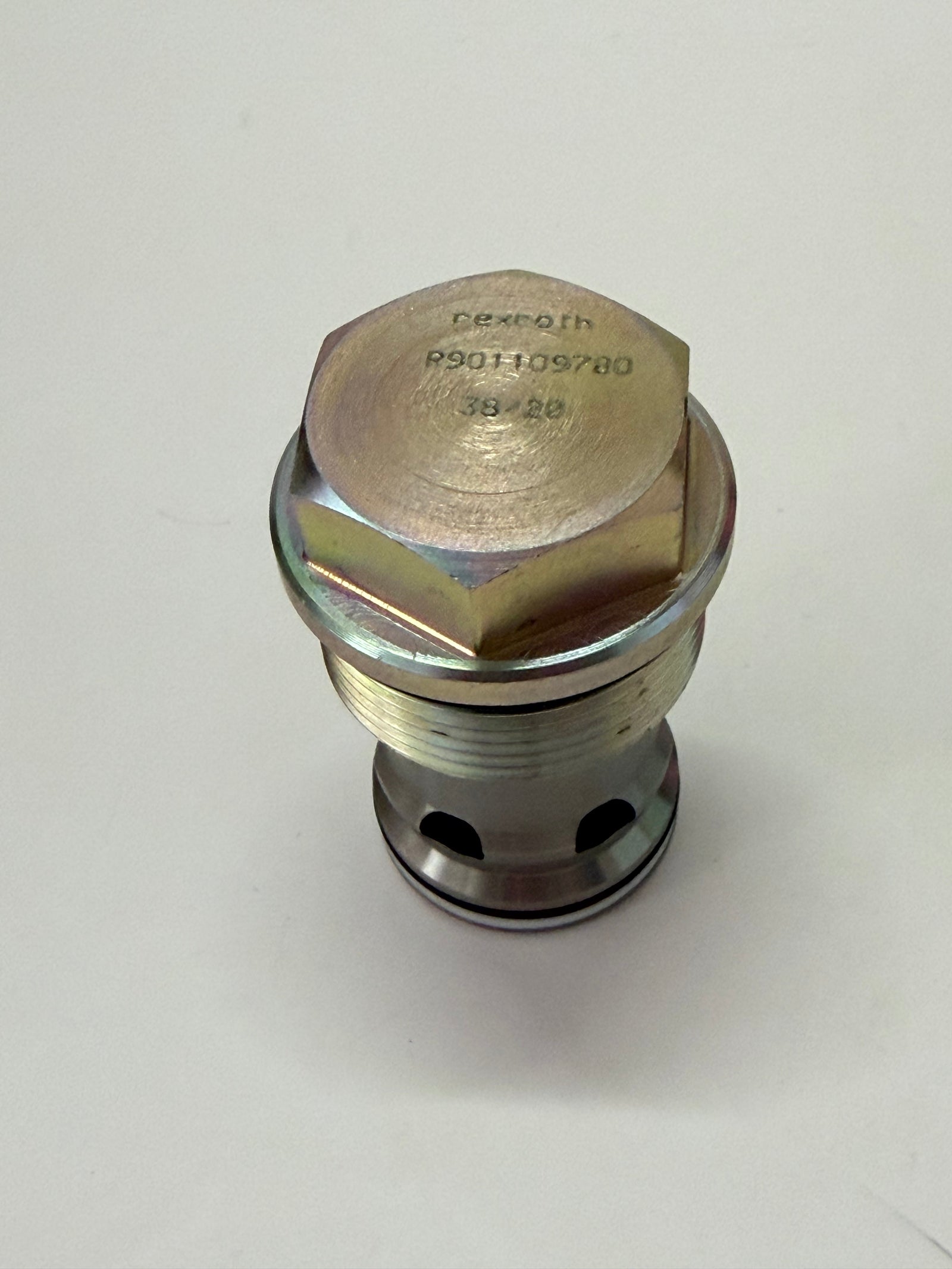

Rexroth R901109780 Direct Acting, Poppet Type, Hydraulic Check Valve Size 20, 043132005800000-20A-00
- SKU
- P-RE-B-9037
$90.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 1.0 kg
Specifications
| Manufacturer | BOSCH REXROTH |
|---|---|
| Product type | HYDRAULICS & PNEUMATICS |
| SKU | P-RE-B-9037 |
| Weight | 1.0 kg |
Description
Technical data
Max. operating pressure
350 bar (5000 psi)
Max. flow
360 l/min (95 gpm)
Max. internal leakage
5 drops/min.
Fluid temperature range: -30 to 100 °C (-22 to 212 °F)
Installation torque
128 - 149 Nm (95 - 110 ft-lbs)
Weight
0.38 kg (0.84 lbs)
Cavity
CA-20A-2N (see data sheet 18325-70)
Lines bodies and standard
assemblies: Please refer to section “Hydraulic
integrated circuit” or consult factory
Seal kit1)
Code: RG20A2010520100
material no: R930005602
Fluids
Mineral-based or synthetics with
lubricating properties
at viscosities of 5 to 800 mm2/s (cSt)
Recommended degree of
fluid contamination
Nominal value max. 10µm (NAS 8) /
ISO 4406 20/18/15
Installation position
No restrictions
Other Technical Data

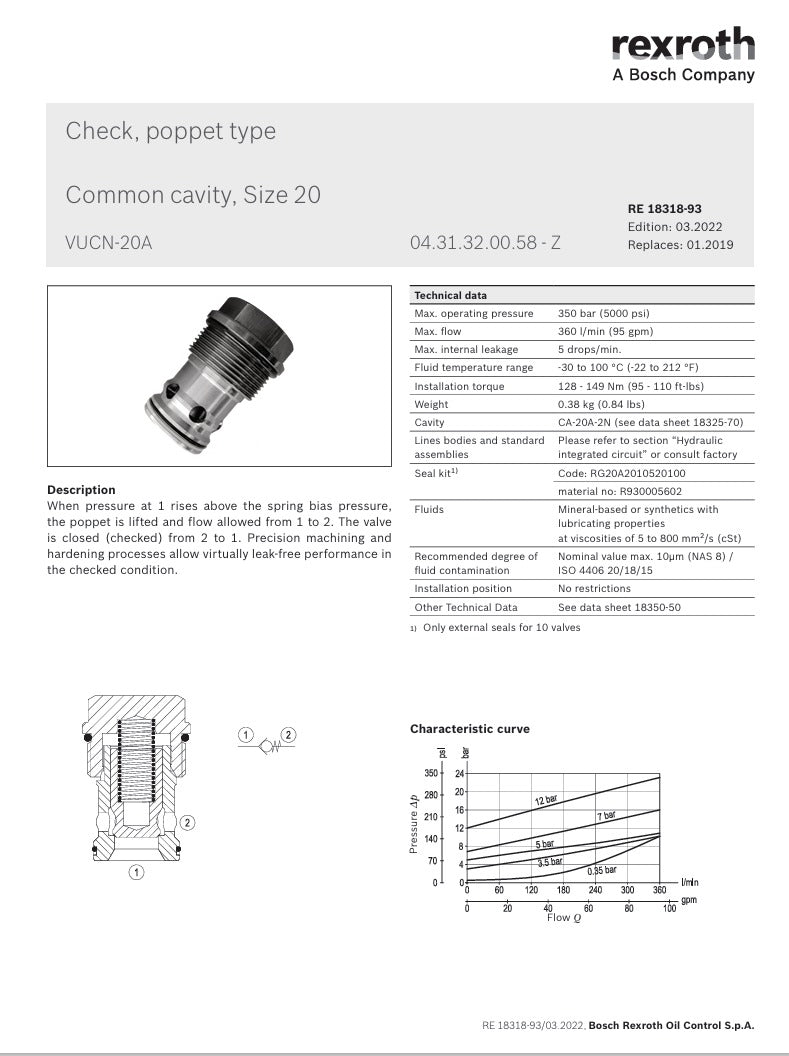

See data sheet 18350-50
