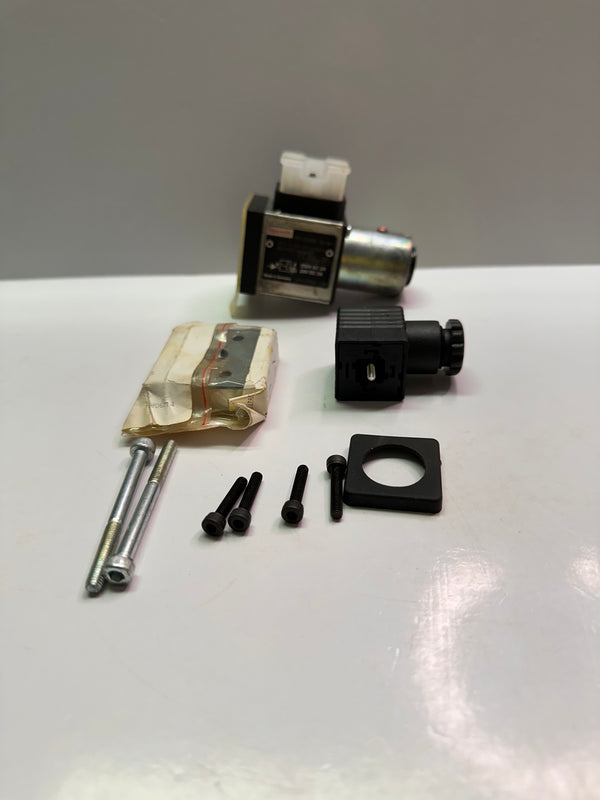

C/W Adapter Plate
|
Connection diagram |
Flange connection (ISO 16873) |
|
Product family |
HED 8 |
|
Max. pressure [bar] |
200 |
|
Type of connection |
Flange connection |
|
Output signal |
Micro switch with normally closed contact/NO contact function |
|
Supply voltage |
24...250 V AC/DC |
|
Electrical connector |
Connector, 4-pole (3 + PE) |
|
Electrical connection description |
Connector 4-pole (3 + PE) according to EN 175301-803 |
|
Conformity description |
CE – according to Low-Voltage Directive 2014/35/EU |
|
Hydraulic fluid |
HL,HLP,HLPD,HVLP,HVLPD |
|
Seals |
NBR |
