RAM MOUNTS
RAM-101MU Double Ball Mount – C Size Medium Arm, Metal Knob
- SKU
- P-RA-R-7936
$65.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 2.0 kg
Specifications
| Manufacturer | RAM MOUNTS |
|---|---|
| Product type | INDUSTRIAL SUPPLIES |
| SKU | P-RA-R-7936 |
| Weight | 2.0 kg |
Description

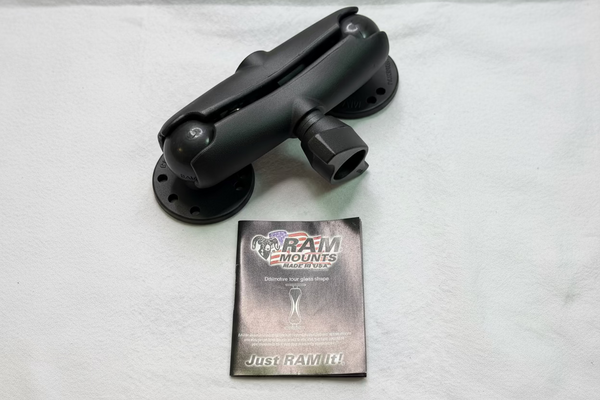

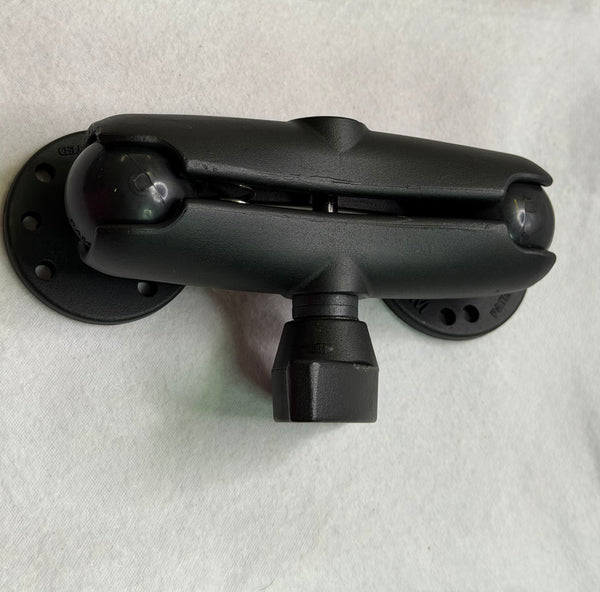

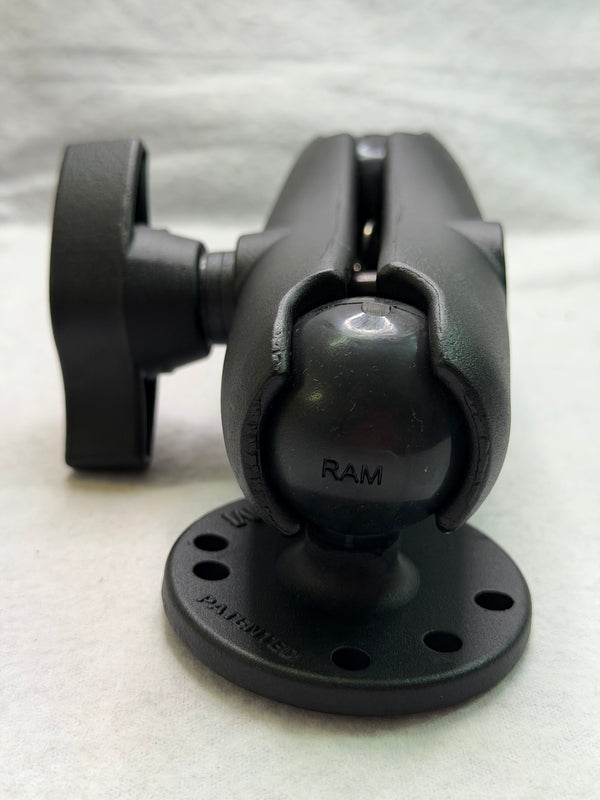

RAM-101MU double ball mount
C-size double ball mount with a medium arm and metal knob, identified by reference RAM-101MU.
Source dimensions and construction
| Overall height | 7.35 inches |
|---|---|
| Socket-to-socket length | 4.66 inches |
| Four-hole AMPS pattern | 1.181 × 1.496 inches |
| Three-hole pattern | 120-degree pattern, 1.812-inch diameter |
| Plate size | 2.5-inch diameter |
| Ball size | C size, 1.5 inches |
| Material | Marine-grade aluminium |
| Weight | 1.2 lb |

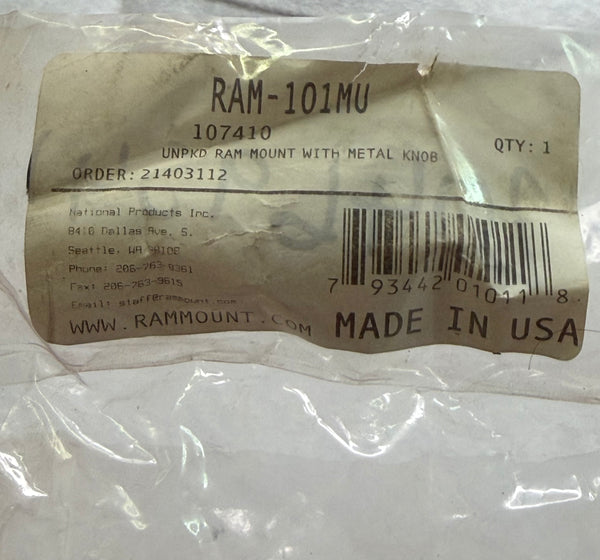

| Source packaging | Poly bag |
Source load capacities
- Standard use: 4 lb
- Heavy-duty use: 3 lb
Confirm the load, mounting surface, hole pattern and application conditions before selection; retain the lower heavy-duty rating where applicable. The source does not specify a device cradle or mounting fasteners as included. This is a mounting assembly, not a vehicle control component.
