ANDERSON

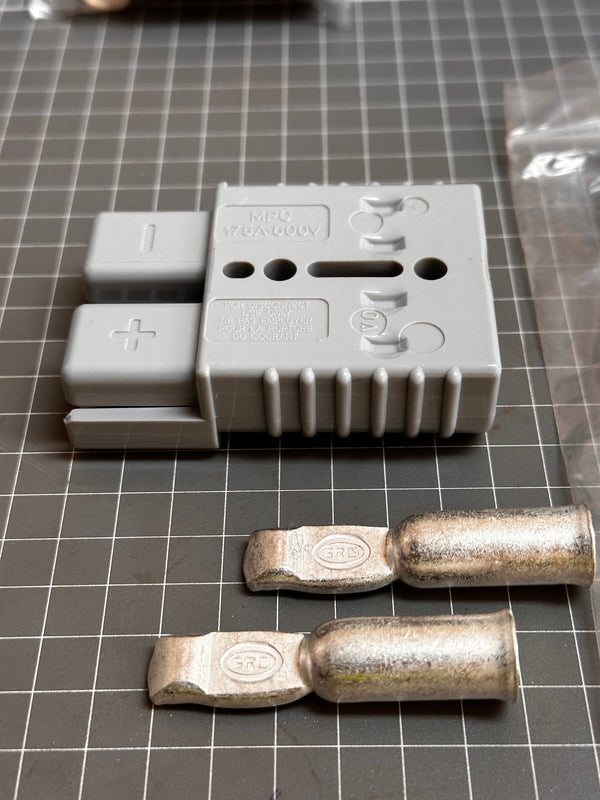

QVSY175 Grey Anderson-Style Connector, 175A, 2 Terminals
- SKU
- P-QV-Q-1682
$15.50
Price includes GST.
In stock
Warehouse pickup available
- Weight
- 1.0 kg
Specifications
| Manufacturer | ANDERSON |
|---|---|
| Product type | AUTOMOTIVE & TRUCK PARTS |
| SKU | P-QV-Q-1682 |
| Weight | 1.0 kg |
Description
QVSY175 grey Anderson-style connector, listed as 175A with 2 terminals. The source describes an Anderson-style product; QVEE and GRID POWER also appear in the catalogue. The manufacturer requires confirmation.
Source specifications
- Takes 2B&S (35mm2) battery cable
- Contact wire size: 53.5mm2 (1/0 AWG)
- Maximum wire insulation diameter: 19mm
- Contact retention force, as recorded: 137kg (300lbs)
- Operating temperature: -20 to +125 degrees C
The two cable-size statements differ. Confirm the supplied terminals and correct cable size before ordering. The 600V catalogue tag is not treated as a verified rating for this item; confirm applicable current/voltage ratings and installation requirements. No interchangeability with a particular branded connector is established.
