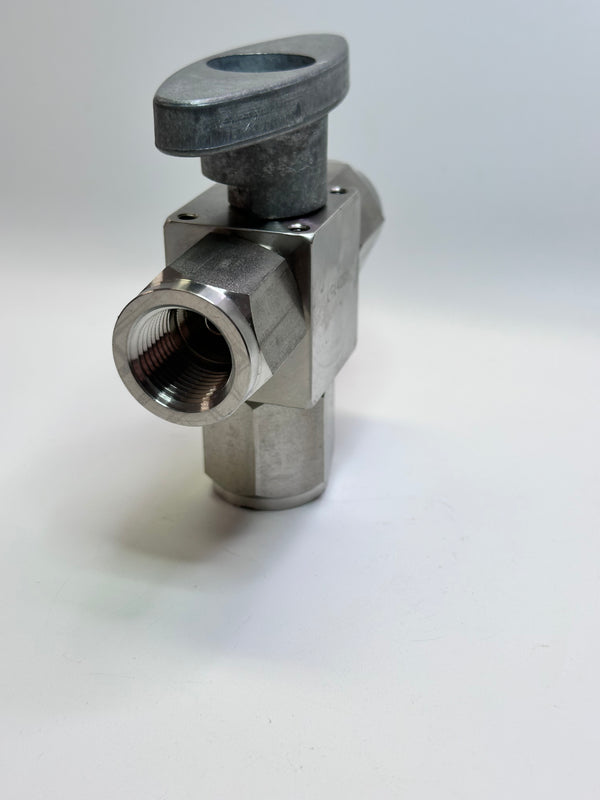

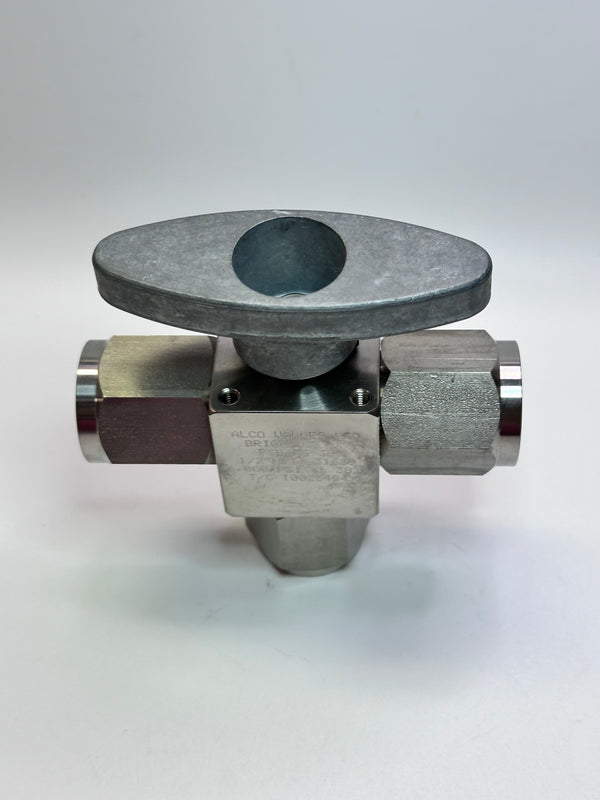

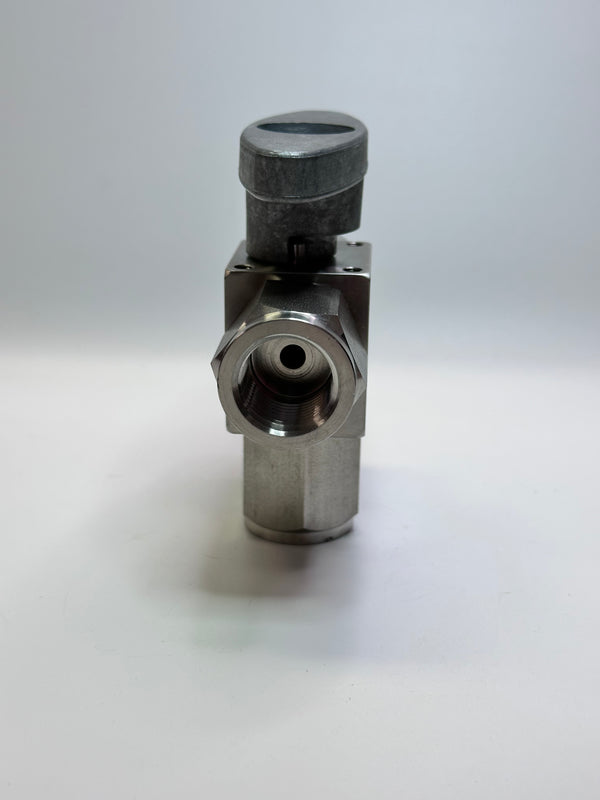

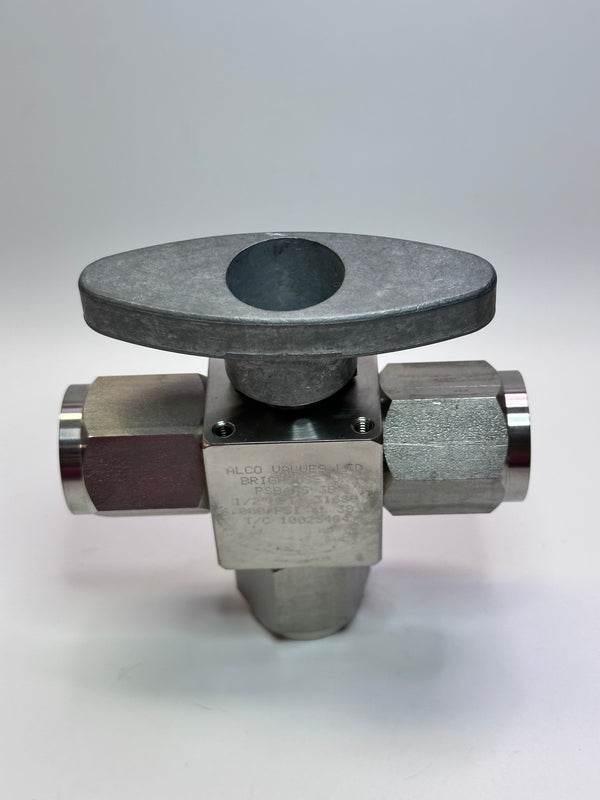

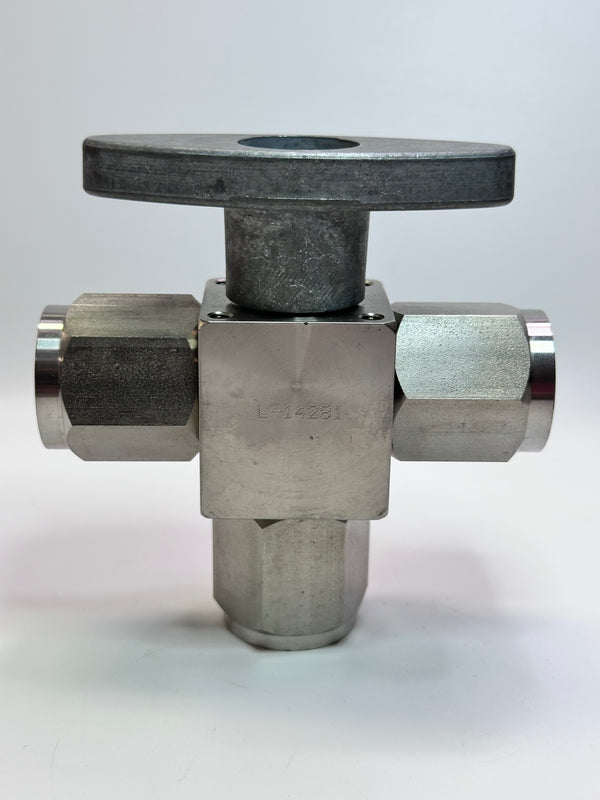

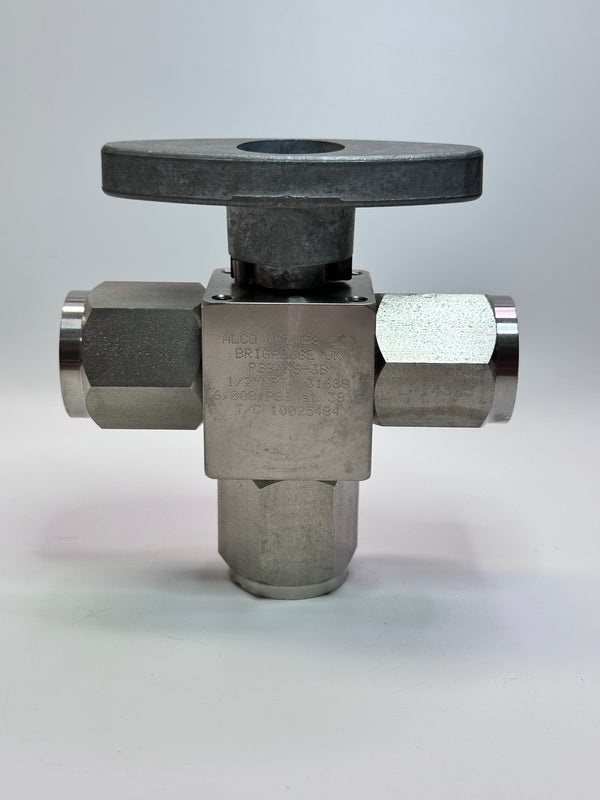

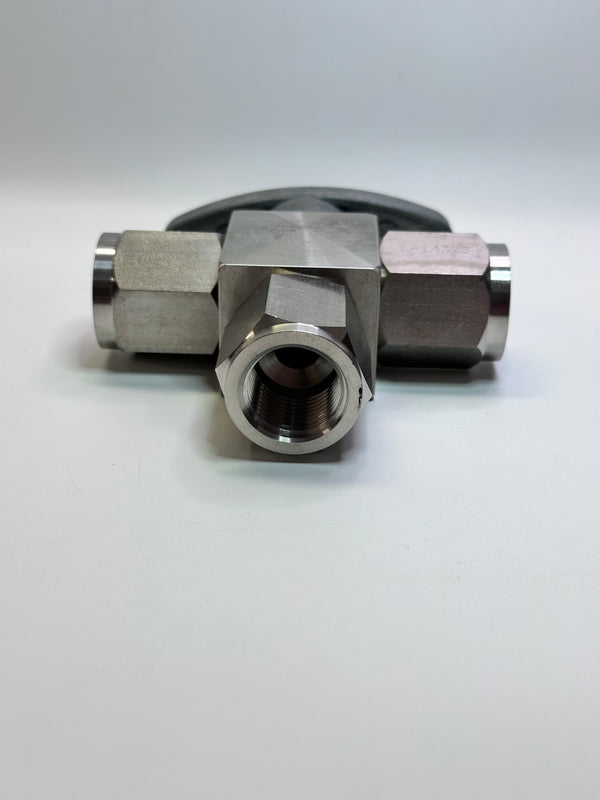

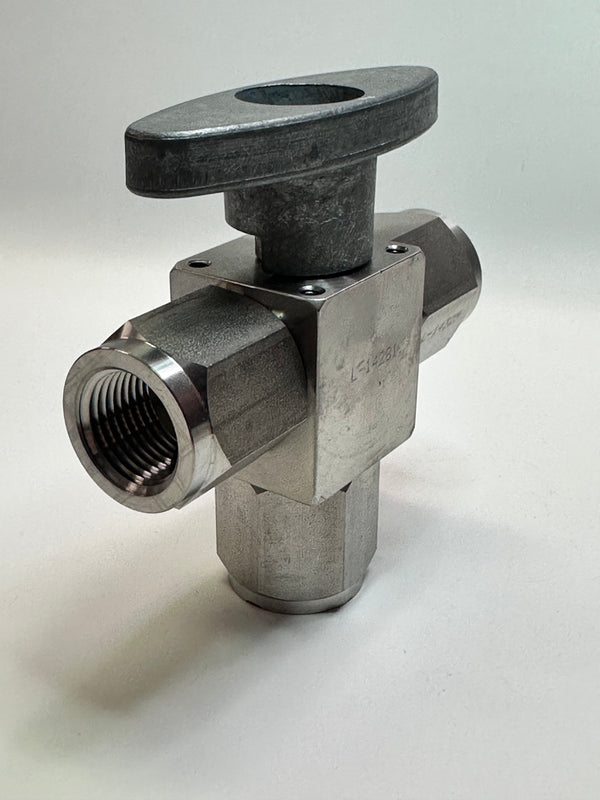

Alco PSB4NS-3B 3-Way L-Port Ball Valve – 1/2" NPT

Alco PSB4NS-3B 3-way L-port diverter/selector ball valve, also recorded as PSB4NS3B. Source details specify 316SS material and a T-bar handle.

Recorded bore is 5mm; 1/2" NPT describes the connection, not a 1/2" flow bore. Pressure is listed as 6000 psi at 38°C and temperature range as -46°C to 225°C. The pressure figure must not be applied across that whole temperature range without the applicable pressure/temperature limits and media compatibility information. Confirm the required flow arrangement, connections and service conditions before selection; the source’s general “safe method” wording is not certification of a complete installation.

Recorded valve specifications

The 3-way L-Port diverter valves are a safe method of diverting high pressure lines, saving the use of several high pressure 2-way valves.

• VALVE TYPES

  • Diverter/Selector

• PRESSURE RATING

  • 6000 psi @ 38°c

• TEMPERATURE RATING

  • -46°C up to 225°C

• BORE SIZE

  • 5mm
  • 1/2" NPT
• Material
• 316SS

T Bar Handle
