Powerex CM400HA-24H IGBT Module, 1200V 400A
- SKU
- P-PR-M-1816
$120.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 1.0 kg
Specifications
| Manufacturer | POWEREX |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-PR-M-1816 |
| Weight | 1.0 kg |
Description

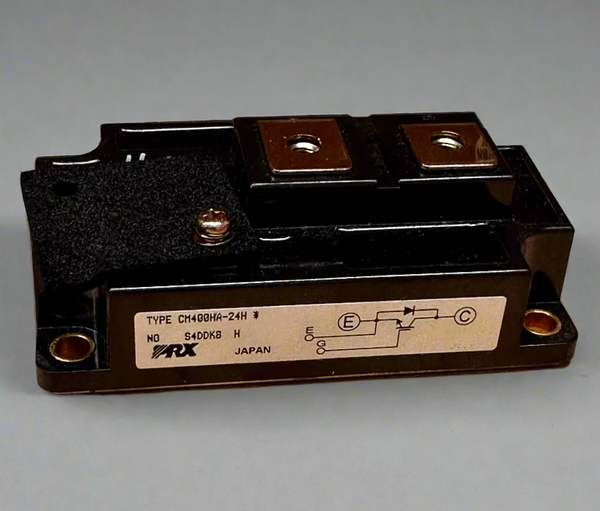

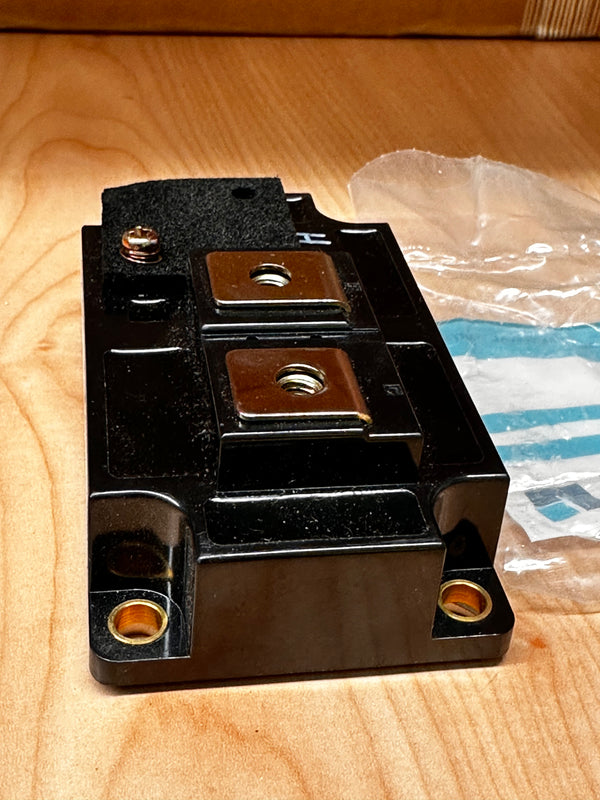

Powerex CM400HA-24H single-configuration IGBT module, listed with 1200V maximum collector-emitter breakdown voltage and 400A maximum collector current. Additional catalogue designations: PRX, H SERIES and OD; OD is not supplied with a definition.
Source compliance statement: RoHS non-compliant. This disclosure is retained as supplied and is not an independent compliance assessment.
Source specifications
| Part Number | CM400HA-24H |
|---|---|
| Manufacturer / Brand | Powerex Inc. |
| Description | IGBT MOD 1200V 400A 2800W |
| Lead Free Status / RoHS Status: | RoHS non-compliant |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Vce(on) (Max) @ Vge, Ic | 3.4V @ 15V, 400A |
| Supplier Device Package | Module |
| Series | IGBTMOD™ |
| Power - Max | 2800 W |
| Package / Case | Module |
| Package | Bulk |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| NTC Thermistor | No |
| Mounting Type | Chassis Mount |
| Input Capacitance (Cies) @ Vce | 80 nF @ 10 V |
| Input | Standard |
| IGBT Type | - |
| Current - Collector Cutoff (Max) | 2 mA |
| Current - Collector (Ic) (Max) | 400 A |
| Configuration | Single |
The 2800W figure is the source maximum power specification, not an output-power or continuous-load guarantee. The temperature range is marked TJ (junction temperature), not ambient temperature. Confirm drive conditions, cooling, mounting and exact replacement compatibility before use. No NTC thermistor is listed.
