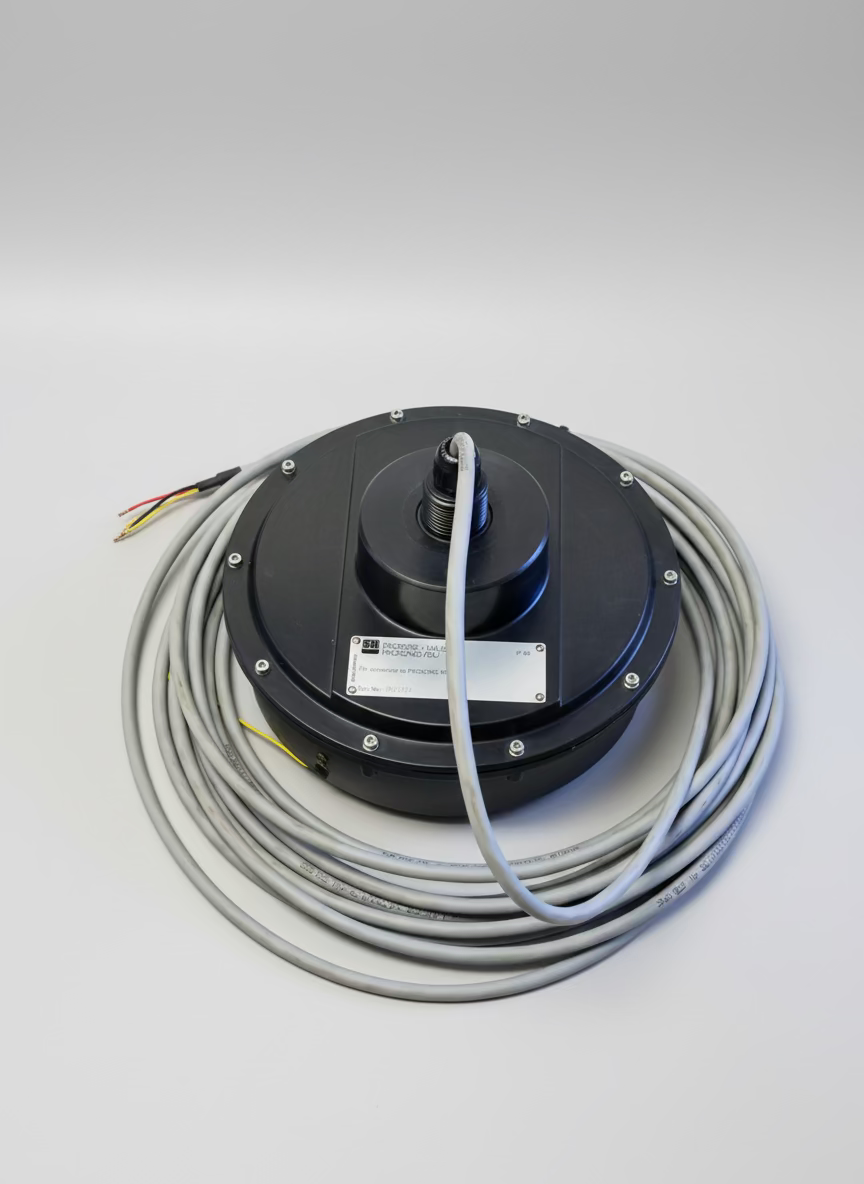

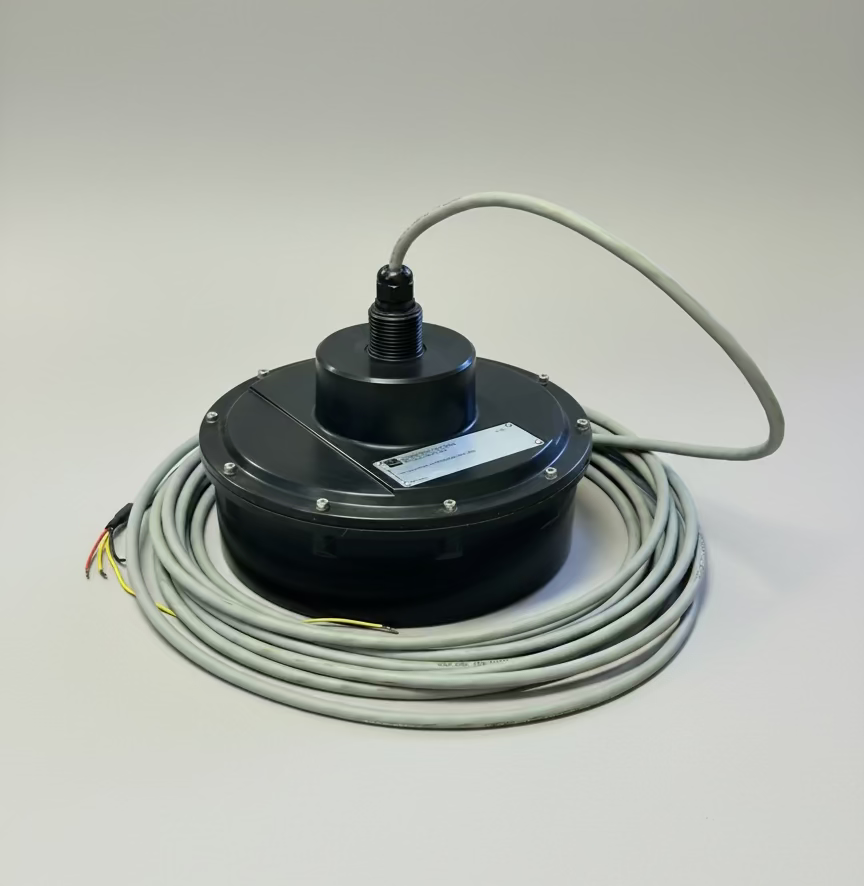

Prosonic FDU85-RG2 Level Instrument - Continuous

• Characteristic / Application

  Separated version with field housing and control room instrumentation

• Supply / Communication

  4-wire (HART, Profibus DP, RS 485)

• Ambient temperature

  -40 °C ... 80 °C

• Process temperature

  -40 °C ... 80 °C

• Process pressure / max. overpressure limit

  0.7 bar ... 1.5 bar abs

• Main wetted parts

  UP / AL-PE

• Process connection

  G / NPT 1"

• Blocking distance

  0.8 m

• Max. measurement distance

  45 m

• Certificates / Approvals

  ATEX
  FM
  CSA

• Components

  Transmitter
  FMU860 / FMU862

• Successor

  FDU95

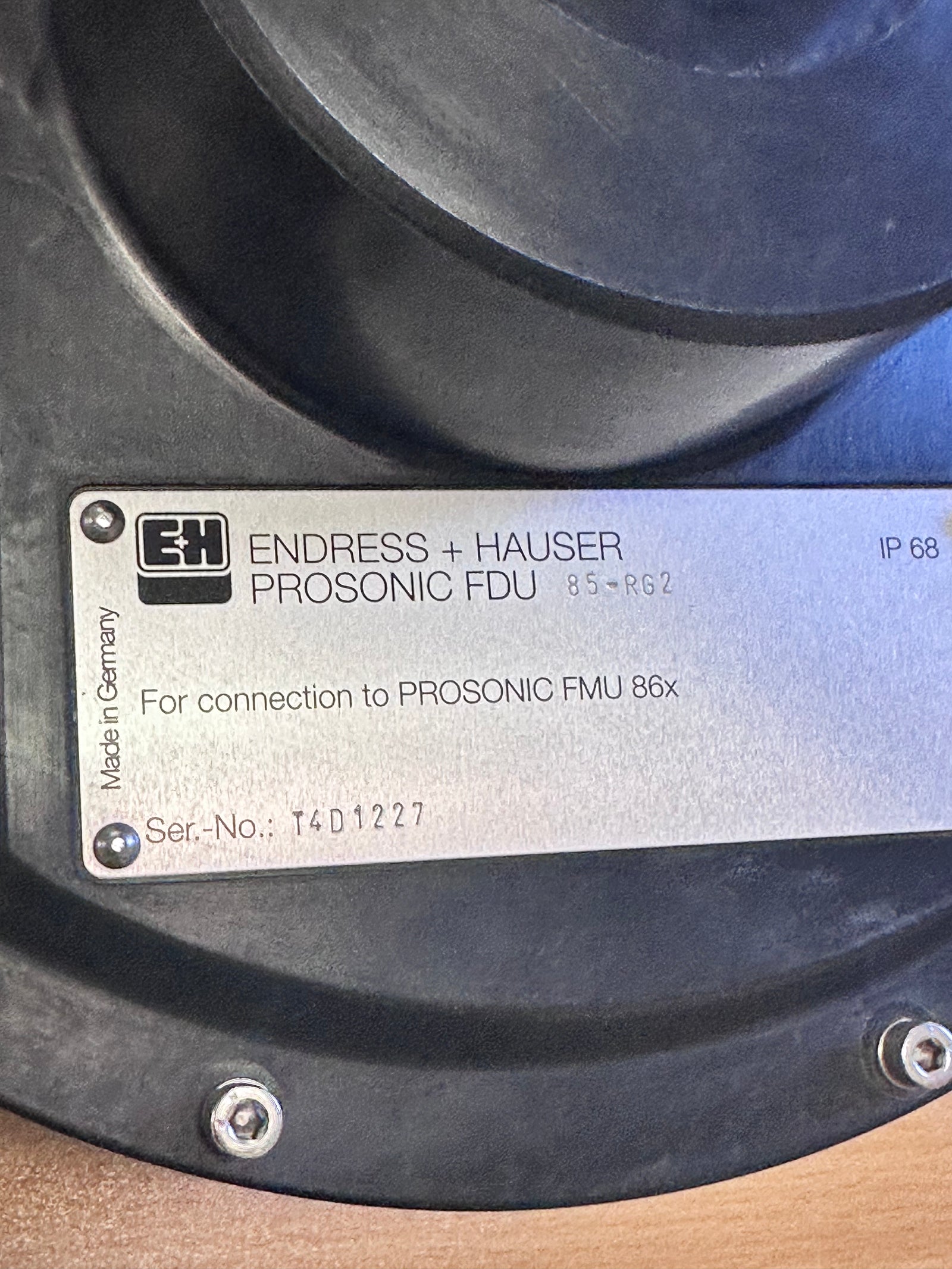

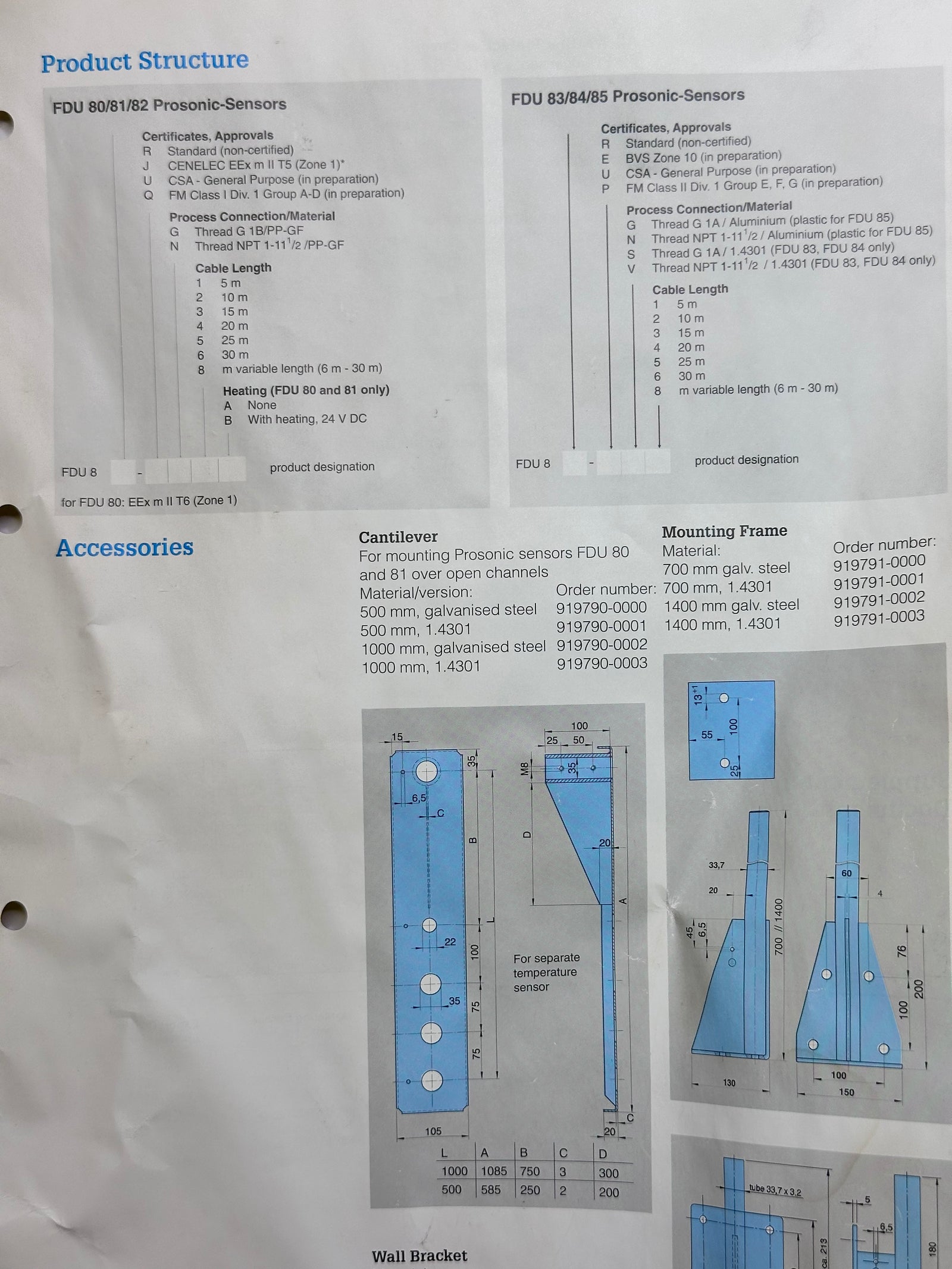

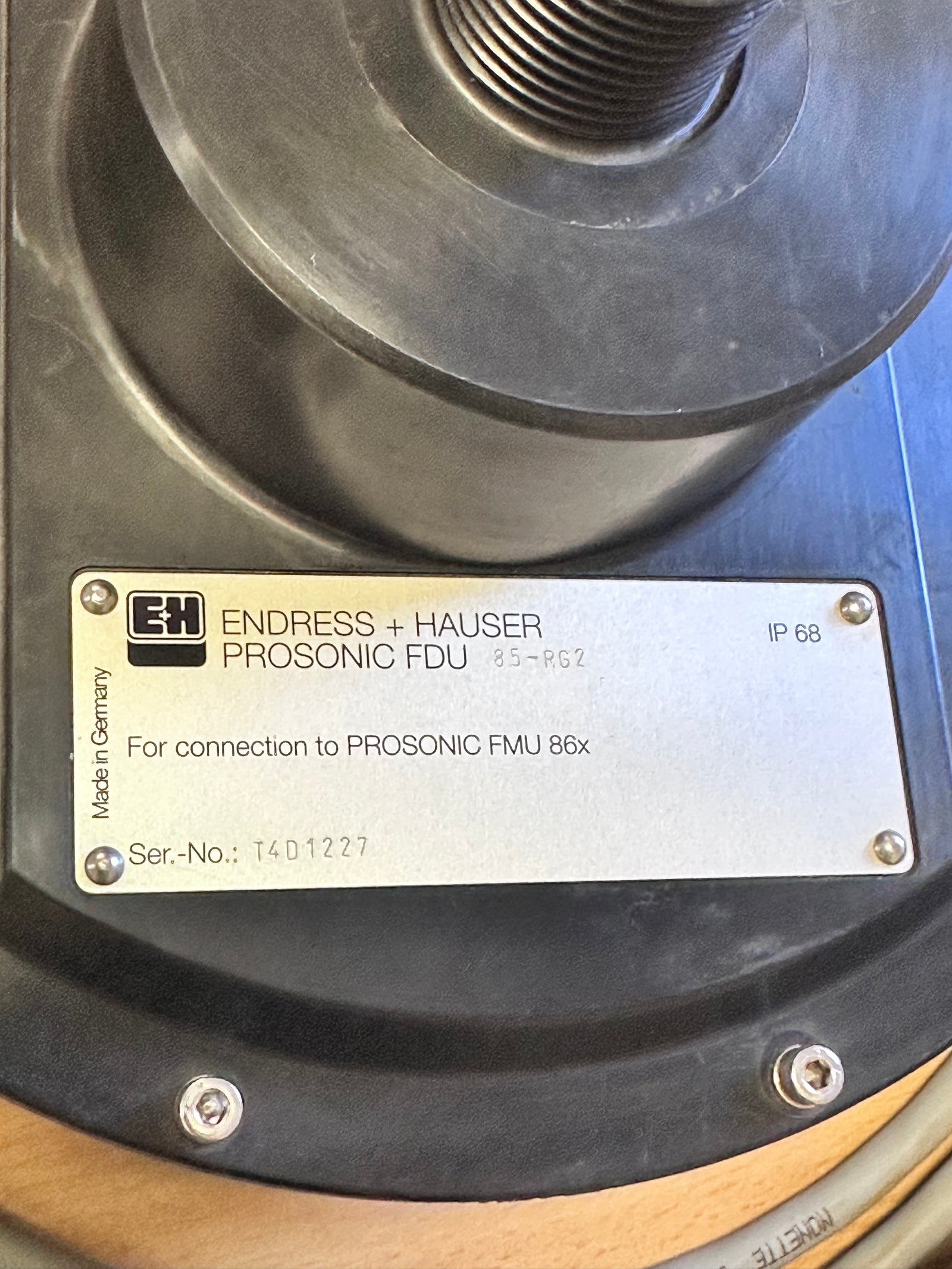

  R = Standard non-certified.

  G = Process Connection/ Material: Thread G 1A \ Aluminium (plastic for FDU85)

  2 = Cable Length: 10 Meters

Level instrument, continuous.
Measurement ultrasonic, contactless.

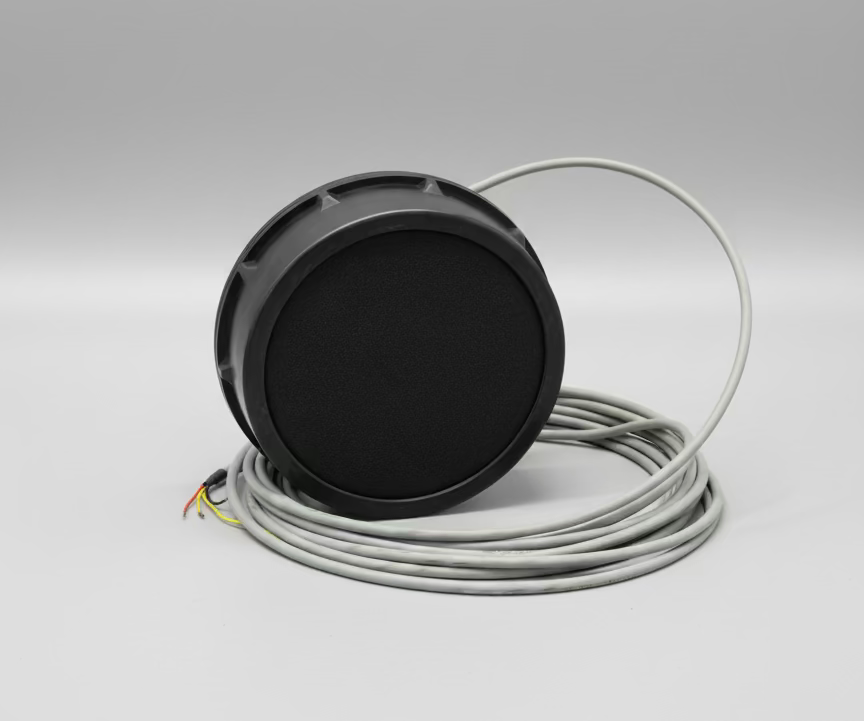

Membrane Aluminium, PE coated.
Sensor enclosure UP.
Max meas. range under ideal condition:
Solids 45m.
Blocking distance 80cm/2.6ft.
Max operat. temp.-20...80oC/-4...176oF.
up to -40oC/-40oF with reduced range.
Max operating press. 1,5bar/22psi abs.
Integrated sound velocity compensation.
Self-cleaning effect of sensor membrane.
Protection class IP68 NEMA6P.
:: Weather resistance.
Sensor cable up to 300m connectable.
