The GSD-503 can directly connect to departmental switches or backbone servers. With up to 10Gbps of non-blocking switching fabric, the GSD-503 can be used to build a Gigabit high-bandwidth switched network quickly and easily.
Home/SOHO High-speed Network Center
The GSD-503 Gigabit Ethernet Switch provides the best solution of high-speed Internet environment demanded by SOHO / Home and power users. The GSD-503 accelerates the speed of data transmission between devices without worrying about the delay of high-quality multimedia display. As for home use, the GSD-503 supports speeds of 10, 100 and 1000Mbps, meeting your demands for transmitting high-quality multimedia, gaming and other high-speed Internet applications.
| Hardware Specifications | |
|---|---|

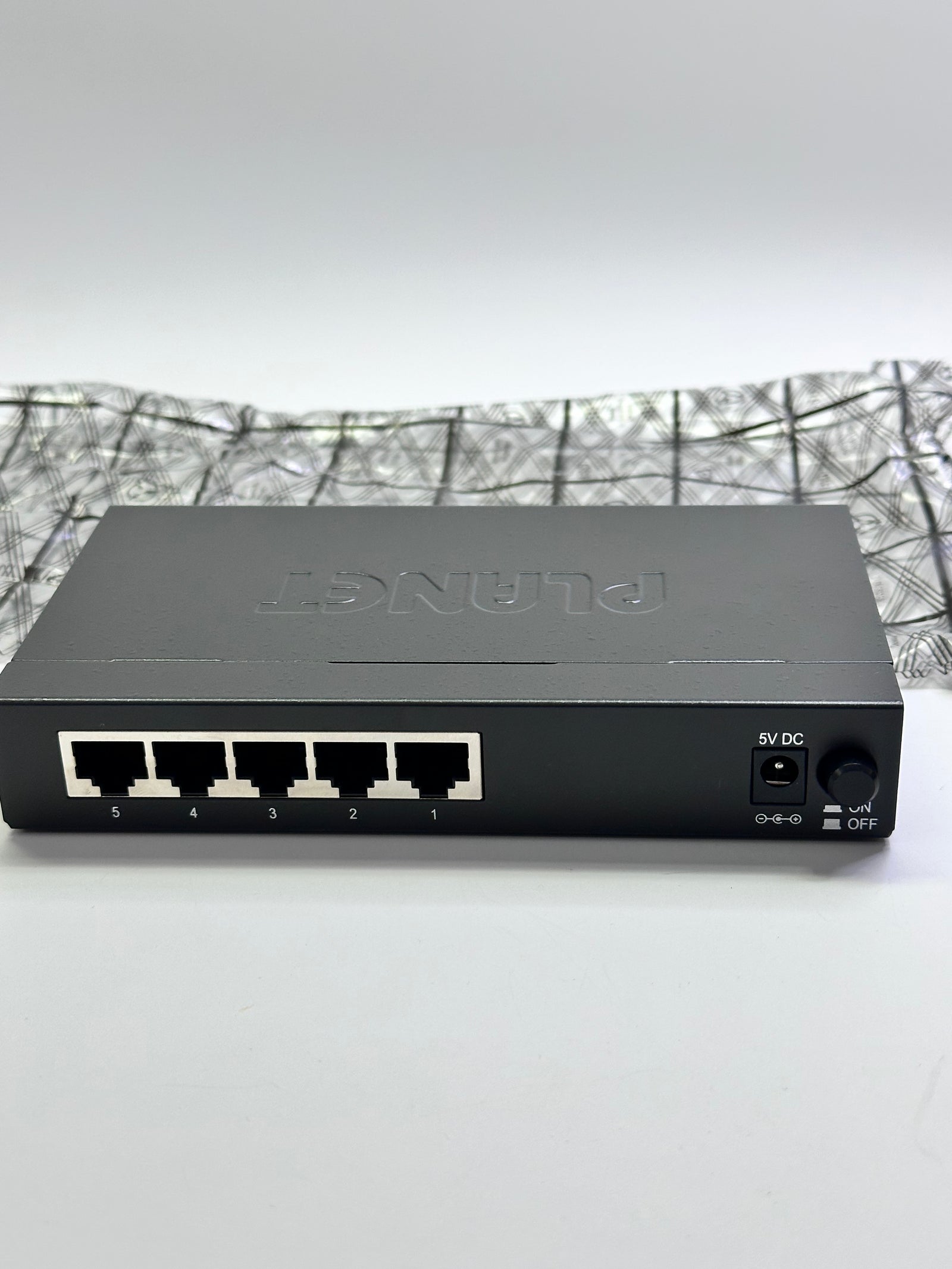

| 10/100/1000BASE-T Ports | 5 Auto MDI/MDIX ports |

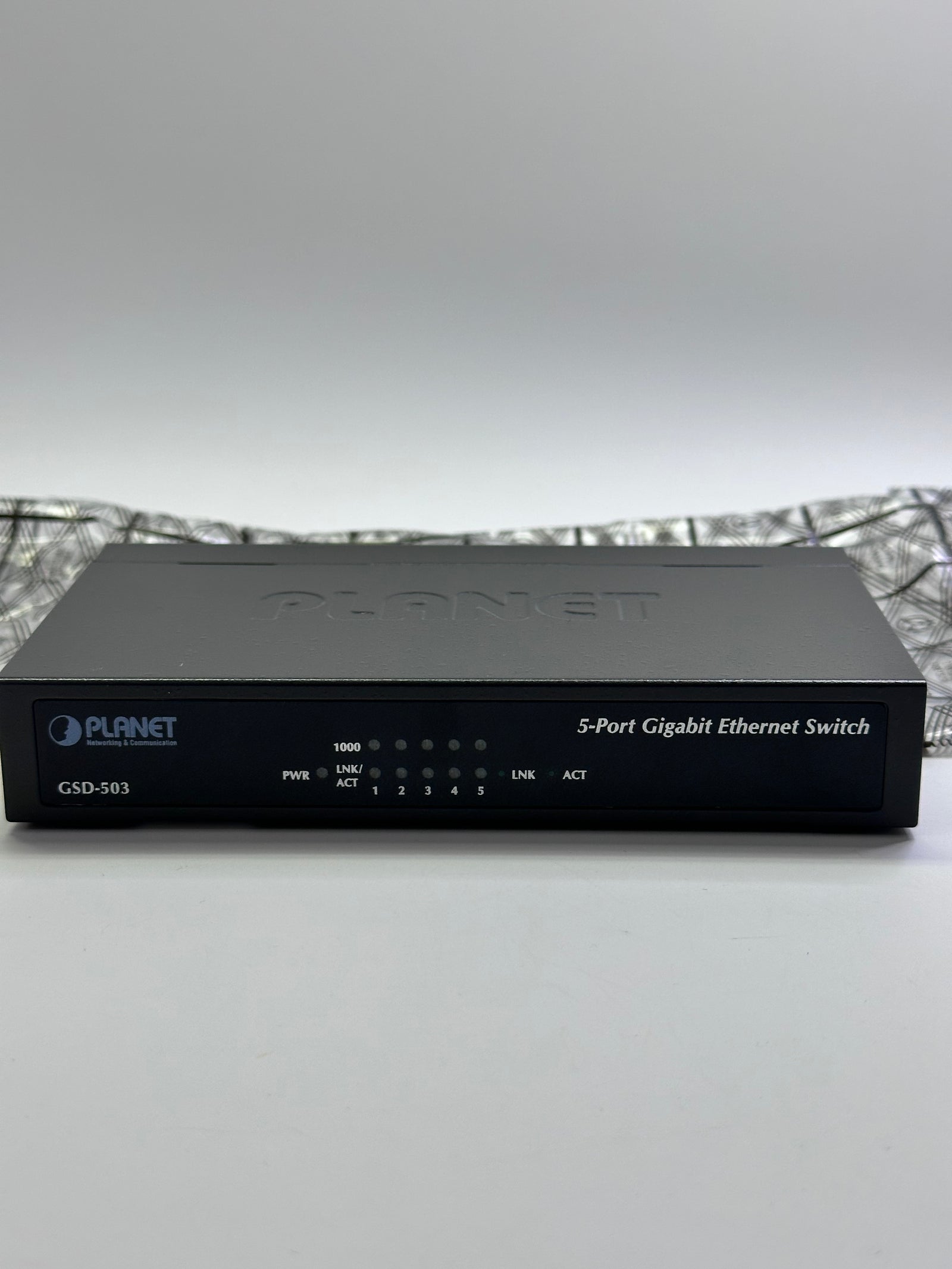

| LED Display | One for Power, one for Link / Act per port |
| Enclosure | Metal |
| Dimensions (W x D x H) | 100 x 64 x 24 mm |
| Weight | 145g |

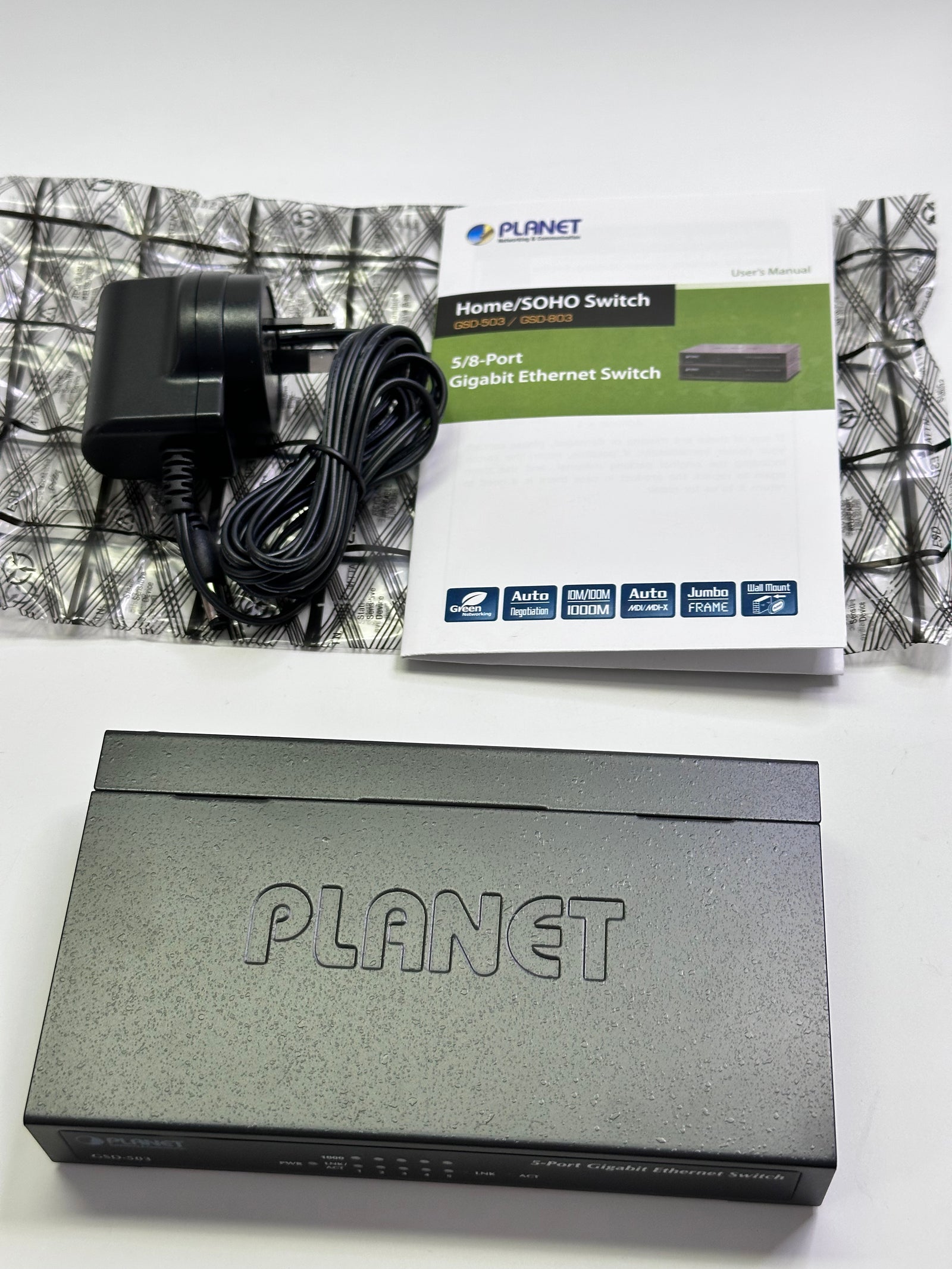

| Power Requirements (External power adapter) | 5V DC, 1A |
| Power Consumption/Dissipation | 2.2 watts/7.5 BTU |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K |
| Flow Control | Back pressure half duplex, IEEE 802.3x pause frame full duplex |
| Switch Fabric | 10Gbps |
| Throughput (packet per second) | 7.44Mpps |
| Jumbo Packet Size | 15K |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab(Gigabit Ethernet) IEEE 802.3x (Full-duplex Flow Control) IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Regulatory Compliance | FCC Part 15 Class B, CE |
| Environments | |
| Temperature | Operating: 0~50 degrees C Storage: -10~70 degrees C |
| Humidity | Operating: 5% to 95%, Storage: 5% to 95% (non-condensing) |
