Primary brand
Pilz
Main function
Safety relay
Product series / family name
PNOZsigma
Sub-range name

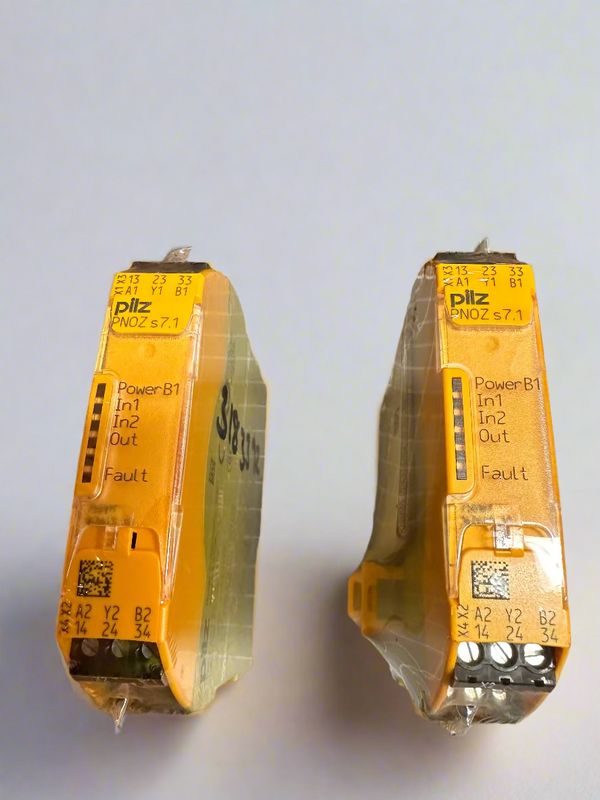

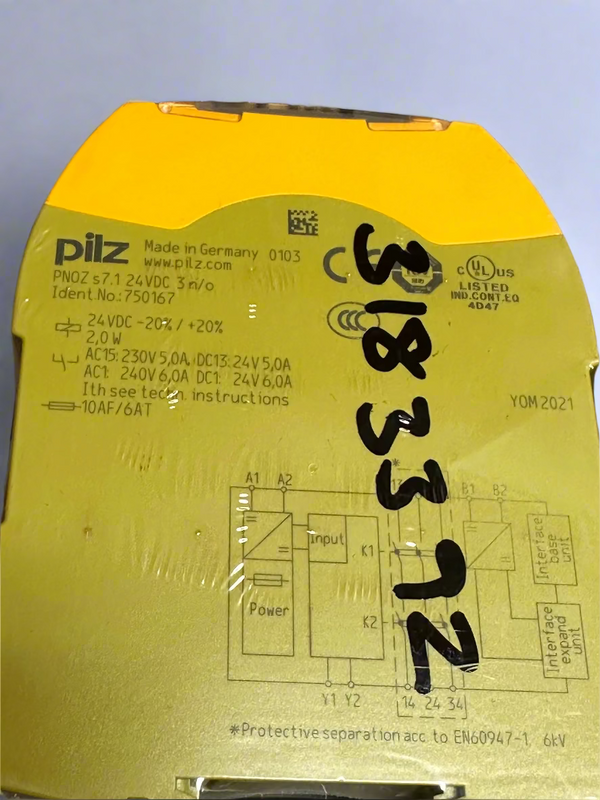

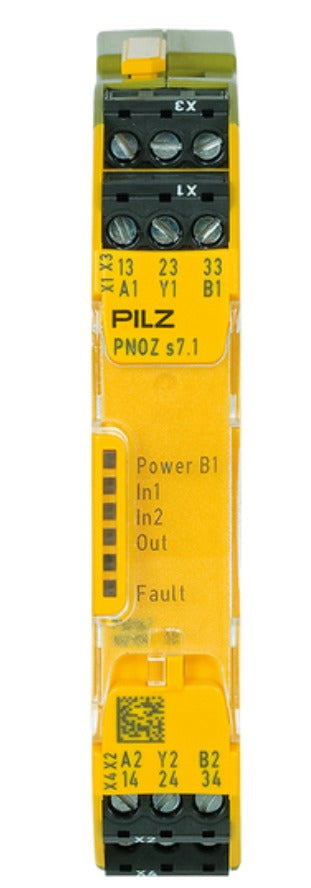

PNOZ s7.1
Functions
Single-channel contact expansion module
Instantaneous contact expansion
Safe separation
Instantaneous contact expansion
Safe separation
Supply voltage (DC)
19.2-28.8Vdc (24Vdc nom.)
Display
Power B1 LED indicator
In1 LED indicator
In2 LED indicator
Output LED indicator
Fault LED indicator
In1 LED indicator
In2 LED indicator
Output LED indicator
Fault LED indicator
Rated current
Safety output contacts ratings
6A (24Vdc; DC-1)
6A (240Vac; AC-1)
5A (24Vdc; DC-13)
5A (230Vac; AC-15)
6A (24Vdc; DC-1)
6A (240Vac; AC-1)
5A (24Vdc; DC-13)
5A (230Vac; AC-15)
Connection type
plug-in/detachable spring term. connections
Mounting mode
DIN rail mounting
Operating mode
Dual-channel operation -- with PNOZsigma base unit -- via PNOZsigma connector
Single-channel operation (without PNOZsigma base unit) -- 1-input circuit affects the output relays; Connection for base unit
Dual-channel operation and supply voltage (with PNOZsigma s7.2 expansion modules) -- via PNOZsigma connector
Single-channel operation (without PNOZsigma base unit) -- 1-input circuit affects the output relays; Connection for base unit
Dual-channel operation and supply voltage (with PNOZsigma s7.2 expansion modules) -- via PNOZsigma connector
Digital inputs
1 x digital input (24Vdc; 70mA)
2 x feedback loop inputs (Y1-Y2)
2 x feedback loop inputs (Y1-Y2)
Digital outputs
3 x instantaneous safety outputs (3NO / 3xSPST-NO each made of 2 N.O. contacts in series; 6A 24Vdc DC-1 or 240Vac AC-1 resistive load) (13-14; 23-24; 33-34)
Degree of protection
IP40
Dimensions
W17.5mm
Net Height (mm)
100 mm
Net Width (mm)
17.5 mm
Net Depth (mm)
120 mm
Material
PC housing
Ambient air temperature for operation
-10...+55 °C
Power consumption
2 W
Manufacturer product status
Commercialized
Compliant with standard(s)
EN 60204-1
EN 62061
EN ISO 13849-1
VDE 0113-1
SIL3 / PL.e / Cat.4
PFH = 2.31E-09
CE
cULus
EAC
TUV
CCC
EN 62061
EN ISO 13849-1
VDE 0113-1
SIL3 / PL.e / Cat.4
PFH = 2.31E-09
CE
cULus
EAC
TUV
CCC
Class
SIL3 / PL.e / Cat.4
Benefits
Relay outputs -- 3 safety contacts (N/O); instantaneous
Supply voltage for expansion modules
LED for -- Supply voltage at B1 and B2 / Input status; channel 1 / Input status; channel 2 / Switch status of the safety contacts / Fault
Plug-in connection terminals (either spring-loaded terminal or screw terminal)
The contact expansion module expands an existing circuit.
As the output relays are monitored via the base unit's feedback loop; the safety functions on the existing circuit are transferred to the contact expansion module.
The safety function remains effective in the case of a component failure.
Earth fault in the feedback loop -- Detected; depending on the base unit that is used.
Earth fault in the input circuit -- The output relays de-energize and the safety contacts open.
Supply voltage for expansion modules
LED for -- Supply voltage at B1 and B2 / Input status; channel 1 / Input status; channel 2 / Switch status of the safety contacts / Fault
Plug-in connection terminals (either spring-loaded terminal or screw terminal)
The contact expansion module expands an existing circuit.
As the output relays are monitored via the base unit's feedback loop; the safety functions on the existing circuit are transferred to the contact expansion module.
The safety function remains effective in the case of a component failure.
Earth fault in the feedback loop -- Detected; depending on the base unit that is used.
Earth fault in the input circuit -- The output relays de-energize and the safety contacts open.
