Phoenix Contact QUINT-DIODE/40 Redundancy Module – 2938963
- SKU
- P-PH-P-0379
$125.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 2.0 kg
Specifications
| Manufacturer | PHOENIX CONTACT |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-PH-P-0379 |
| Weight | 2.0 kg |

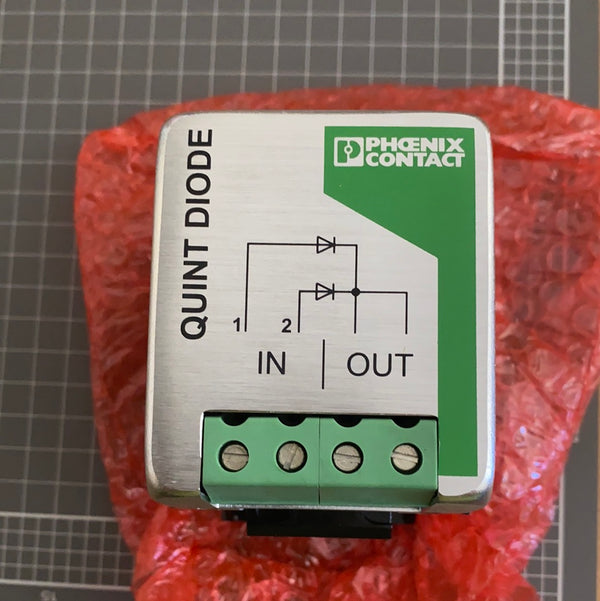

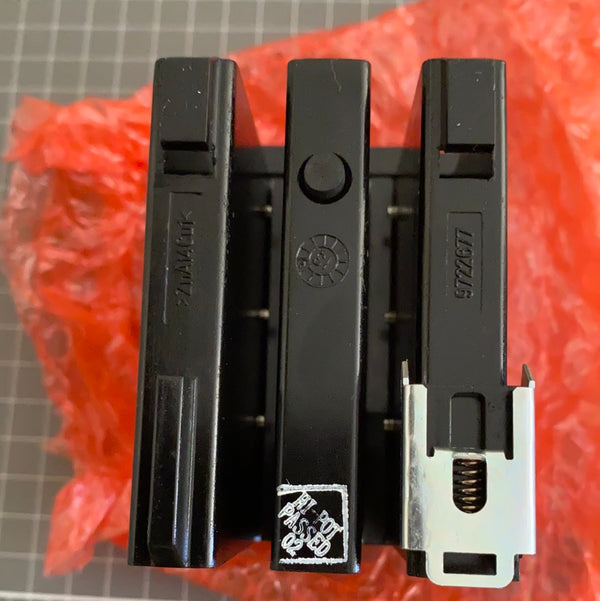

Description
Phoenix Contact QUINT-DIODE/40 redundancy module, reference 2938963; the tag variant 293896 3 is retained.
Source input/DC-operation data
| DC operation | |
| Input voltage | 24 V DC |
| Nominal input voltage range | 24 V DC |
| Input voltage range | 0 V DC ... 30 V DC |
| Input voltage range DC | 0 V DC ... 30 V DC |
| Voltage type of supply voltage | DC |
| Reverse polarity protection | < yes60 V |
| Nominal input current (IN) | 2x 20 A |
| 1x 40 A | |
| Maximum current Imax | 2x 19 A (6 mm² at 40°C) |
| 1x 39 A (6 mm² at 40°C) | |
| 2x 16 A (6 mm² at 60°C) | |
| 1x 32 A (6 mm² at 60°C) | |
| 2x 27 A (10 mm² at 40°C) | |
| 1x 54 A (10 mm² at 40°C) | |
| 2x 21 A (10 mm² at 60°C) | |
| 1x 43 A (10 mm² at 60°C) | |
| 2x 30 A (16 mm² at 40 °C) | |
| 1x 60 A (16 mm² at 40 °C) | |
| 2x 24 A (16 mm² at 60°C) | |
| 1x 48 A (16 mm² at 60°C) | |
| Transient surge protection | Transil diode |
| Voltage drop, input/output | 0.5 V |
Source output data
| Efficiency | > 97 % |
| Nominal output voltage | 24 V DC |
| Nominal output current (IN) | 40 A |
| Power loss nominal load max. | 20 W |
| Connection in series | no |

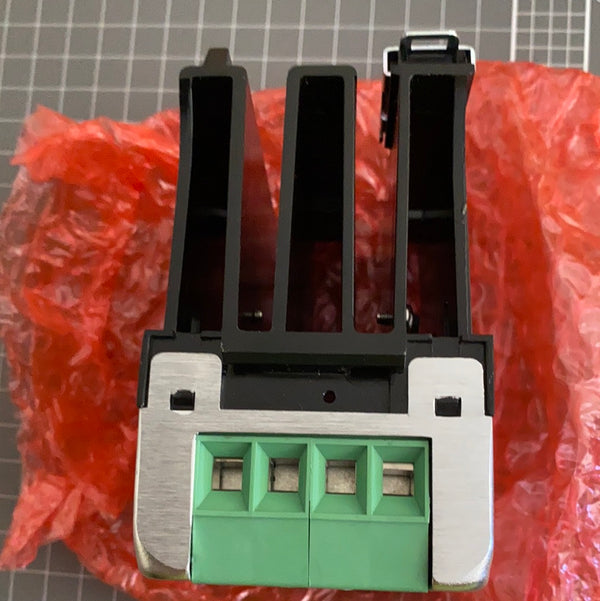

Source input/output connections
| Input | |
| Connection method | Screw connection |
| Conductor cross-section, rigid min. | 0.5 mm² |
| Conductor cross-section, rigid max. | 16 mm² |
| Conductor cross-section flexible min. | 0.5 mm² |
| Conductor cross-section flexible max. | 10 mm² |
| Conductor cross-section AWG min. | 20 |
| Conductor cross-section AWG max. | 6 |
| Stripping length | 10 mm |
| Screw thread | M4 |
| Output | |
| Connection method | Screw connection |
| Conductor cross-section, rigid min. | 0.5 mm² |
| Conductor cross-section, rigid max. | 16 mm² |
| Conductor cross-section flexible min. | 0.5 mm² |
| Conductor cross-section flexible max. | 10 mm² |
| Conductor cross-section AWG min. | 20 |
| Conductor cross-section AWG max. | 6 |
| Stripping length | 10 mm |
| Screw thread | M4 |
Source insulation data
| Insulation voltage output / PE | 1 kV |
| Insulation voltage input / PE | 1 kV |
| Insulation voltage input, output / housing | 1 kV |
Markings and malformed entry to confirm

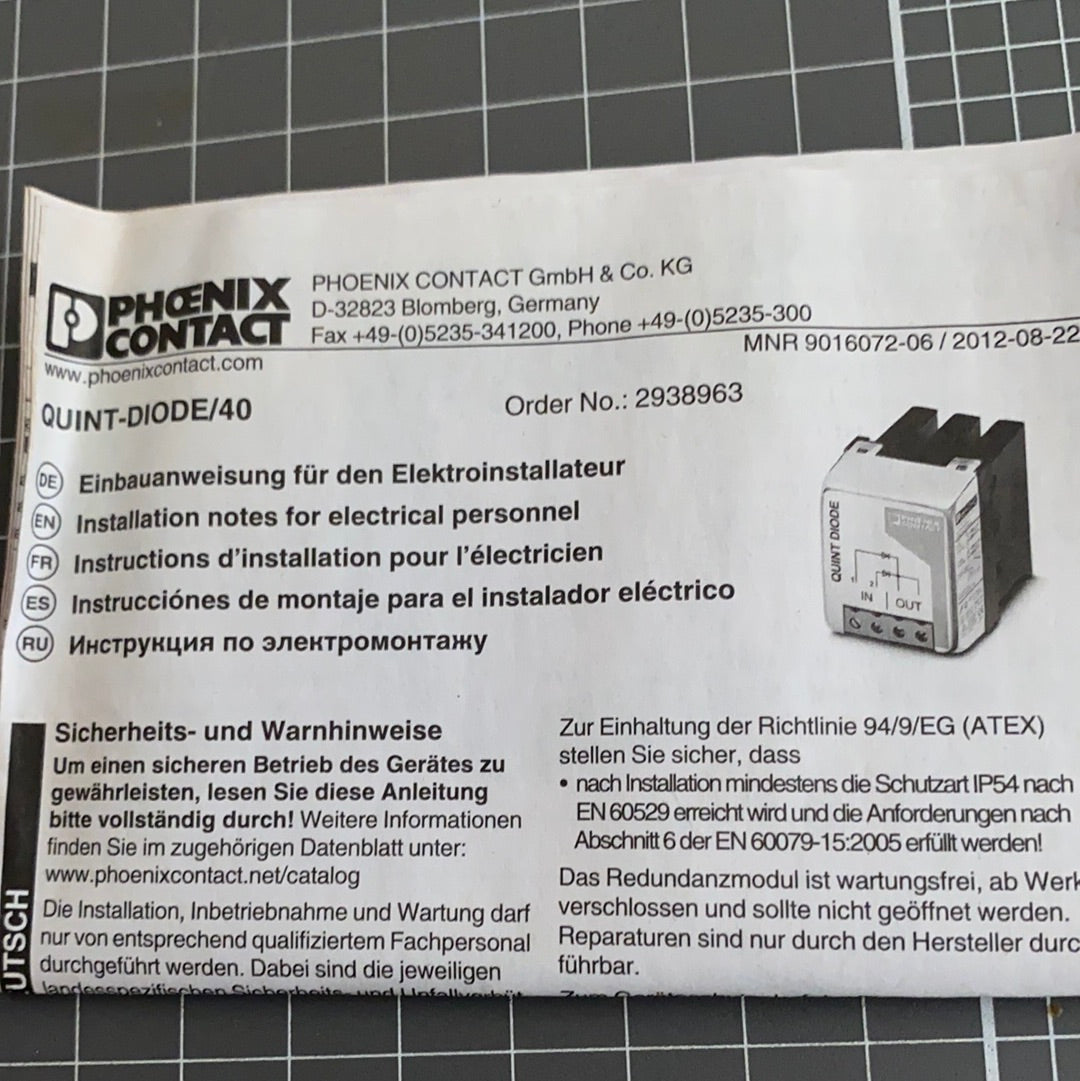

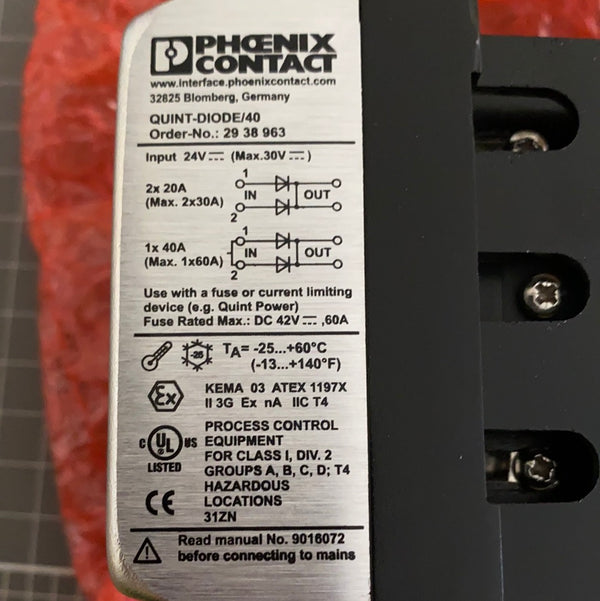

The reverse-polarity entry reads < yes60 V; its meaning is not established and it has not been corrected. Existing source text/tags record IP20, KEMA 03 ATEX 1197X and II 3G Ex nA IIC T4 Gc. These are source records, not a current hazardous-area suitability or certification claim.
Confirm the label, applicable certification documents, installation conditions and current/conductor/temperature limits before selection. This is a redundancy module, not a standalone discrete diode or a complete power supply. No operating-life or current functional-test guarantee is added.
