PHOENIX CONTACT

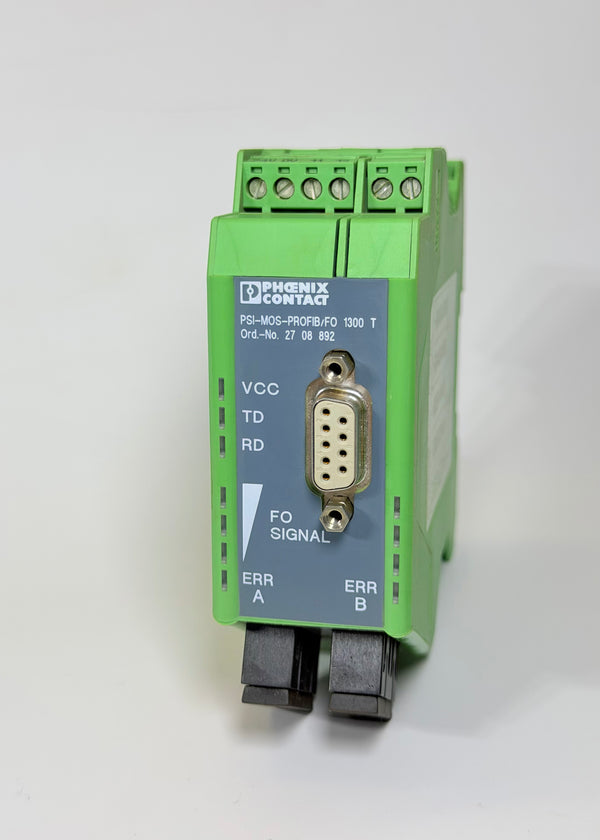

PSI-MOS-PROFIB/FO1300 T Copper to Fiber Optics (FO) Media Converter 2708892
- SKU
- P-PH-P-0324
$1,800.00
Price includes GST.
Low stock: 5 left
Warehouse pickup available
- Weight
- 3.0 kg
Specifications
| Manufacturer | PHOENIX CONTACT |
|---|---|
| Product type | Electrical |
| SKU | P-PH-P-0324 |
| Weight | 3.0 kg |
Description
PSI-MOS-PROFIB/FO1300T - 2708892
| Electrical isolation | VCC // RS-485 |
| Maximum power dissipation for nominal condition | 2.04 W |
| Test voltage data interface/power supply | 1.5 kVrms (50 Hz, 1 min.) |
| Supply | |
| Supply voltage range | 18 V DC ... 32 V DC (via pluggable COMBICON screw terminal block) |
| Nominal supply voltage | 24 V DC (in acc. with UL) |
| Typical current consumption | 85 mA (24 V DC) |
| Max. current consumption | 145 mA |
| ≤ 2 A (For operation in a joining station, via the DIN rail connector) | |
| Switching | |
| Output name | Relay output |
| Output description | Alarm output |
| Number of outputs | 1 |
| Maximum switching voltage | 60 V DC (Resistive Load, General Load) |
| 30 V AC (Resistive load) | |
| 42 V AC (peak, resistive load) | |
| Limiting continuous current | 0.46 A |
FIBRE OPTICS CONVERTER FOR PROFIBUS UPTO 12 Mbps AS T- COUPLER WITH 1300nm TRANSMISSION TECHNOLOGY
