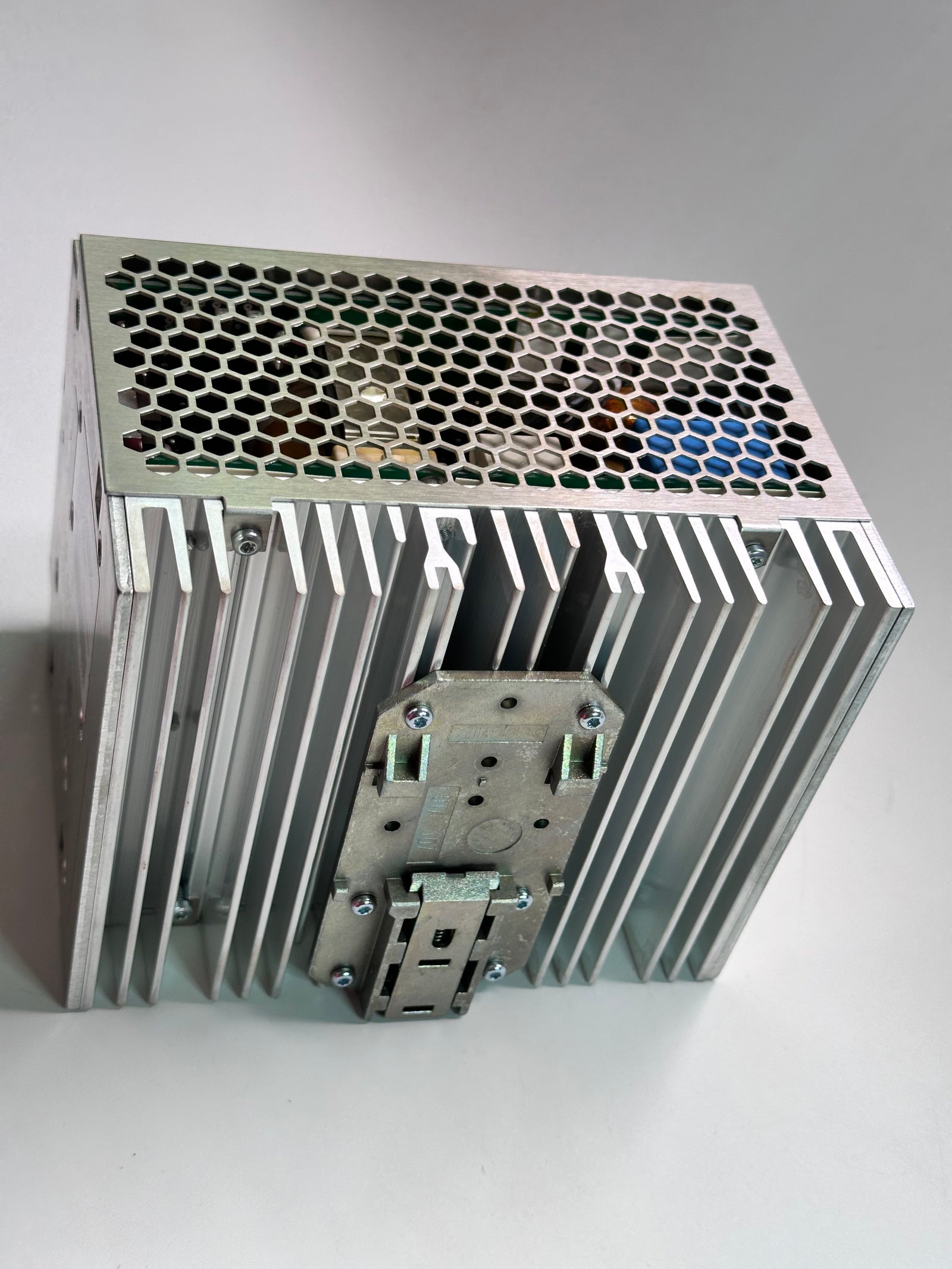

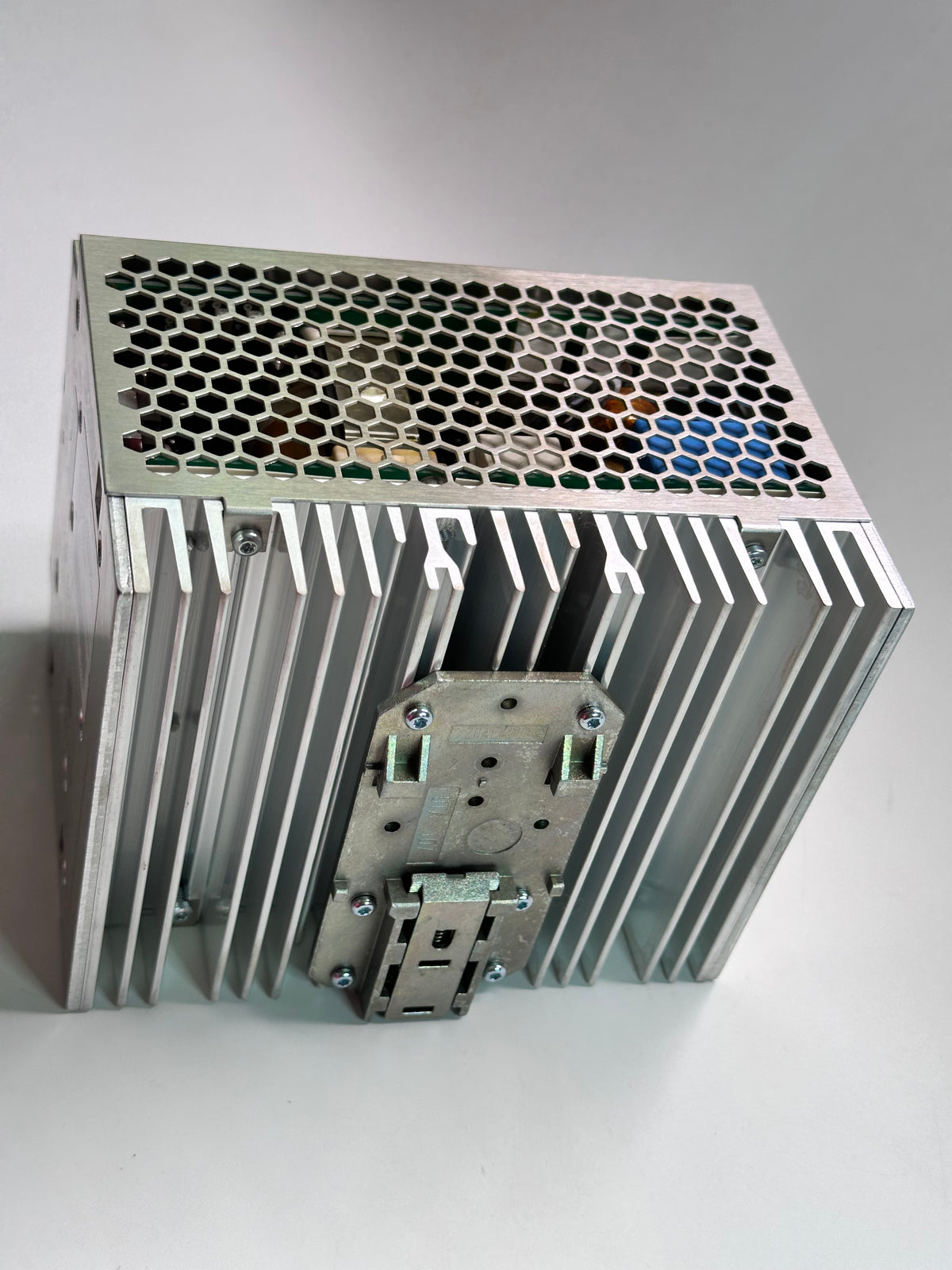

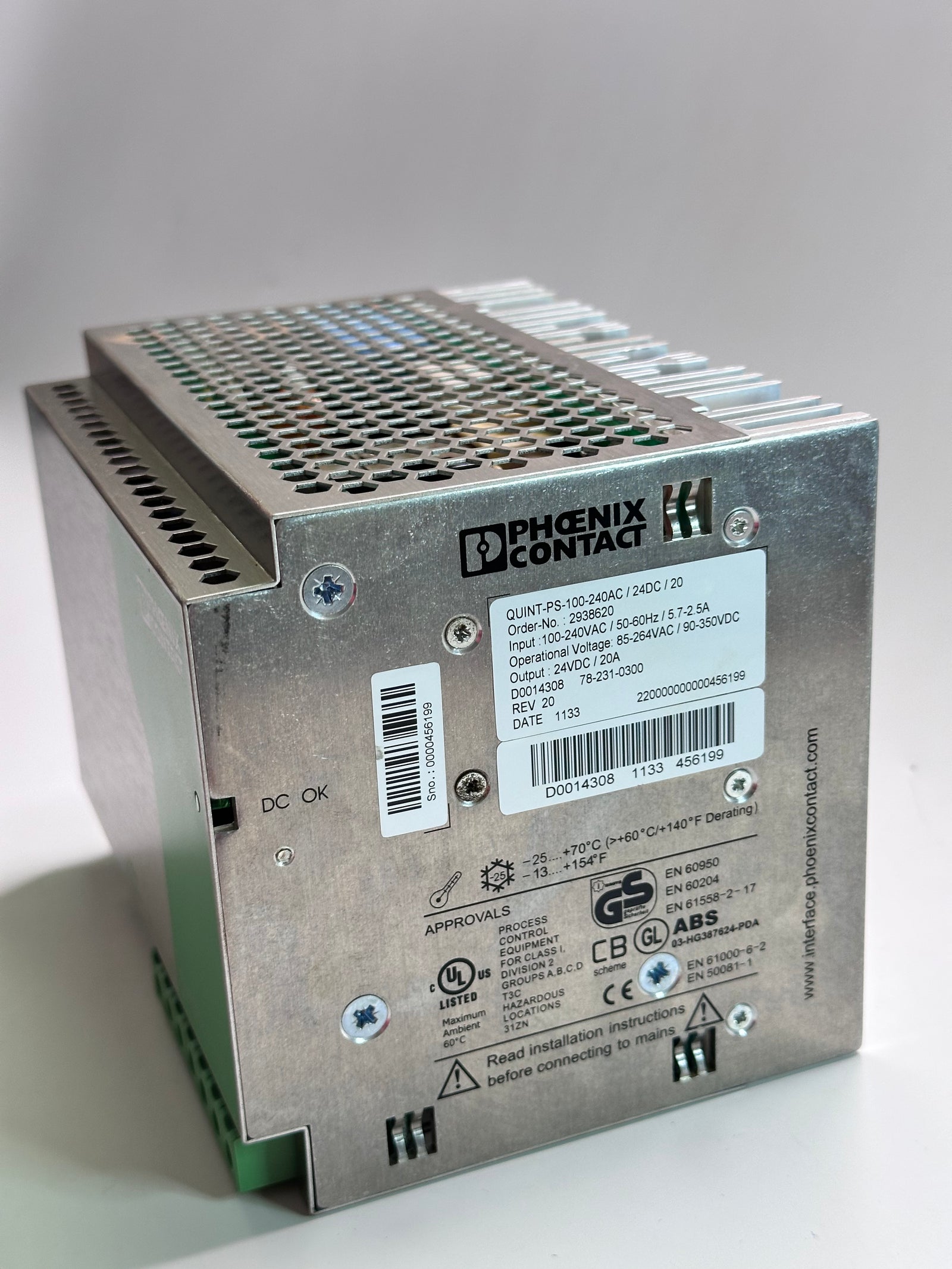

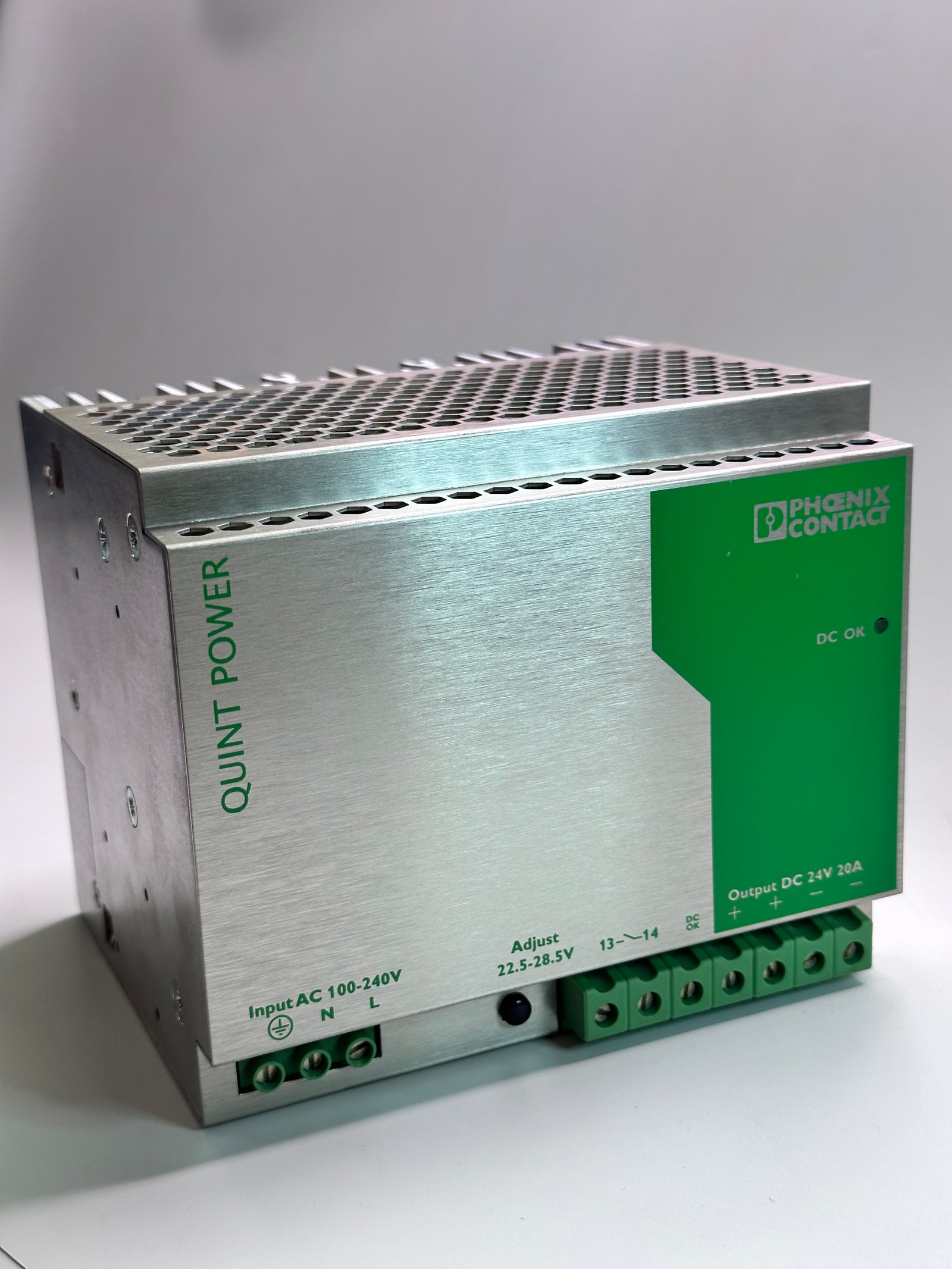

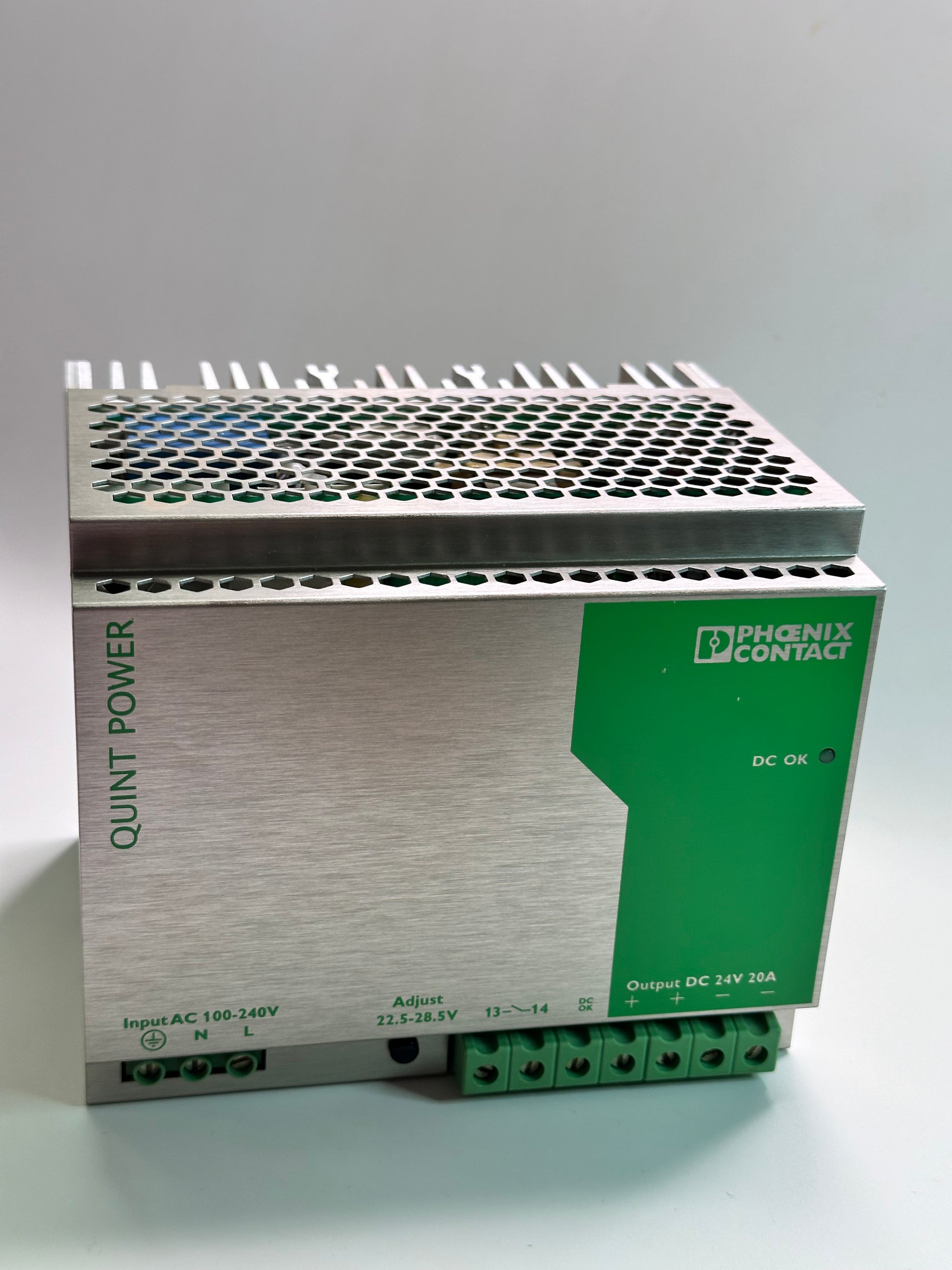

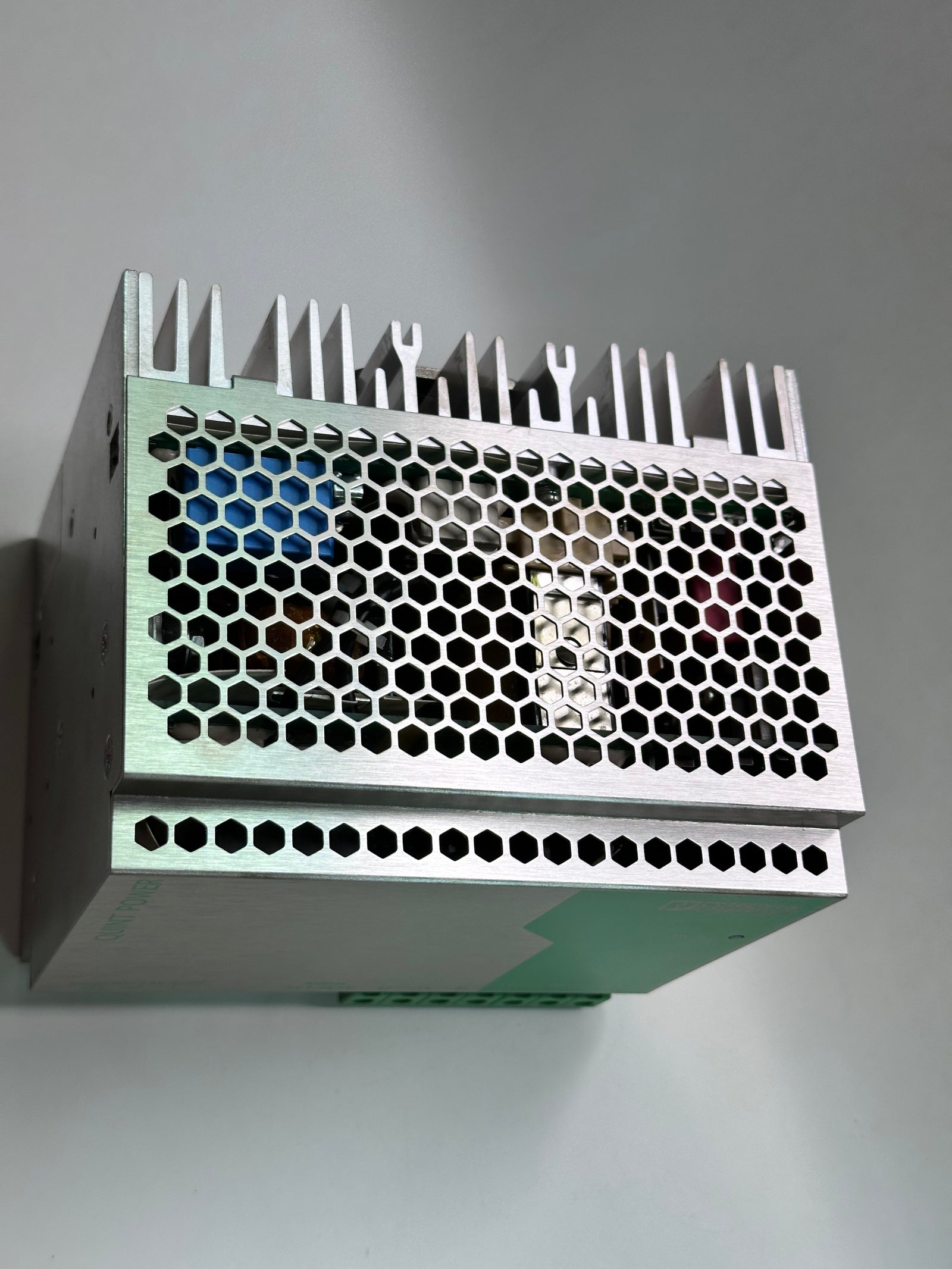

Phoenix Contact 2938620 QUINT-PS-100-240AC/24D/20, 3BHE016113R0001
- SKU
- P-PH-A-7847
$650.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 4.0 kg
Specifications
| Manufacturer | ABB |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-PH-A-7847 |
| Weight | 4.0 kg |
Description
Phoenix Contact 2938620 QUINT-PS-100-240AC/24D/20 power supply, with recorded ABB reference 3BHE016113R0001 and ACS1000 application.
Recorded output: 24 V DC, 20 A (480 W), with 20 A specified up to 60 °C and derating above that temperature. The source records 100–240 V AC nominal input and the wider AC/DC input limits below.
Confirm the exact unit, wiring/protection requirements and operating conditions against manufacturer documentation before installation. Full source specifications follow.
ACS1000_POWER SUPPLY QUINT-PS-100-240AC/24D, 3BHE016113R0001
| Nominal input voltage range | 100 V AC ... 240 V AC |
| Input voltage range | 85 V AC ... 264 V AC |
| 90 V DC ... 350 V DC | |
| Input voltage range AC | 85 V AC ... 264 V AC |
| Input voltage range DC | 90 V DC ... 350 V DC |
| Voltage type of supply voltage | AC/DC |
| Inrush current | < 15 A (typical) |
| Inrush current integral (I2t) | < 3.2 A2s |
| AC frequency range | 45 Hz ... 65 Hz |
| Frequency range DC | 0 Hz |
| Mains buffering time | > 25 ms (120 V AC) |
| > 25 ms (230 V AC) | |
| Current consumption | approx. 4.76 A (120 V AC) |
| approx. 2.3 A (230 V AC) | |
| Nominal power consumption | 524 W |
| Protective circuit | Transient surge protection; Varistor |
| Typical response time | < 1 s |
| Input fuse | 12 A (slow-blow, internal) |
| Permissible DC backup fuse | DC: Connect a suitable fuse upstream |
| Recommended breaker for input protection | 10 A ... 16 A (Characteristics B, C, D, K) |
| Efficiency | > 92 % |
| Nominal output voltage | 24 V DC ±1 % |
| Setting range of the output voltage (USet) | 22.5 V DC ... 28.5 V DC |
| Nominal output current (IN) | 20 A (up to 60 °C) |
| POWER BOOST (IBoost) | 26 A |
| Derating | 60 °C ... 70 °C (2.5 %/K) |
| Feedback voltage resistance | 35 V DC |
| Protection against overvoltage at the output (OVP) | ≤ 35 V DC |
| Max. capacitive load | unlimited |
| Active current limitation | Approx. IBOOST = 26 A (for short-circuit) |
| Control deviation | < 1 % (change in load, static 10 % ... 90 %) |
| < 2 % (change in load, dynamic 10 % ... 90 %) | |
| < 0.1 % (change in input voltage ±10 %) | |
| Residual ripple | < 10 mVPP (with nominal values) |
| Output power | 480 W |
| Peak switching voltages nominal load | < 30 mVPP (20 MHz) |
| Maximum no-load power dissipation | < 3 W |
| Power loss nominal load max. | < 44 W |
| Rise time | < 2 ms (UOUT (10 % ... 90 %)) |
| Connection in parallel | yes, for redundancy and increased capacity |
| Connection in series | yes |
| Signal: DC OK active | |
| Output description | UOUT > 0.9 x UN: High signal |
| Maximum switching voltage | ≤ 24 V |
| Output voltage | + 24 V DC (Signal) |
| Maximum inrush current | ≤ 40 mA |
| Continuous load current | ≤ 40 mA |
| Signal: DC OK floating | |
| Output description | Relay contact, UOUT > 0.9 x UN: Contact closed |
| Maximum switching voltage | ≤ 30 V AC/DC |
| Maximum inrush current | ≤ 1 A |
| Continuous load current | ≤ 1 A |
