PEPPERL + FUCHS

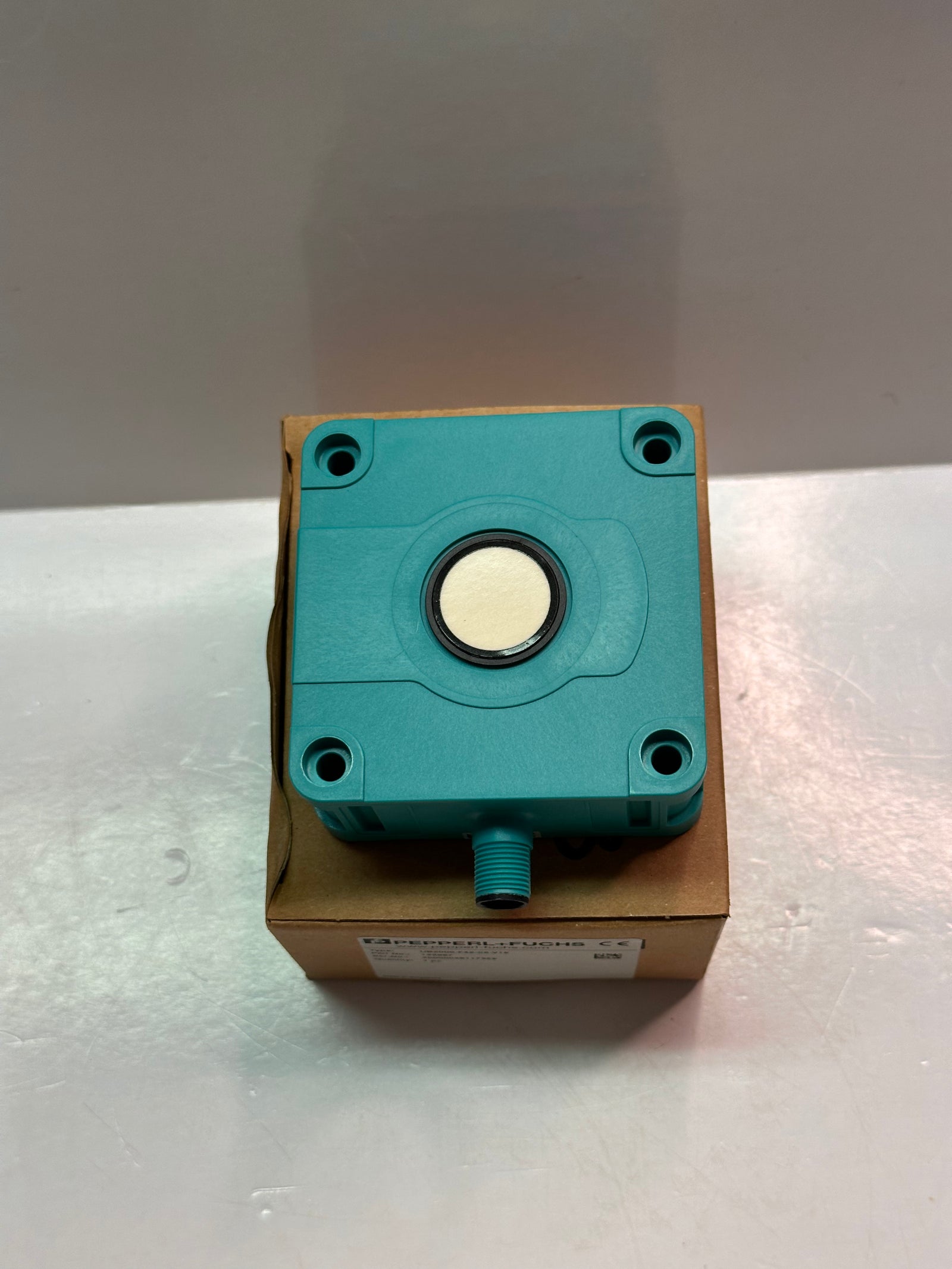

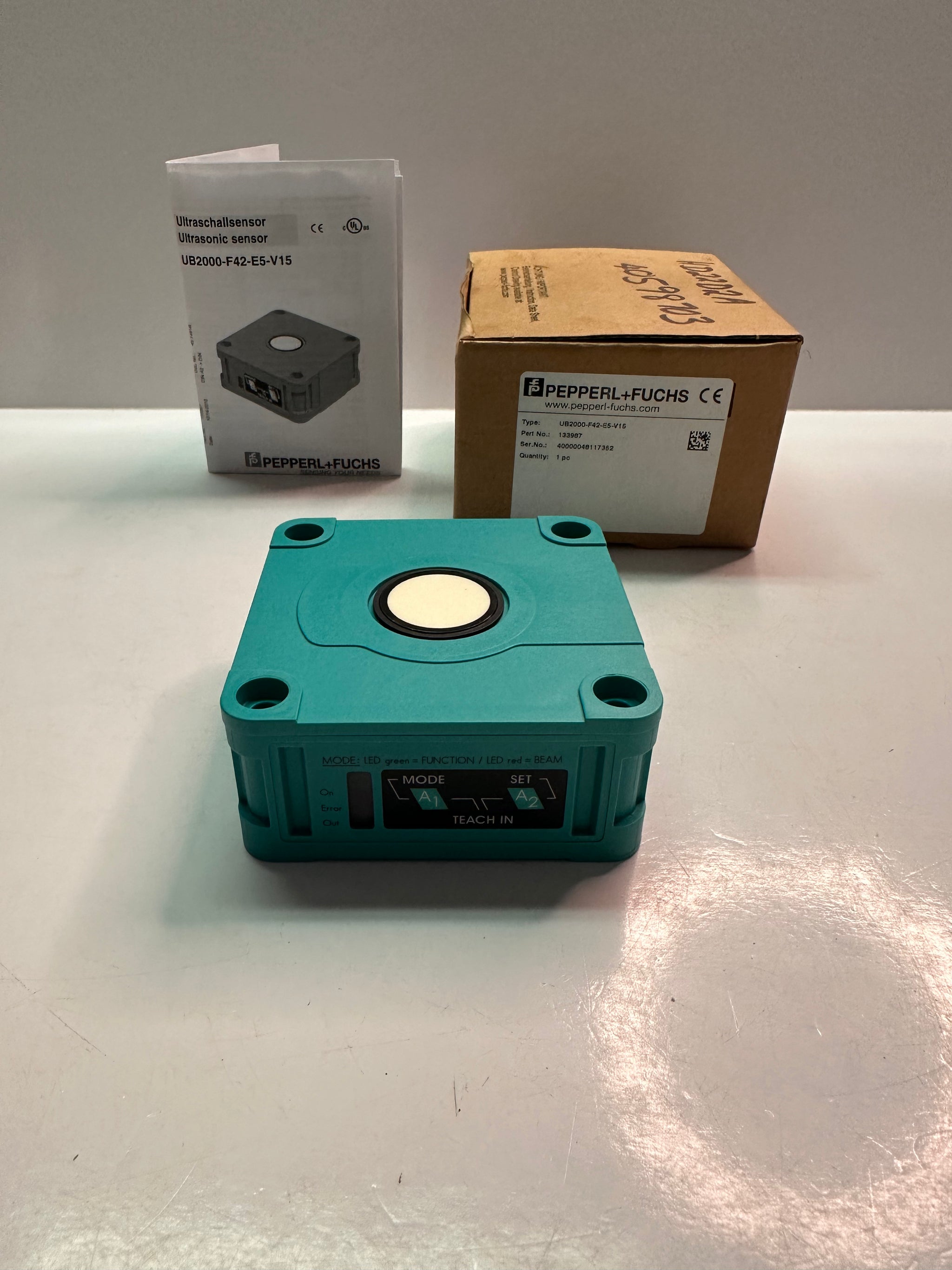

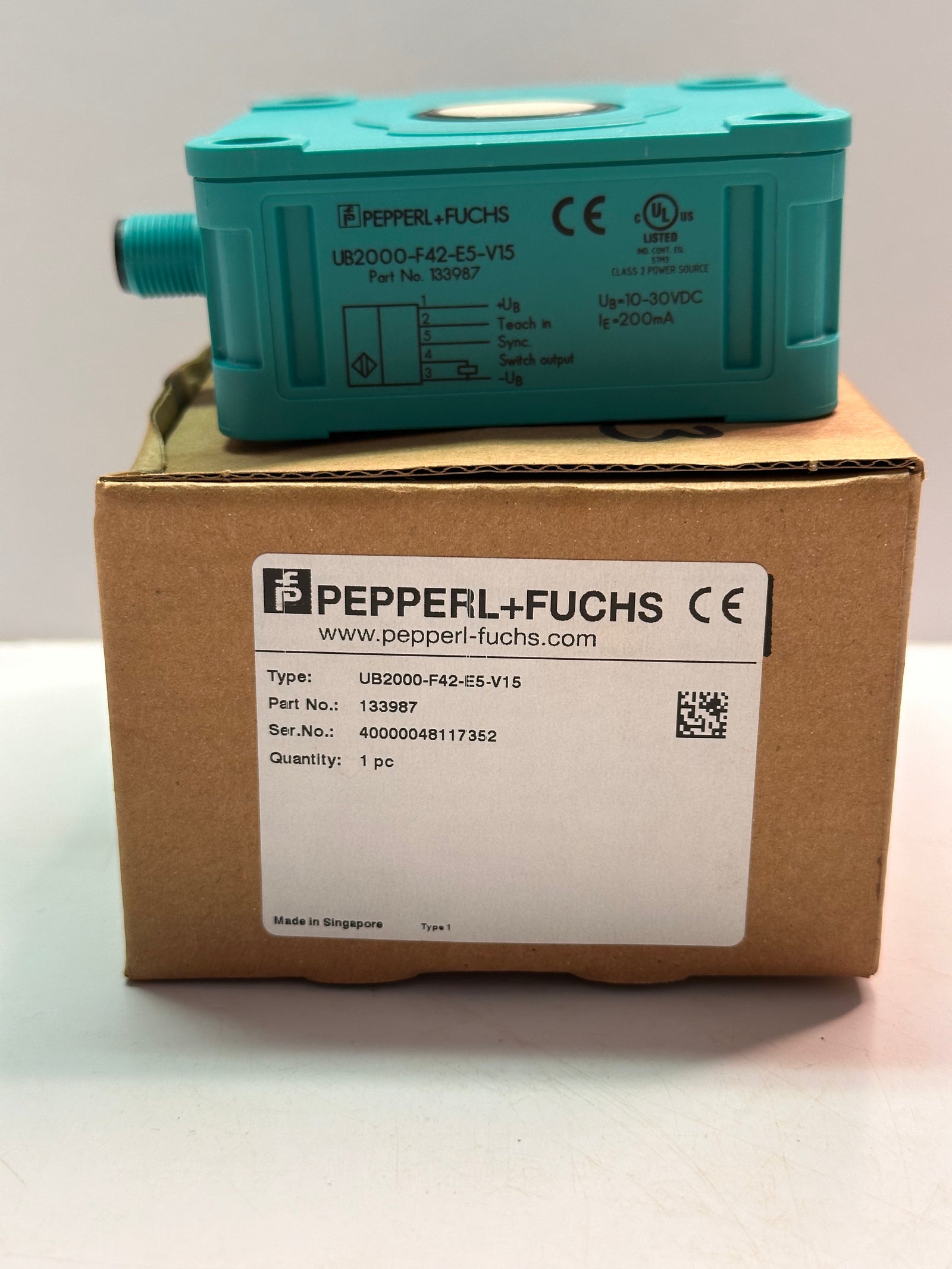

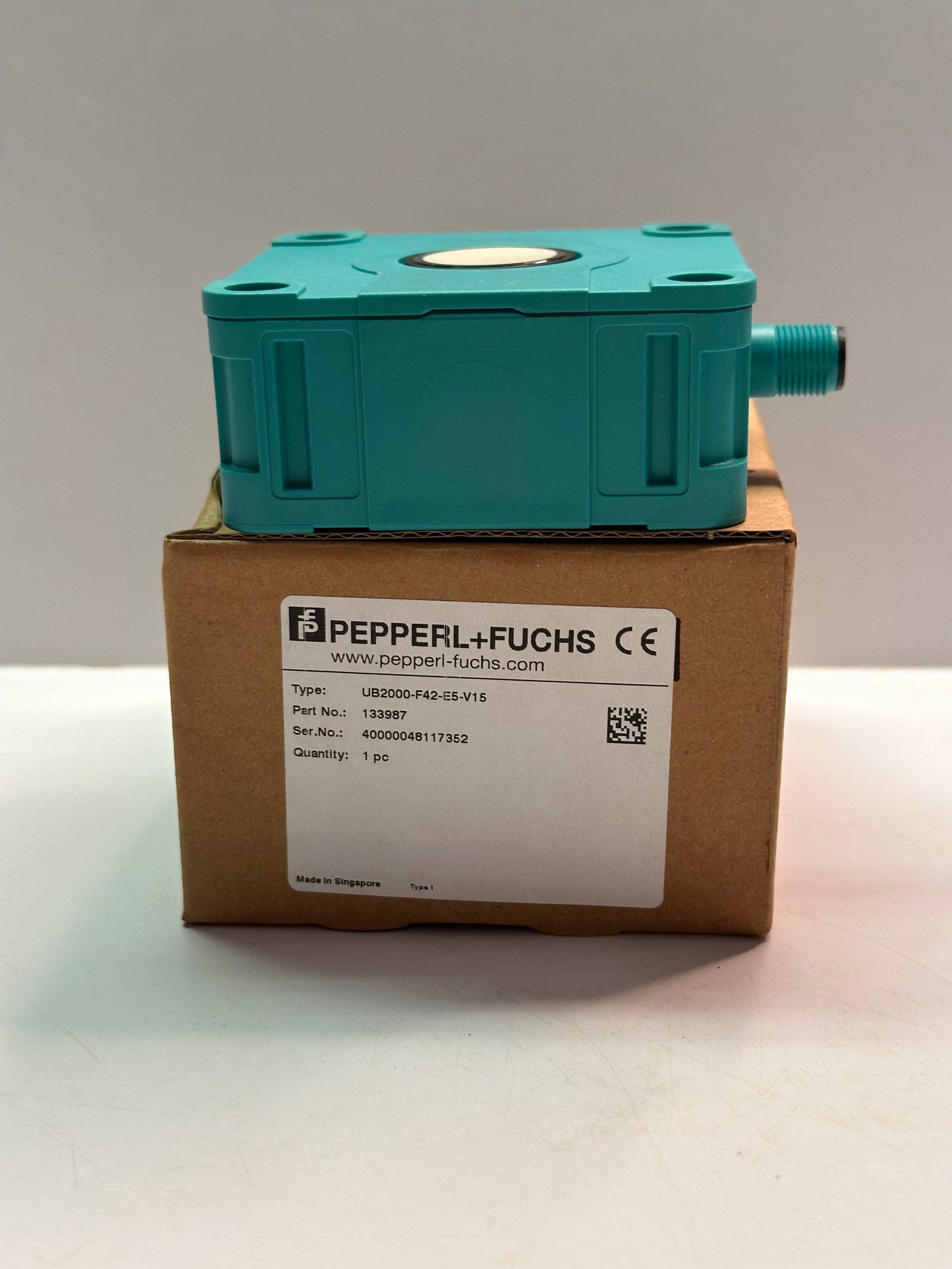

Pepperl+Fuchs UB2000-F42-E5-V15 ULTRASONIC SENSOR, 60-2000MM SENSING RANGE, 1 SWITCH OUTPUT E5, PNP NO/NC PROGRAMMABLE
- SKU
- P-PE-P-4781
$350.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 0.2 kg
Specifications
| Manufacturer | PEPPERL + FUCHS |
|---|---|
| Product type | Electrical |
| SKU | P-PE-P-4781 |
| Weight | 0.2 kg |
Description
- Switching output
- Extremely small unusable area

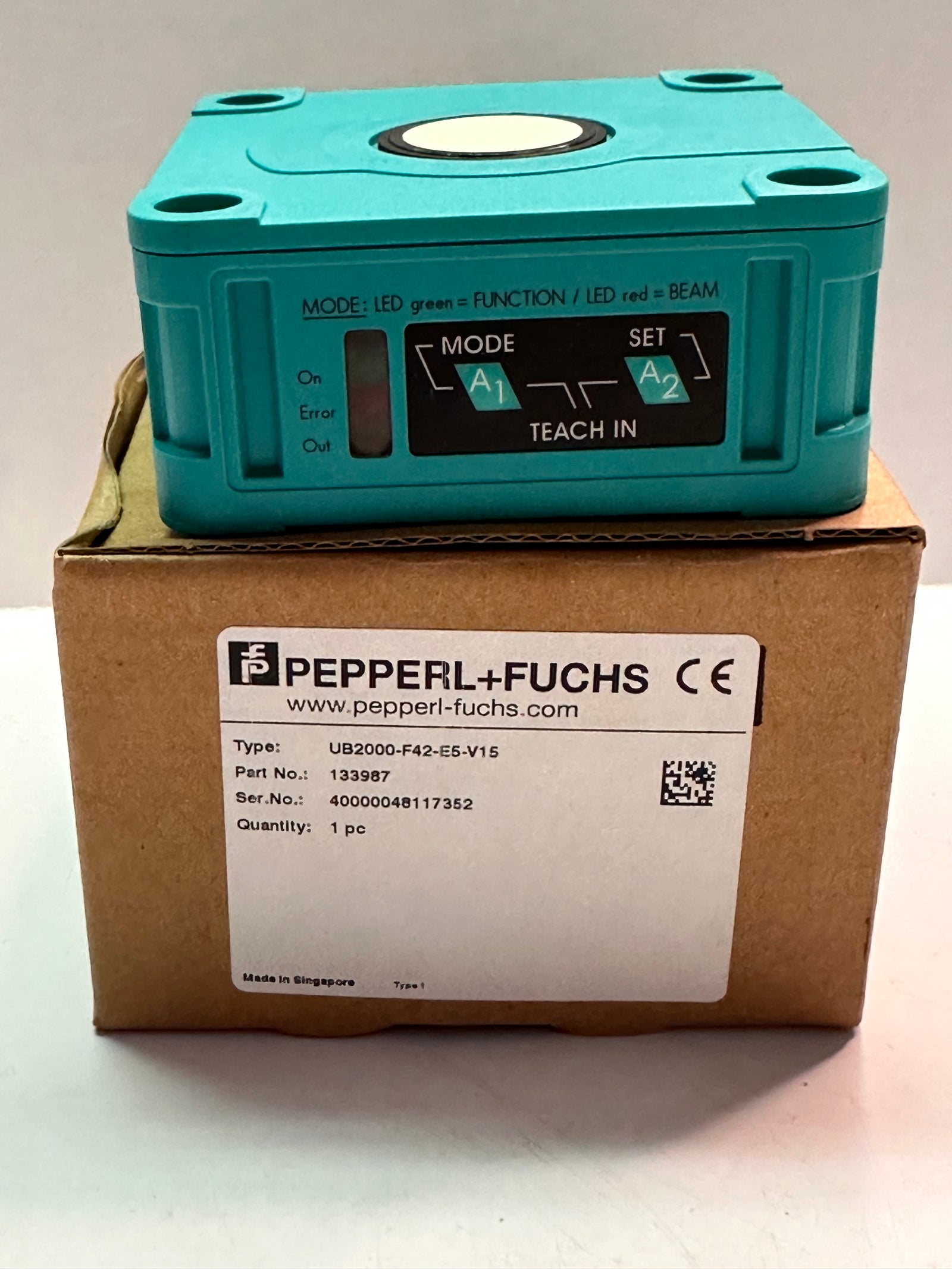

- TEACH-IN
- Interference suppression (adjustable divergence of sound cone in close range)
- Temperature compensation
- Synchronization options
- NO/NC selectable

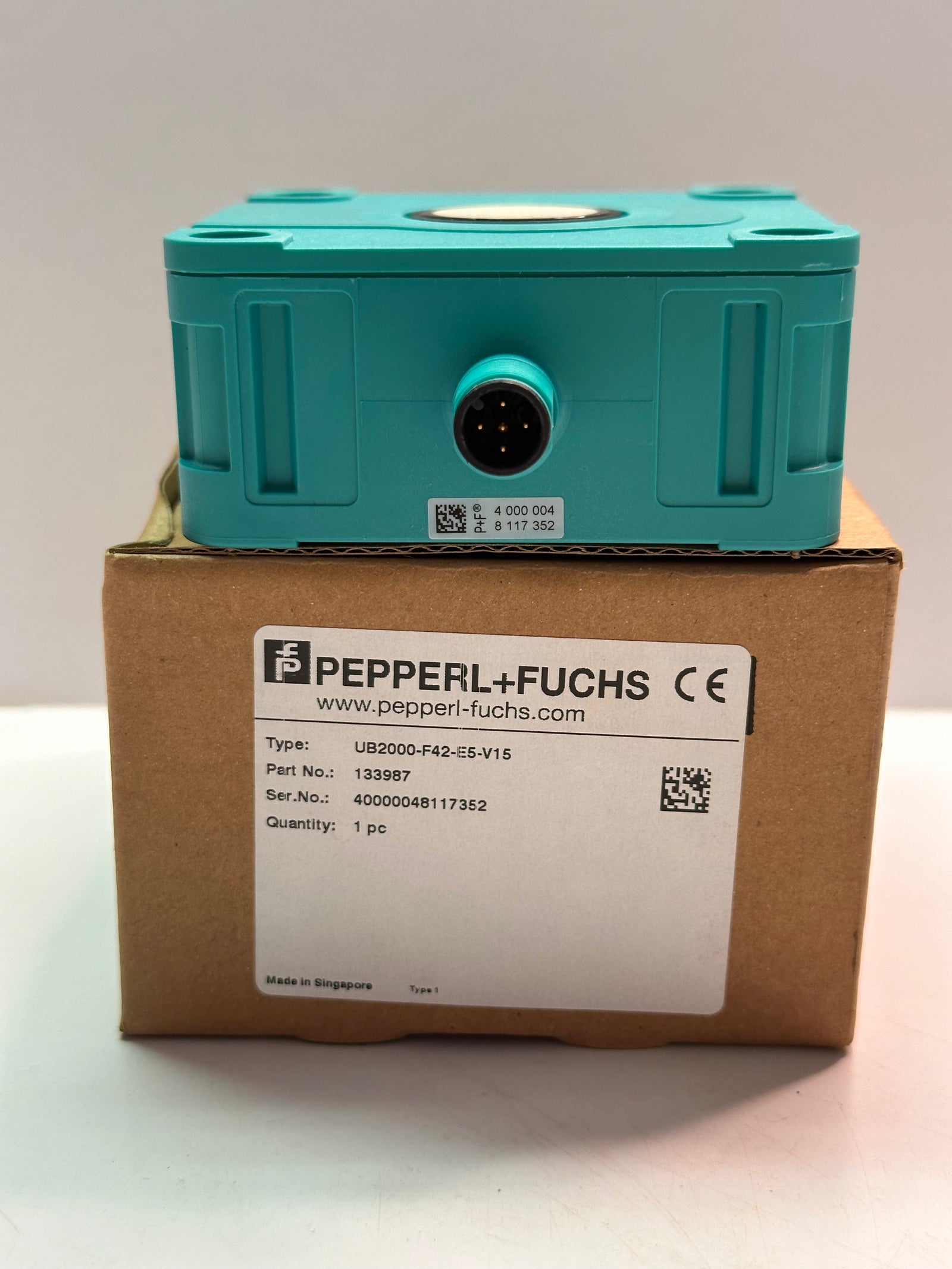

Sensor Technology Ultrasonic Body Style Block Output Type PNP-2NO/NC Detection Range 60 → 2000 mm Terminal Type M12 - 5 Pin Supply Voltage 10 → 30 V dc IP Rating IP54 Length 80mm Width 96mm Switching Frequency ≤2.7 Hz Depth 34mm Maximum DC Voltage 30V Switching Current 200 mA Maximum Operating Temperature +70°C Housing Material ABS Minimum Operating Temperature -25°C Short Circuit Overload Protection Yes
