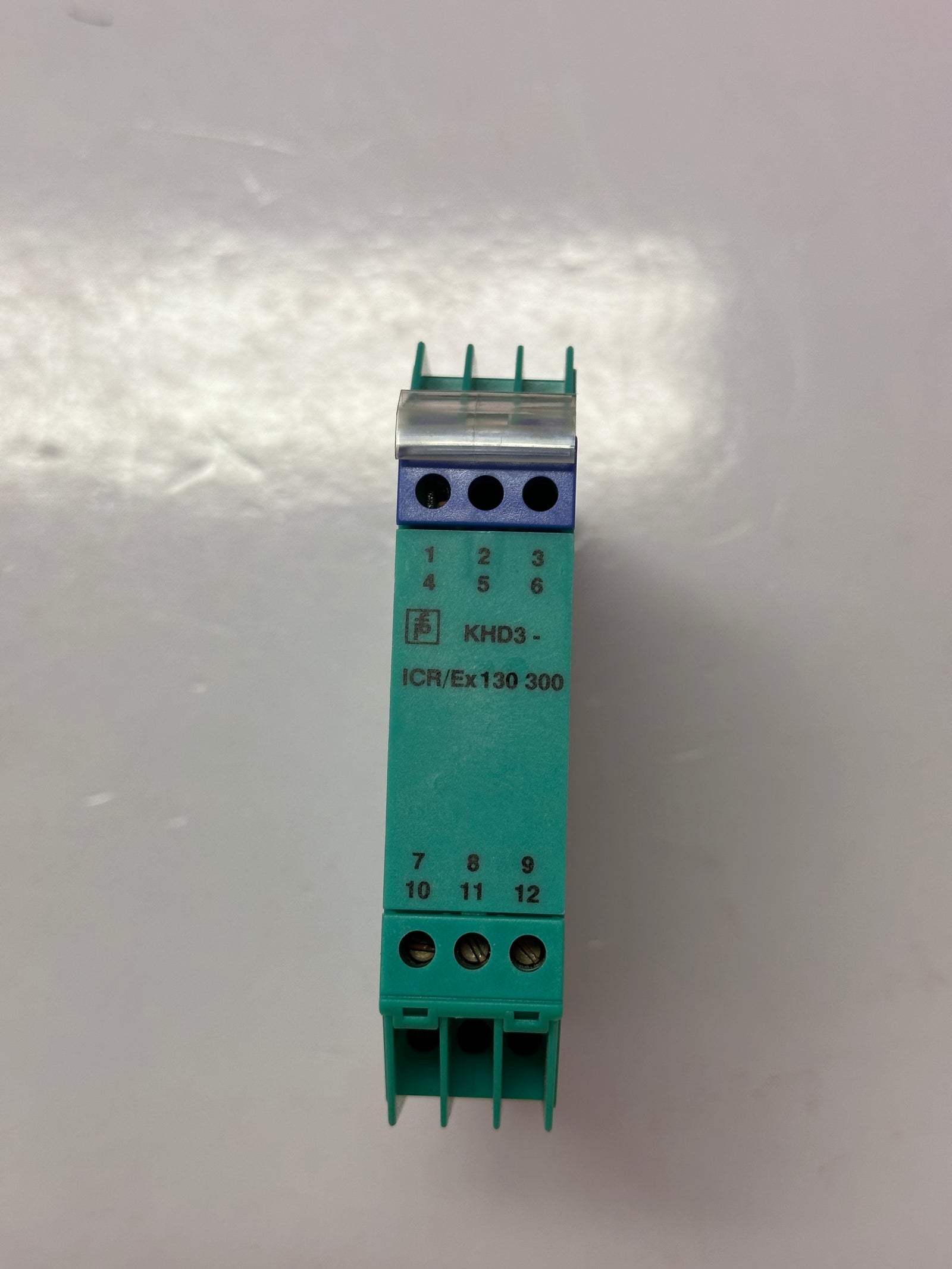

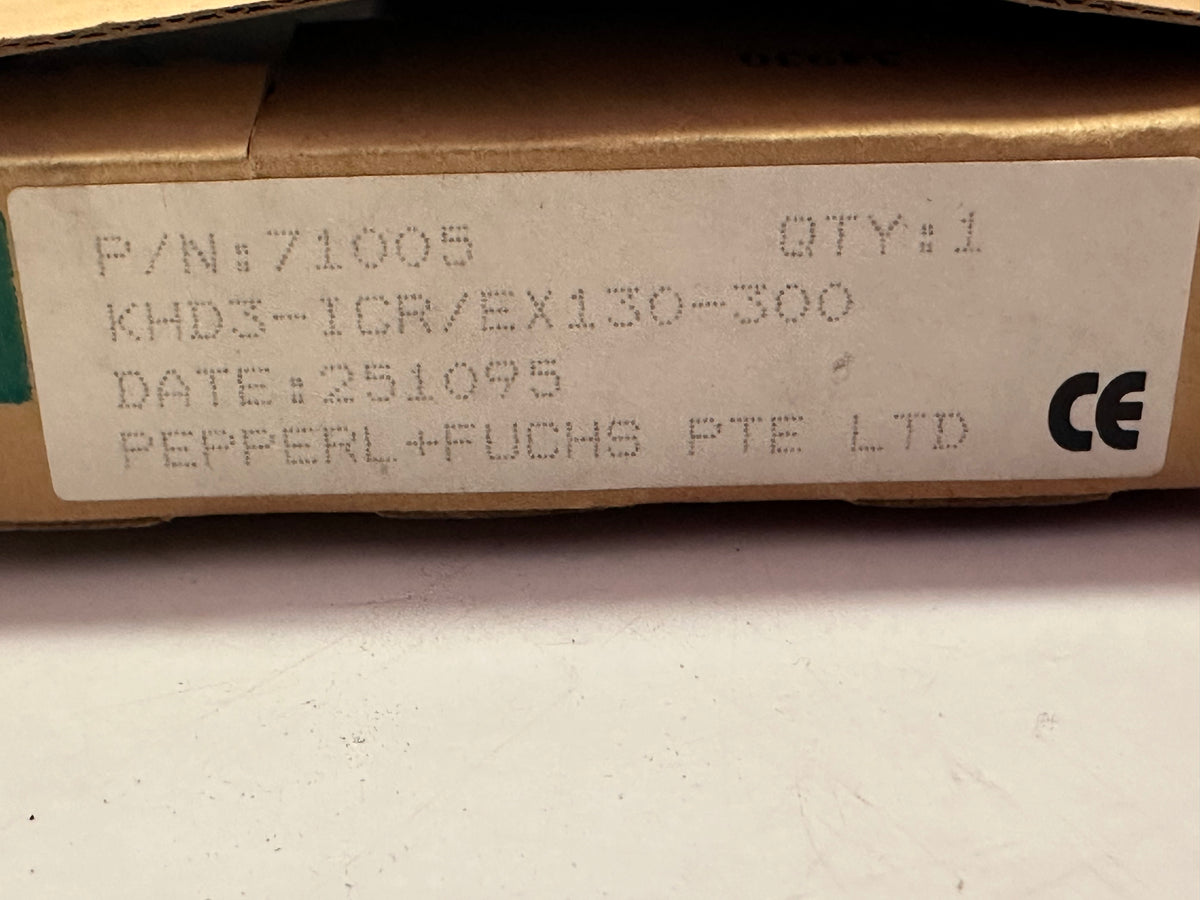

Pepperl+Fuchs KHD3-ICR/EX-130-300 Isolated Repeater — Model to Confirm
- SKU
- P-PE-P-3964
$89.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 1.5 kg
Specifications
| Manufacturer | PEPPERL + FUCHS |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-PE-P-3964 |
| Weight | 1.5 kg |
Description
Pepperl+Fuchs K-series transformer-isolated repeater. Exact supplied model and ratings require confirmation.

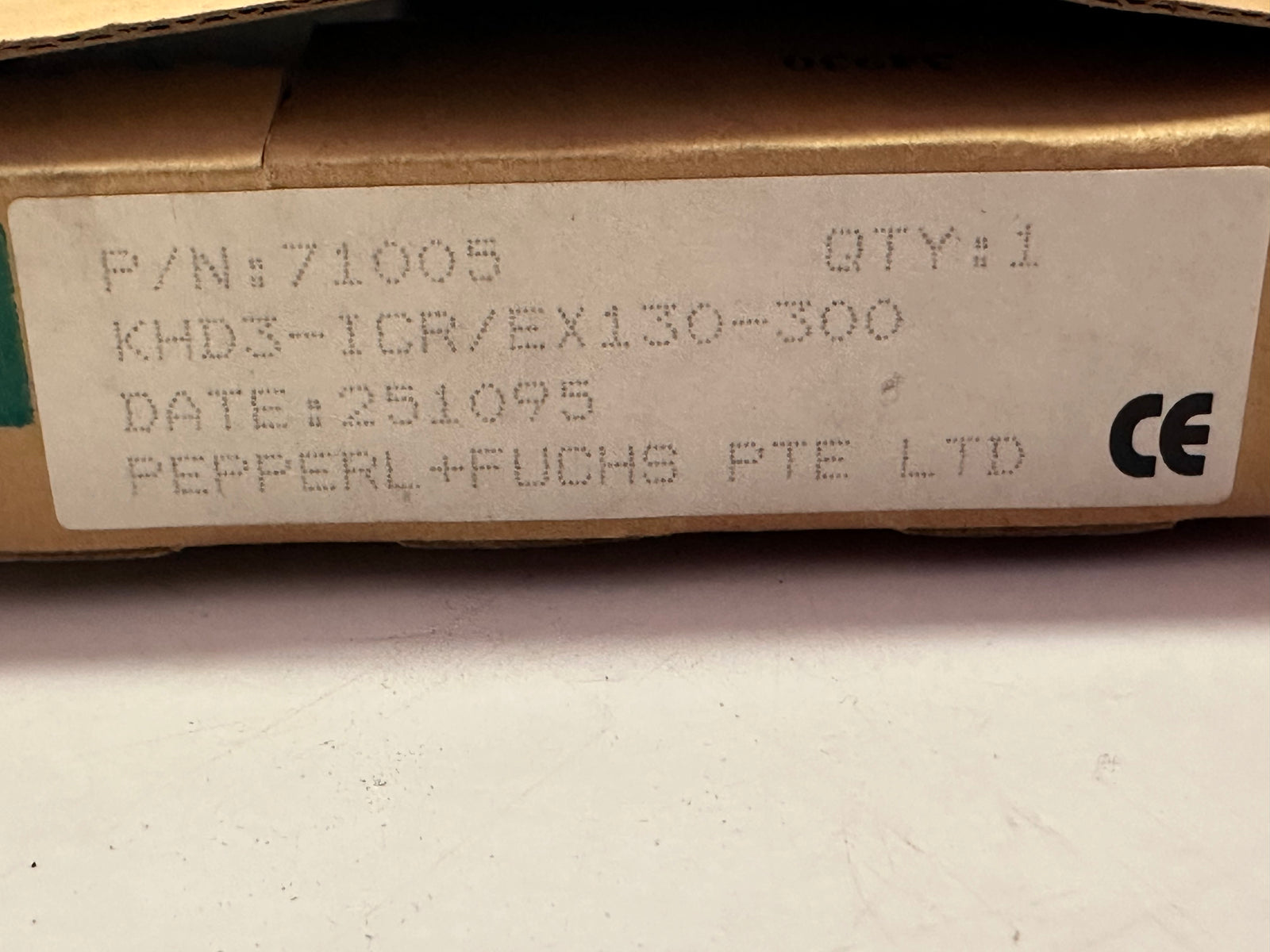

The title records KHD3-ICR/EX-130-300 and the tags record 71005, while the description identifies Khd3-icr/Ex 130 200 / 71035 and also mentions Khd3-icr/Ex 130 240. These are not treated as interchangeable.
Unverified source transcription
The following original markings and ratings are preserved for identification only. Because the model records conflict, they are not confirmed specifications or hazardous-area approvals for the supplied unit.
- Pepperl + Fuchs K-series Khd3-icr/Ex 130 200 Transformer Isolated Repeater 71035
- Pepperl+Fuchs
- K-series
- Part No/Teil Nr.71035
- Transformer Isolated Repeater/
- Galvanisch Getrennter Analogubertrager
- Type/Typ: Khd3-icr/Ex 130 200
- [Eex La]Iic Baseefa No.Ex89C2003
- Max. Ambient Temperature 60°C
- Um=250V
- Un=40V
- U Max Out 28.0V
- I Max Out 93Ma
- Input/Eingang: 0-20 Ma
- Output/ Ausgang: 0-20 Ma
- Power Supply/ Speisespannung: 20-35V Dc
- (Khd3-icr/Ex 130 240)
- Vmax= 28V Icc=93Ma Pmax= 0.66W
- Vm= Ac 250V 50/60Hz Dc 250V
- Lext=4.2Mh Cext=0.13µF
- Power Supply: Dc 35V 90Ma
- Dc 20V 20Ma
- Pft-c11042

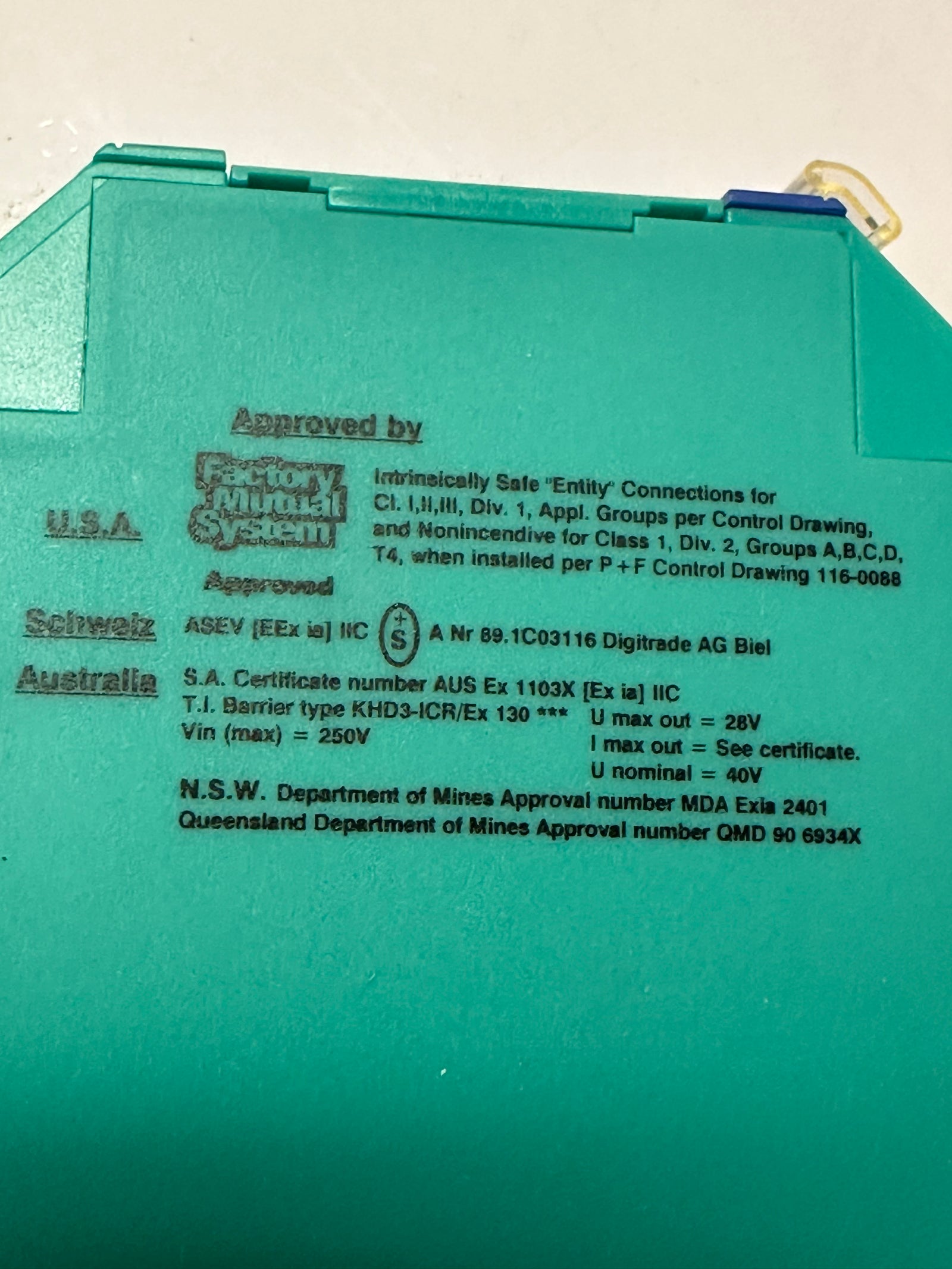

- Cl. I, Ii, Iii, Div. 1, Appl. Class 1, Div. 2, Groups A, B, C, D, T4
- 10166054881098
Confirm the unit nameplate, exact part number, electrical ratings and applicable approval documentation before selection or installation.
