Pepperl+Fuchs IA40-FP-I3-P1 Inductive Analogue Sensor – 15–40mm
- SKU
- P-PE-P-0404
- Weight
- 1.5 kg
Specifications
| Manufacturer | Pepperl+Fuchs |
|---|---|
| Product type | SENSOR |
| SKU | P-PE-P-0404 |
| Weight | 1.5 kg |
Description

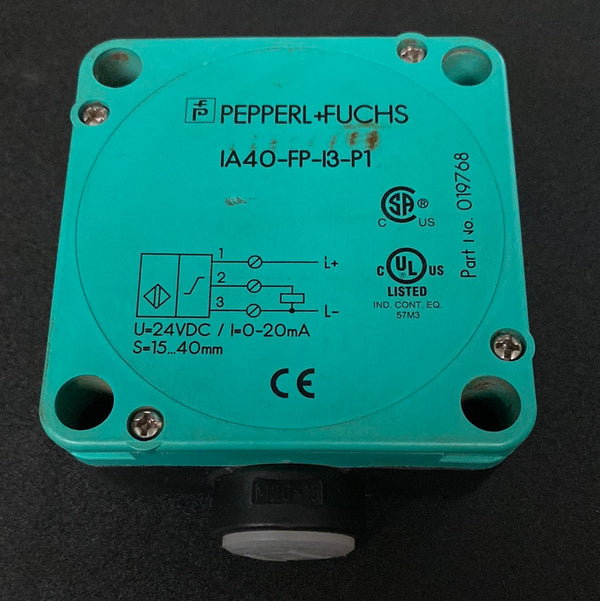

Pepperl+Fuchs IA40-FP-I3-P1 inductive analogue proximity sensor with a listed measurement range of 15–40mm and 0–20mA current output. Additional recorded references: 019768 and 70557873.
The detailed specification states 15–30VDC supply, but an original tag says 15...30V AC. Confirm the actual label before connection; AC operation is not established here.
Measurement and electrical specifications recorded
- Installation: non-flush
- Output polarity: DC
- Actuating element: mild steel, e.g. 1.0037, SR235JR (formerly St37-2), 120 × 120 × 1mm, as recorded
- Measurement range: 15–40mm
- Repeat accuracy: 0–6µm
- Operating voltage UB: 15–30VDC
- No-load supply current I0: ≤8mA
- Analogue output: 0–20mA
- Linearity error: ≤±10% of full-scale value
- Load resistor: ≤500Ω
- Current-rise entry, 0–20mA: maximum 12A/s
- Current-fall entry, 20–0mA: maximum 5.1A/s
- Recovery time: 1–10ms, typically 5ms
- Zero-point adjustment tolerance: ≤±10% of full-scale value
- Temperature drift: ≤±0.1%/K of full-scale value
- Additional source field labelled Operating voltage: ≤0.5%
- Residual ripple: ±30µA
Construction and environment
- Ambient temperature: −10 to +70°C (14–158°F)
- Connection: terminal compartment
- Core cross-section: up to 2.5mm²
- Housing, sensing face and housing base: PBT
- Protection degree: IP67
Source reliability and approval entries
MTTFd: 1470 a; mission time TM: 20 a; diagnostic coverage DC: 0%. These are source reliability parameters, not proof of remaining service life or a certified safety function of this item.
Standards listed: EN 60947-5-2:2007; IEC 60947-5-2:2007; EN 60947-5-7:2003; IEC 60947-5-7:2003. Source approval entries: cULus Listed, General Purpose; cCSAus Listed, General Purpose. It also states CCC approval/marking is not required for products rated ≤36V. Verify actual markings and applicable requirements; these source entries are not an independent current certification assessment.
Confirm the supply, target material/geometry, output loading and installation clearance before ordering. This is an analogue sensing component, not a complete motion-control or safety system.
