PCTEL MFB9153-MMK12 Fibreglass Base-Station Antenna – 902–928MHz
- SKU
- P-PC-A-4922
- Weight
- 1.5 kg
Specifications
| Manufacturer | PCTEL |
|---|---|
| Product type | DATA & COMMUNICATION |
| SKU | P-PC-A-4922 |
| Weight | 1.5 kg |
Description

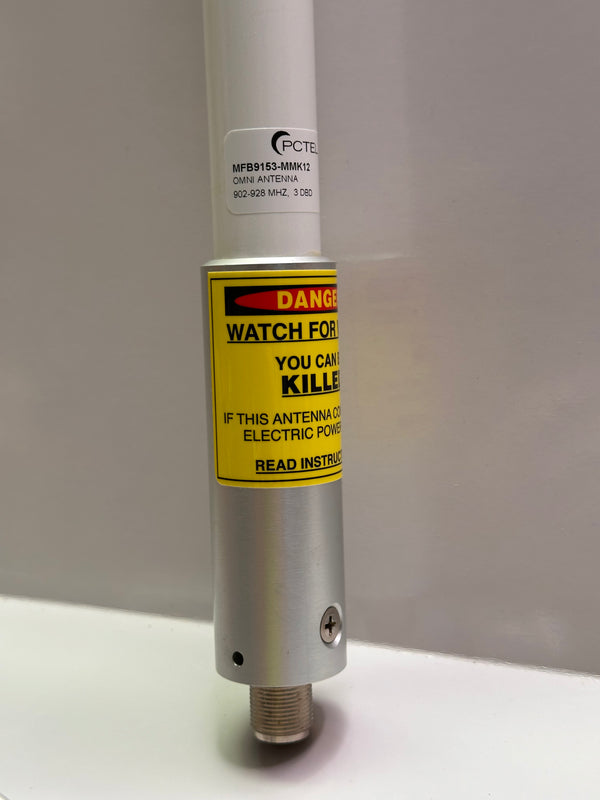

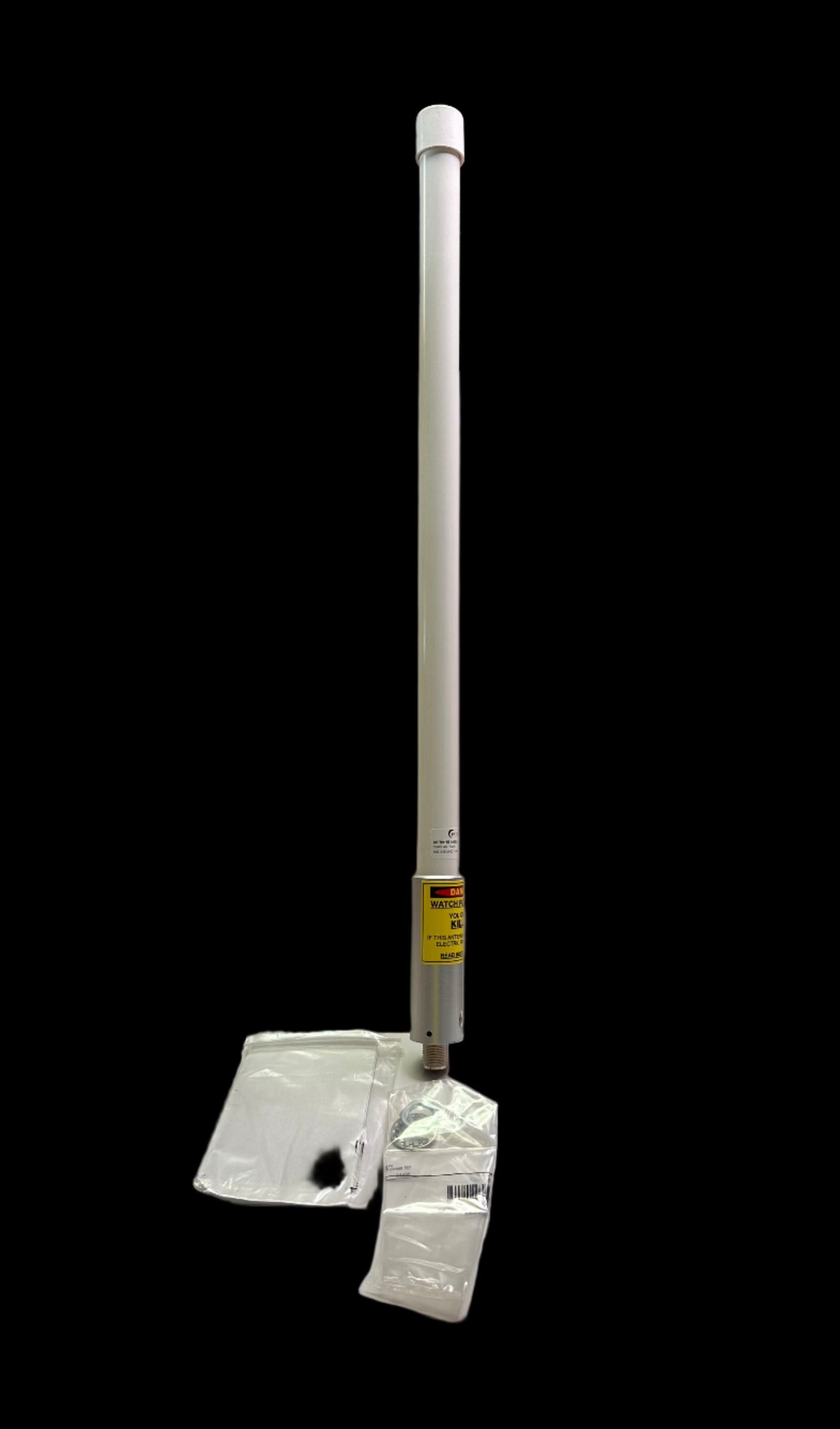

PCTEL MFB9153-MMK12 omnidirectional base-station antenna, with a listed frequency range of 902–928MHz. The original vendor field records Amphenol, while the title and description identify PCTEL.
- Model: MFB9153-MMK12
- Series: MFB
- Frequency range: 902–928MHz
- Frequency tag: 915MHz
- Gain entry in the source tags: 3dB; reference basis is not specified
- Power entry in the source tags: 150W
MFB family construction and features recorded
The source describes base-matched half-wave antennas, factory tuned and DC grounded, with a white UV-resistant pultruded fibreglass radome and thick-walled aluminium mounting base. Its stated temperature range is −40°C to +85°C. Other family gain options—unity, 3dB, 5dB and 7dB—are not all specifications of this item.

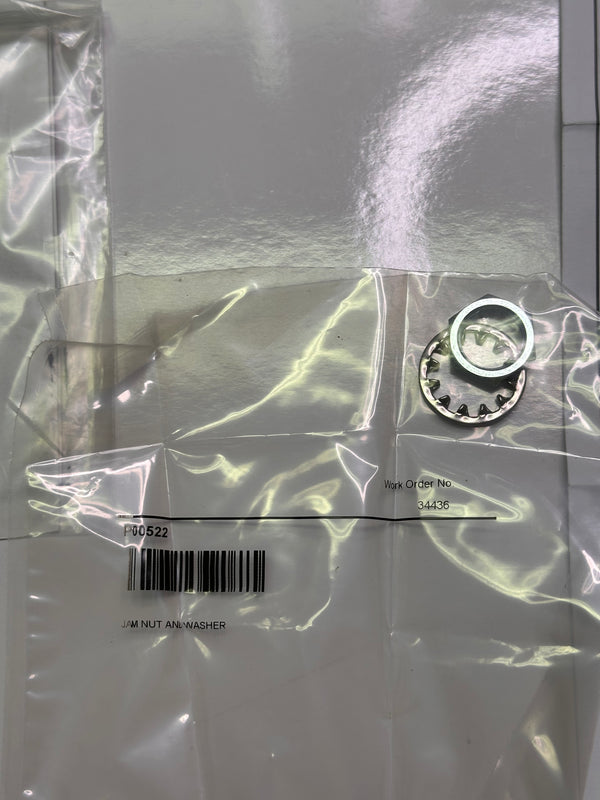

Confirm the actual antenna label, gain basis, RF power limit, connector and included mounting components before ordering. The model suffix is retained without interpreting kit contents. This is an antenna, not a complete two-way radio; no cable, radio or additional bracket set is specified as included.
