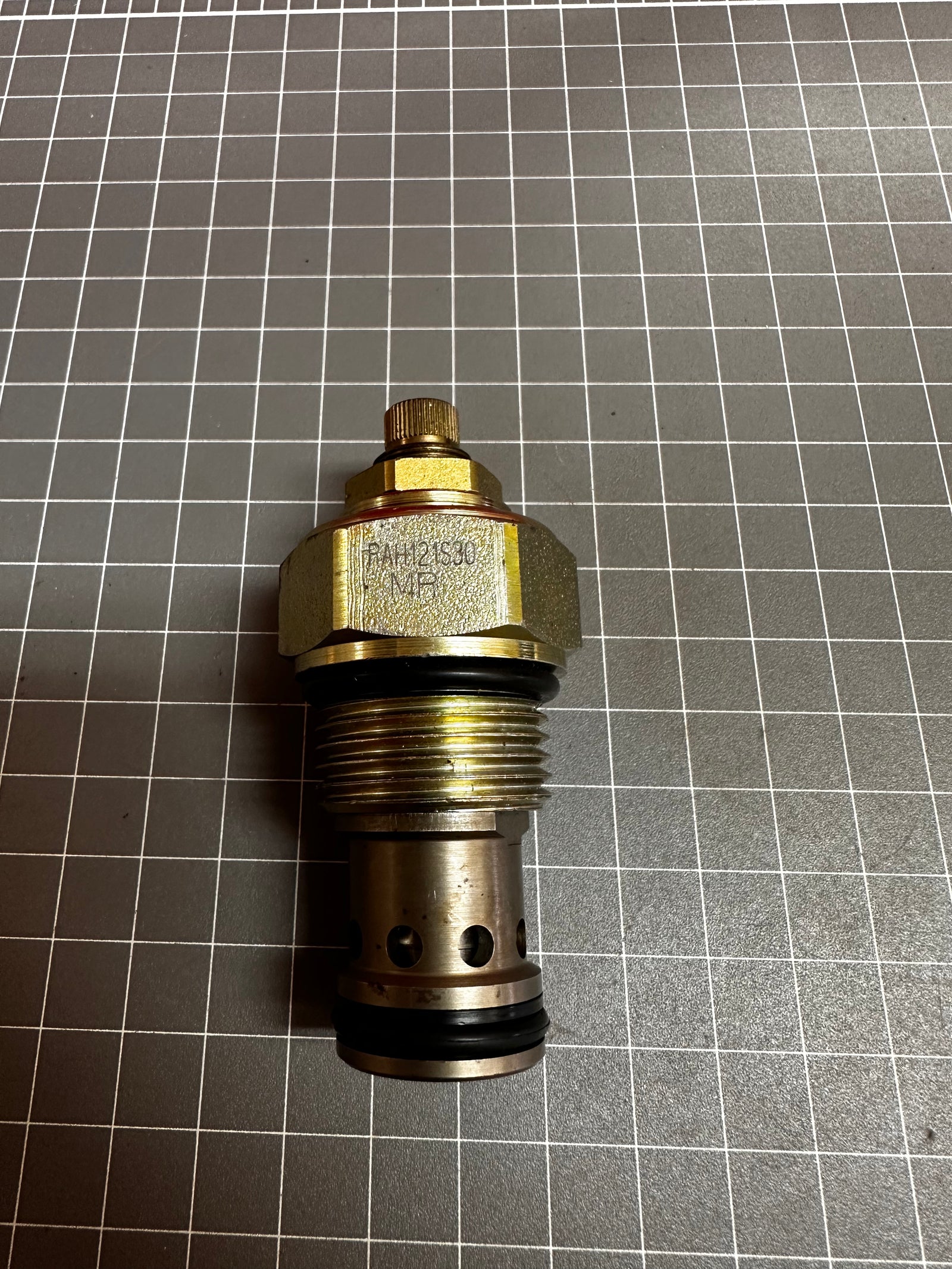

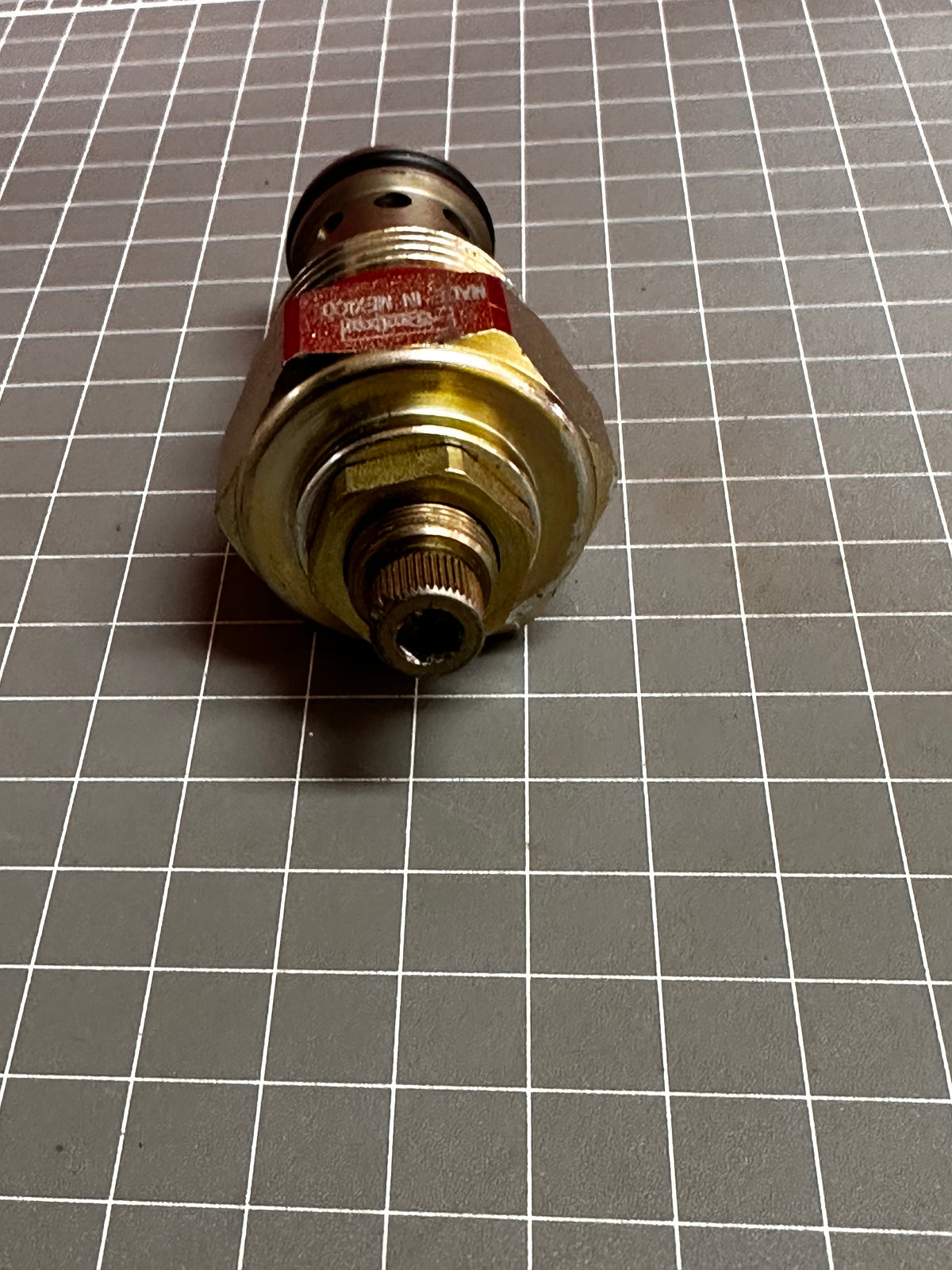

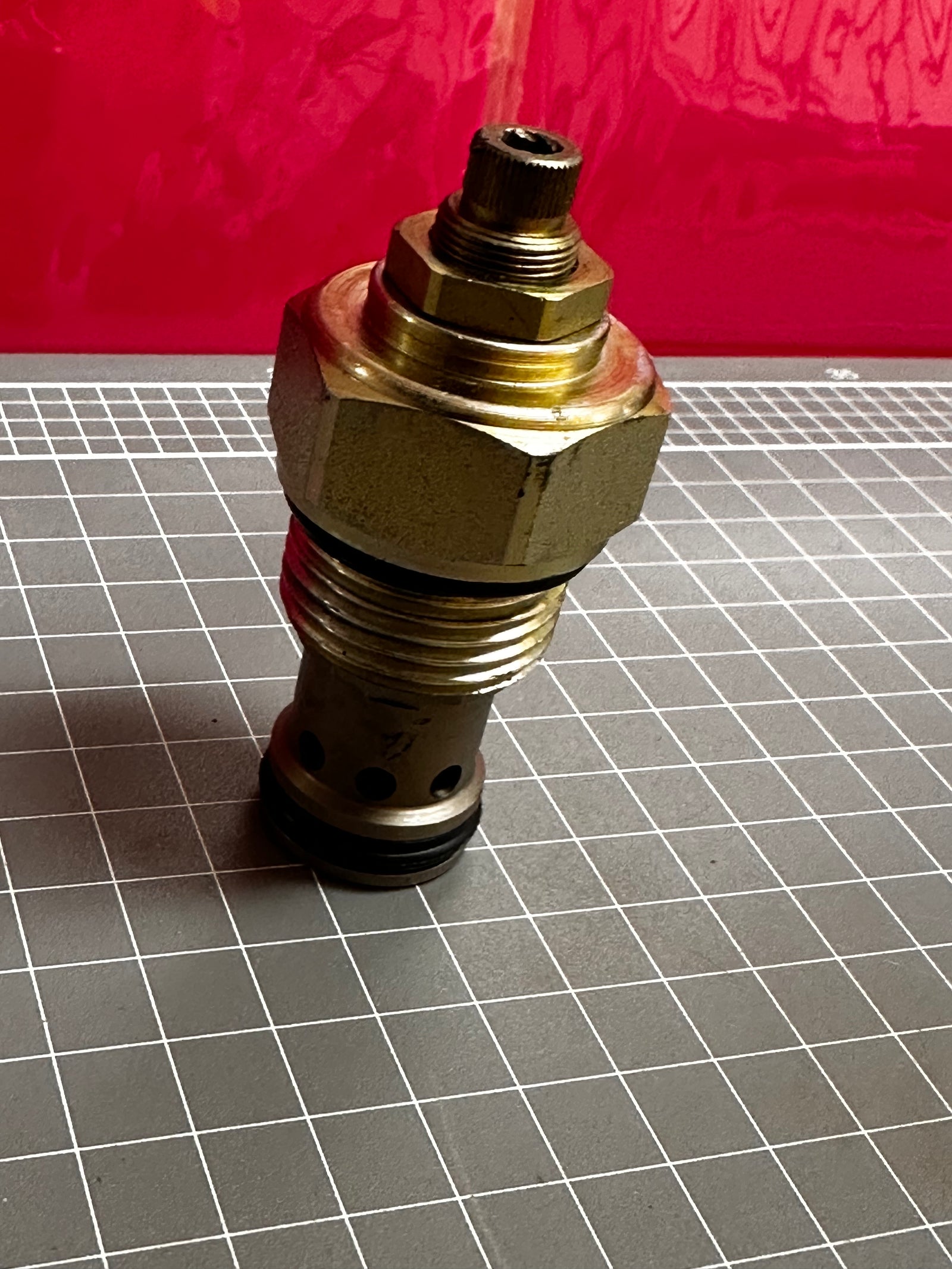

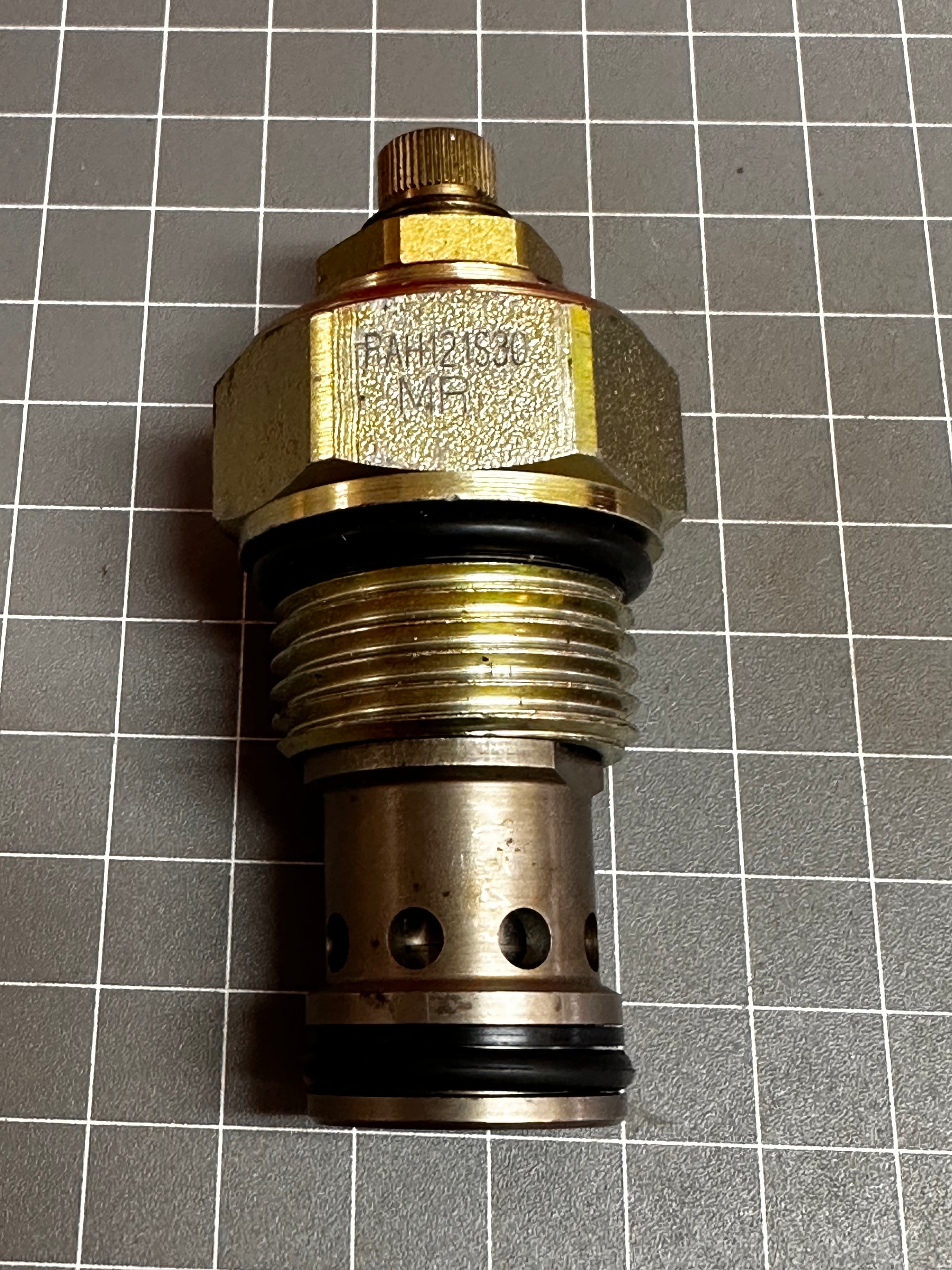

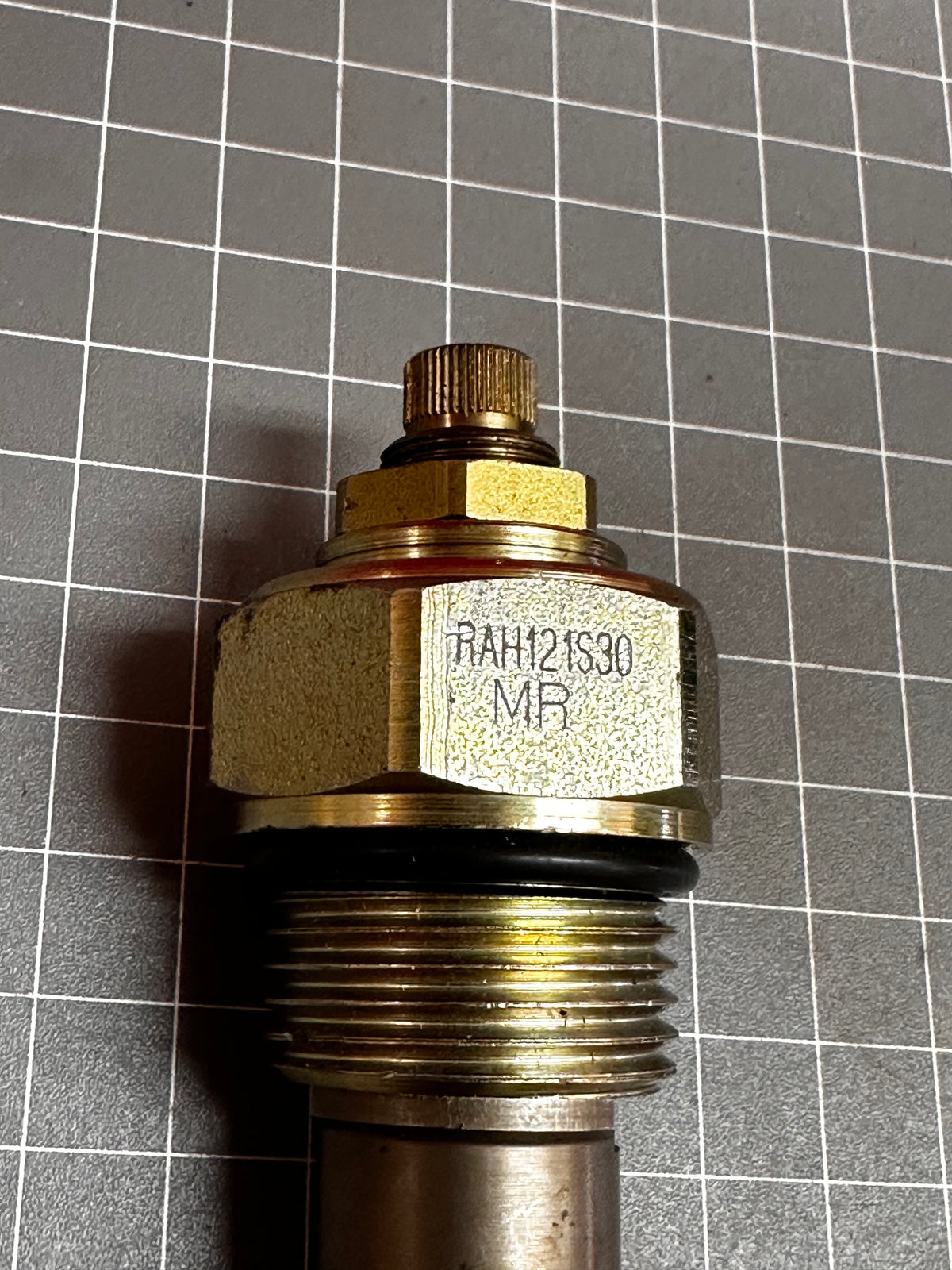

Name: PARKER RAH121S30 Pilot-Operated Hydraulic Relief Valve
Brand: PARKER
SKU: P-PA-P-2151
Price: 85.0 AUD
Availability: OutOfStock

SKU: P-PA-P-2151

$85.00 Price includes GST.

Sold out Warehouse pickup available

PARKER RAH121S30 Pilot-Operated Hydraulic Relief Valve

This one has sold, but we regularly land similar stock and can often source an equivalent.

Request this part or an equivalent

Weight: 0.3 kg

Specifications

Manufacturer	PARKER
Product type	HYDRAULICS
SKU	P-PA-P-2151
Weight	0.3 kg

Description

Flow Rate:50 GAL/MIN, 189.5 L/MIN

Maximum Inlet Pressure Rating:5500 PSI, 380 BAR

Pressure Control Range:300-3000 PSI, 20.7-210 BAR

Adjustment Mechanism:Screw

Seal Material:Nitrile

Flow Rate:50 Gal/min, 189.5 L/min

Maximum Inlet Pressure Rating:5500 psi, 380 bar

Pressure Control Range:300-3000 psi, 20.7-210 bar

Adjustment Mechanism:Screw

Seal Material:Nitrile

Maximum Flow Rate:50 Gal/min, 189.5 L/min

Maximum Operating Pressure:5000 psi, 350 bar

Maximum Tank Pressure:5000 psi, 350 bar

Standard Setting Pressure:1500 psi, 103.5 bar

Maximum Pressure Setting:3000 psi, 210 bar

Pressure Control Sensitivity:867 per turn psi, 59.7 per turn bar

Reseat Pressure:80% of pressure setting

Actuation Type:Pressure Sensing

Configuration:Pressure Relief

Leak Rate:82 @ 75% Crack Pressure cm3/min

Mounting Type:Screw in cartridge valve

Cavity Size:C12-2

Function:Pilot Operated

Operation Type:Automatic

For Fluid Type:Mineral-based or synthetic hydraulic fluids

Maximum Kinematic Viscosity:45-2000 SSU (6 to 420 cSt)

Filter Efficiency Rating:ISO 4406 18/16/13, SAE Class 4

Valve Material:All parts steel. All operating parts hardened steel

Installation Torque:56 lb-ft, 76 Nm

Operating Temperature:-30 to +250 °F, -34 to +121 °C

Maximum Operating Temperature:+250 °F, +121 °C

Minimum Operating Temperature:-30 °F, -34 °C

Weight:0.48 lb, 0.22 kg

Body Material:N/A
