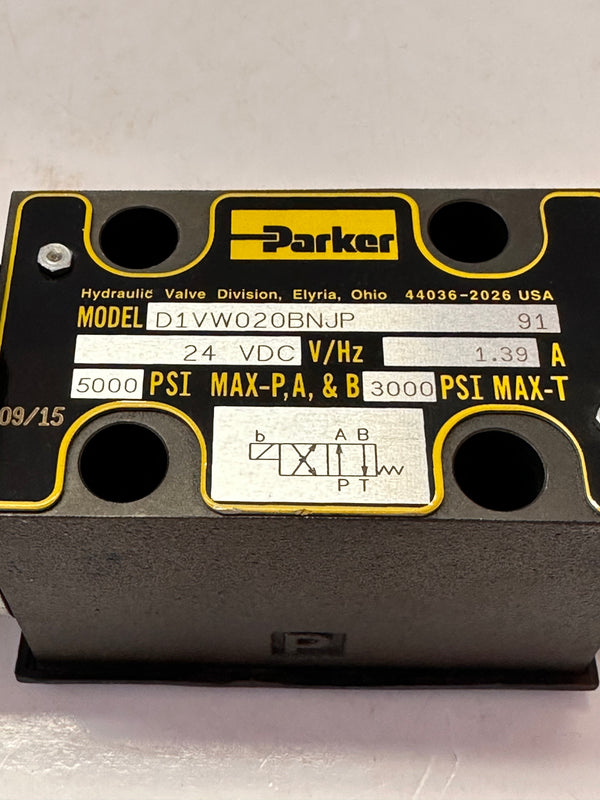

PARKER Directional Control Valve Series D1VW

Model: D1VW020BNJP

• Style: B* - Single solenoid, 2 position, spring offset. P to A and B to T in offset position.
• Seal: N - Nitrile
• Solenoid Voltage: J - 24 VDC
• Spool: 020*
• Basic valve: 1V - NFPA D03 CETOP 3 DIN NG6
• Actuator: W* - Solenoid, Wet Pin, Screw-in
• Maximum pressure: P, A, B 345 Bar (5000 PSI) Standard 207 Bar (3000 PSI) 10 Watt CSA 276 Bar (3750 PSI)|Tank: 103 Bar (1500 PSI) AC only 207 Bar (3000 PSI) DC/AC Rectified Standard 207 Bar (3000 PSI) AC Optional CSA 103 Bar (1500 PSI)
