PARKER

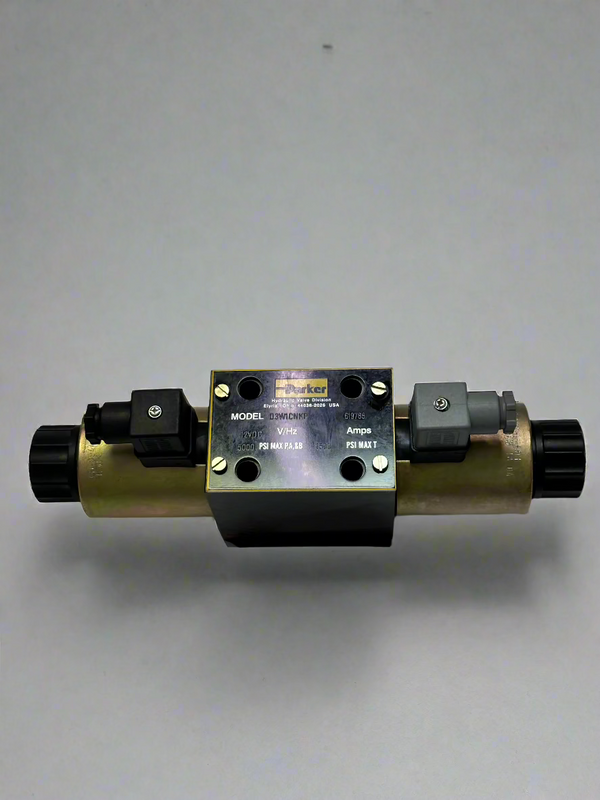

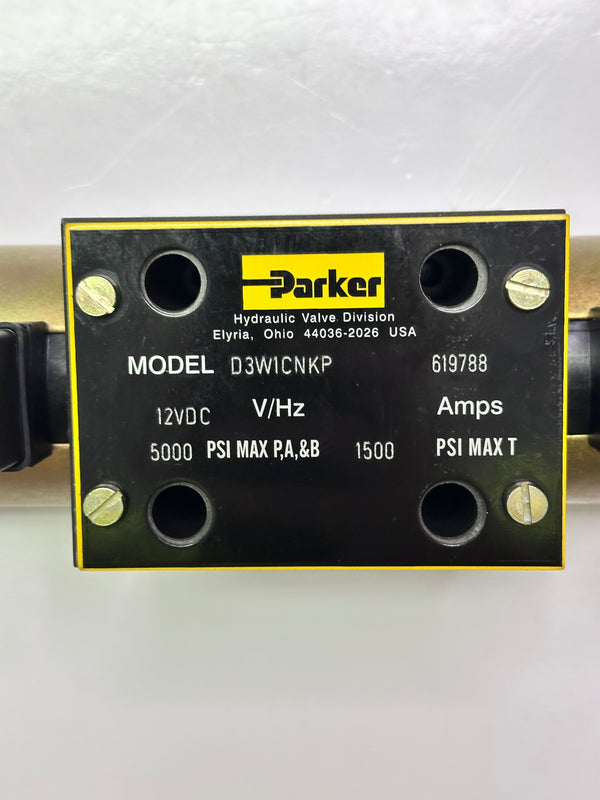

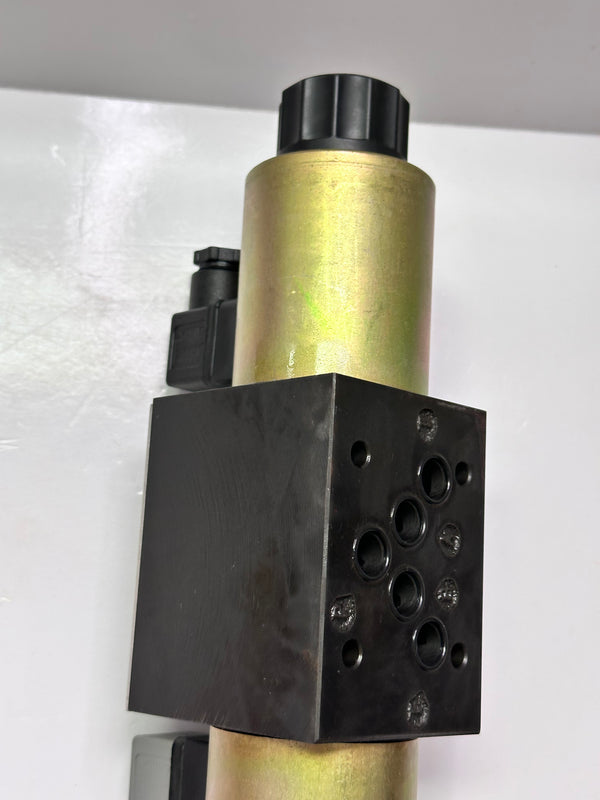

Parker D3W1CNKP CETOP 5 Directional Control Valve, 12 VDC, 150LPM/345BAR
- SKU
- P-PA-P-6359
$850.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 5.5 kg
Specifications
| Manufacturer | PARKER |
|---|---|
| Product type | HYDRAULICS |
| SKU | P-PA-P-6359 |
| Weight | 5.5 kg |
Description
Parker D3W1CNKP solenoid-operated hydraulic directional control valve. The title lists 150LPM/345BAR; confirm the operating envelope for the selected spool and application rather than assuming both values are available simultaneously.
Source model-code breakdown
- D — Directional Control Valve
- 3 — NFPA D05 CETOP 5 NG 10
- W — Wet Armature Solenoid
- 1 — Spool
- C — Double Solenoid, 3 Position, Spring Centered
- N — Nitrile

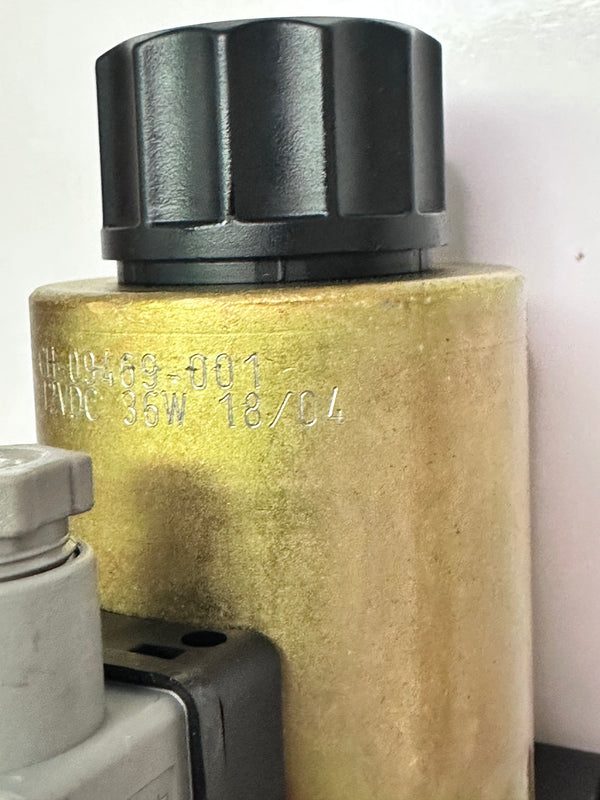

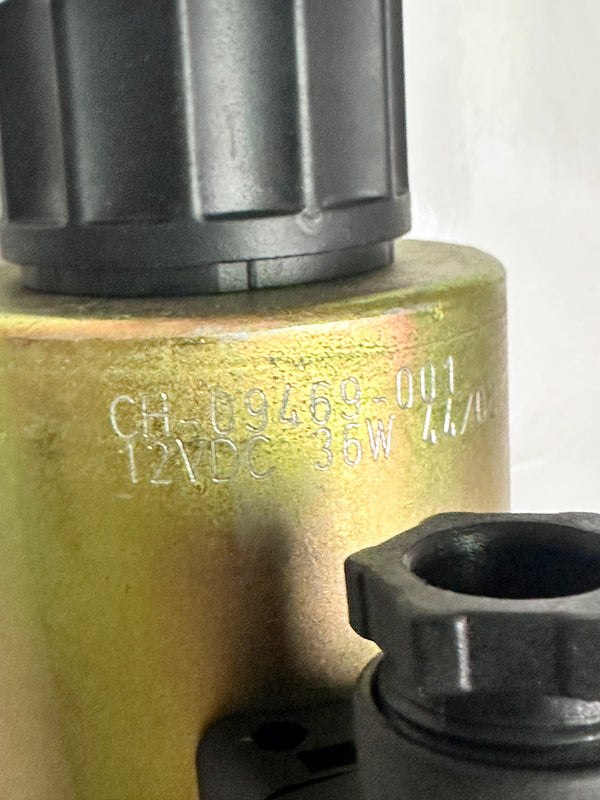

- K — 12 VDC

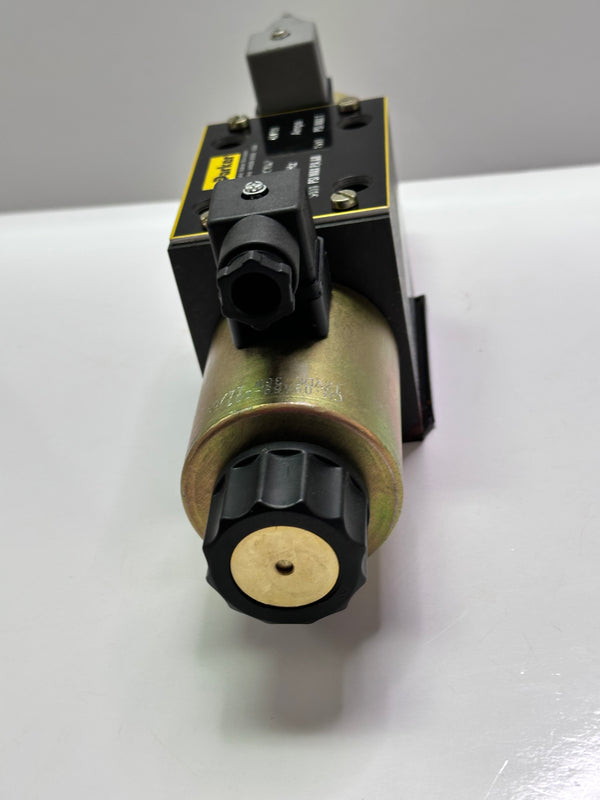

- P — Hirschmann w/plug
D3W series context
The source describes high-performance, 4-chamber, direct-operated, wet-armature, solenoid-controlled valves. Series options include 3- or 4-way and 2- or 3-position arrangements, with NFPA D05 / CETOP 5 mounting patterns. The supplied code above identifies the listed configuration; confirm the spool function and electrical connection before installation.
