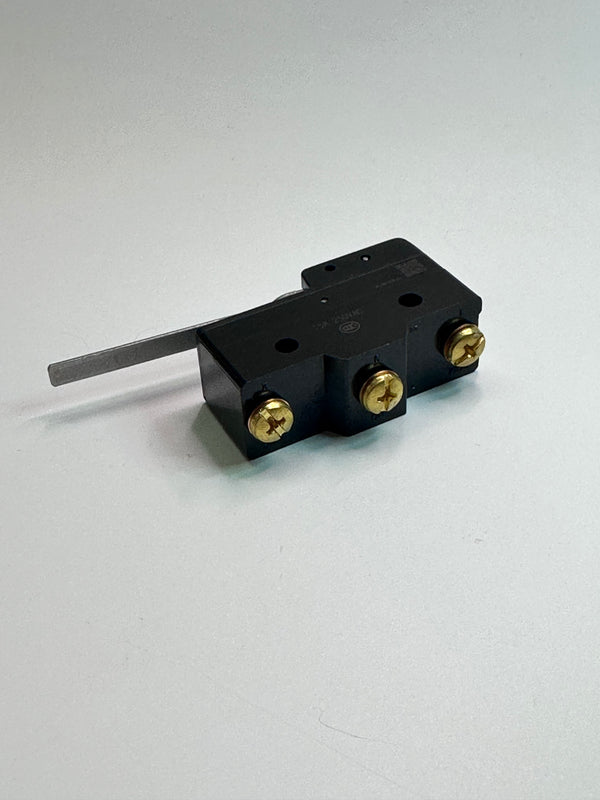

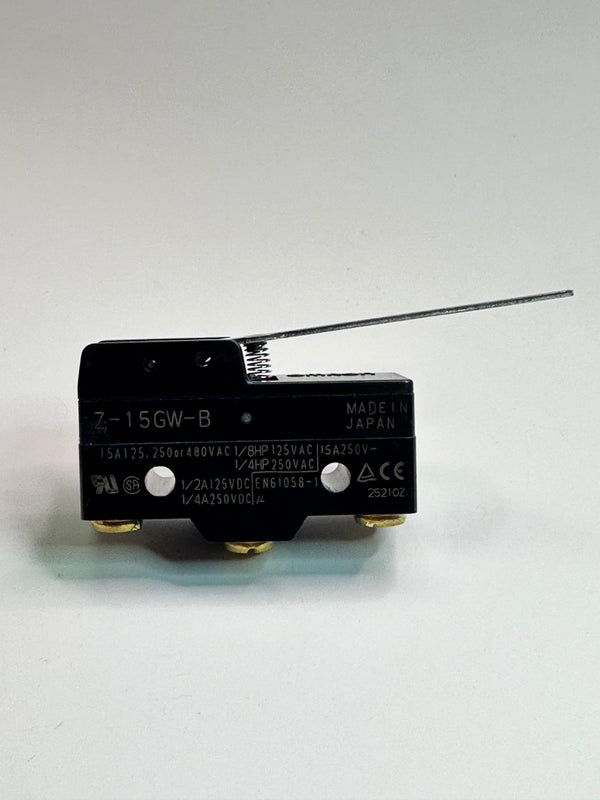

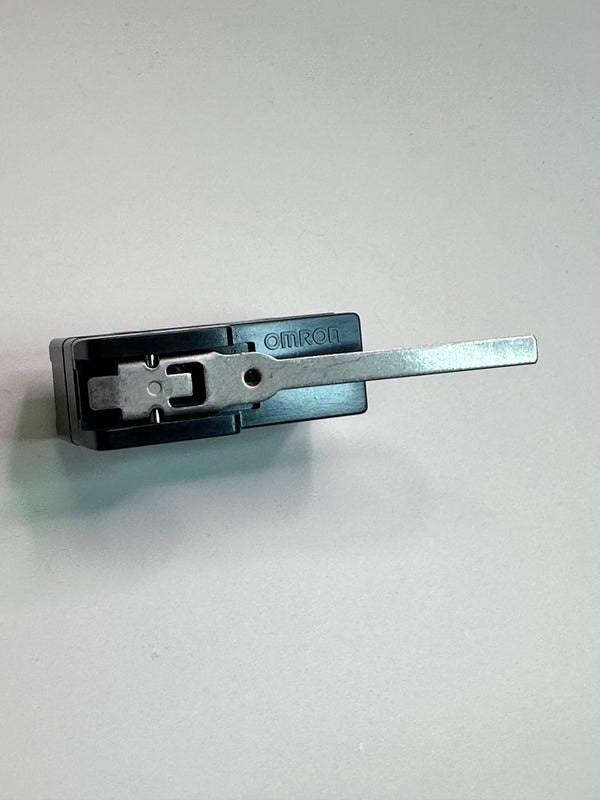

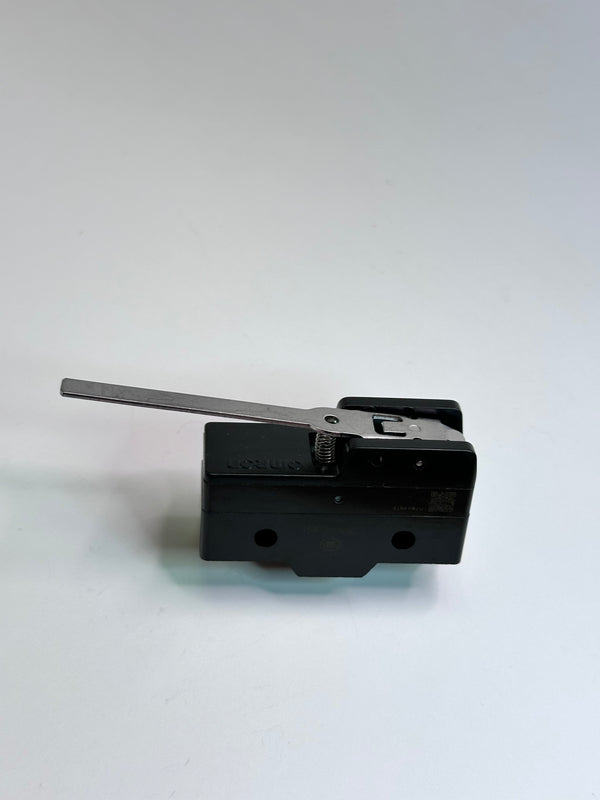

The Z-15GW-B is a single-pole double-throw (SPDT) general-purpose Basic Switch with 0.5mm standard contact gap and hinge lever actuator.
| Actuator Type | Roller Lever | |
|
|
Pole and Throw Configuration | SPDT |
|
|
Normal State Configuration | NO/NC |
|
|
IP Rating | IP00 |
| Maximum Current | 15A | |
|
|
Maximum AC Voltage | 500V |
|
|
Maximum DC Voltage | 250V |
|
|
Series | Z |
|
|
Action Type | Snap Action |
|
|
Length | 39.4mm |
|
|
Standards Met | CE |
|
|
Minimum Operating Temperature | -25°C |
|
|
Maximum Operating Temperature | +80°C |
|
|
Depth | 17.45mm |
|
|
Width | 49.2mm |
|
|
Mechanical Life | 10000000Cycles |
