NHP

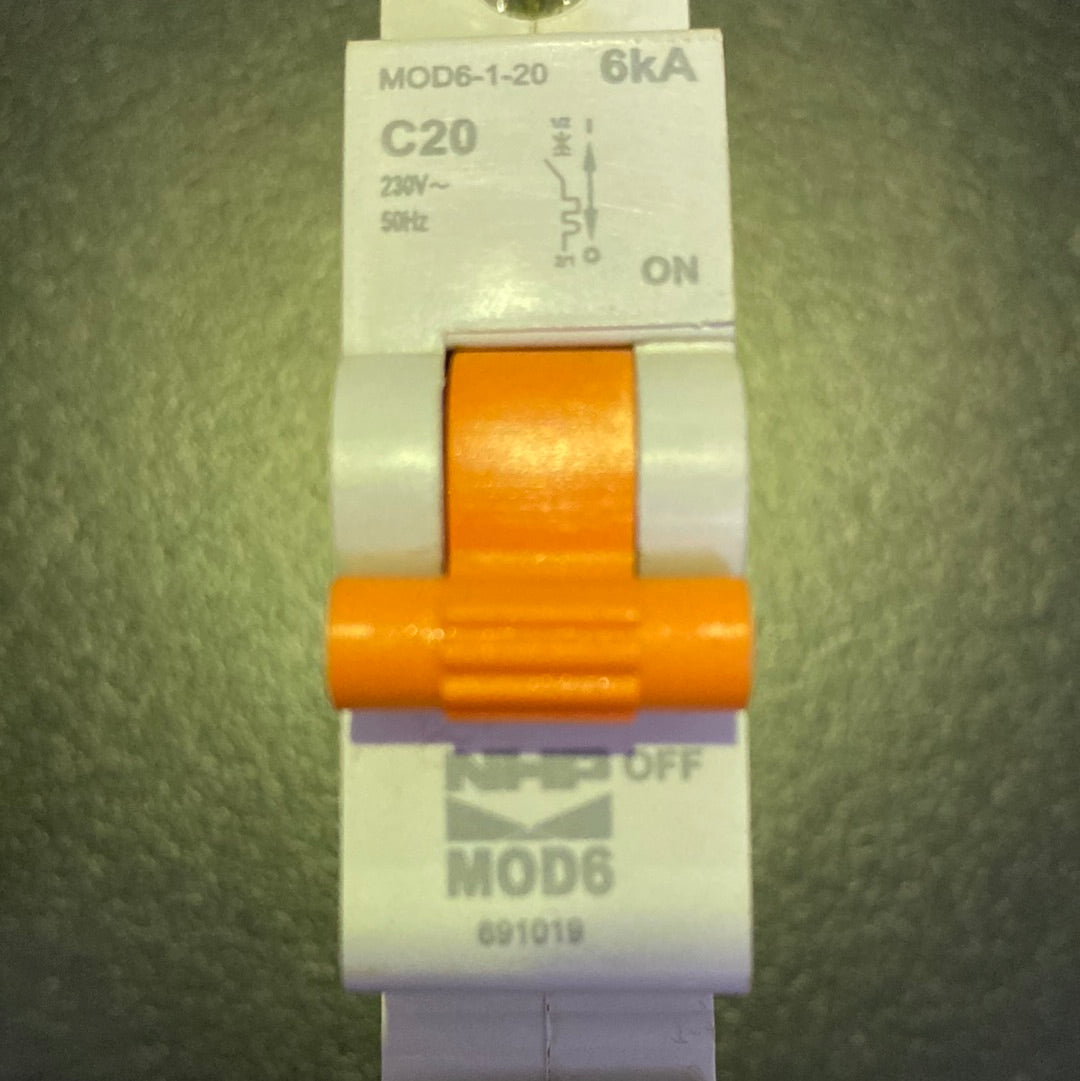

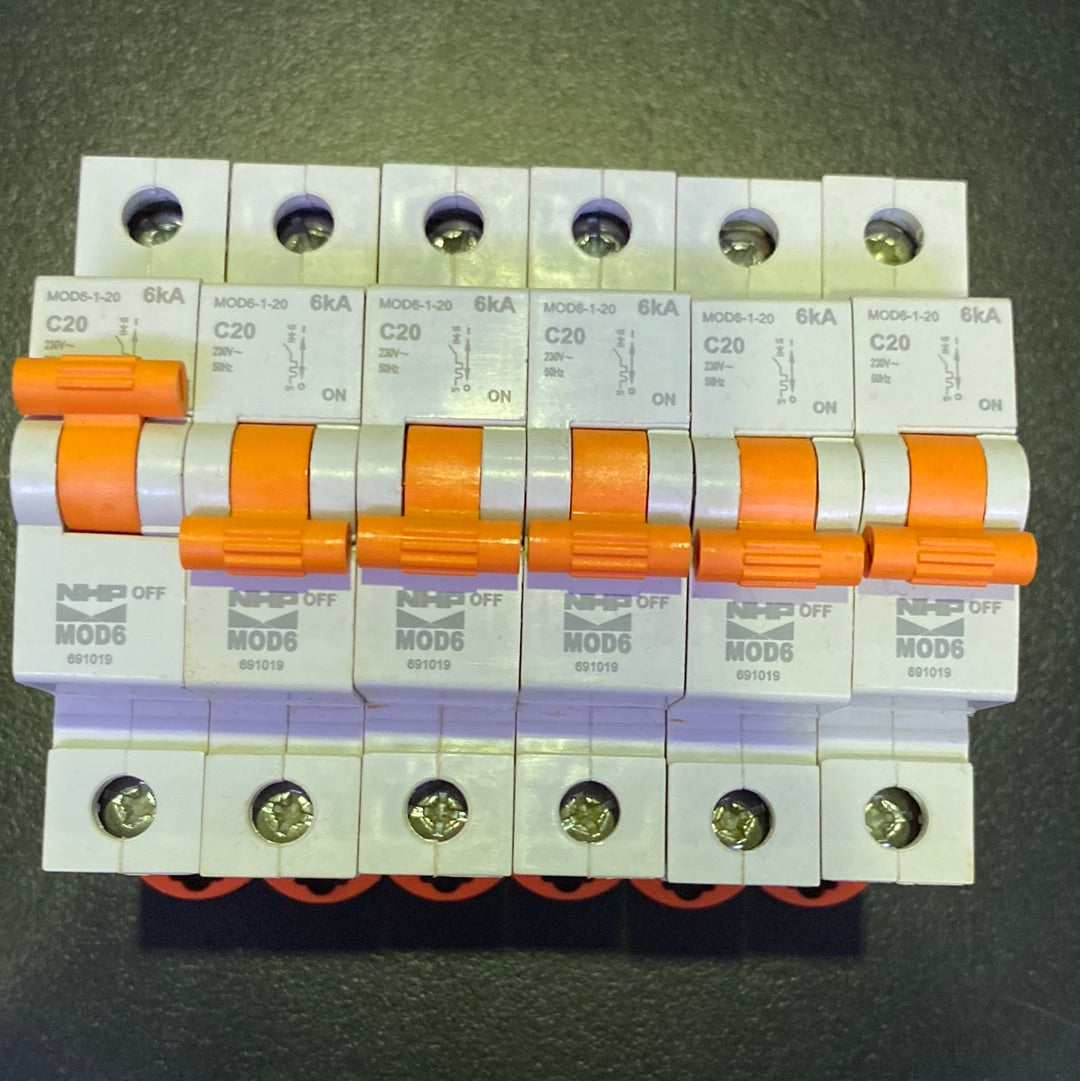

NHP MOD6 1-Pole 20A C-Curve 6kA Miniature Circuit Breaker | MOD6120
- SKU
- P-NH-M-1108
$6.50
Price includes GST.
In stock
Warehouse pickup available
- Weight
- 0.1 kg
Specifications
| Manufacturer | NHP |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-NH-M-1108 |
| Weight | 0.1 kg |
Description
- Rated Current: 20 A
- Number of Poles: 1
- Trip Curve: C
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Short Circuit Breaking Capacity: 6 kA
- Max Rated Operation Voltage: 250 V
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 6 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-25 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature During Operating: -25-55 °C
- Dimensions (H x L x W): 86mm x 76mm x 18mm
