NHP

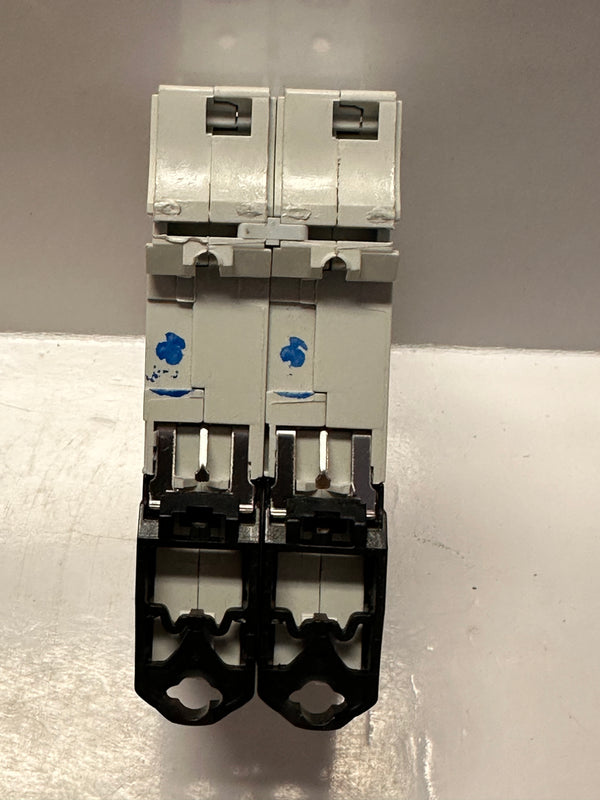

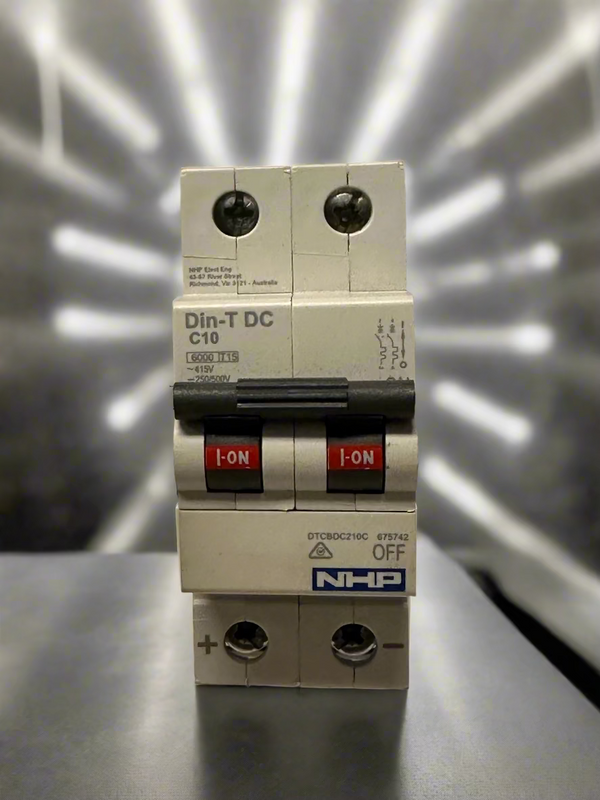

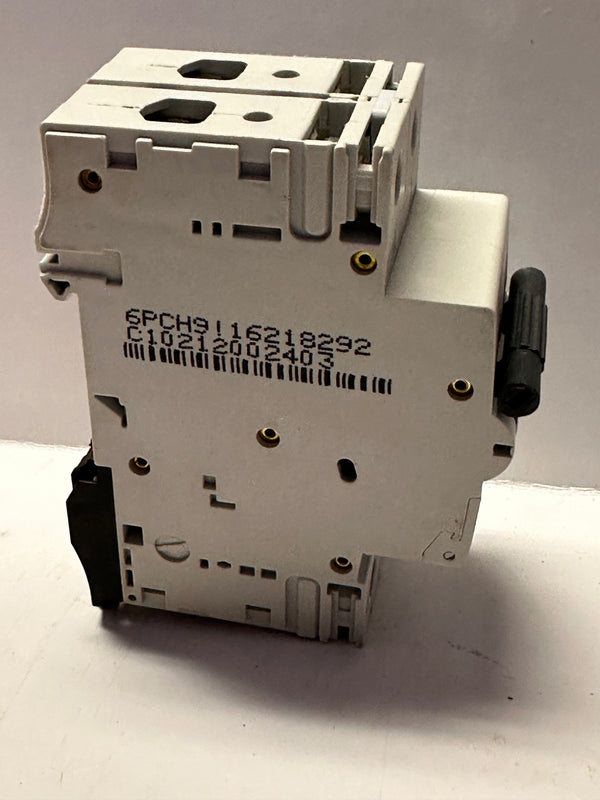

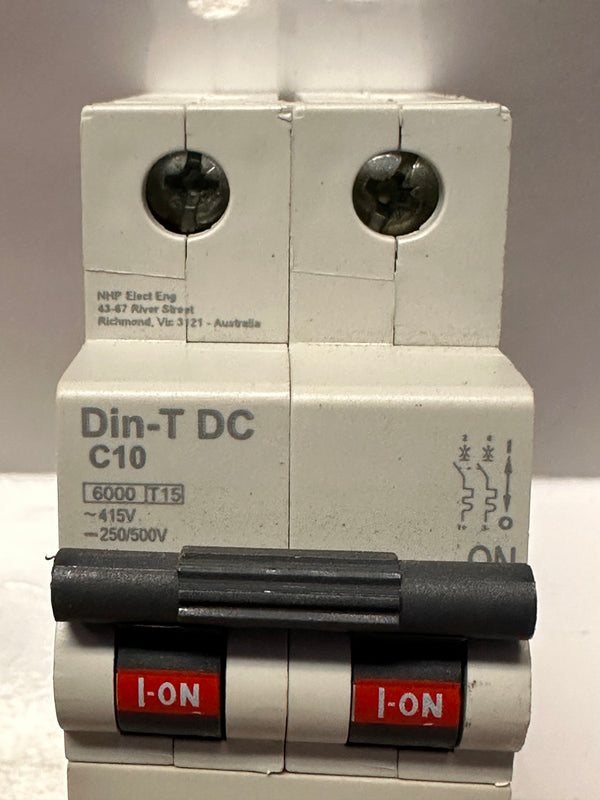

NHP DTCBDC210C DIN-T DC C10 2-Pole 10A Circuit Breaker
- SKU
- P-NH-N-4016
$115.00
Price includes GST.
Low stock: 3 left
Warehouse pickup available
- Weight
- 1.0 kg
Specifications
| Manufacturer | NHP |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-NH-N-4016 |
| Weight | 1.0 kg |
Description
Electrical
Rated current 10 A
Number of poles (total) 2
Trip curve C
Rated voltage 415 V
Frequency 50-60 Hz
Voltage type AC/DC
Rated ultimate short-circuit breaking capacity, Icu 125V DC 10 kA
Service voltage Ub, AC12 V
Service voltage Ub, DC12 V
Nominal operating voltage Un, DC500 V
Rated short-circuit breaking capacity Icn according to AS/NZS 60898 at 230 VAC6 kA
Rated short-circuit breaking capacity Icn according to AS/NZS 60898 at 400 VAC6 kA
Rated short-circuit breaking capacity Icu according to AS/NZS 60947-2 at 400 VAC6 kA
Max. rated operation voltage Ue440 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp 6 kV
Concurrently switching neutral conductor Yes
