NHP DTCB6210C DIN-T6 Miniature Circuit Breaker – 2-Pole 10A C-Curve
- SKU
- P-NH-N-4018
$55.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 1.5 kg
Specifications
| Manufacturer | NHP |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-NH-N-4018 |
| Weight | 1.5 kg |
Description

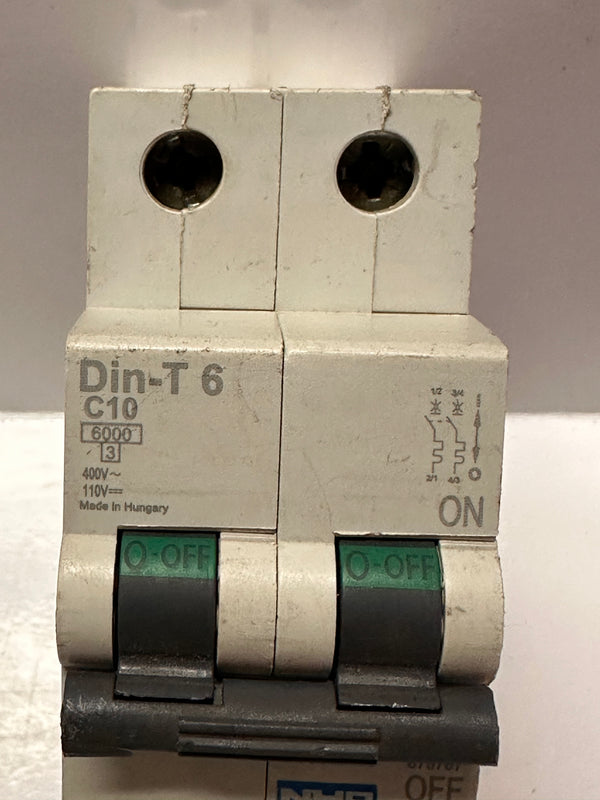

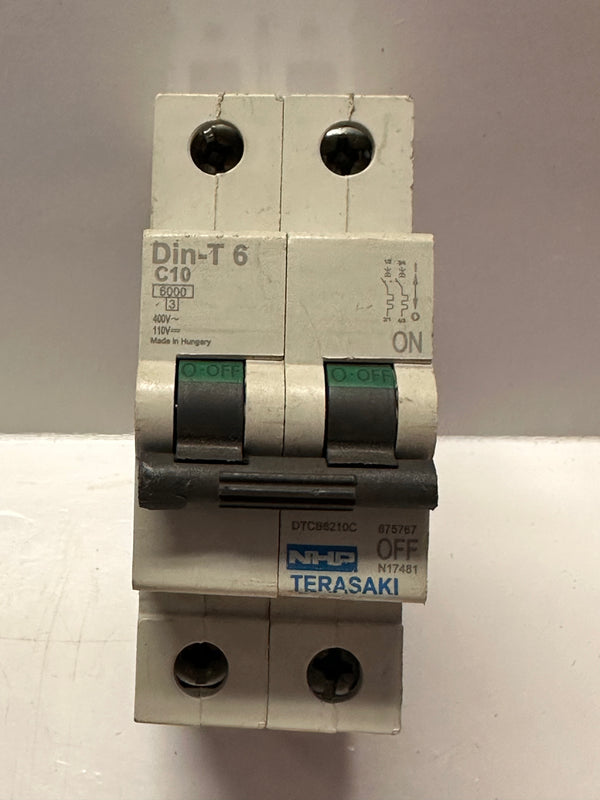

NHP DTCB6210C DIN-T6 miniature circuit breaker with two poles and C-curve tripping. Source ratings are 10 A at 30°C and 415 V AC, with DIN-35 rail mounting.
Source specifications
| Type | MCB |
| Number of Pole | 2P |
| Voltage Rating | 415 V AC |
| Current Rating | 10 A @30°C |
| Depth | 76 mm |
| Width | 36 mm |
| Height | 86 mm |
| Tripping Curve | C |
| Colour | White |
| Weight | 0.24 kg |
| Mounting Mode | DIN-35 Rail Mount |
| Rated Impulse Withstand Volt | 6 kV |
| Rated Insulation Voltage | Ui, Rated Insulation Voltage @ Pollution Degree 2 - 500 V Ui, Rated Insulation Voltage @ Pollution Degree 3 - 440 V |
| Standards Compliance | IEC 60898, IEC 60947-2, UL 94 V-2, DIN 40046, IEC 60068-2, IEC 60077-16-3, AS/NZS 3111:2009 |

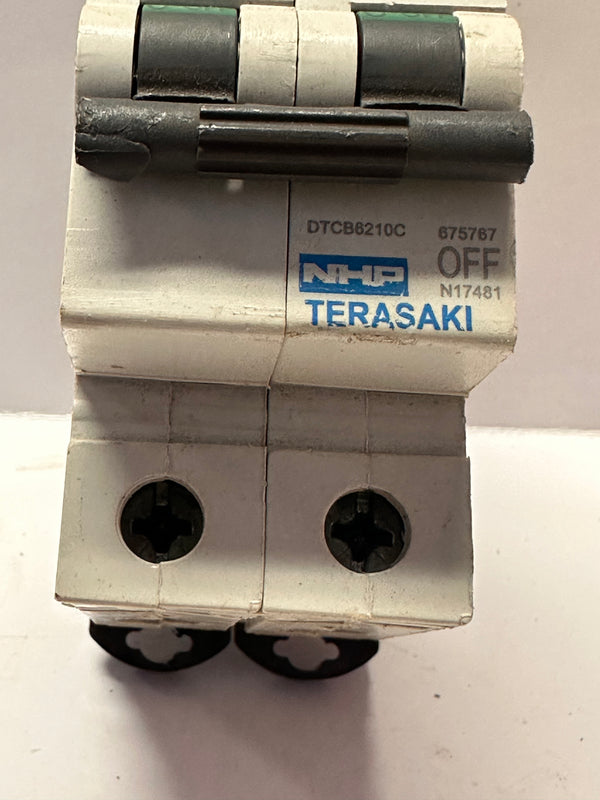

The source additionally carries the tags TERASAKI and 6kA. The 6kA tag is not the same as the 6 kV impulse-withstand rating in the table; confirm the breaking-capacity rating and its applicable voltage on the actual unit. Standards and test references above are reproduced as recorded, including IEC 60077-16-3; they are not independent confirmation of the supplied unit's certification or installation suitability.
