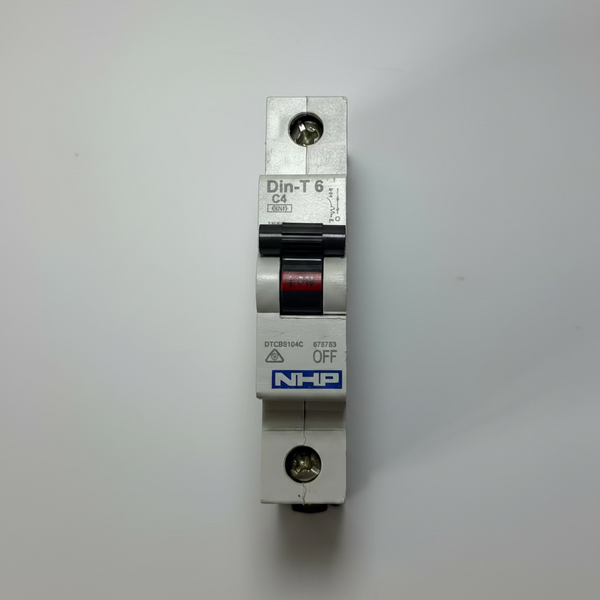

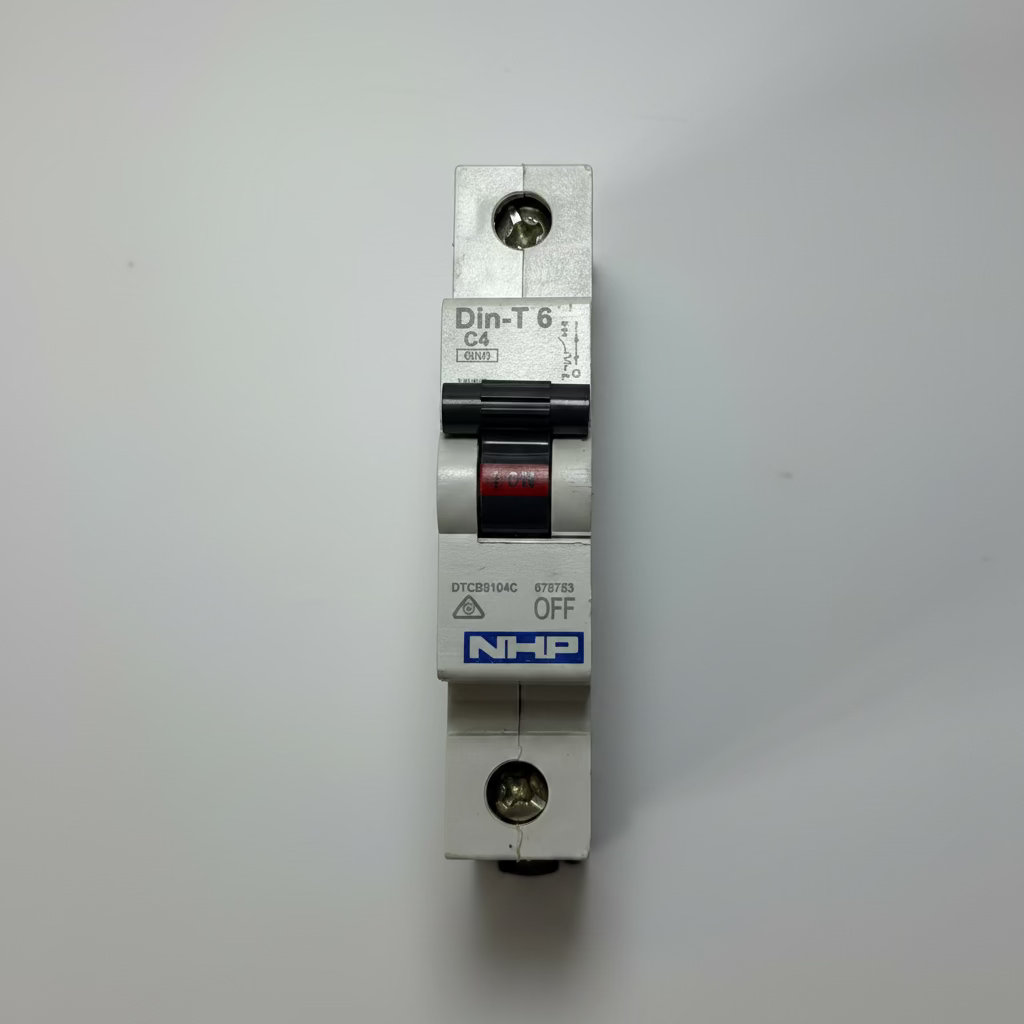

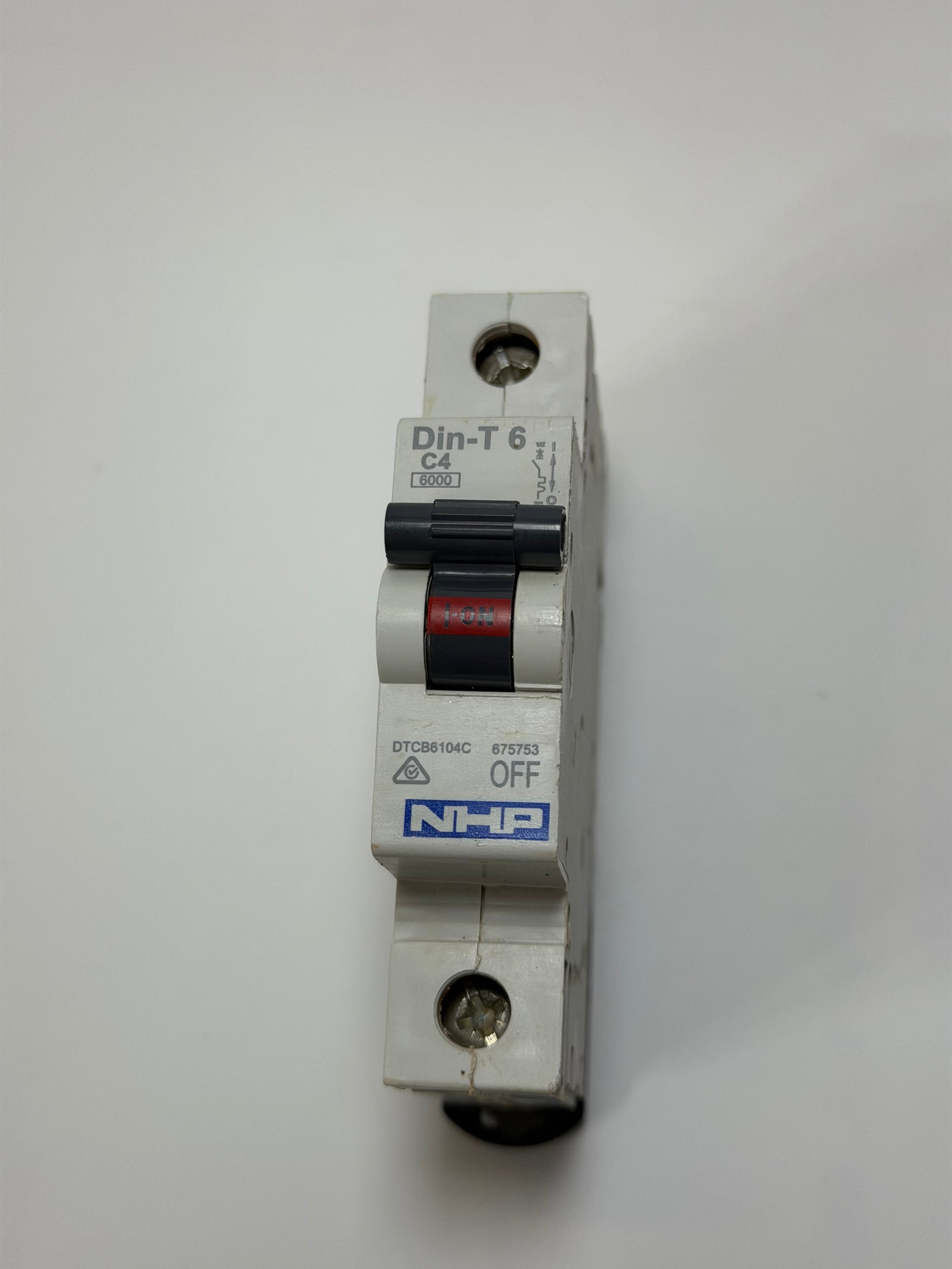

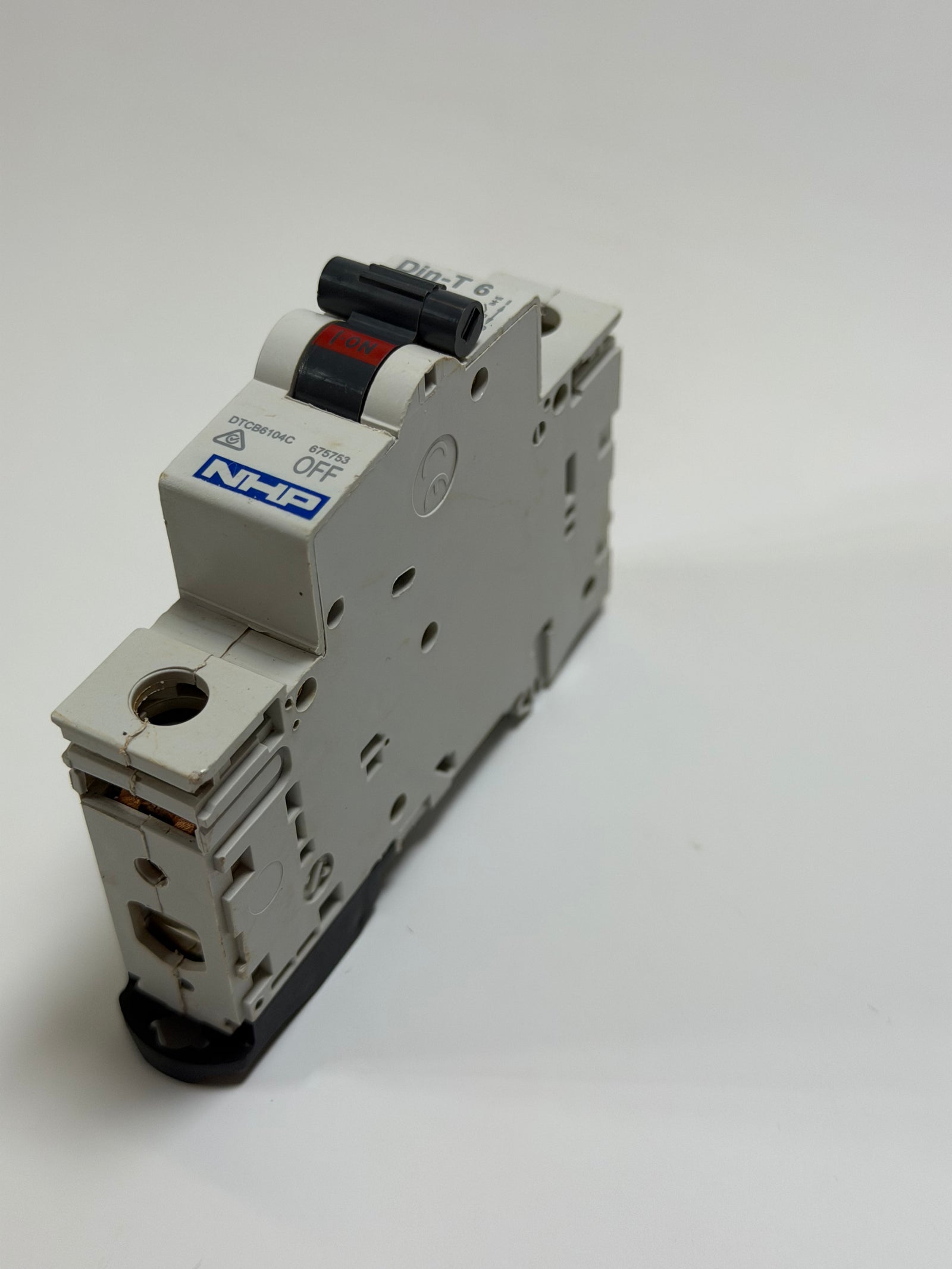

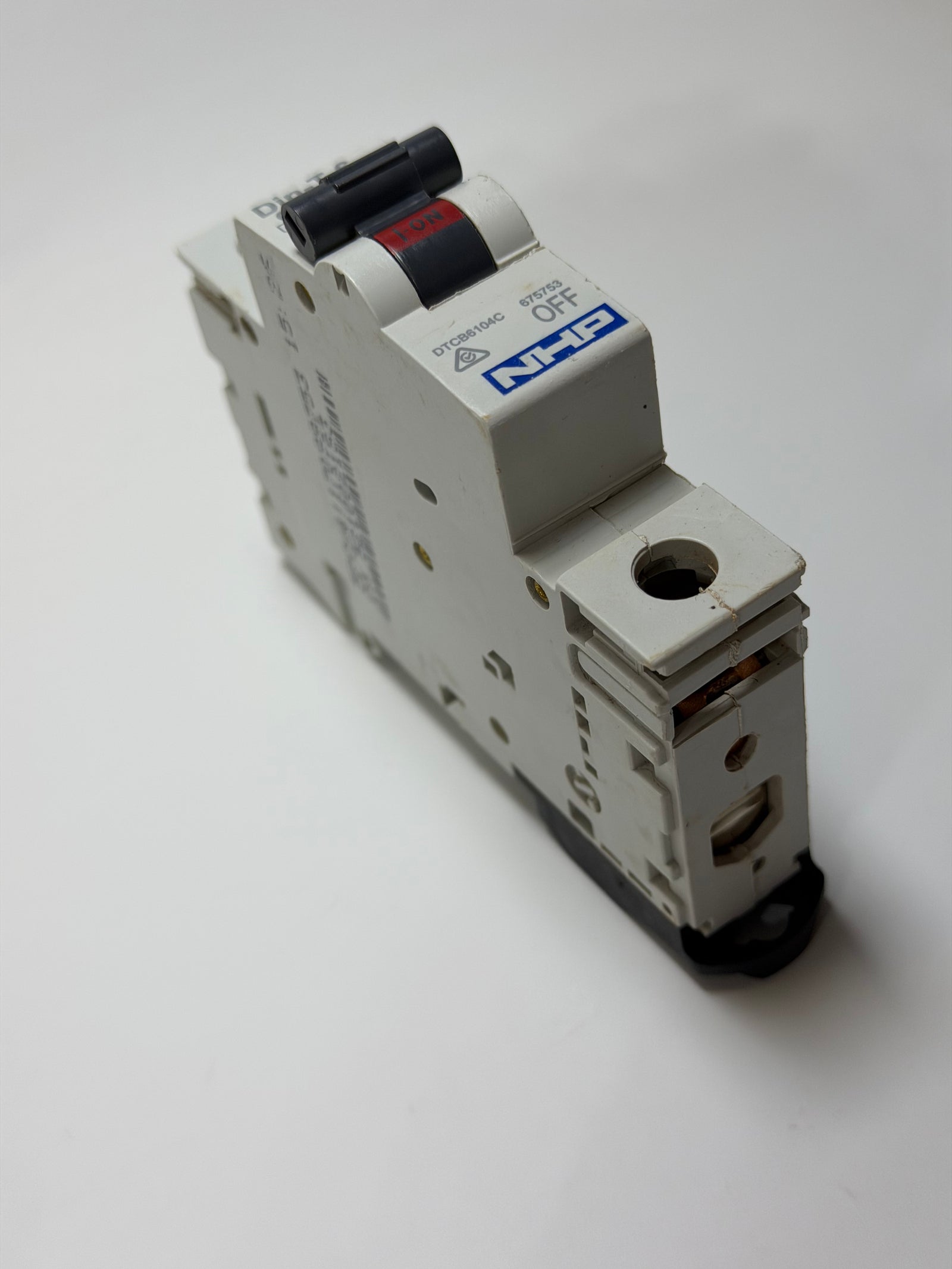

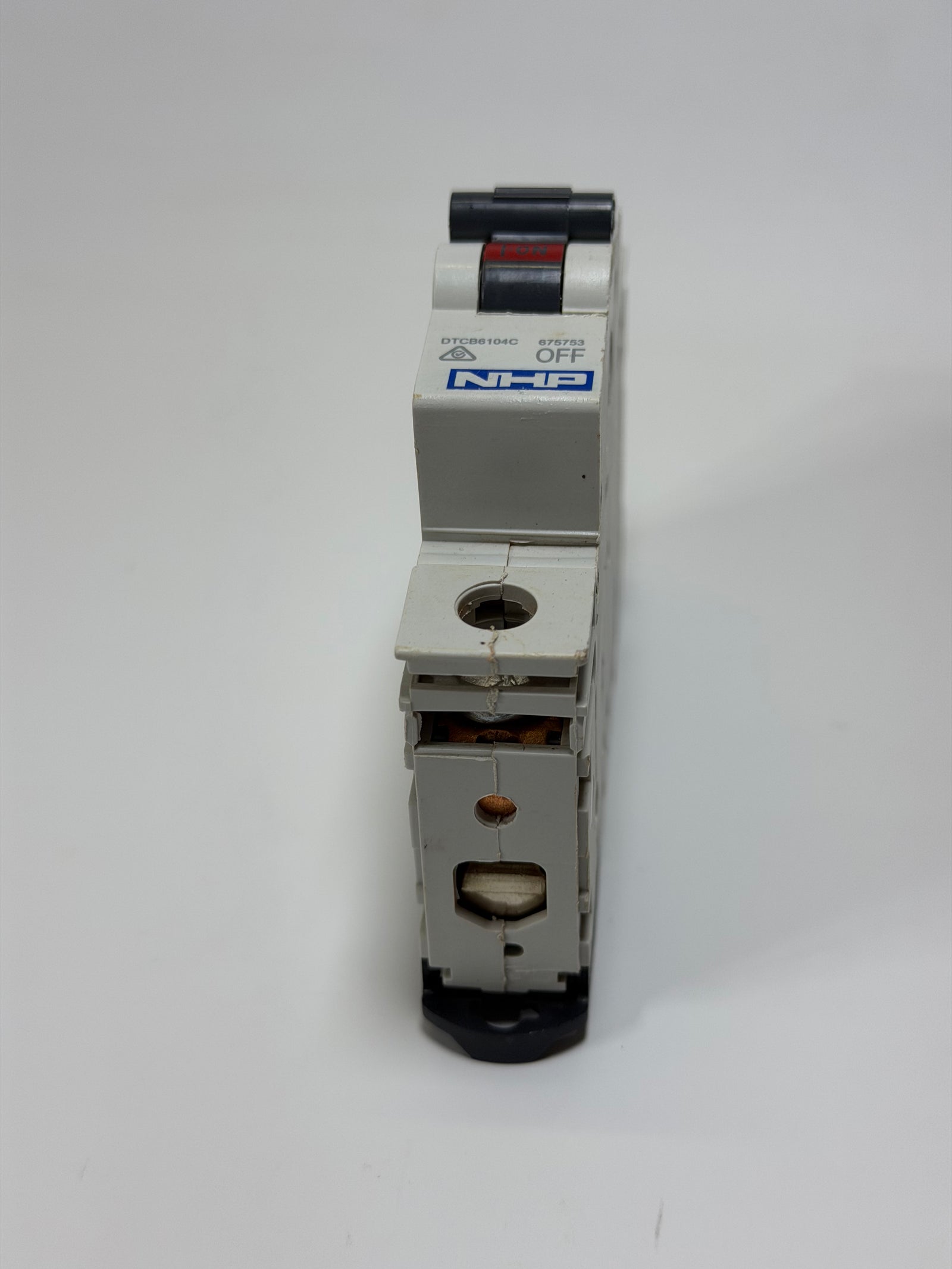

NHP DTCB6104C DIN-T Miniature Circuit Breaker — 4A, 1 Pole, C Curve
- SKU
- P-NH-N-8633
$15.00
Price includes GST.
Sold out
Warehouse pickup available
This one has sold, but we regularly land similar stock and can often source an equivalent.
Request this part or an equivalent- Weight
- 1.0 kg
Specifications
| Manufacturer | NHP |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-NH-N-8633 |
| Weight | 1.0 kg |
Description
- Rated Current: 4 A
- Number of Poles: 1
- Trip Curve: C
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Short Circuit Breaking Capacity: 6 kA
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-35 mm² (solid), 1-25 mm² (multi-wired)
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 6 kV
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature During Operating: -25-70 °C
- Dimensions (H x L x W): 86mm x 76mm x 18mm
