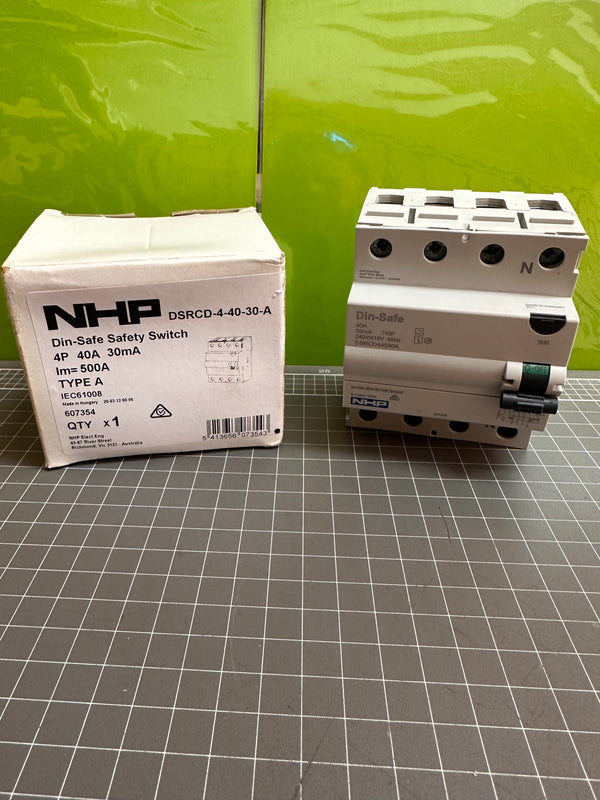

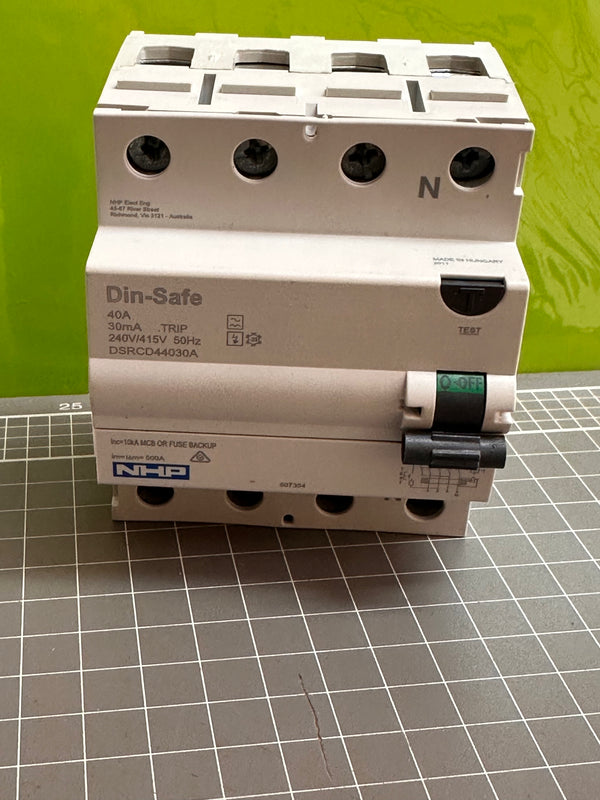

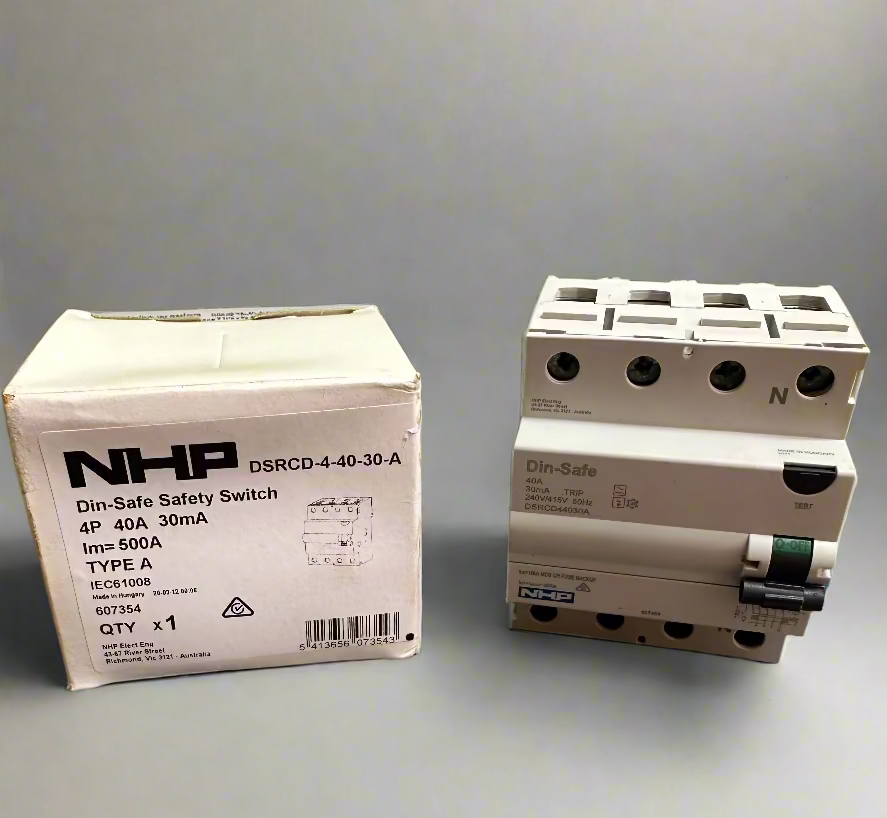

NHP DSRCD44030A 40A 30mA Type A RCCB, 3P+N

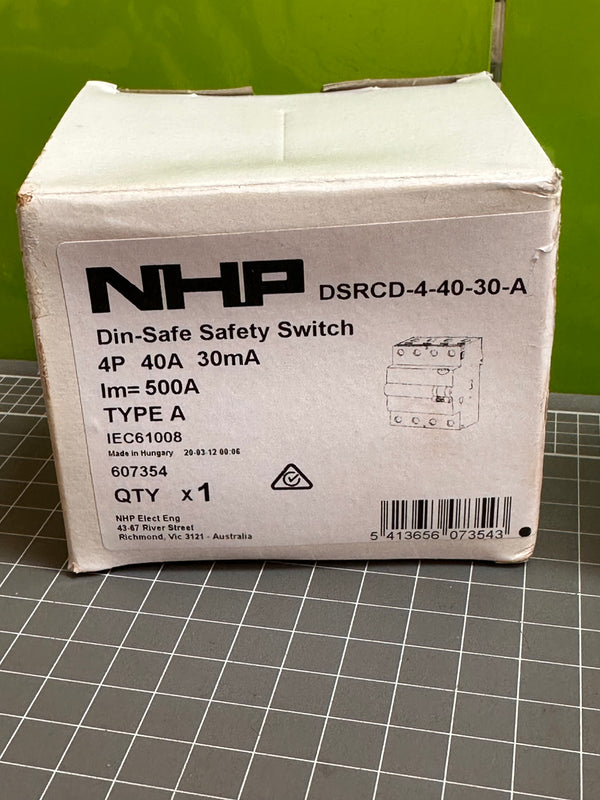

NHP DIN SAFE DSRCD44030A residual current circuit breaker (RCCB), also recorded as DSRCD-4-40-30-A. Listed as 3P+N (4 poles), 40A, Type A with 30mA residual-current sensitivity.

Existing catalogue specifications

• Number of Poles: 4
• Voltage Type: AC
• Frequency: 50/60 Hz
• Rated Current: 40 A
• Leakage Current Type: A
• Rated Leakage Current: 30 mA
• Min Service Voltage: 205 V
• Max Rated Operation Voltage: 455 V
• Rated Insulation Voltage: 440 V
• Rated Impulse Withstand Voltage: 8 kV
• Rated Fault Current: 10000 A
• Electrical Life: 10000 cycles
• Degree of Protection: IP20
• Connectable Conductor Cross Section: 50-50 mm²
• Mechanical Life: 20000 cycles
• Operating Temperature: 55 °C
• Ambient Temperature: -25-55 °C
• Storage Temperature: 70 °C
• Pollution Degree: 2
• Dimensions (H x L x W): 86mm x 76mm x 72mm

Ratings to confirm before selection

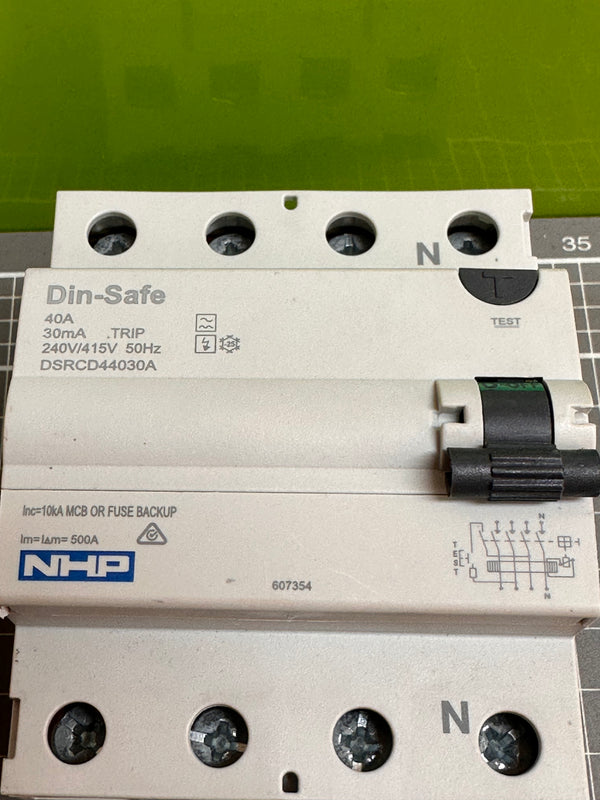

The source specifications record Rated Fault Current: 10000 A, while an existing tag records 6kA. These may describe different test ratings and have not been treated as interchangeable breaking capacities. Other source tags record 240V/415V and Im=500A. The conductor entry 50-50 mm² and single-value operating/storage temperatures need confirmation from the device label or manufacturer data.

Have a suitably qualified electrician confirm application, ratings and required upstream overcurrent protection. No overload or short-circuit protection capability is inferred from the RCCB designation.
