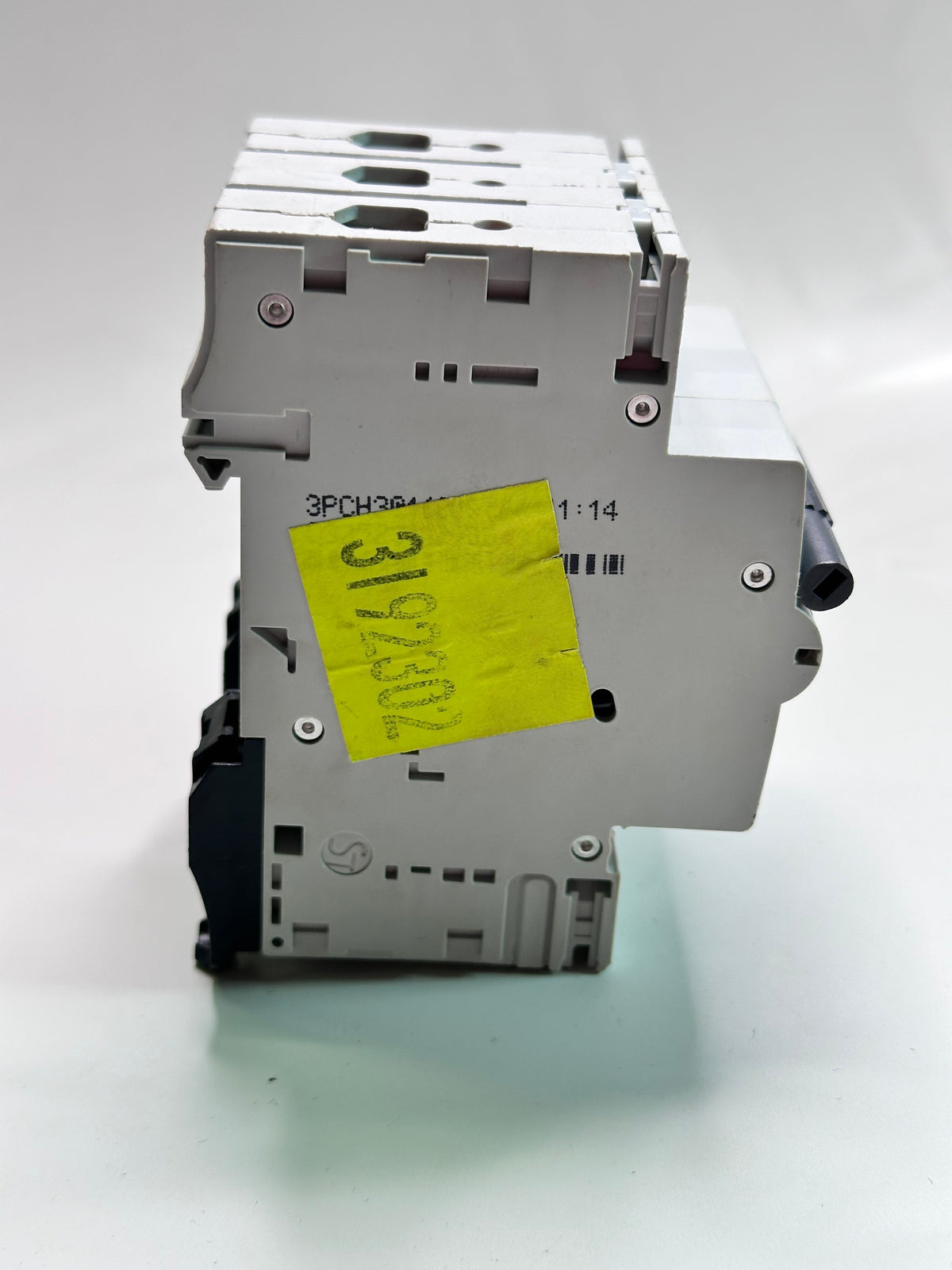

NHP DIN-T Miniature Circuit Breaker — 3-Pole, 32 A, C Curve
- SKU
- P-NH-N-7846
$80.00
Price includes GST.
Low stock: 2 left
Warehouse pickup available
- Weight
- 2.5 kg
Specifications
| Manufacturer | NHP |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-NH-N-7846 |
| Weight | 2.5 kg |
Description

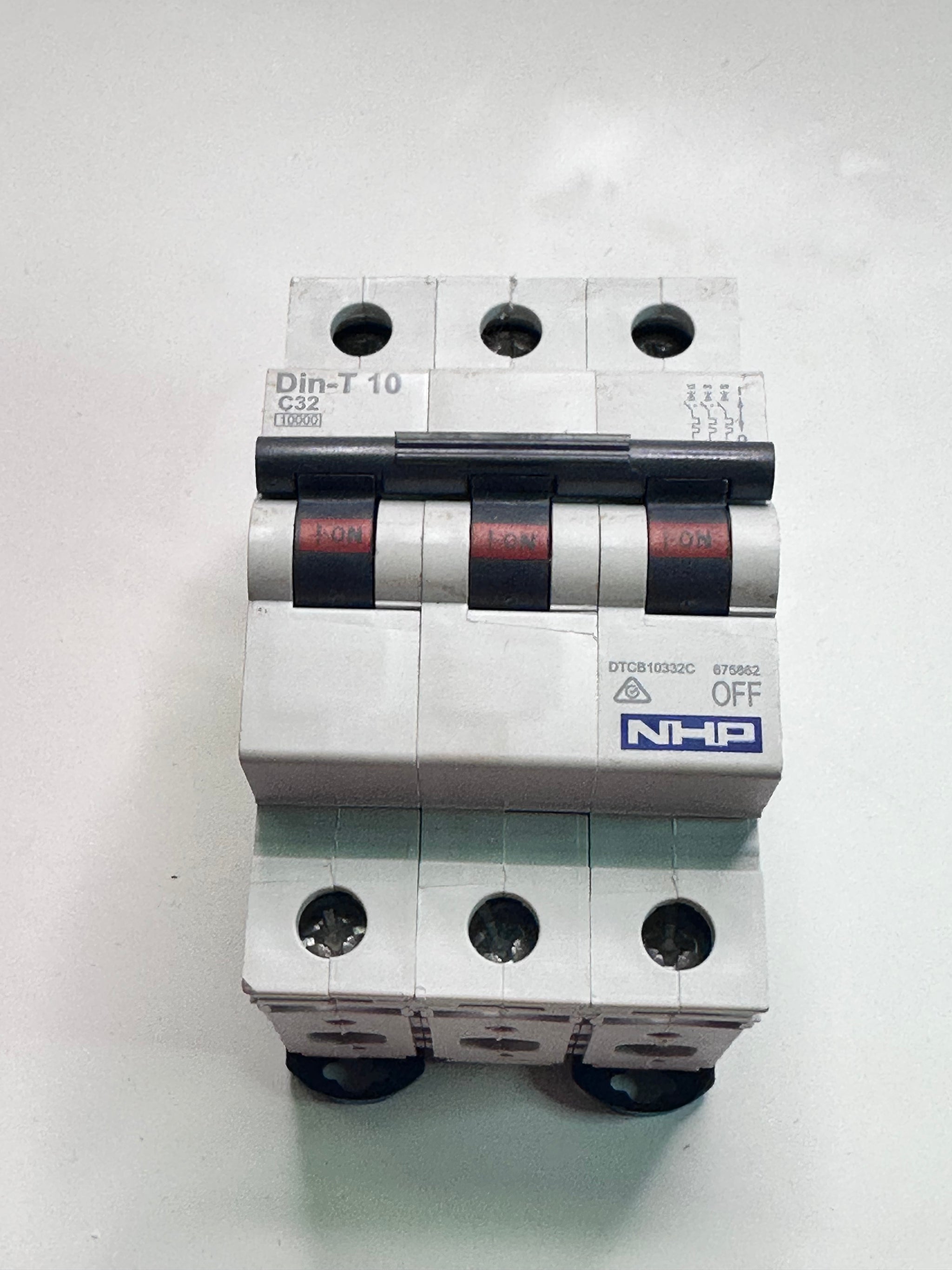

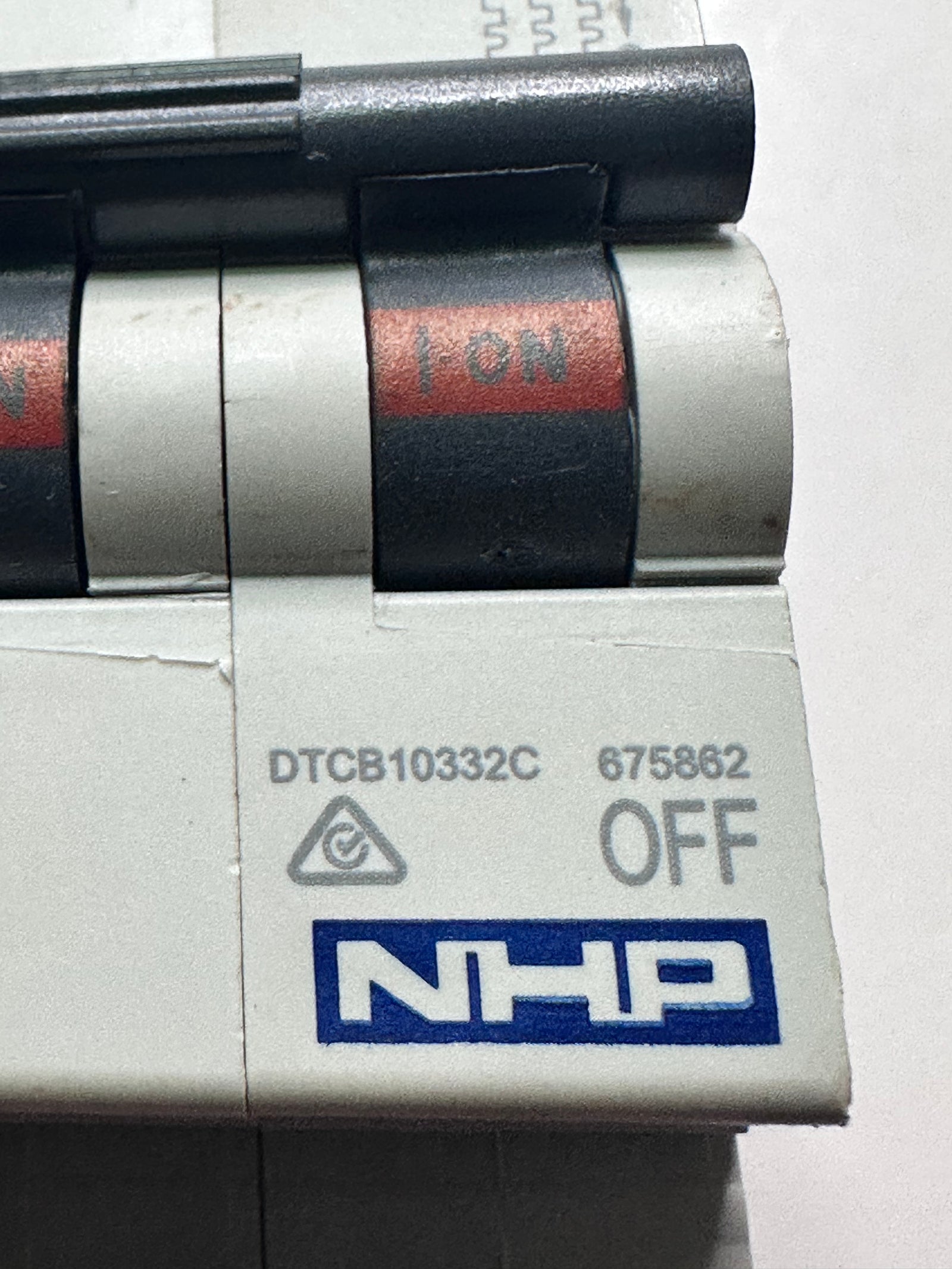

NHP DIN-T miniature circuit breaker (MCB), recorded as 3-pole, 32 A, C curve. The source tags include DTCB10332C and reference 675862; confirm these against the supplied unit label.
The source lists 415 V rated voltage and separate AC and DC values. Its two 12 V service-voltage entries need clarification and must not be treated as the circuit rating or permission to use the breaker on an arbitrary AC/DC circuit. Breaking capacities below are tied to the stated voltage and standard, not interchangeable ratings.
Recorded source specifications
Component Type (ETIM Class)
Miniature circuit breaker (MCB)
Electrical
Rated current 32 A
Number of poles (total) 3
Trip curve C
Rated voltage 415 V
Frequency 50-60 Hz
Voltage type AC/DC
Service voltage Ub, AC12 V
Service voltage Ub, DC12 V
Nominal operating voltage Un, DC110 V
Rated short-circuit breaking capacity Icn according to AS/NZS 60898 at 230 VAC10 kA
Rated short-circuit breaking capacity Icn according to AS/NZS 60898 at 400 VAC10 kA

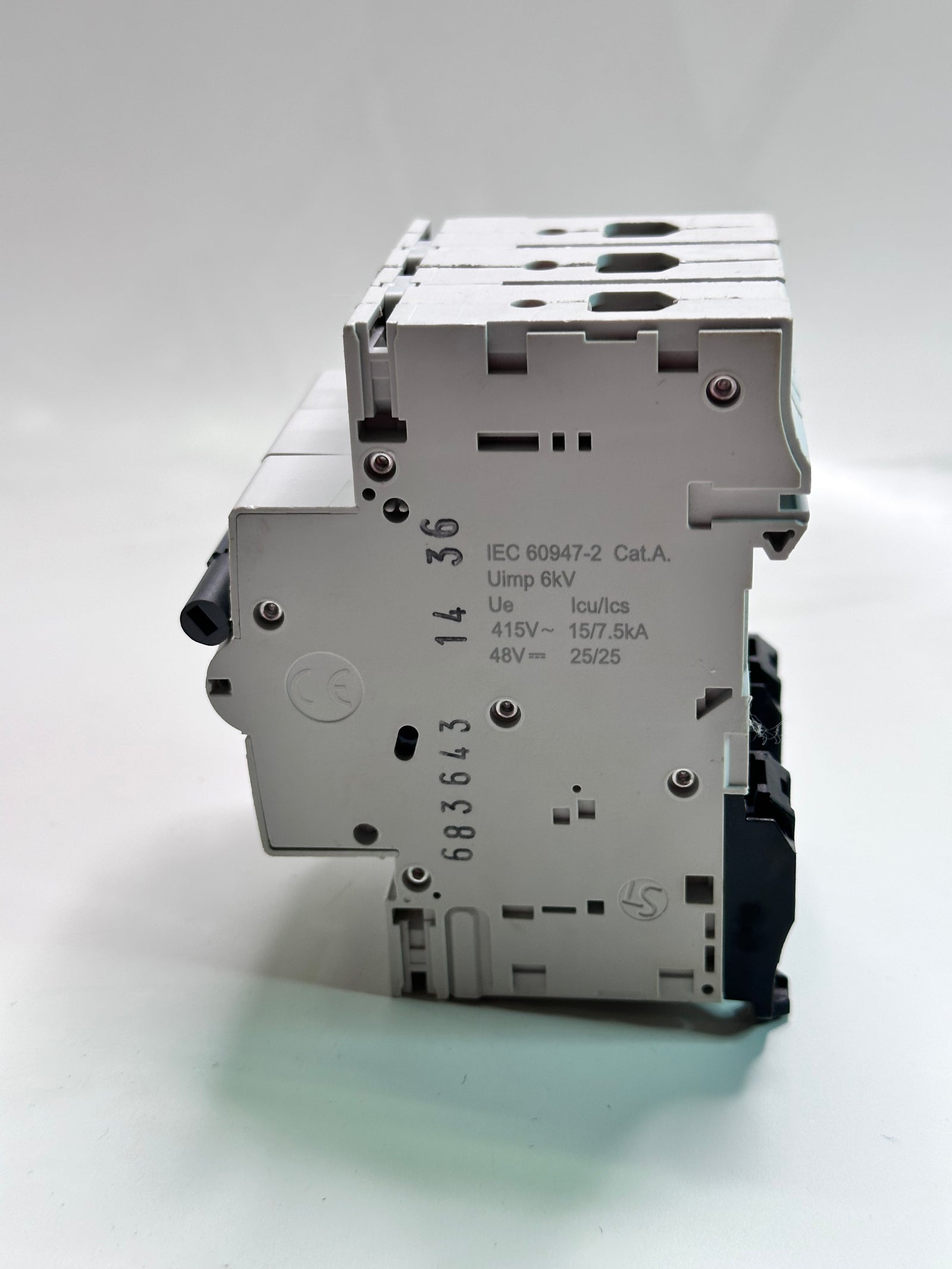

Rated short-circuit breaking capacity Icu according to AS/NZS 60947-2 at 230 VAC15 kA
Rated short-circuit breaking capacity Icu according to AS/NZS 60947-2 at 400 VAC15 kA
Max. rated operation voltage Ue 440 V
Rated insulation voltage Ui 440 V
Rated impulse withstands voltage Uimp 6 kV
Confirm the manufacturer data and unit markings for the intended installation. This MCB listing does not establish residual-current protection or RCBO functionality.
