NHP

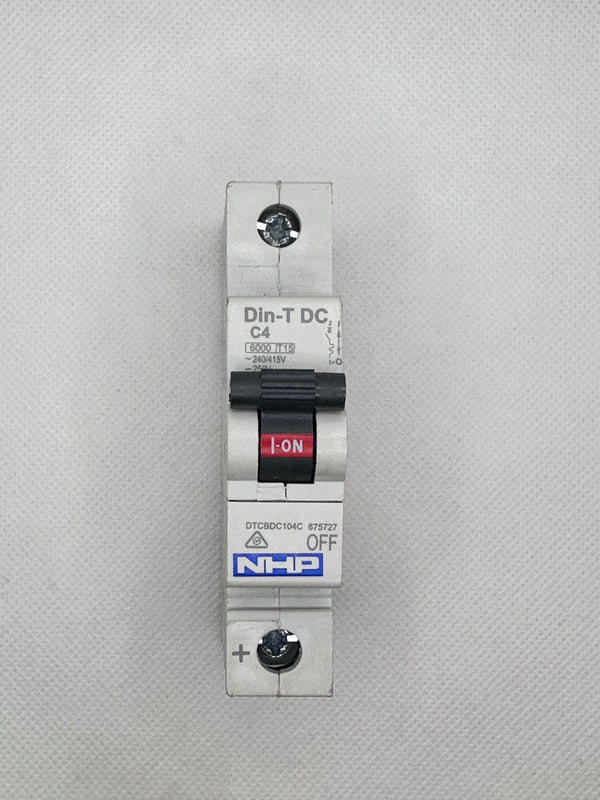

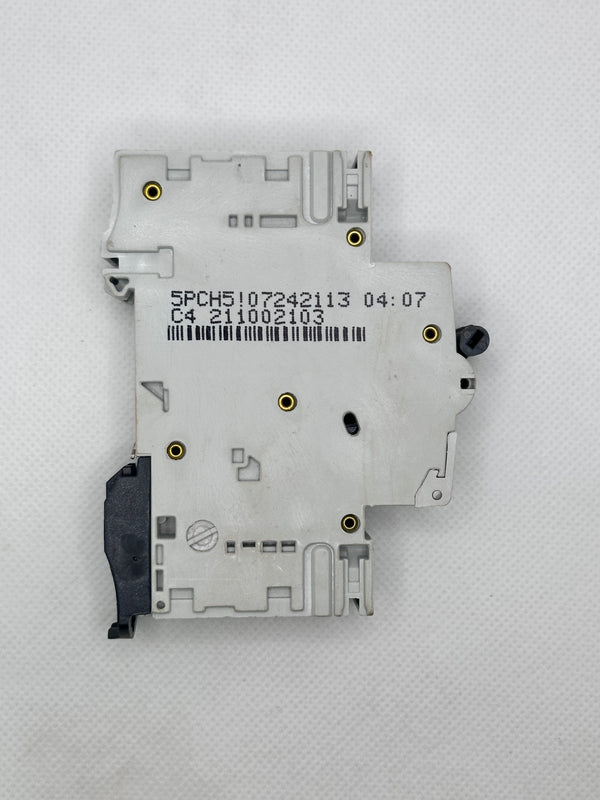

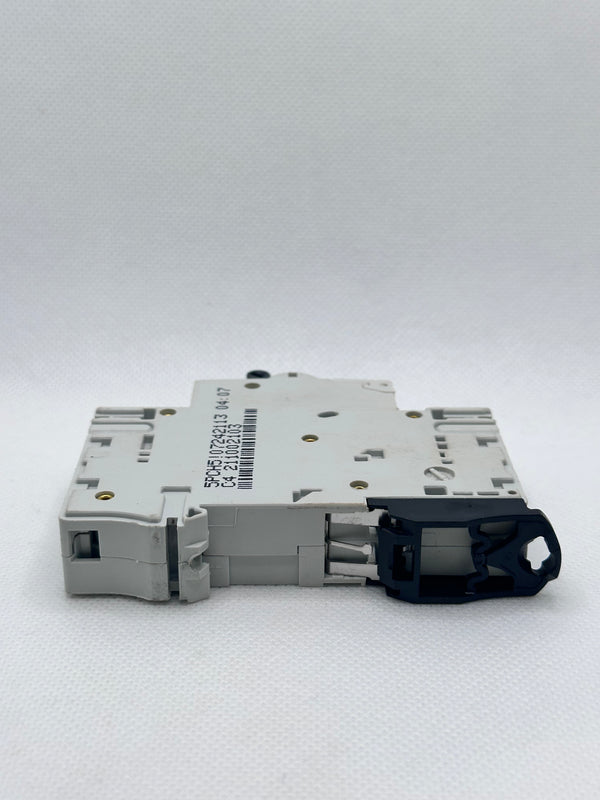

DTCBDC104C Din-T DC C4 Miniature Circuit Breaker 4A 1 Pole
- SKU
- P-NH-M-1056
$75.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 0.5 kg
Specifications
| Manufacturer | NHP |
|---|---|
| Product type | Electrical |
| SKU | P-NH-M-1056 |
| Weight | 0.5 kg |
Description
Electrical
Rated current: 4A
Number of poles (total): 1
Trip curve: C
Rated voltage: 240 V
Frequency: 50-60 Hz
Voltage type: AC/DC
Service voltage Ub, AC: 12 V
Service voltage Ub, DC: 12 V
Nominal operating voltage Un, DC: 250 V
Rated short-circuit breaking capacity Icn according to AS/NZS 60898 at 230 VAC: 6 kA
Rated short-circuit breaking capacity Icn according to AS/NZS 60898 at 400 VAC: 6 kA
Rated short-circuit breaking capacity Icu according to AS/NZS 60947-2 at 230 VAC: 6 kA
Max. rated operation voltage Ue: 250 V
Rated insulation voltage Ui: 440 V
Rated impulse withstand voltage Uimp: 6 kV
