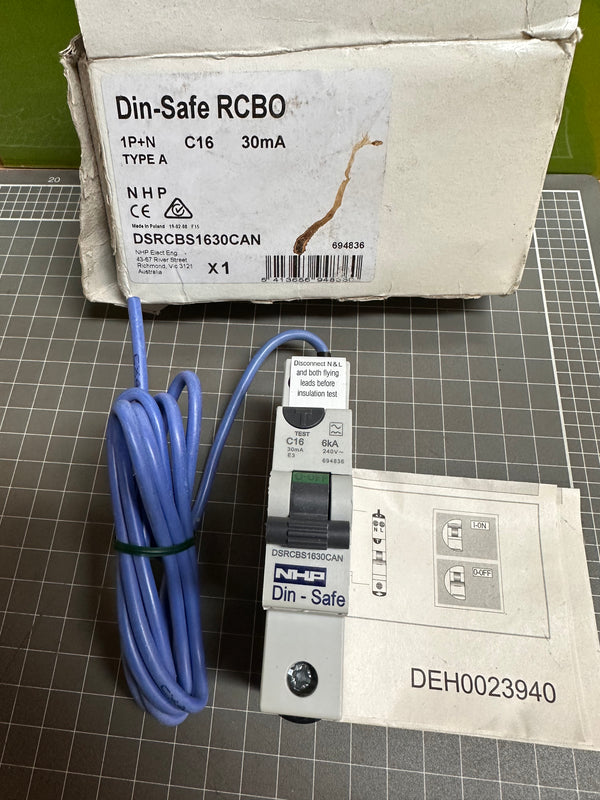

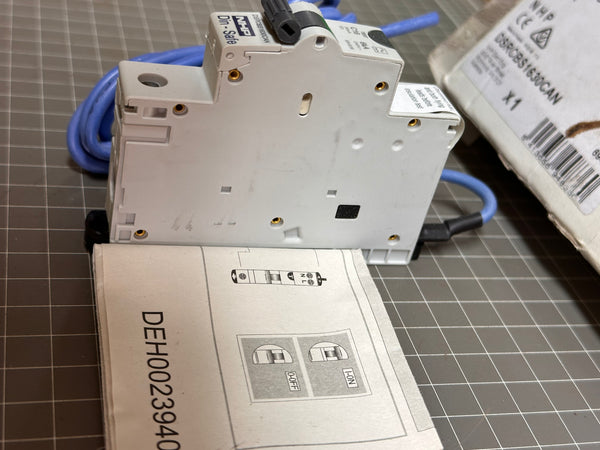

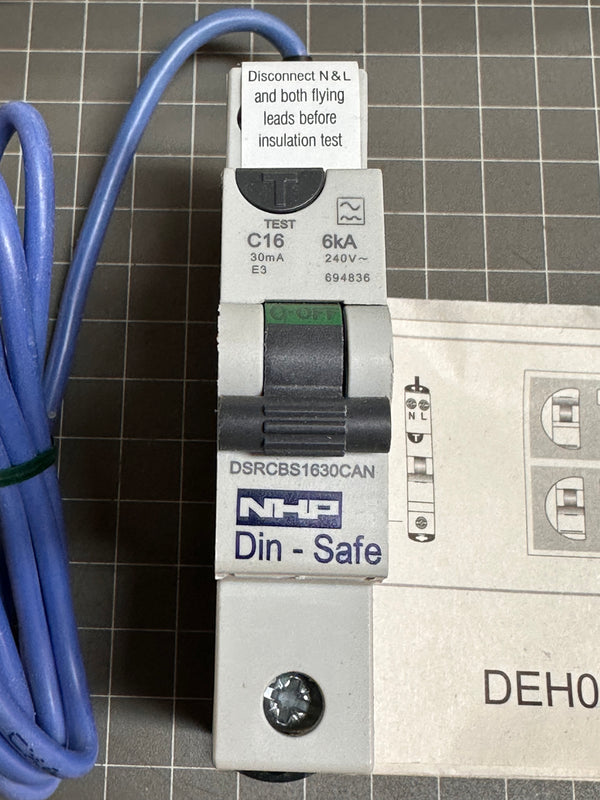

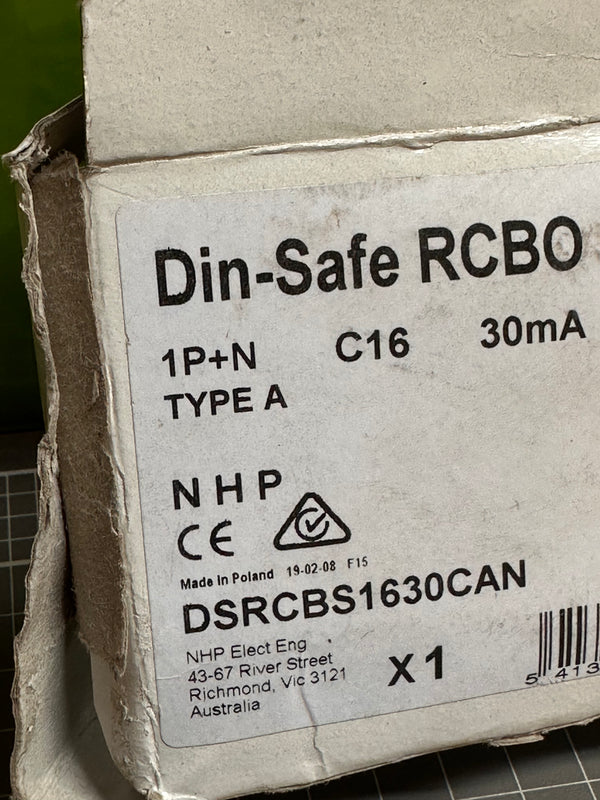

NHP DSRCBS1630CAN Din-Safe RCBO, 16A

Rated current 16 A
Rated voltage 240 V
Rated leakage current 30 mA
Frequency 50/60 Hz
Rated short-circuit breaking capacity
according to AS/NZS 61009 6 kA
Voltage type AC
Trip curve C
Rated impulse withstand voltage Uimp 6 kV
Leakage current type A
Tripping time 40 ms
Min. service voltage 195 V
Max. operating voltage (Umax) 255 V
Rated residual make/break capacity 6000 A
Protected neutral pole No
Number of poles (total) 2
Electrical life at Un, In (service cycles) 10000 cycles
Type of electric connection Fork and pin
Isolator application Yes
Rated insulation voltage Ui 440 V
Concurrently switching neutral conductor YesNHP Din-T - RCBO - Dinsafe - 6KA 1P+N 16A C Curve - 30MA - Type A S/Neut Pigtail - 80 mm x 40 mm x 138 mm
