NASON

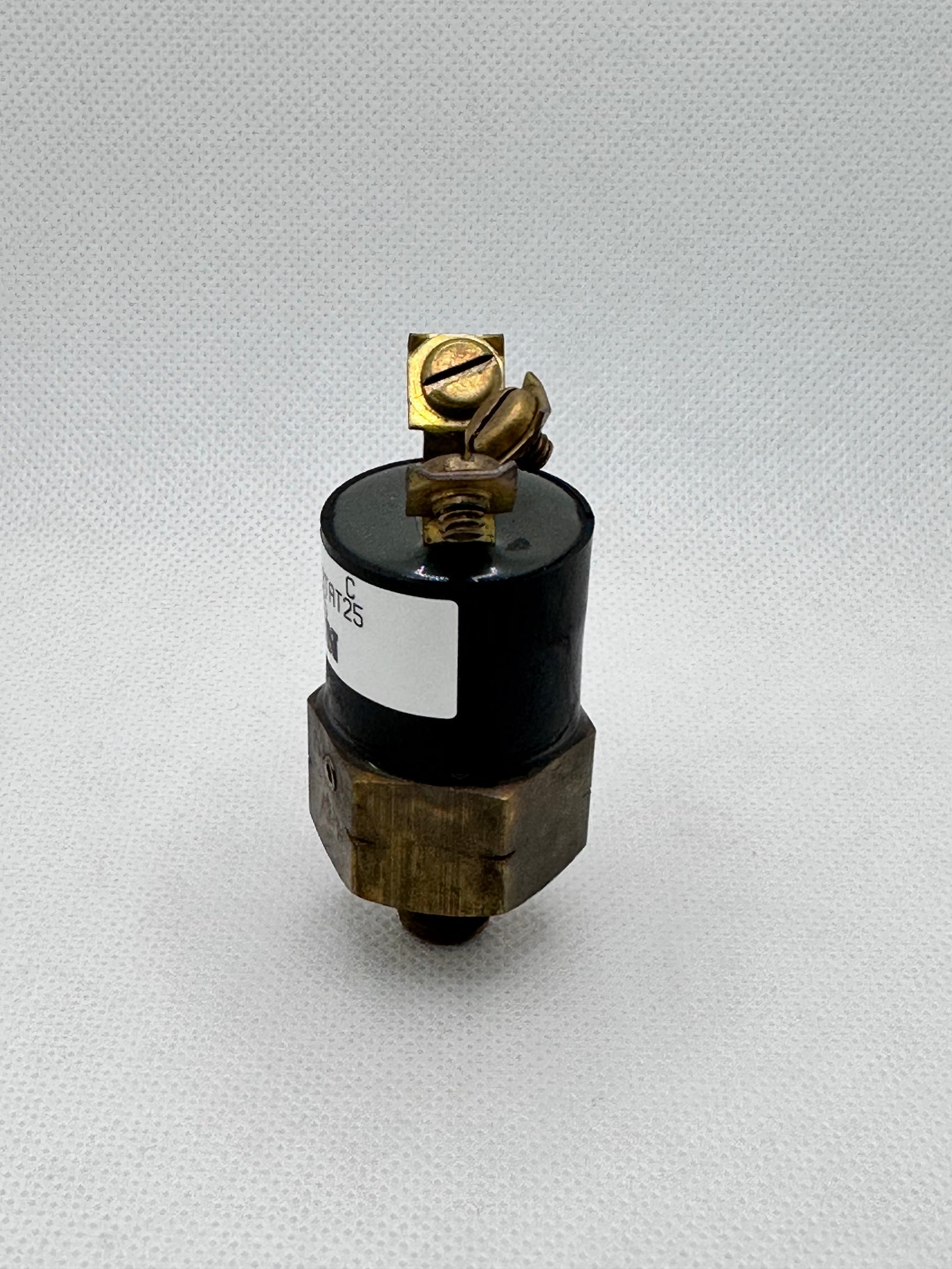

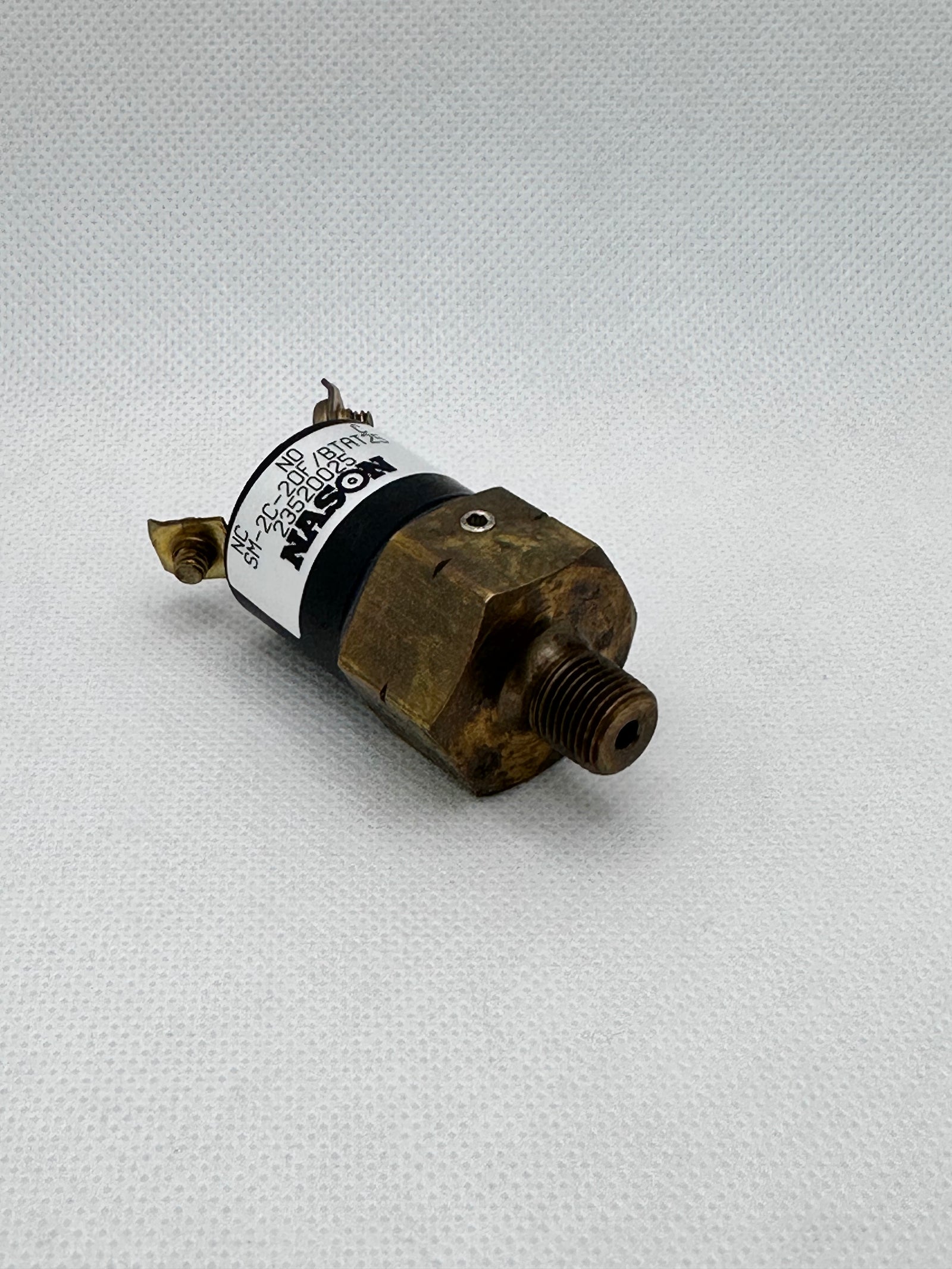

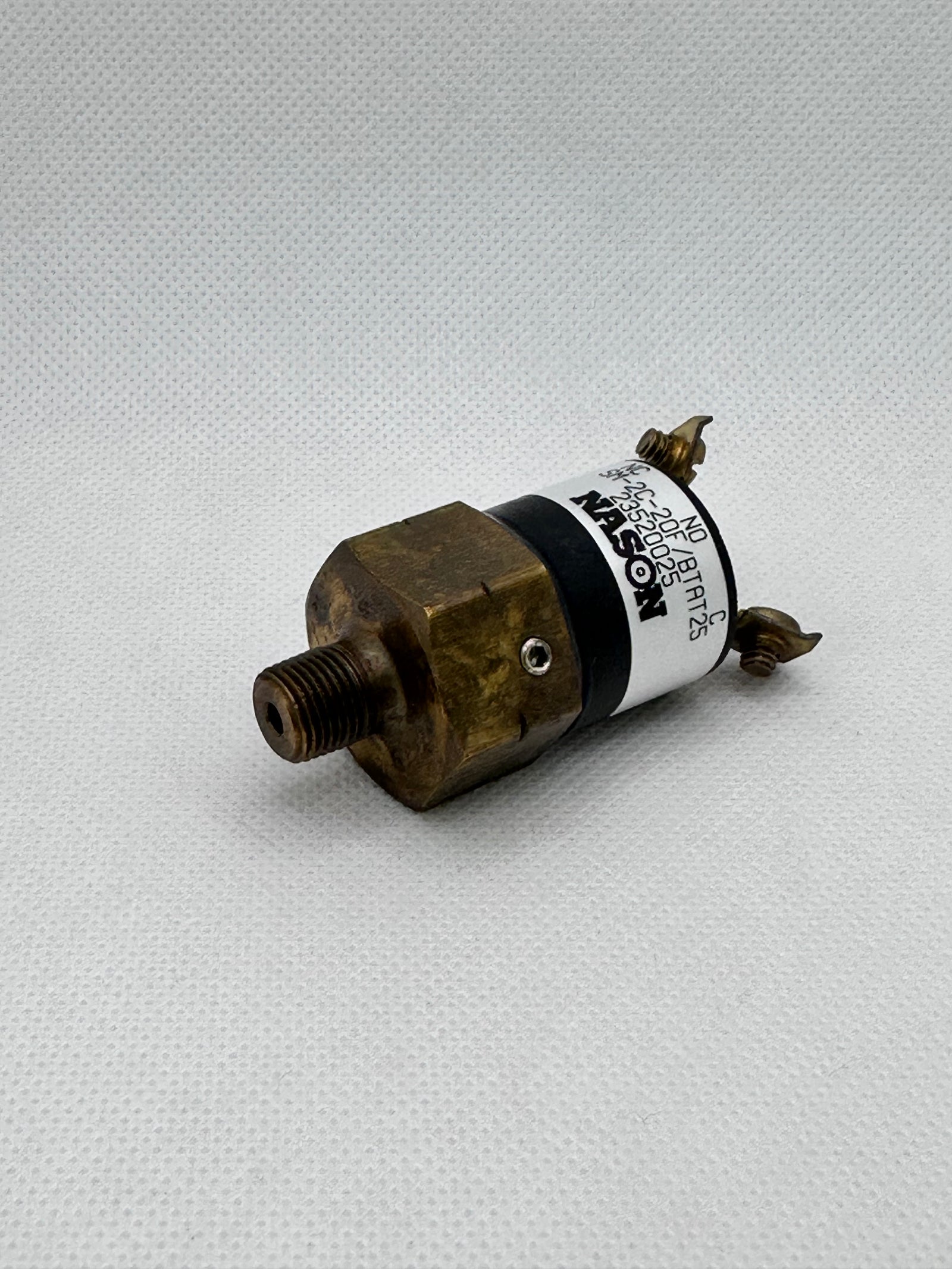

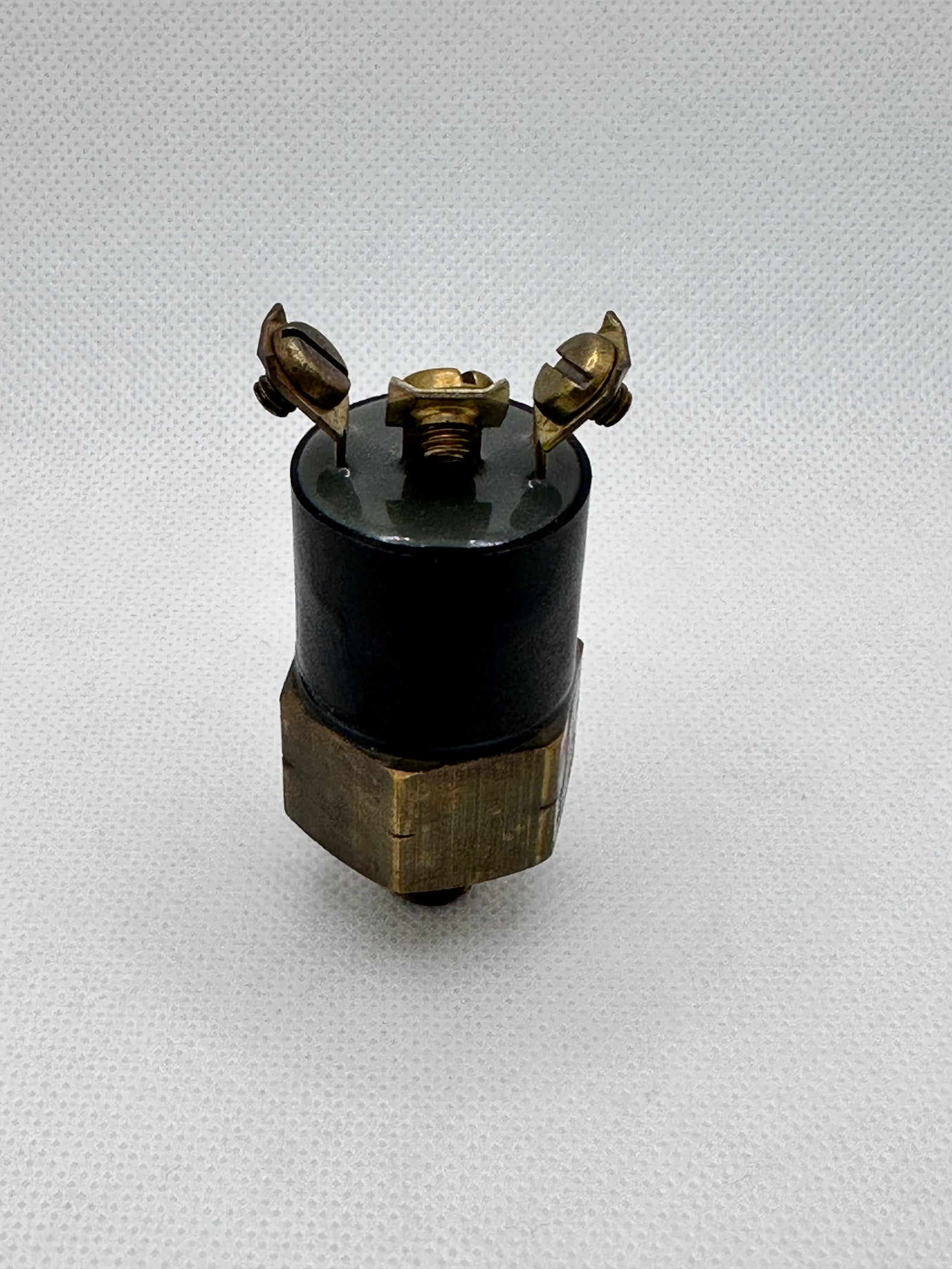

Nason SM-2C-020F / 23520025 Pressure Switch — 20 PSI
- SKU
- P-NA-N-7188
- Weight
- 1.0 kg
Specifications
| Manufacturer | NASON |
|---|---|
| Product type | AUTO ELECTRICAL |
| SKU | P-NA-N-7188 |
| Weight | 1.0 kg |
Description
Nason pressure switch, recorded in the title as SM-2C-020F / 23520025 and 20psi Close.
Recorded specifications
- Low-pressure switch for fuel/oil pressure
- Pressure entry: 20 PSI
- Contact configuration: SPDT
- Source summary connection: 1/8NPTF
- Detailed source media connection: 1/8 INCH -27 NPT MALE MEDIA CONNECTION
- Electrical connection: 1/4 INCH MALE SPADE QUICK CONNECT
Reference and configuration checks

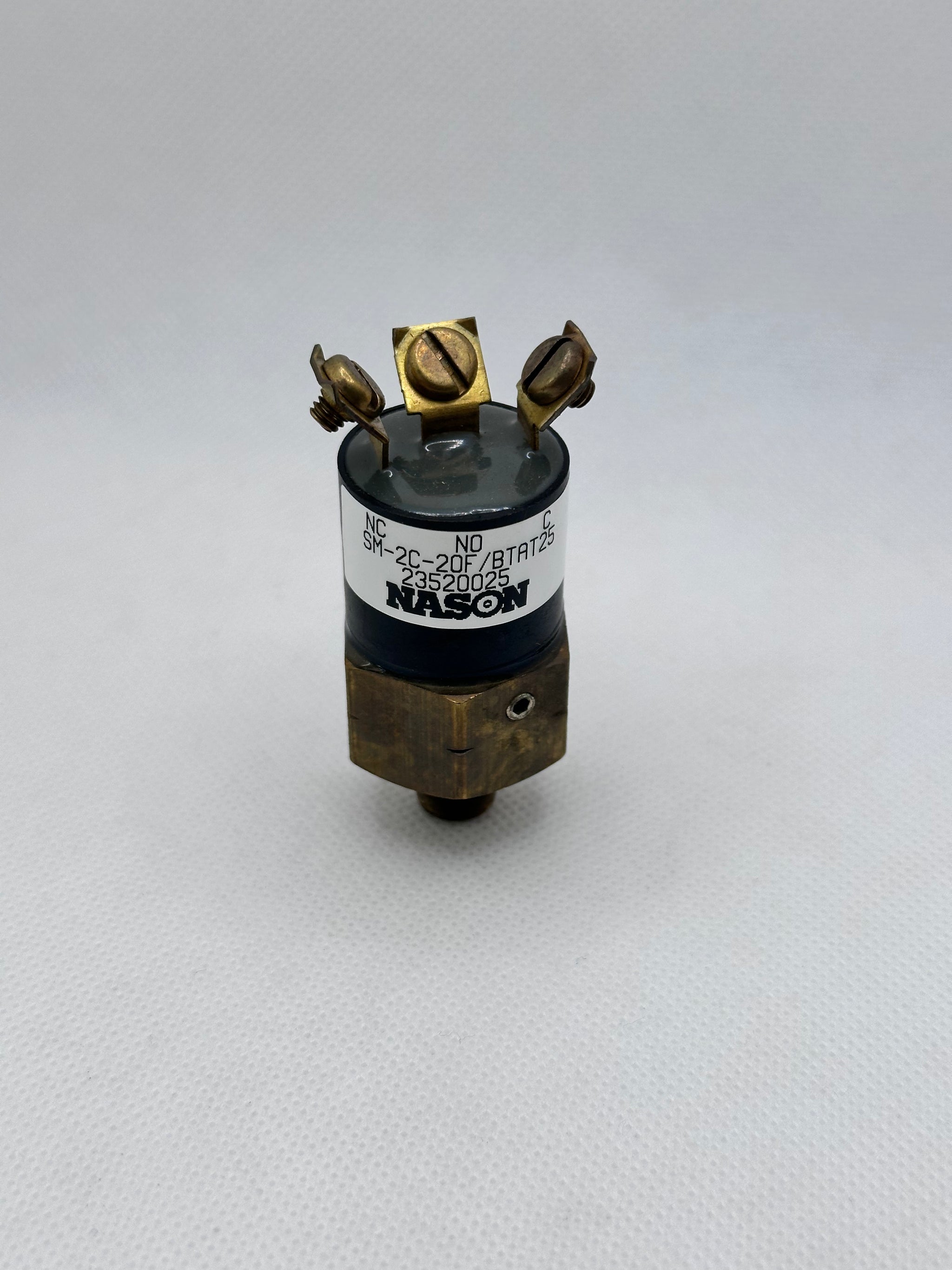

The description records 23520025 SM-2C-20F SM2C20F BTAT25. An original combined tag records 23520025 SM-2C-20F SM2C20F BTAT236. Other source references are 08923911, C07645 and SUA79003, with a Detroit Diesel application tag but no specific engine model.
Confirm the actual label, reference relationships, media thread and switching sequence with MIS before purchase. SM-2C-020F and SM-2C-20F, and BTAT25 and BTAT236, have not been silently reconciled. NPTF has not been interpreted as female. The title's Close wording does not identify the switched terminal pair or rising/falling-pressure behaviour. No voltage/current rating or universal fluid compatibility is specified.
