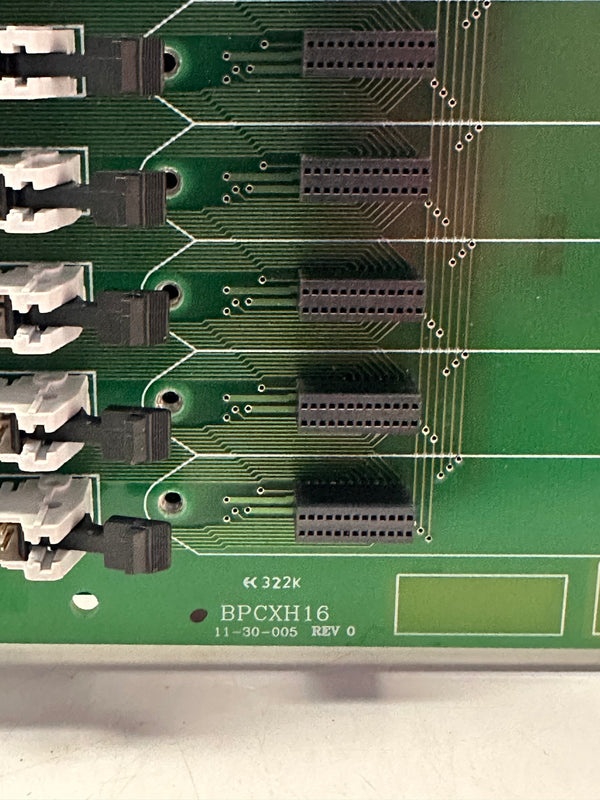

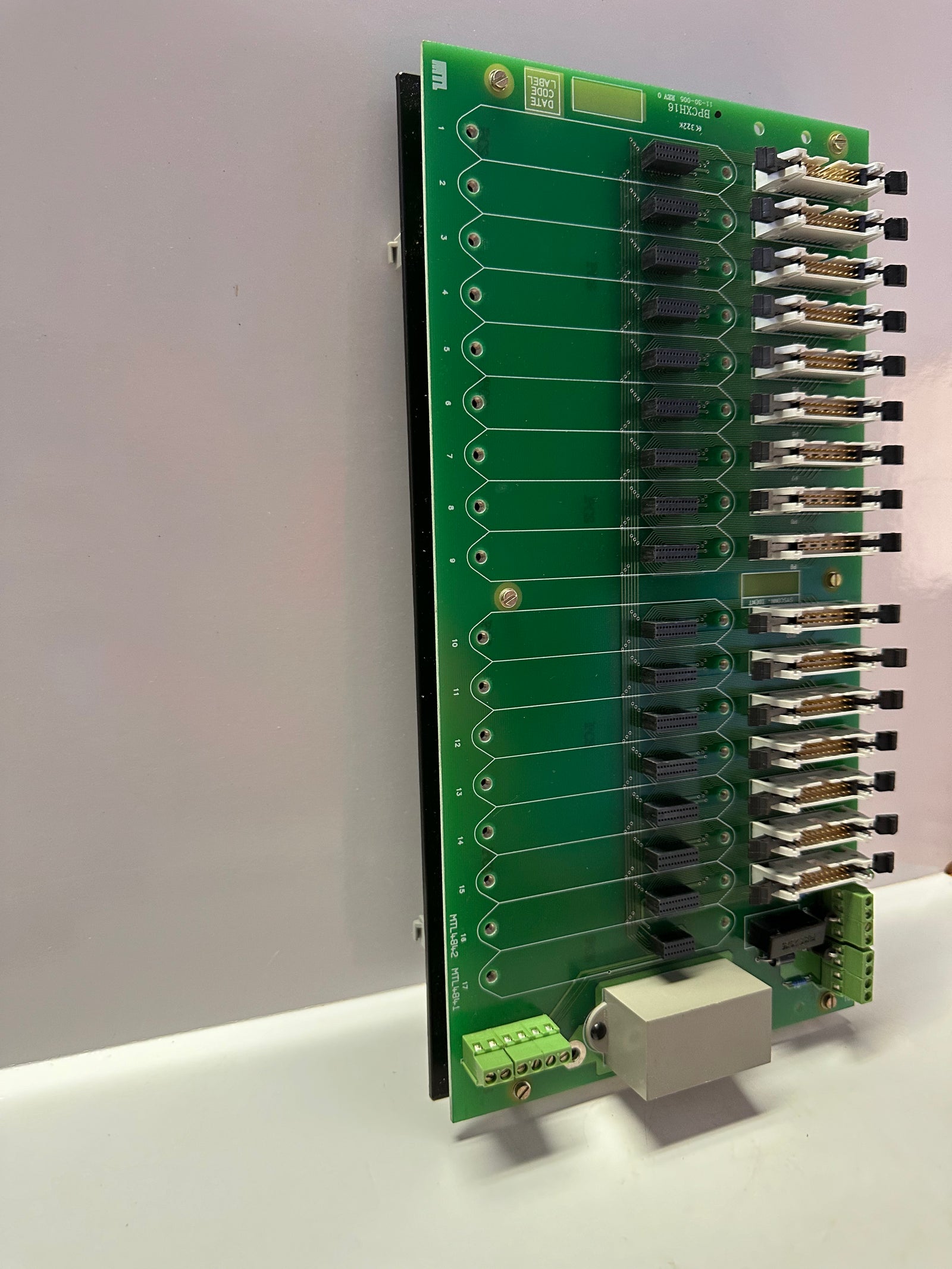

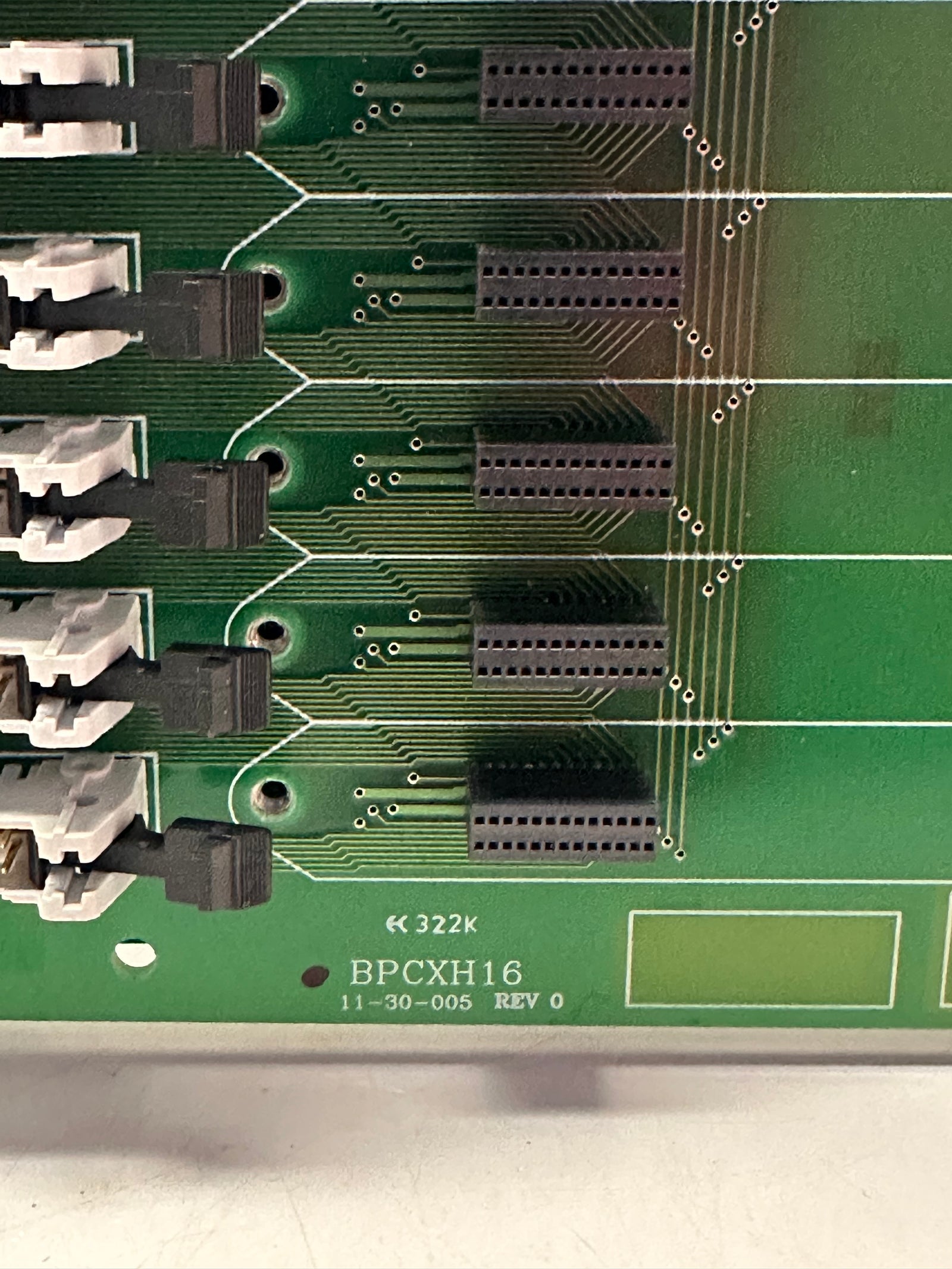

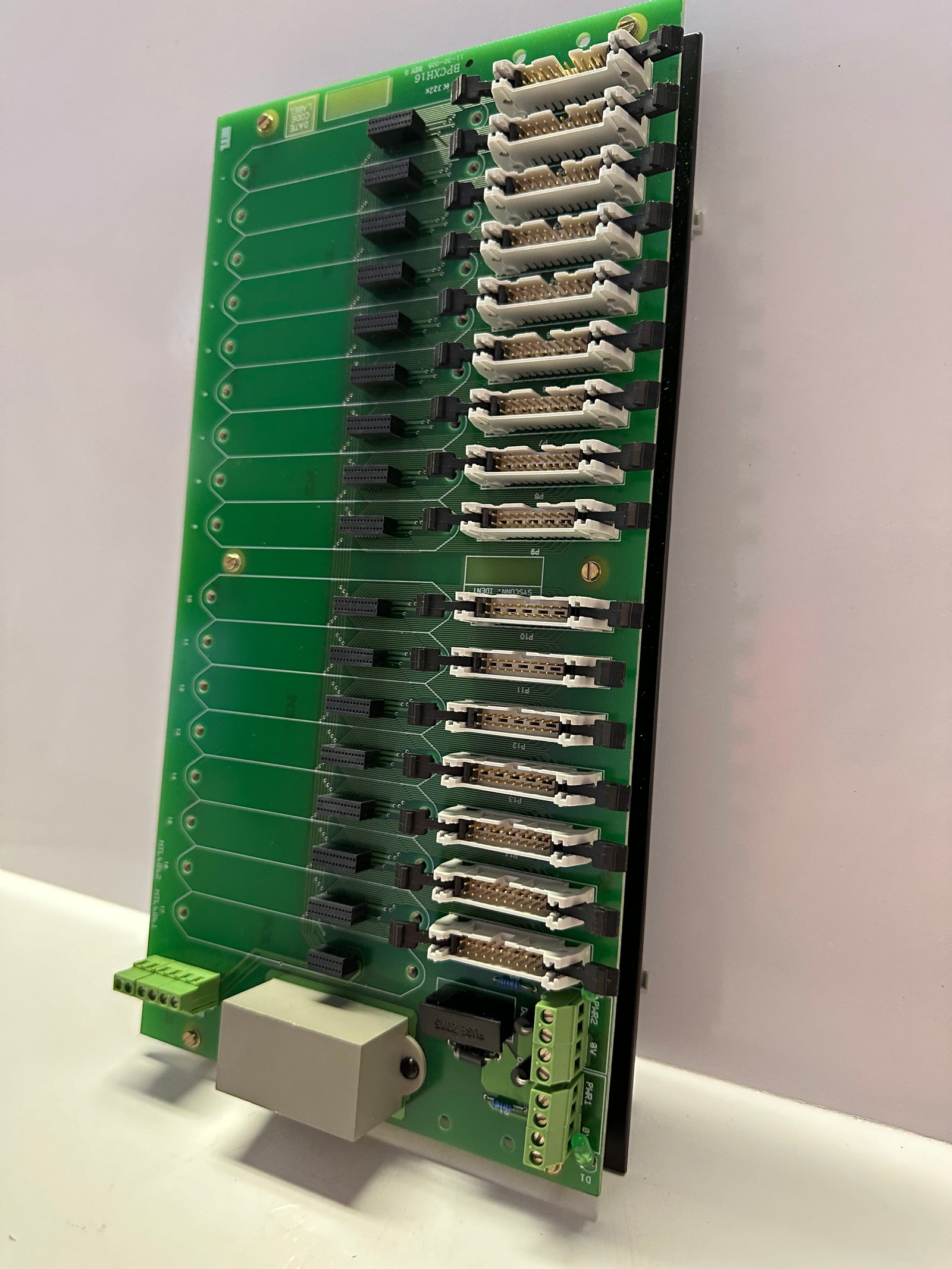

MTL BPCXH16 4000 Series Backplane

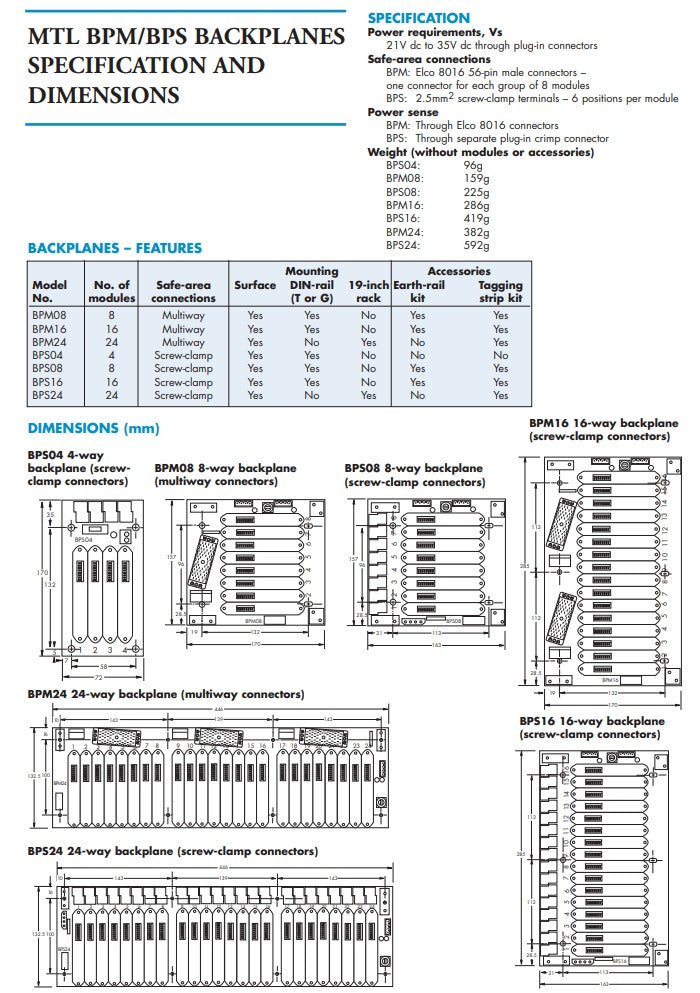

SPECIFICATION Power requirements, Vs 21V dc to 35V dc through plug-in connectors Safe-area connections BPM: Elco 8016 56-pin male connectors – one connector for each group of 8 modules BPS: 2.5mm2 screw-clamp terminals – 6 positions per module Power sense BPM: Through Elco 8016 connectors BPS: Through separate plug-in crimp connector.
