EATON

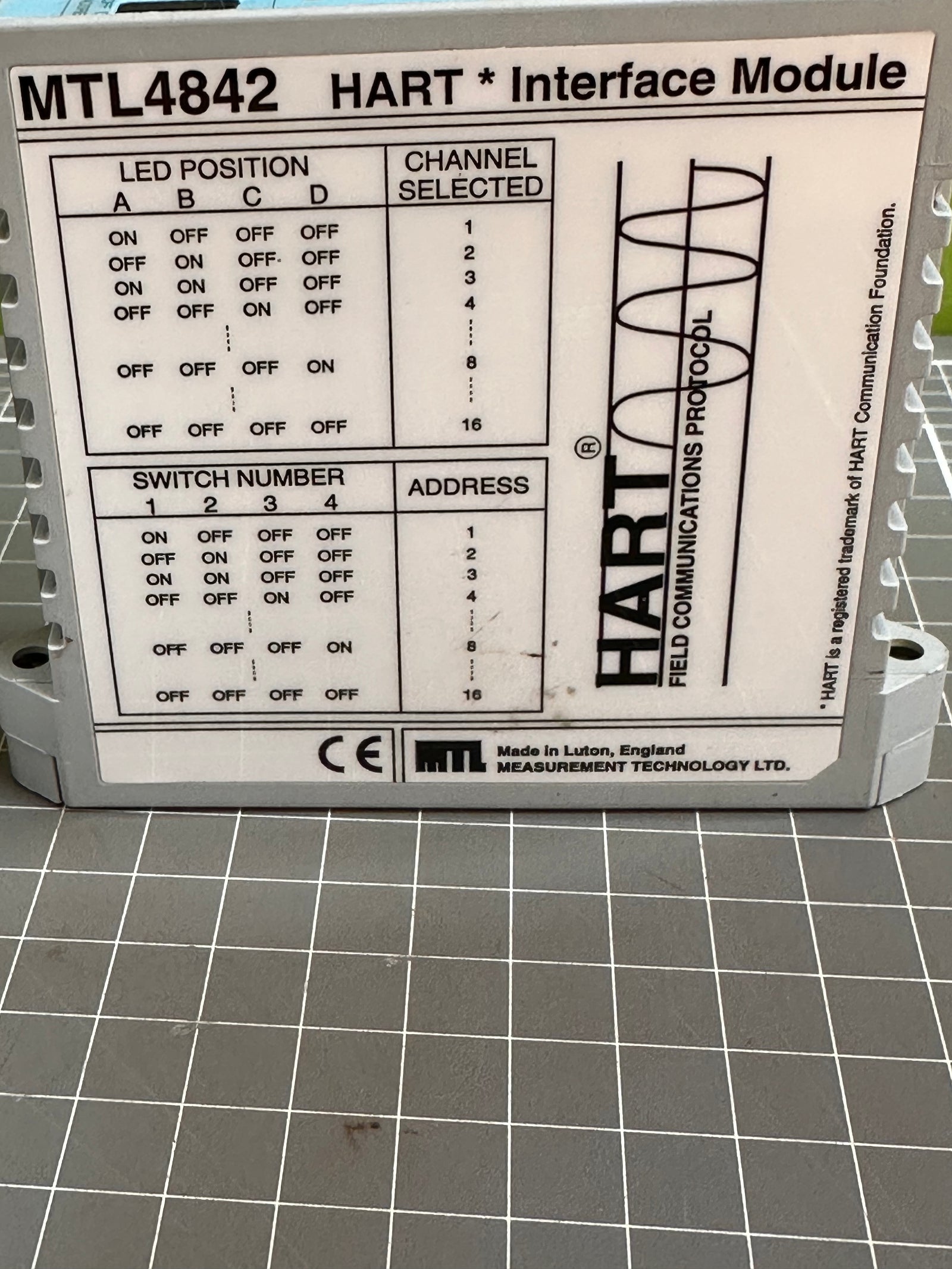

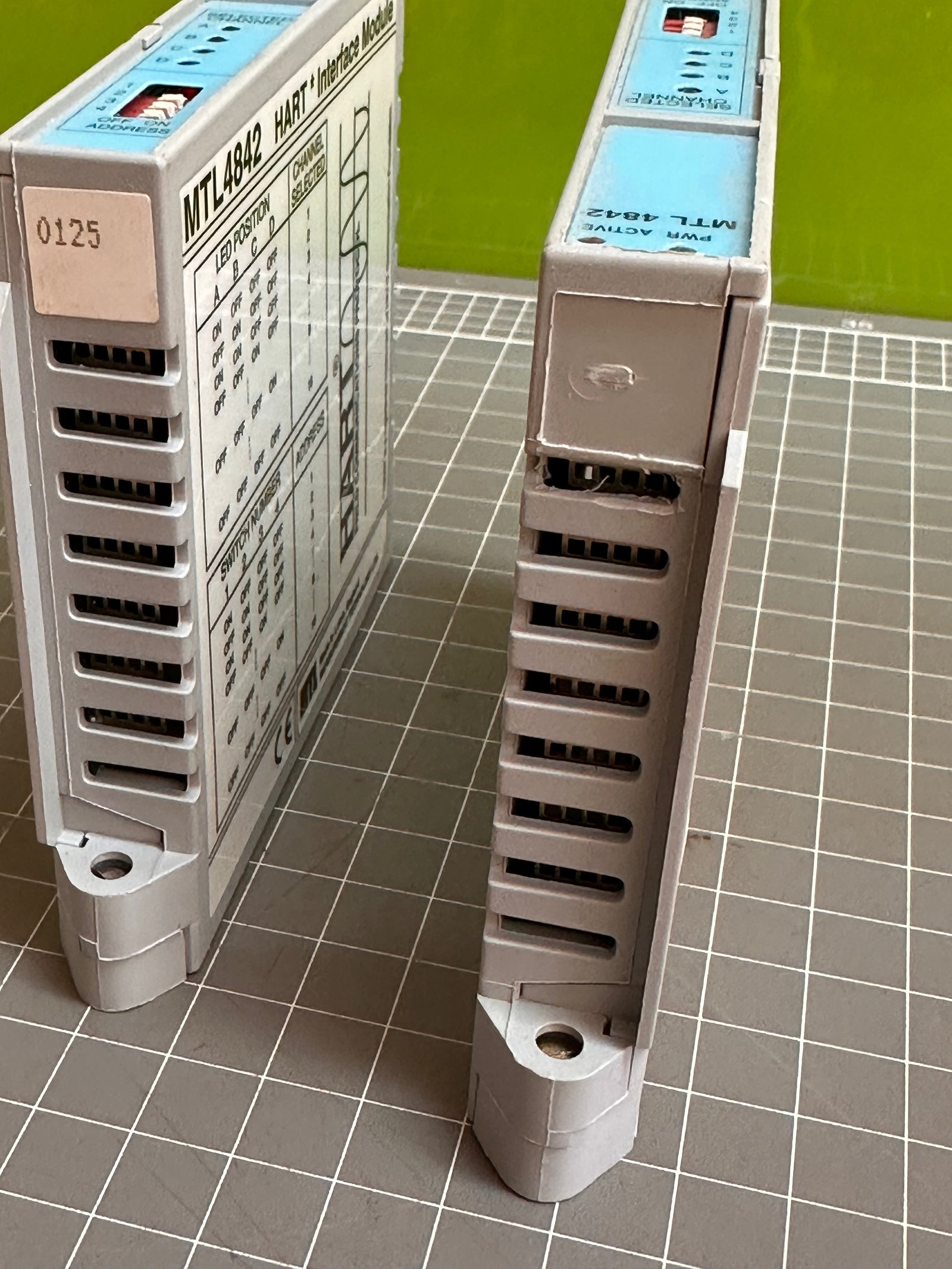

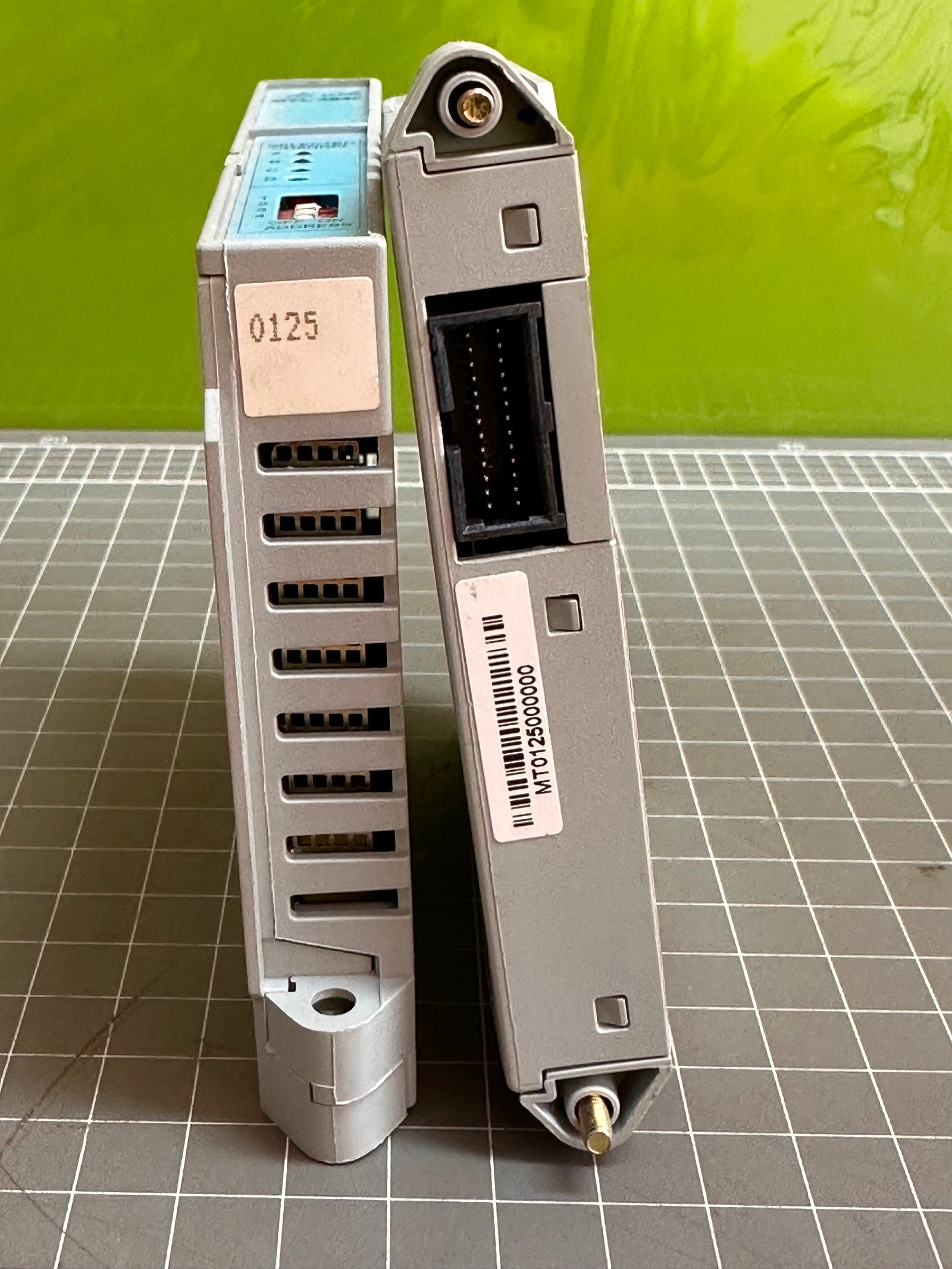

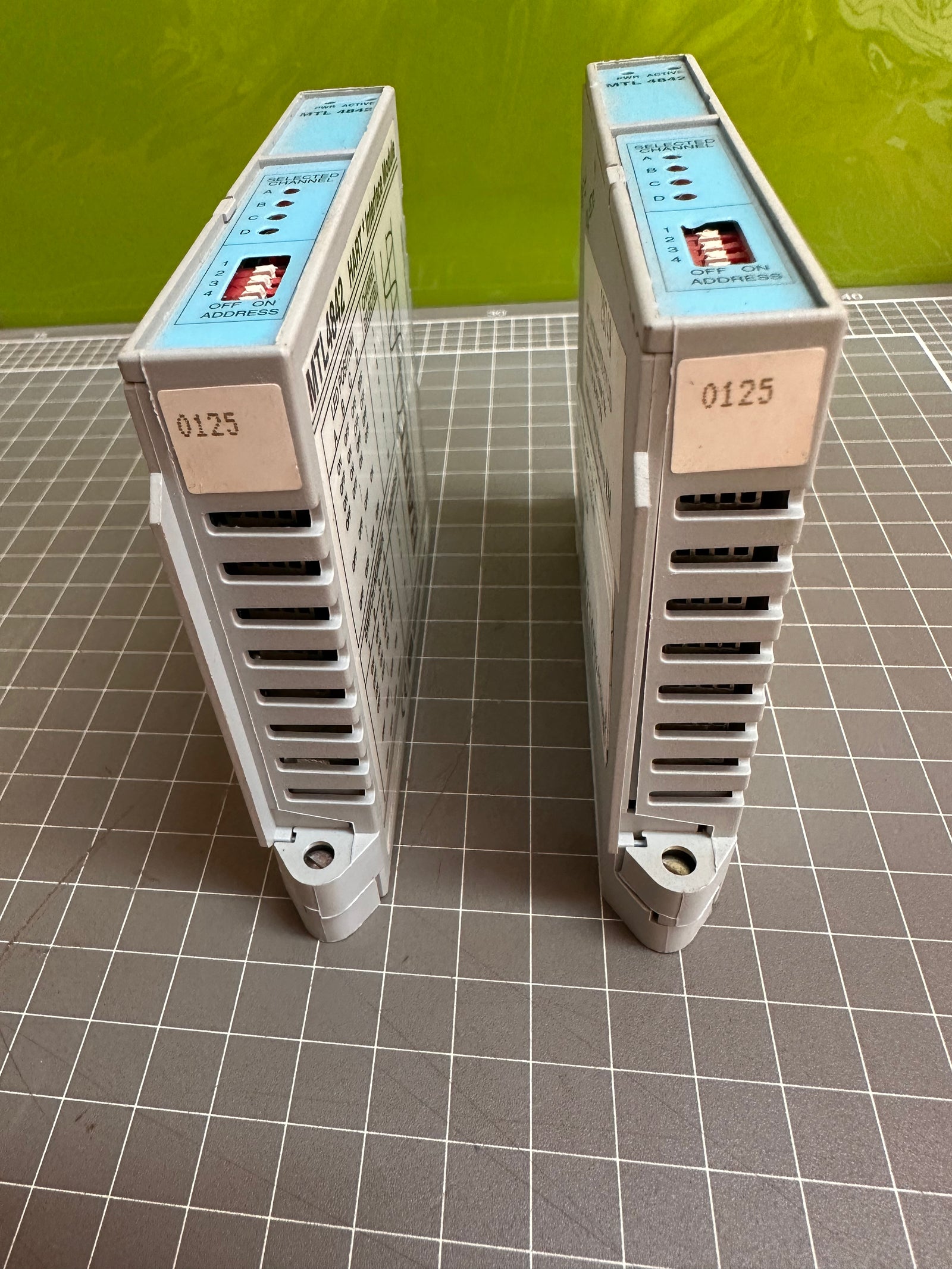

MTL 4842 HART* Interface Module
- SKU
- P-MT-M-2723
$125.00
Price includes GST.
Low stock: 2 left
Warehouse pickup available
- Weight
- 0.3 kg
Specifications
| Manufacturer | EATON |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-MT-M-2723 |
| Weight | 0.3 kg |
Description
-
MTL systems interface : Links up to 16 loops via backplanes Receives multiplexer control signals via interface bus from MTL4841 and selects one channel for communication
-
Unit address : Switch selectable on top of module
-
Interface bus : Total length of interface bus between module 1 and module 16 must not exceed 4m
-

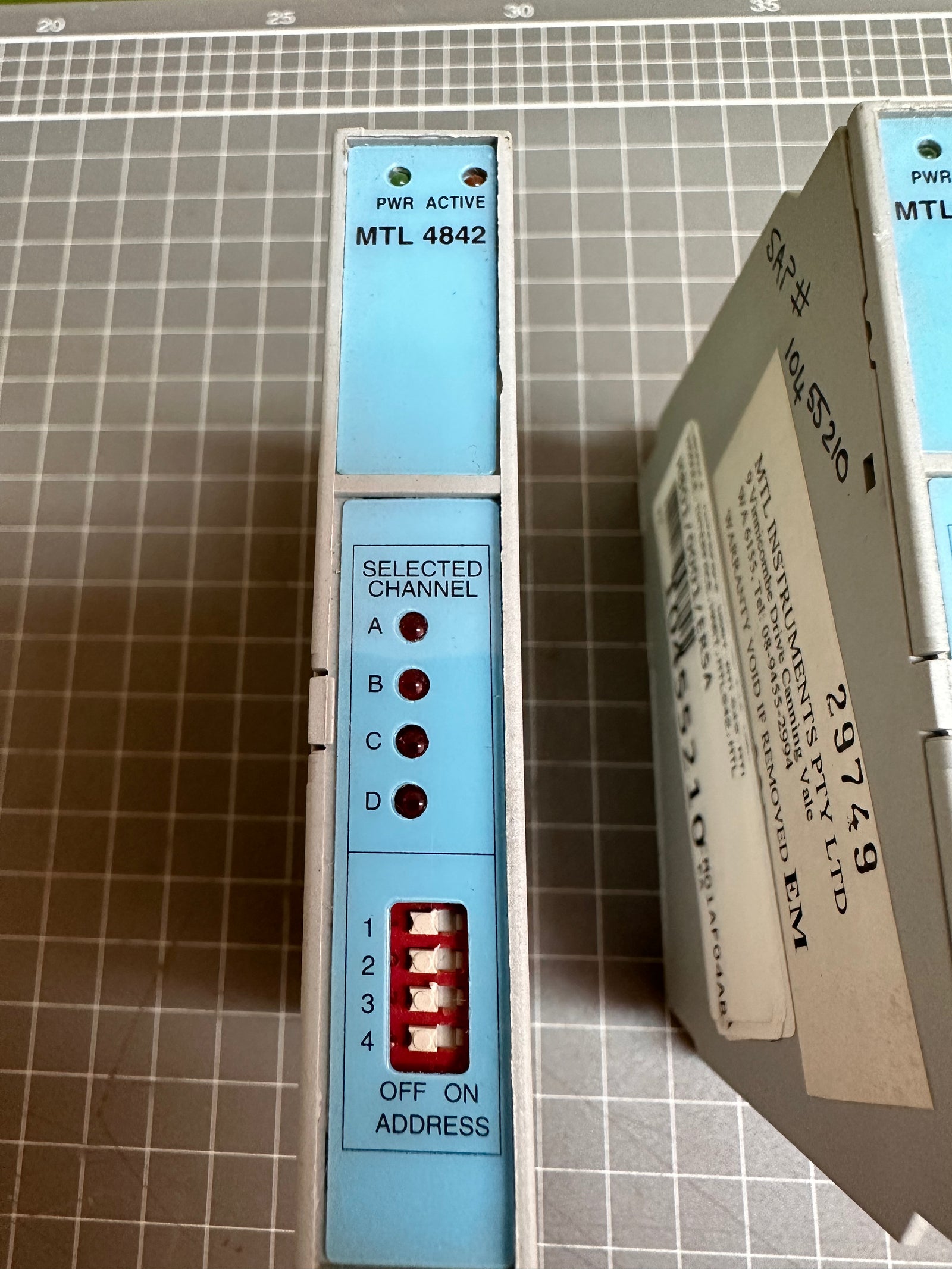

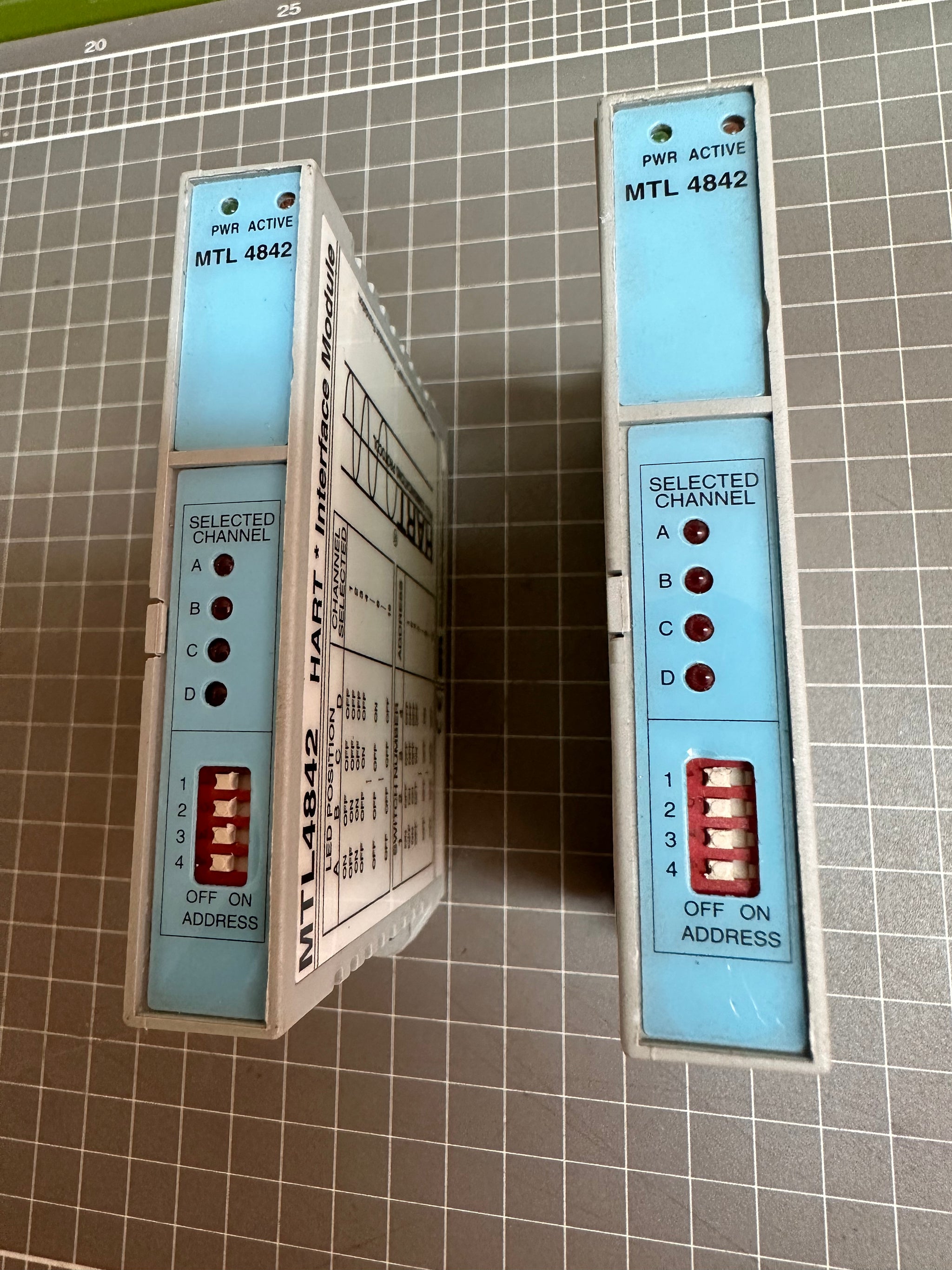

LED indicators Green : one provided for power, Amber: one to indicate unit is selected by MTL4841, Red: four to identify loop address
-
Power requirements : Powered from backplane
-
Power consumption : <0.1W
