MAXOS
Schott Maxos Size 7 Fluid Level Sight Glass – 280 × 34 × 17 mm
- SKU
- P-MA-M-7287
$65.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 3.5 kg
Specifications
| Manufacturer | MAXOS |
|---|---|
| Product type | INDUSTRIAL SUPPLIES |
| SKU | P-MA-M-7287 |
| Weight | 3.5 kg |
Description

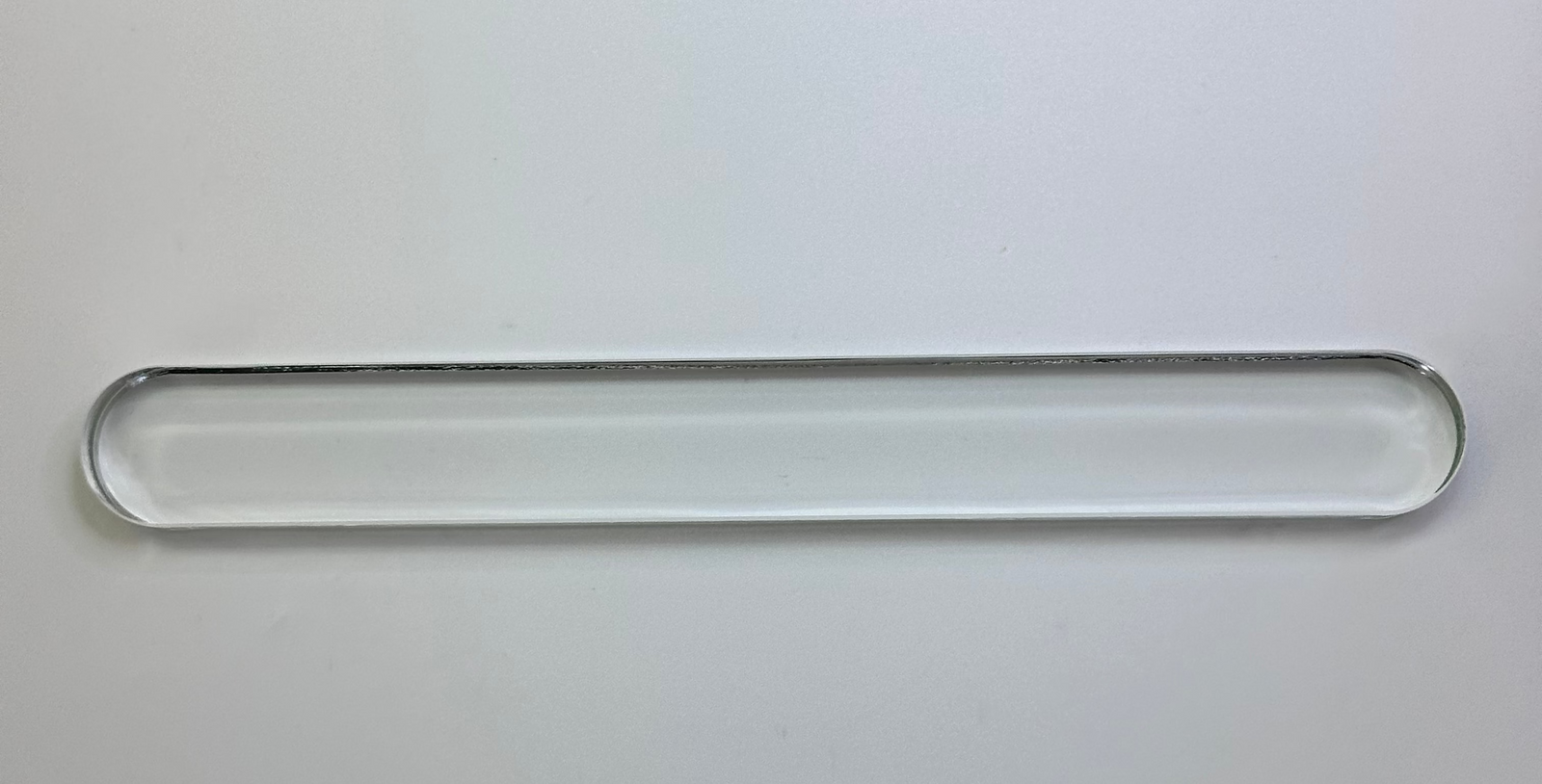

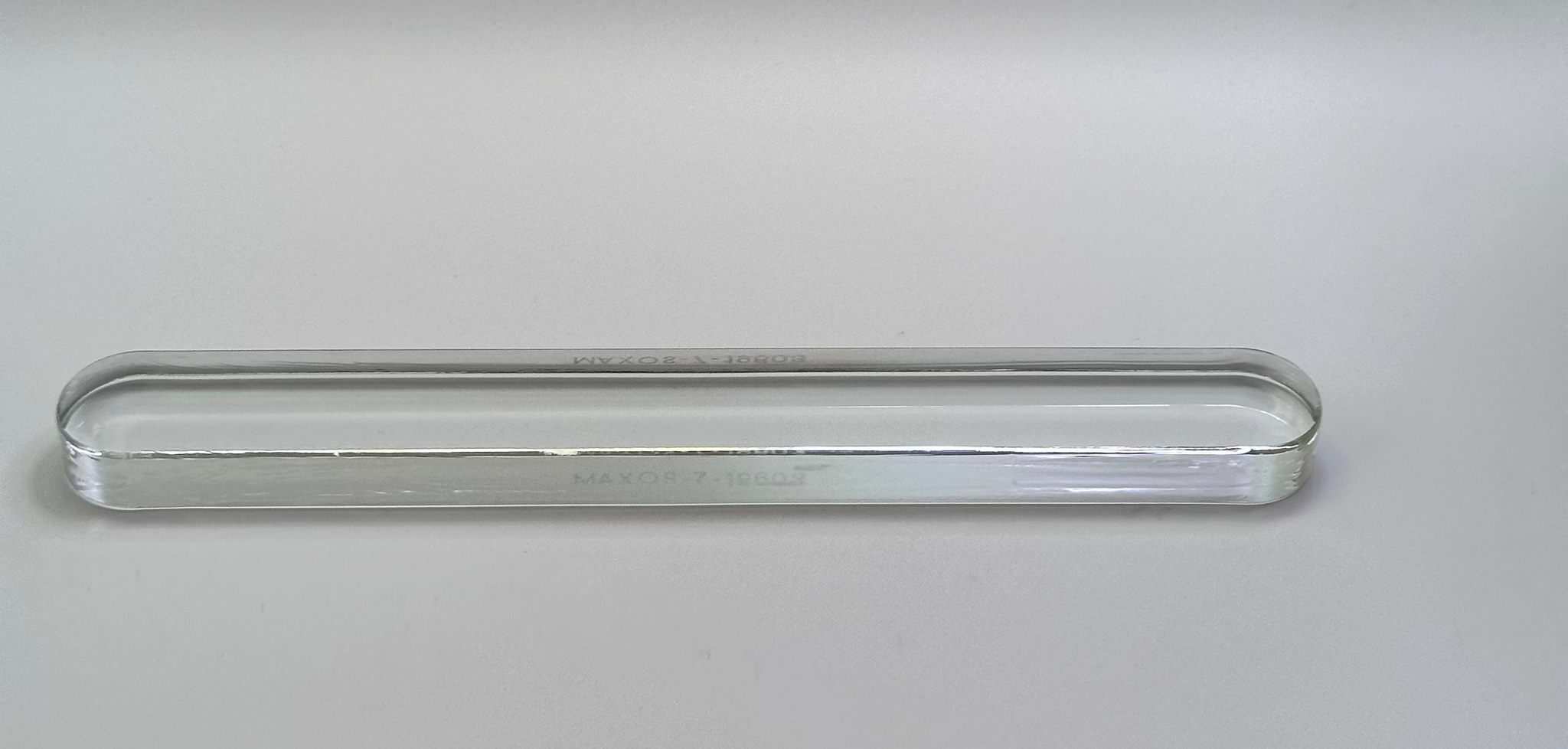

Schott Maxos Size 7 borosilicate fluid-level sight glass, measuring 280 × 34 × 17 mm. This listing is for the glass component, not a complete level gauge or pressure-rated assembly.
Recorded details
- Brand recorded: Maxos; Schott appears in the source title.
- Material: borosilicate glass.

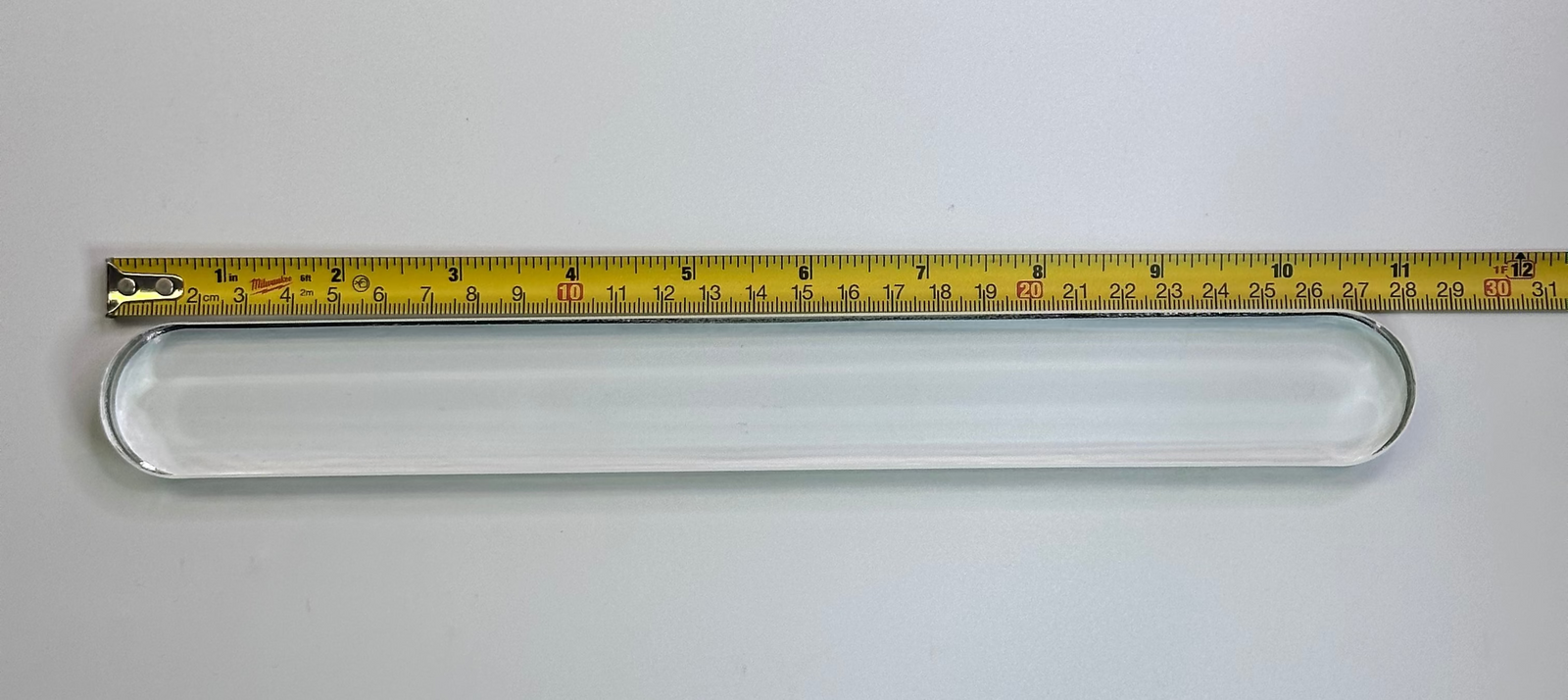

- Length: 280 mm; width: 34 mm; thickness: 17 mm.
- Recorded weight: 0.338 kg.
- Contents: 1 borosilicate glass.

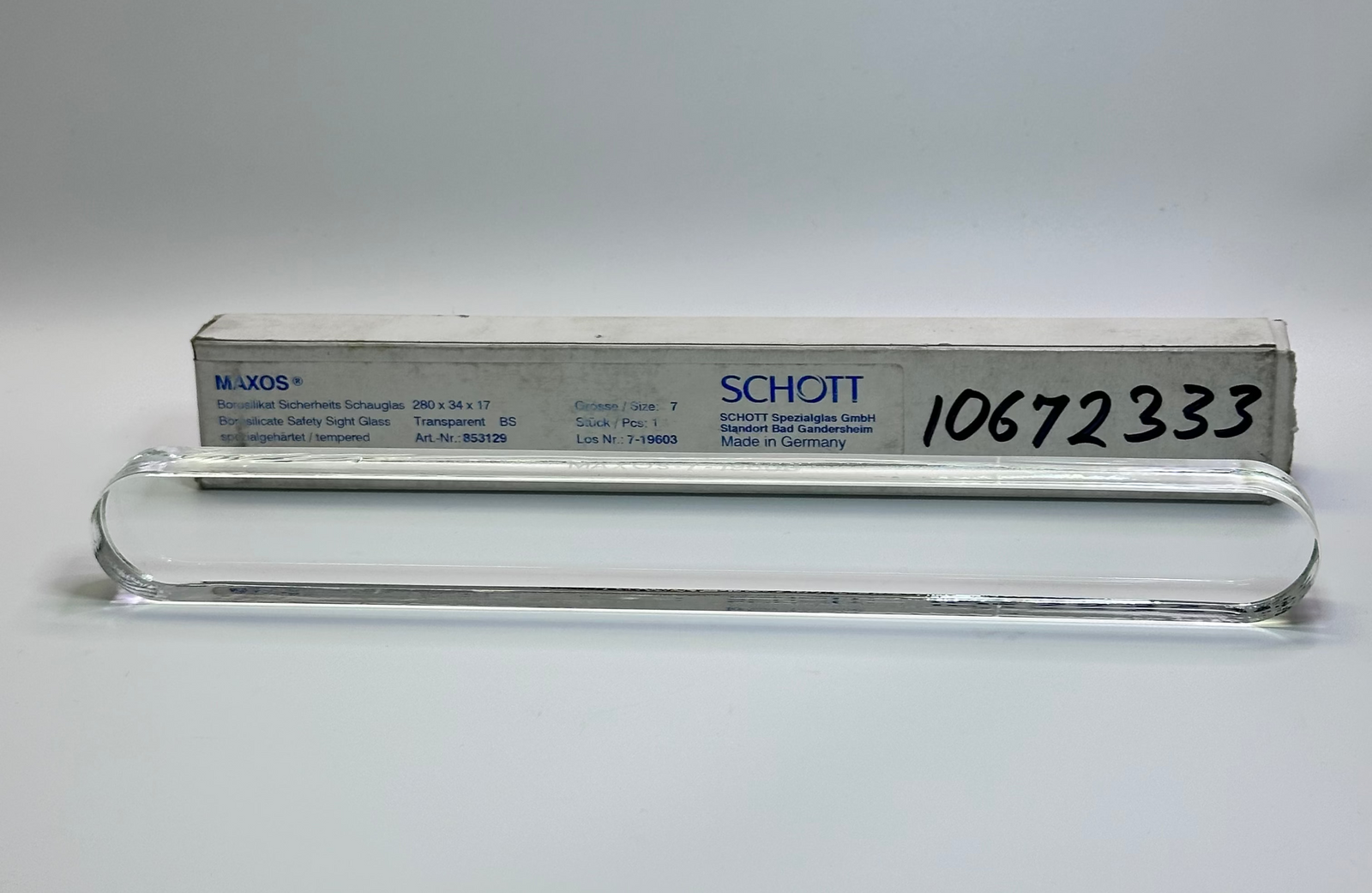

- Article number (Art-Nr.): 853129.

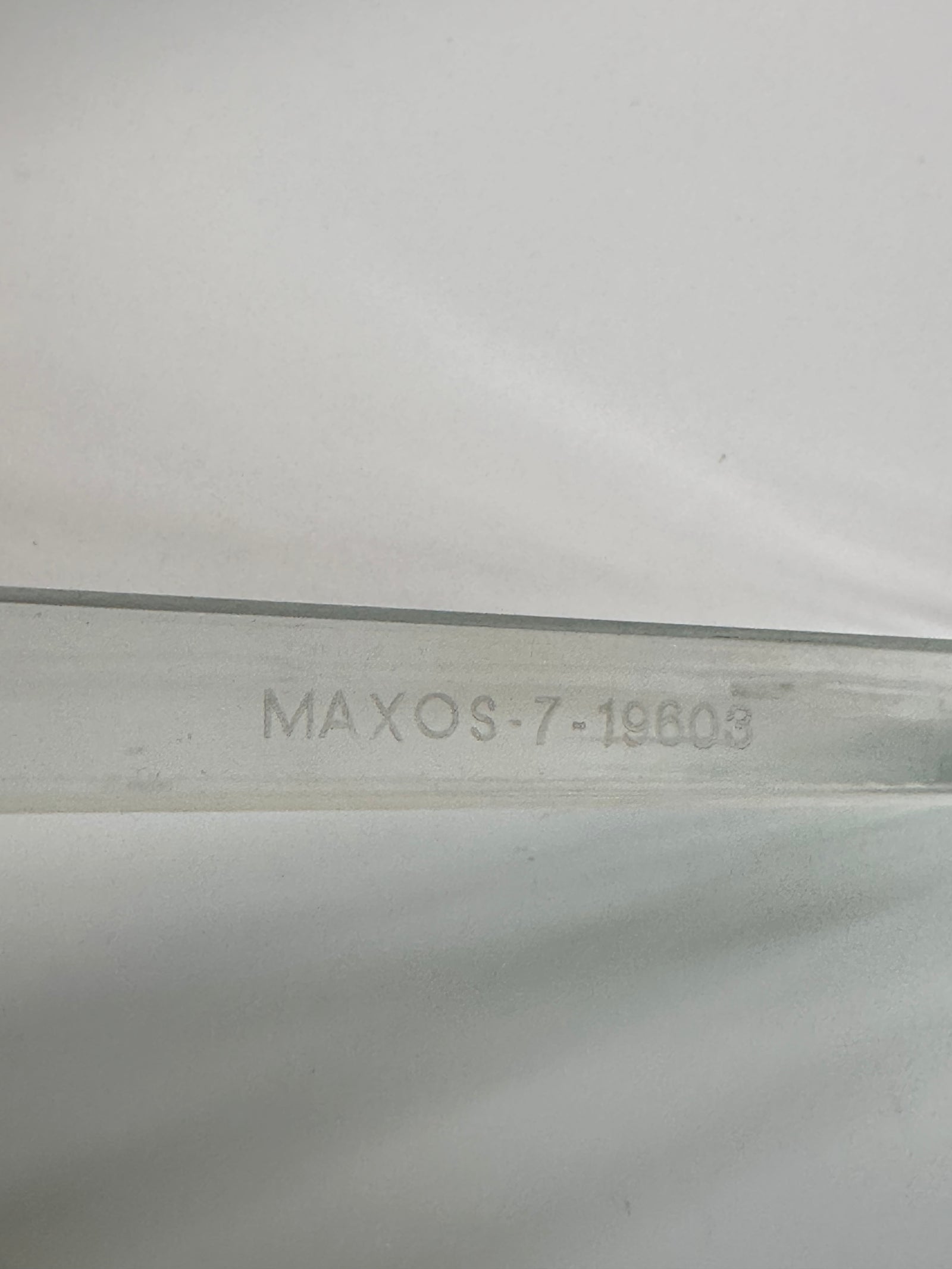

- Lot number (Los Nr.): 7-19603; the title also records MAXOS-7-19603.
- Size references: Size 7 and A7.
The original title describes high-pressure use but gives no working-pressure or temperature rating. Do not select it for pressure service on that description alone. Confirm the manufacturer specification, condition, compatible housing, seals and intended fluid/service conditions before ordering.
