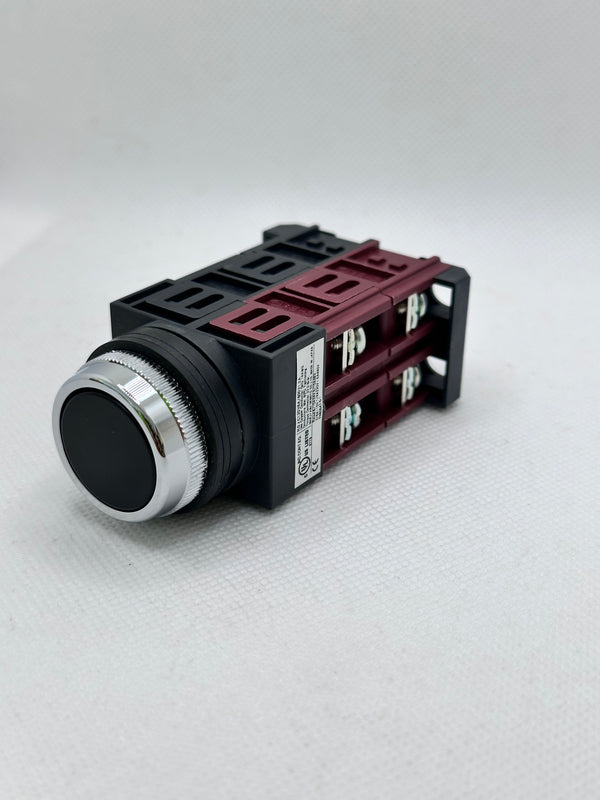

Shape: Flat type (metal ring)
Type: Non-illuminated type
Protection Class: IP65 oil-proof type

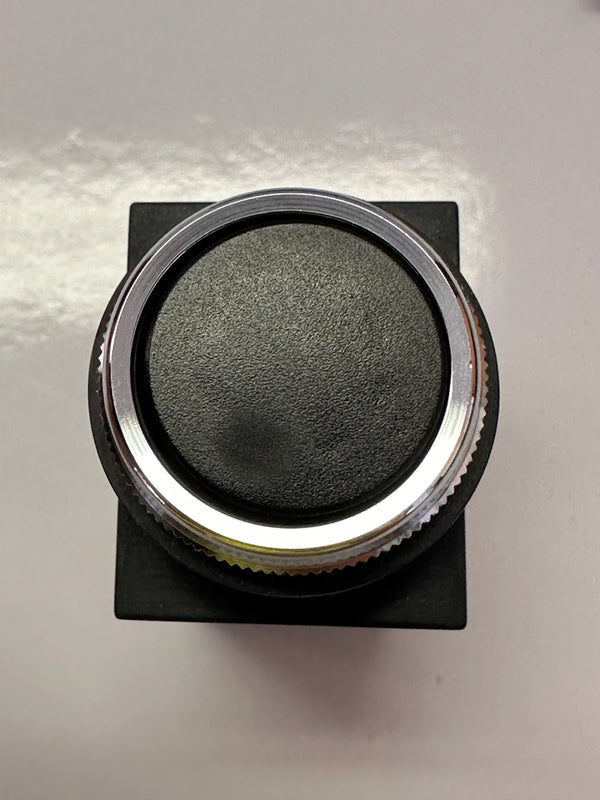

Button Shape: Round (flat)

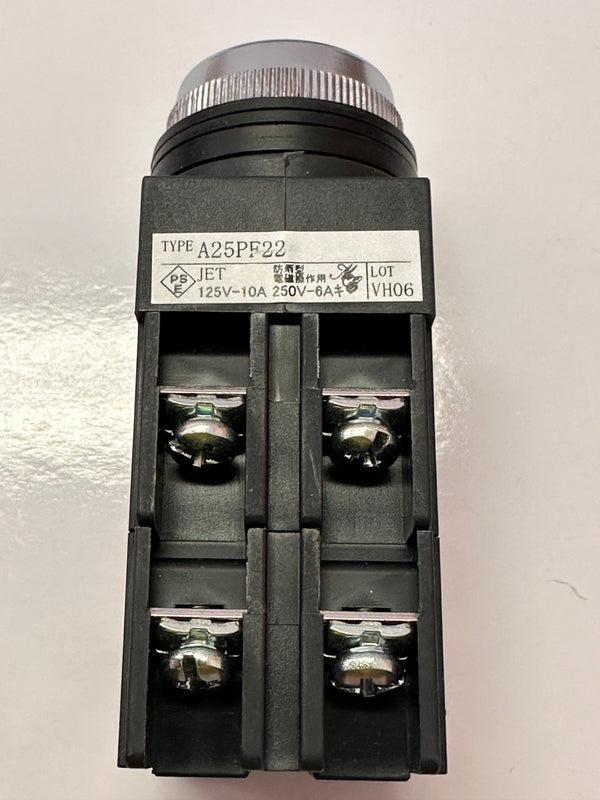

Terminal Shape: Screw terminal
Rated Insulation Voltage (V): AC/DC600
Type of Operation: Momentary
Temperature Rise: 40K or less
Insulation Resistance (MΩ): 100 or more (500V)
Relative Humidity: 45～85%
Operation Ambient Temperature (℃): -20～55
Mounting Hole Diameter (Φmm): 25.5(+0.5～0)
Contact Resistance (mΩ): 30 or less
Cold / Heat Resistant Temperature (℃): -40～70
Operating Force (N): Approx. 11 (Contact configuration 1a1b)
Mechanical Durability: 5 million times
Electrical Durability: 1 million times
Vibration Resistance (m/s 2): (Durability) 15
Rated Carrying Current (A): 10 (contact part)
Operating Frequency (operation/hour): 1800
RoHS directive (corresponding to 10 substances): Correspondence

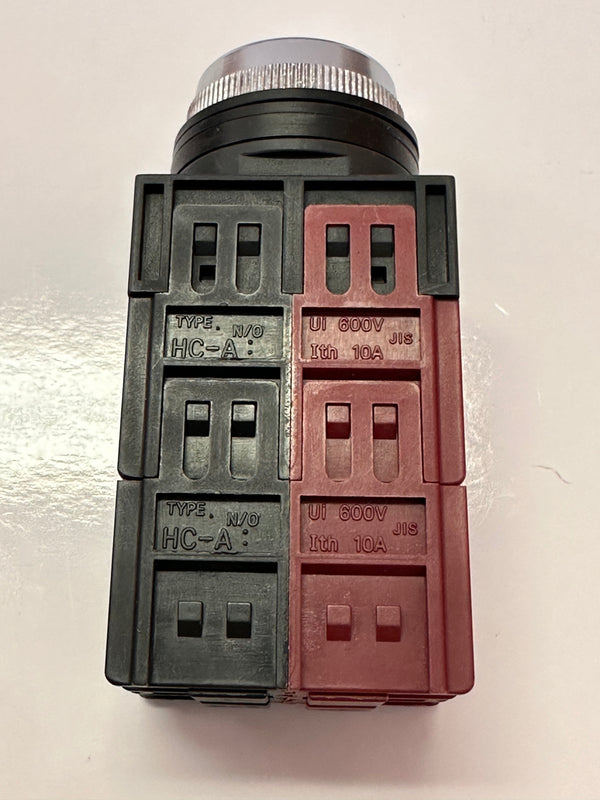

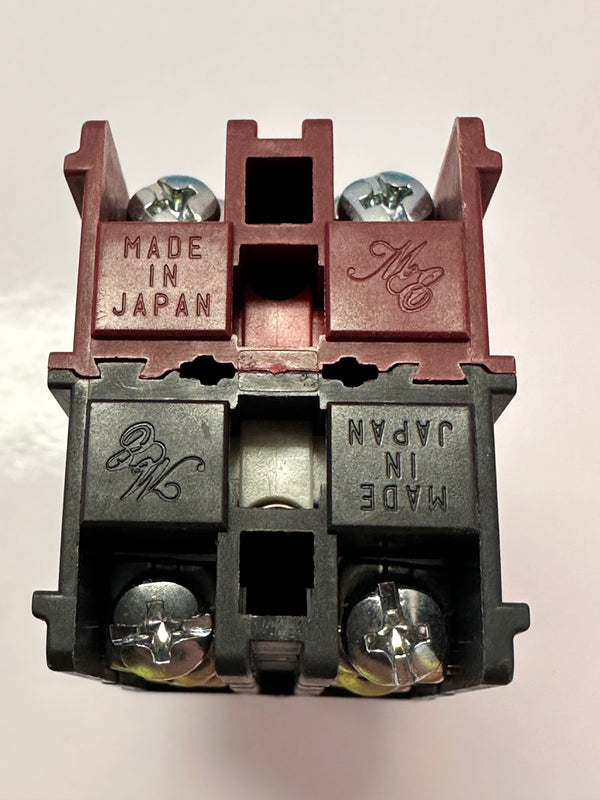

Contact unit: HC type (Can be mounted closely.)
Material (ring): Metal
Temperature resistance: 40 ° C 93% 96 hours
