Marechal 6164013 DSN6 Decontactor Socket — 63A, 3P+E, 380–440VAC
- SKU
- P-MA-M-1085
- Weight
- 2.0 kg
Specifications
| Manufacturer | MARECHAL |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-MA-M-1085 |
| Weight | 2.0 kg |
Description

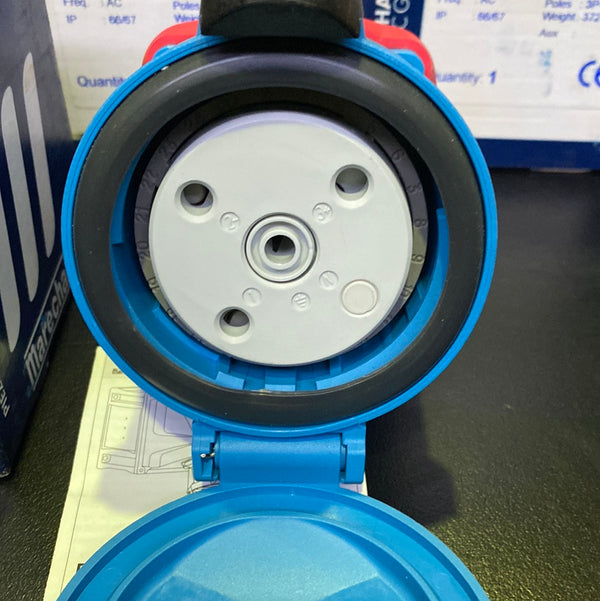

Marechal 6164013 DSN6 Decontactor socket outlet, 63A, three poles plus earth (3P+E), recorded 380–440VAC range. Blue polymer body with red colour-coded ring.
Additional recorded source references: 00267567 and 39121402; source tag also records 400V. CUTLER-HAMMER appears in the original tags but is not independently established as manufacturer or a compatible model.
The source table’s duplicated identical value columns have been consolidated below. “AC” is retained under its original frequency heading; no numerical frequency is supplied. Protection/CE entries are source specifications, not a new certification or a guarantee in every mating condition.
| RATED CURRENT (A) | 63 |
| PHASING | 3P+E |
| MIN. RATED VOLTAGE (V) | 380 |
| MAX. RATED VOLTAGE (V) | 440 |
| IP RATING | IP66/67/69 |
| RATED VOLTAGE (V) | 440 |
| FREQUENCY | AC |
| MARKING | CE |
| MATERIAL | POLY |
| PRODUCT COLOUR | BLUE |
| IK | IK09 |
| MIN. OPERATING TEMPERATURE (°C) | -40 |
| MAX. OPERATING TEMPERATURE (°C) | +60 |
| MIN. FLEXIBLE CONDUCTOR | 6MM2 |
| MAX. FLEXIBLE CONDUCTOR | 16MM2 |
| MIN. STRANDED CONDUCTOR | 10MM2 |
| MAX. STRANDED CONDUCTOR | 25MM2 |
| TYPE OF CONNECTION | TO SCREW |
| N° OF KEYING POSITION | 24 |
| NOTCHES | 01 |
| COLOUR-CODED RING | RED |
Confirm mating connector, keying and installation requirements. A mating plug is not listed as included.
