CUTLER-HAMMER

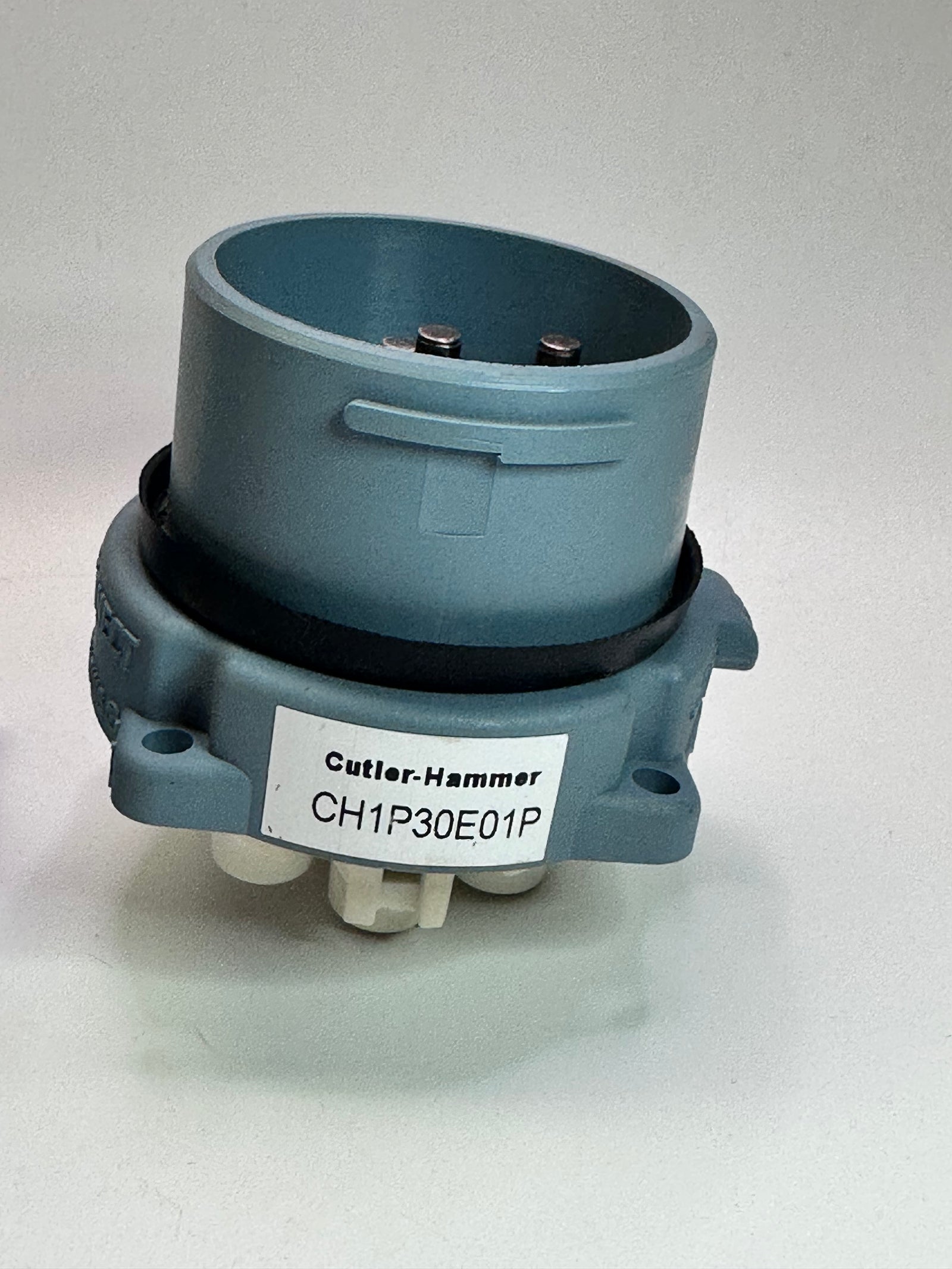

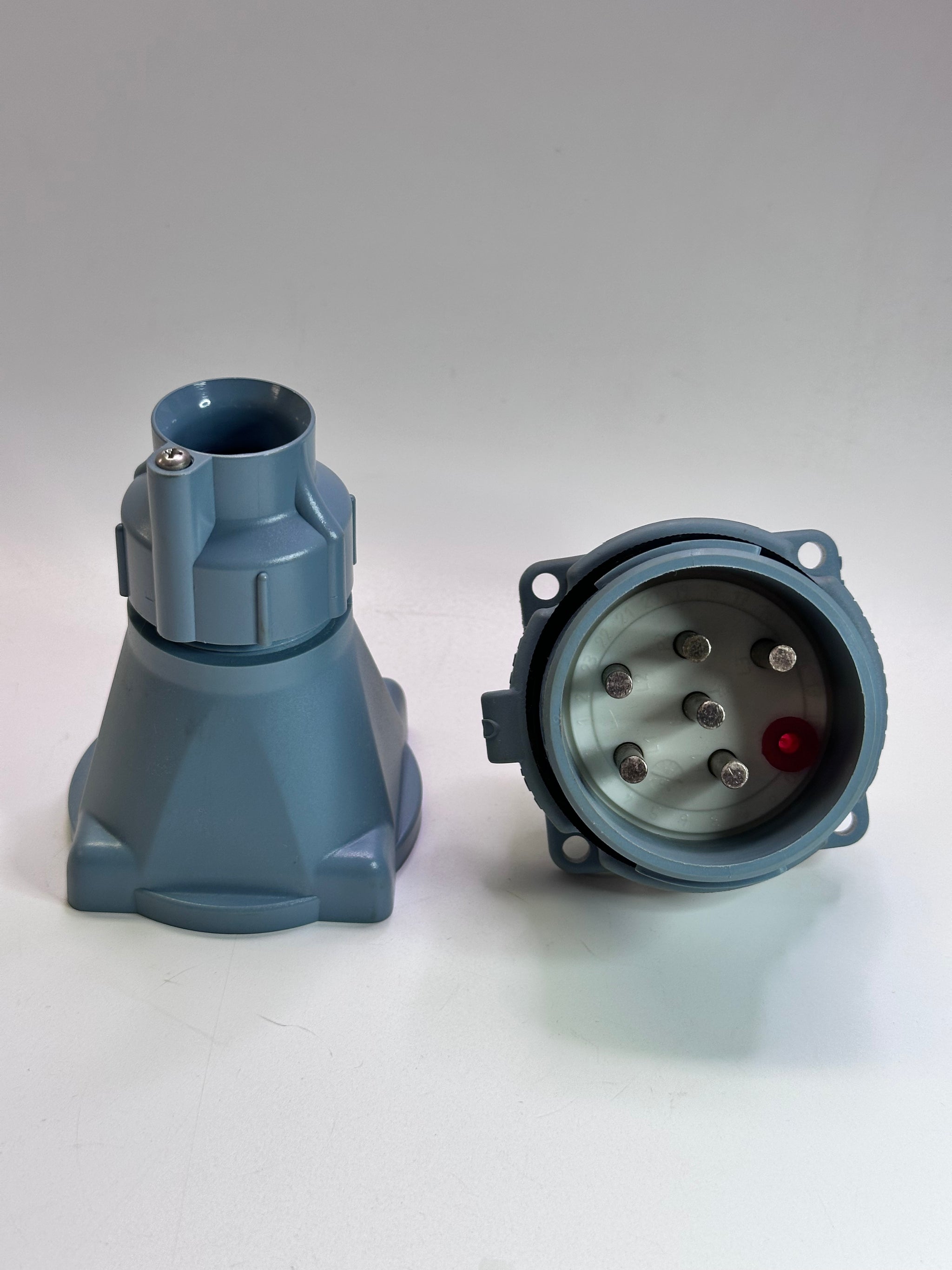

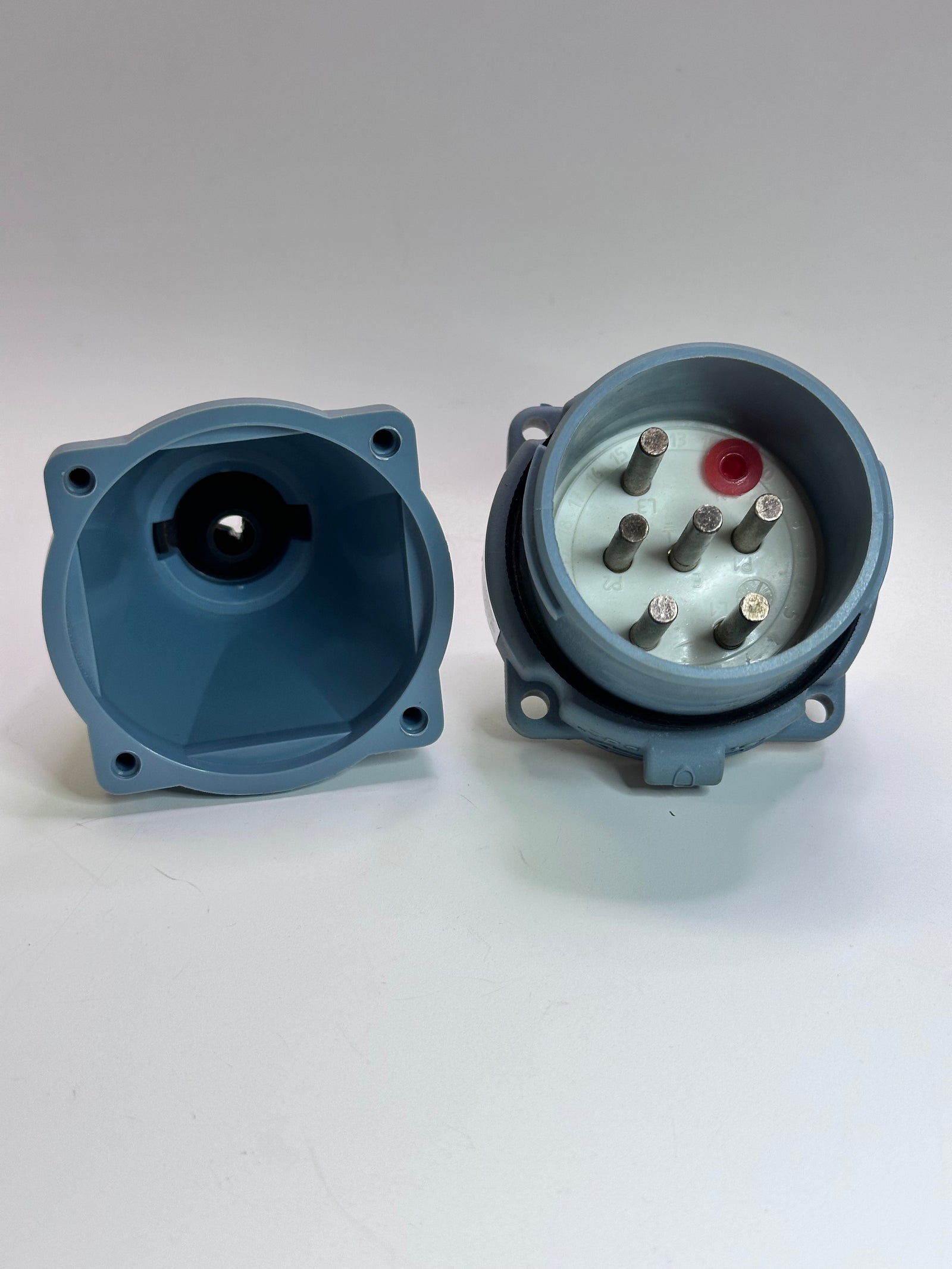

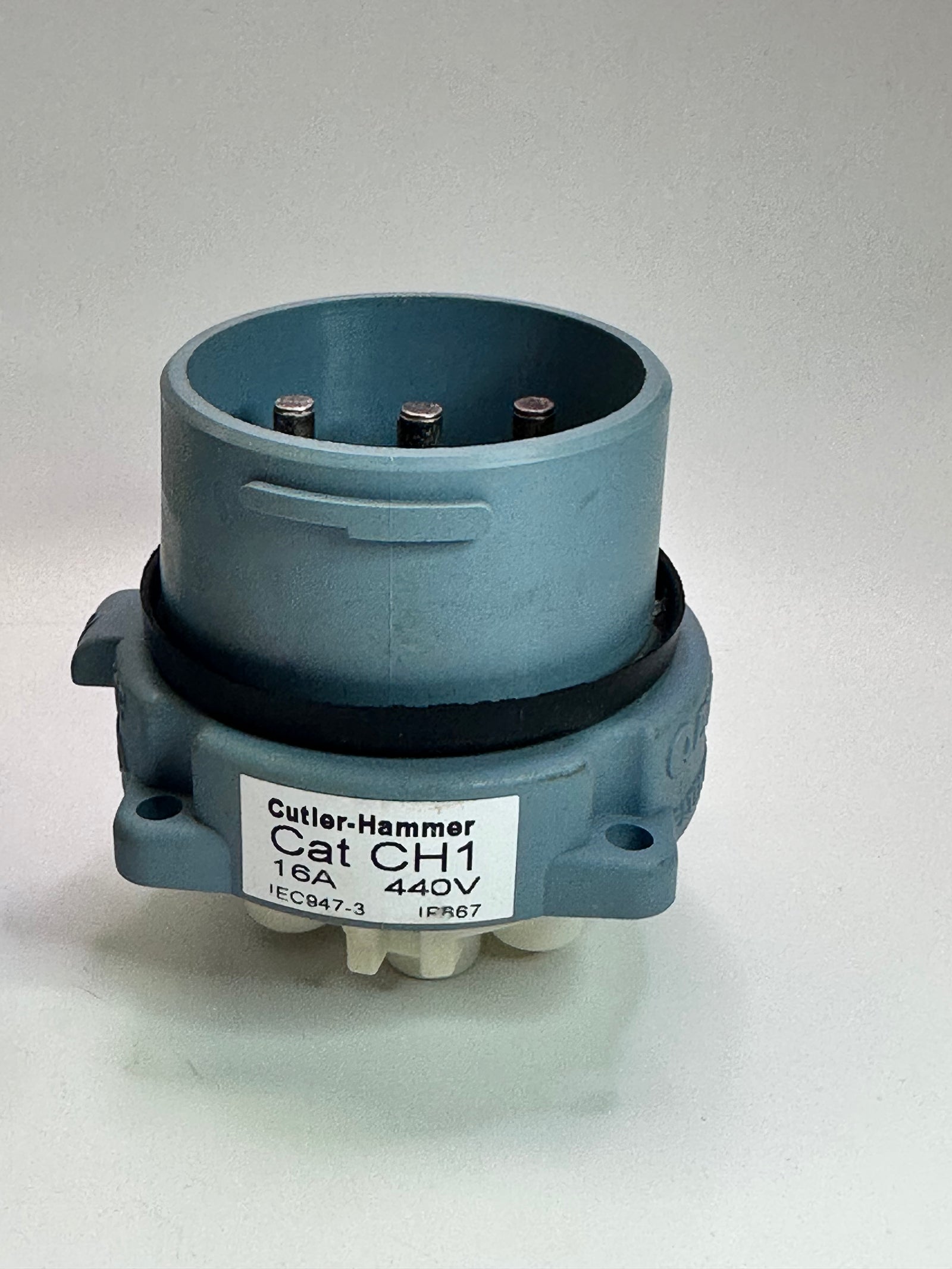

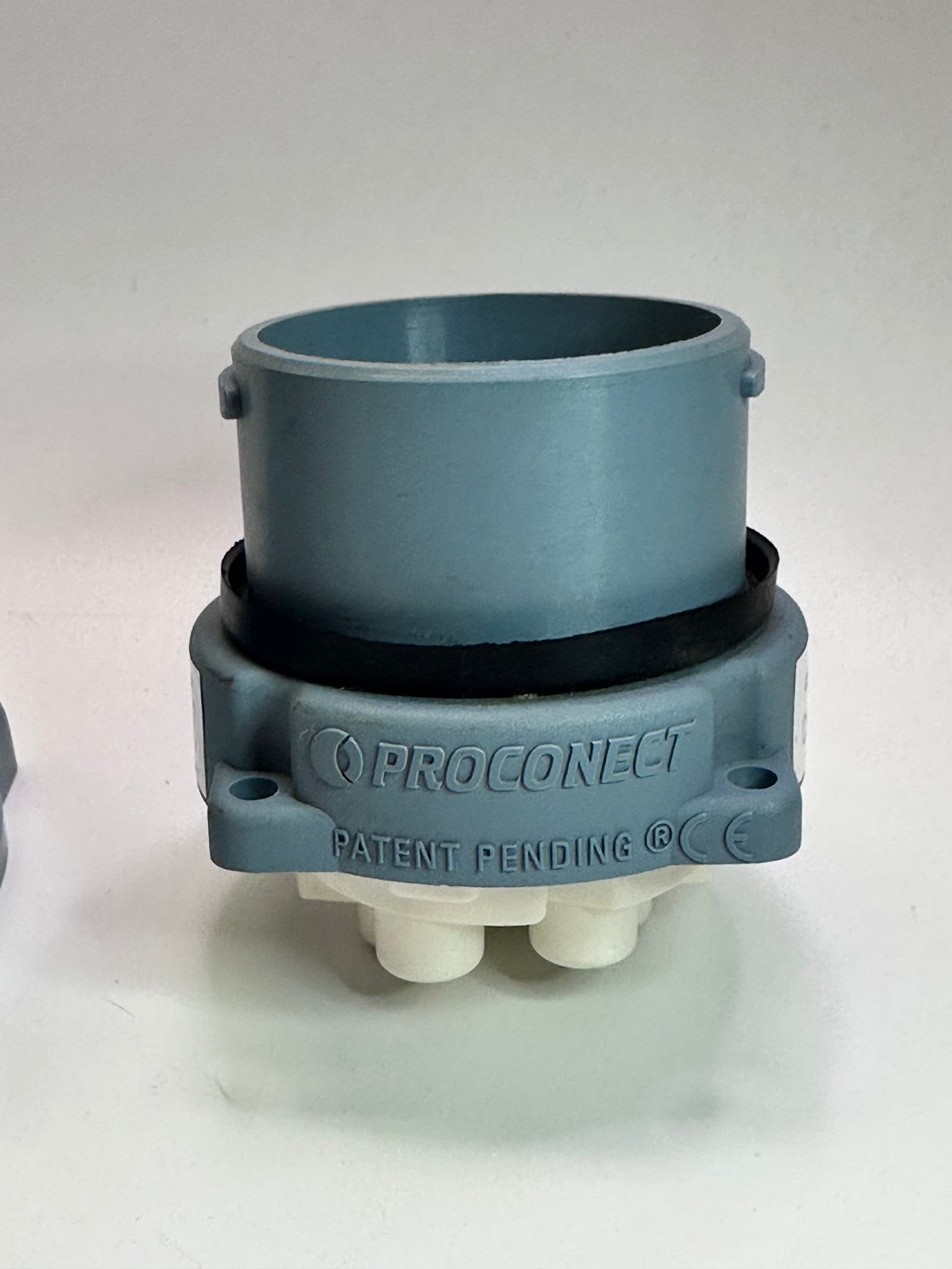

CH1P30E01P Appliance Inlet & Handle, 16A, 3P+E+2p
- SKU
- P-MA-C-7536
- Weight
- 2.0 kg
Specifications
| Manufacturer | CUTLER-HAMMER |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-MA-C-7536 |
| Weight | 2.0 kg |
Description
CH1P30E01P appliance inlet and handle, listed as 16A, 3P+E+2p. Includes two 16A pilot pins as stated in the source.
Original source specifications
Includes 2 x 16A Pilot Pins.
Maximum cable sizes: 10 mm2 standard, 6 mm2 flexible
Cable outside diameter: minimum 7 mm, maximum 18 mm
Stripping length: sheathing 33 mm, insulation 13 mm
IP rating: socket outlet IP 66, outlet and inlet IP 66
Rated current:
AC23 16 A/440 V AC
(AS/NZ 3947-3
IEC60947-3)
30 A maximum rated
current (IEC60309-1)
M-Rating M200
(AS3133)
Housing material: polyamide 6
Identity and rating checks
The legacy reference 3PS16A30E01P and CAT CH1, EATON and marechal keywords are retained without assuming interchangeability; the existing vendor record remains CUTLER-HAMMER.
The source AC23 16 A/440 V AC and 30 A maximum under IEC60309-1 are distinct rating conditions, not permission to use 30A for every application. IP 66 statements refer to the source socket/outlet-and-inlet configurations, not verified protection for this item in every connected or disconnected state. The socket outlet itself is not established as supplied.
AS/NZ 3947-3, IEC60947-3, IEC60309-1, M200 and AS3133 are retained as source references, not new compliance certification. Cable/stripping figures are source specifications rather than installation instructions. Confirm the actual markings, compatible mating device, ratings and installation requirements before use.
